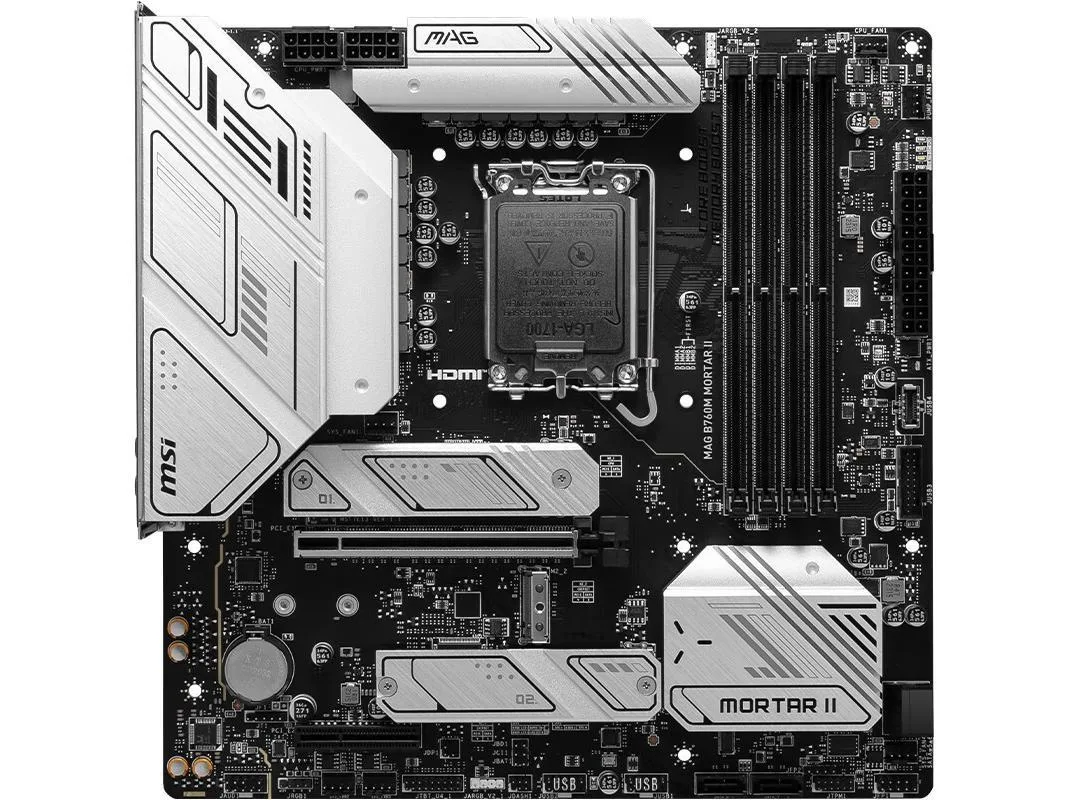

Dark grey Micro ATX board with silver heatsinks, black PCB, LGA 1700 socket, four DDR5 slots, PCIe x16 and x4 slots

MSI

MSI MAG B760M MORTAR II Intel Motherboard

SKU CH-W1K2-6F9JJ

Supports Intel Core 12, 13 and 14 Gen CPUs on LGA 1700 with DDR5 up to 256GB and 2.5Gbps LAN

  • CPU Socket TypeLGA 1700
  • CPU TypeSupport Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel P
  • ChipsetIntel B760
  • Memory StandardSupport 7800 + (OC)/7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/
  • Maximum Memory Supported256GB
  • PCI Slots1X PCI-E x16 slots (quantity) 1x PCI-E x4 slot PCI_E1 Gen PC
  • Supports Intel Core 12th, 13th and 14th Gen CPUs via LGA 1700 socket
  • DDR5 memory up to 7800 MHz OC with 256 GB maximum capacity
  • PCIe 5.0 x16 slot for high-bandwidth graphics cards
  • Realtek 2.5 Gbps LAN and Realtek ALC897 7.1-channel audio
  • Rear USB 20 Gbps Type-C plus multiple 10 Gbps and 5 Gbps ports

Socket LGA 1700 Micro ATX motherboard

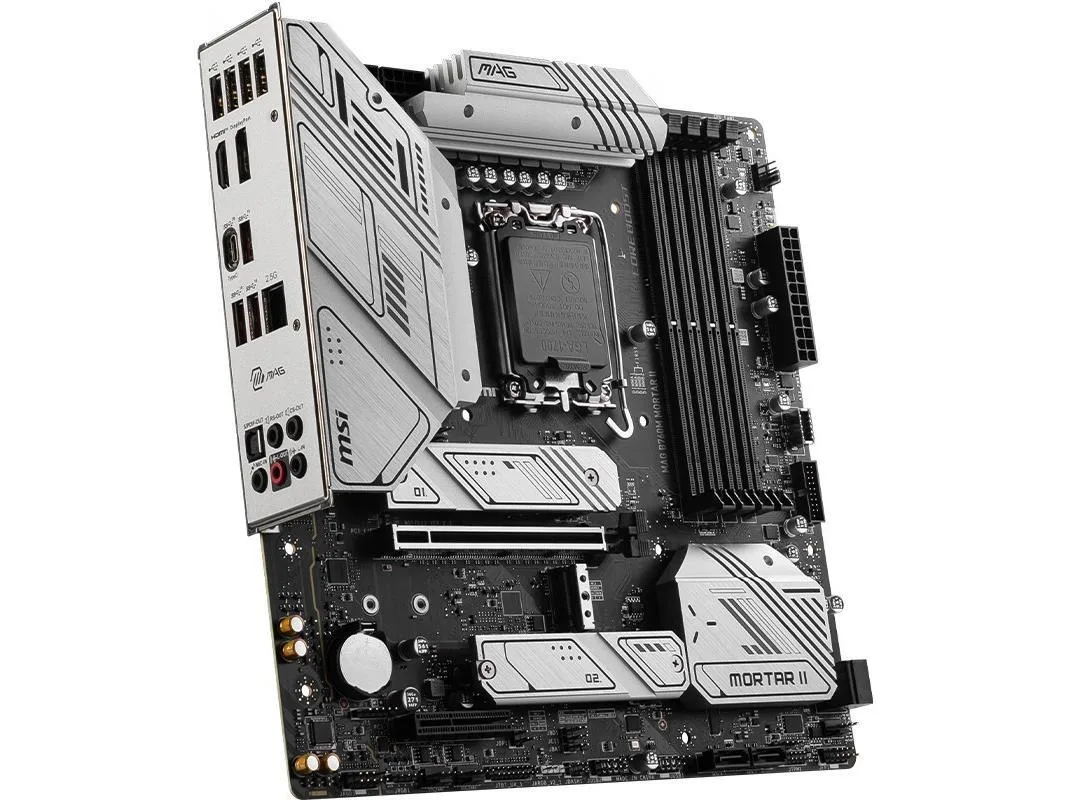

The MSI MAG B760M MORTAR II is a Micro ATX board built on the Intel B760 chipset for LGA 1700 processors. It supports Intel Core 12th, 13th and 14th generation CPUs as well as Pentium Gold and Celeron models. The board provides a compact foundation for a DDR5 system with up to 256GB of memory.

Verify CPU cooler clearance and power phases

Before ordering, confirm that your case accepts a Micro ATX form factor and that the CPU cooler mounting holes match the LGA 1700 pattern. Check that your power supply delivers the required 12V and ATX connectors for the board's voltage regulator layout. Ensure the rear I/O cutout aligns with the supplied back panel.

Bundled SATA cable and I/O shield only

The package includes one SATA cable and the chassis I/O back panel. No additional cables, Wi-Fi antennas or driver media are supplied. The single SATA cable connects one drive to the four SATA III ports. The back panel simply covers the rear port cutout in the case.

Highlights

  • Supports Intel Core 12th, 13th and 14th Gen CPUs via LGA 1700 socket
  • DDR5 memory up to 7800 MHz OC with 256 GB maximum capacity
  • PCIe 5.0 x16 slot for high-bandwidth graphics cards
  • Realtek 2.5 Gbps LAN and Realtek ALC897 7.1-channel audio
  • Rear USB 20 Gbps Type-C plus multiple 10 Gbps and 5 Gbps ports

Specifications

BrandMSI
SeriesMSI MAG B760M MORTAR II
ModelMSI MAG B760M MORTAR II
CPU Socket TypeLGA 1700
CPU TypeSupport Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
LGA1700
ChipsetIntel B760
Memory StandardSupport 7800 + (OC)/7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (JEDEC)/5400 (JEDEC)/5200 (JEDEC)/5000 (JEDEC)/4800 (JEDEC) MHz
Maximum Memory Supported256GB
PCI Slots1X PCI-E x16 slots (quantity)
1x PCI-E x4 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)
SATA RAID3xM.2 interface, 4xSATA III interface
Audio ChipsetRealtek ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN ChipsetRealtek 2.5Gbps LAN
Onboard USB4X USB 2.0 (rear)
4X USB 2.0 (front)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)

Questions about this item

What comes in the box and what do I need to buy separately?

The package includes the motherboard, one SATA cable and the chassis I/O back panel; CPU, DDR5 memory, storage drives and a cooler must be purchased separately.

Which memory speed should I choose from the supported list?

The board supports DDR5 from 4800 MHz JEDEC up to 7800 MHz overclocked; pick a kit that matches your CPU's memory controller and your budget.

What does the 256 GB maximum memory figure mean in practice?

You can install up to 256 GB of DDR5 across the four slots, allowing very large workloads provided you use compatible high-capacity modules.
