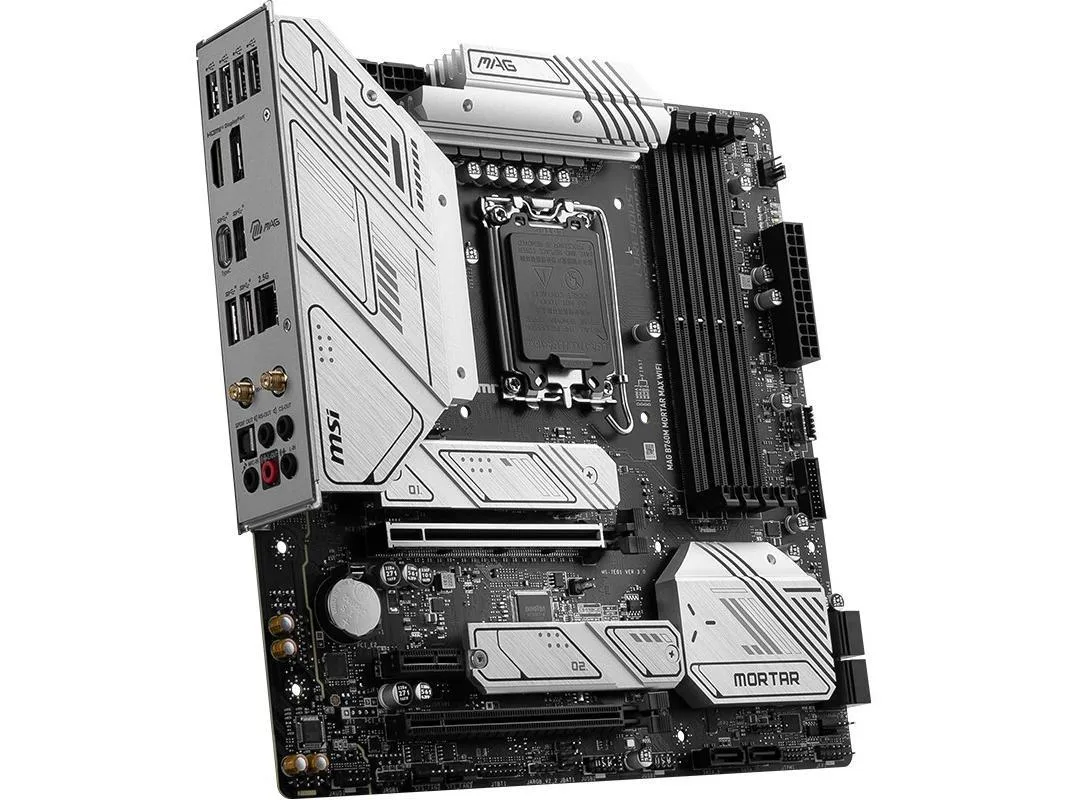

Dark grey micro ATX board with silver heatsinks and black I/O shield

MSI

MSI MAG B760M MORTAR MAX WIFI Intel motherboard

SKU CH-N7XZ-G8FZ1

Micro ATX board for Intel Core 12, 13 and 14 Gen CPUs with dual-channel DDR5 up to 256GB and 2.5Gbps LAN

  • CPU Socket TypeLGA 1700
  • CPU TypeSupport Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel P
  • ChipsetIntel B760
  • Memory StandardSupport dual channel DDR5 7000 + (OC)/6800 (OC)/6600 (OC)/64
  • Maximum Memory Supported256GB
  • PCI Slots2X PCI-E x16 slots (quantity) Supports x16/x4 1X PCI-E x1 sl
  • Supports up to 256 GB DDR5 memory for heavy multitasking
  • PCIe 5.0 x16 slot enables latest graphics cards
  • 5 Gbps LAN delivers fast wired networking
  • 1-channel Realtek ALC897 audio for immersive sound
  • USB 20 Gbps Type-C port provides high-speed connectivity

Intel B760 Micro ATX for 12th to 14th Gen CPUs

This MSI MAG B760M MORTAR MAX WIFI motherboard uses the LGA 1700 socket and Intel B760 chipset. It supports Intel Core 12th, 13th and 14th Gen processors plus Pentium Gold and Celeron CPUs. The board delivers dual-channel DDR5 memory support up to 256GB capacity.

Suited for DDR5 Builds Needing Rear USB 20Gbps

Builders who want high-speed rear USB 20Gbps Type-C connectivity and 2.5Gbps LAN on a compact Micro ATX form factor will fit this board. Users requiring more than two full-length PCIe x16 slots or legacy PCI slots should look at a full-size ATX alternative instead.

Primary Deciding Spec: Maximum 256GB DDR5 Memory

The four DIMM slots accept dual-channel DDR5 up to 256GB total. This ceiling determines whether the platform can handle heavy multitasking, content creation workloads or large virtual-machine fleets before you commit to the purchase.

Highlights

  • Supports up to 256 GB DDR5 memory for heavy multitasking
  • PCIe 5.0 x16 slot enables latest graphics cards
  • 5 Gbps LAN delivers fast wired networking
  • 1-channel Realtek ALC897 audio for immersive sound
  • USB 20 Gbps Type-C port provides high-speed connectivity

Specifications

BrandMSI
SeriesMSI MAG B760M MORTAR MAX WIFI
ModelMSI MAG B760M MORTAR MAX WIFI
CPU Socket TypeLGA 1700
CPU TypeSupport Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
LGA1700
ChipsetIntel B760
Memory StandardSupport dual channel DDR5 7000 + (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (JEDEC)/5400 (JEDEC)/5200 (JEDEC)/5000 (JEDEC)/4800 (JEDEC) MHz memory
Maximum Memory Supported256GB
PCI Slots2X PCI-E x16 slots (quantity)
Supports x16/x4
1X PCI-E x1 slot (quantity)
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
SATA RAID2XM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC897 Codec
7.1-Channel High Performance Audio
Supports S/PDIF output
LAN ChipsetRealtek 2.5Gbps LAN
Onboard USB4X USB 2.0 (rear)
4X USB 2.0 (front)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)

Questions about this item

What size case and mounting holes does this Micro ATX board require?

The board follows the Micro ATX form factor, so it fits any chassis with Micro ATX or larger standoffs and the standard LGA 1700 socket cut-out.

How do I seat the CPU and cooler on the LGA 1700 socket, and what step is often missed?

Align the notches on the processor with the socket keys, lower the retention lever fully, then apply thermal paste before mounting the cooler; many builders forget to remove the protective cover from the socket before insertion.

Which onboard component will need replacement over the life of the board?

The Realtek ALC897 audio codec and 2.5 Gbps LAN controller are soldered, so the only serviceable part is the socketed CMOS battery that maintains firmware settings when the system is unplugged.
