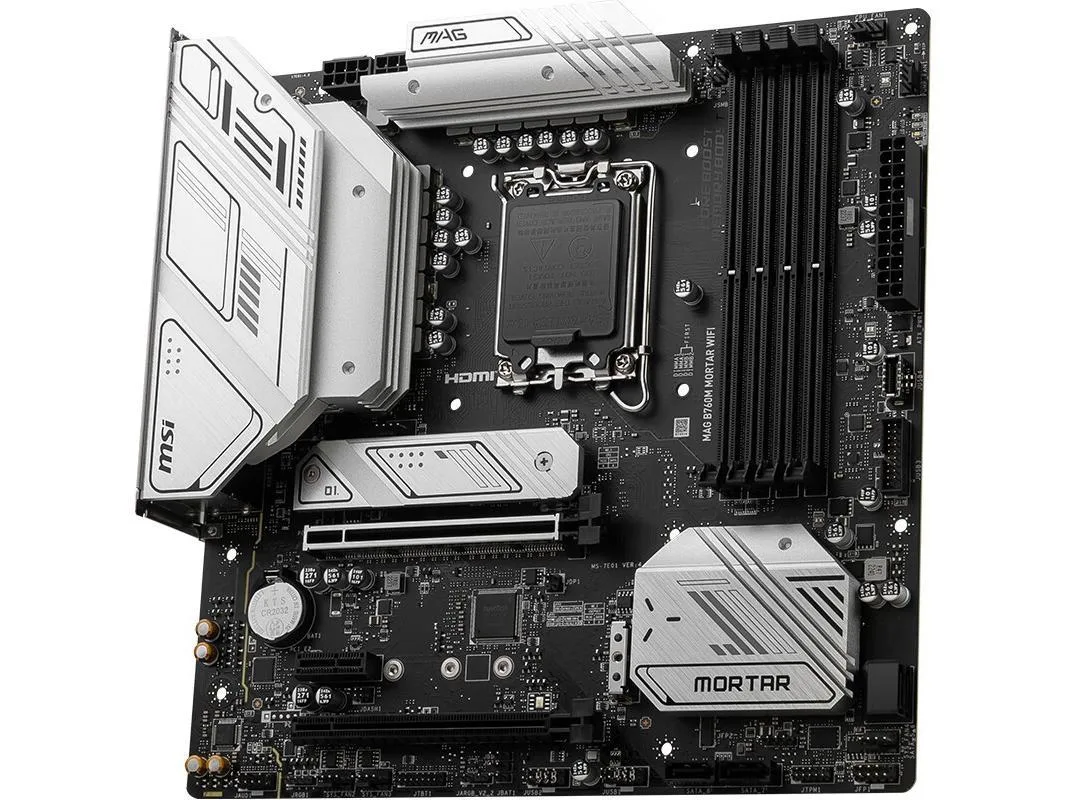

Dark green Micro ATX board with silver heatsinks and rear I/O shield

MSI

MSI MAG B760M MORTAR WIFI Intel motherboard

SKU CH-670M-GWDTP

A Micro ATX board for LGA 1700 CPUs with DDR5 memory up to 256GB and 2.5Gbps LAN

  • CPU Socket TypeLGA 1700
  • CPU TypeSupport Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel P
  • ChipsetIntel B760
  • Memory StandardSupport dual channel DDR5 7000 + (OC)/6800 (OC)/6600 (OC)/64
  • Maximum Memory Supported256GB
  • PCI Slots2X PCI-E x16 slots (quantity) Supports x16/x4 1X PCI-E x1 sl
  • Supports Intel Core 12 13 14 Gen processors via LGA 1700 socket
  • Dual channel DDR5 memory up to 7000 MHz overclocked with 256 GB maximum capacity
  • PCIe 5.0 x16 slot and PCIe 4.0 x4 slot for high speed graphics and storage expansion
  • Realtek 2.5 Gbps LAN plus Wi Fi antenna included for fast wired and wireless networking
  • Realtek ALC897 7.1 channel audio with S/PDIF output for immersive sound quality

Intel B760 micro-ATX for 12th to 14th Gen

This board pairs an Intel B760 chipset with an LGA 1700 socket to support Intel Core 12th, 13th and 14th generation processors plus Pentium Gold and Celeron models. The micro-ATX form factor fits smaller chassis while still providing four DDR5 slots for up to 256 GB of memory. It targets builders who want current Intel performance in a compact layout.

DDR5 speeds from 4800 to 7000 MHz

Memory runs at JEDEC speeds from 4800 up to 5600 MHz and can be overclocked through 5800, 6000, 6200, 6400, 6600, 6800 to 7000 MHz. Only two channels are available, so maximum bandwidth is capped by the dual-channel architecture. The primary PCIe x16 slot operates at Gen 5.0 from the CPU, while the second x16 slot and the x1 slot run at Gen 3.0 and Gen 4.0 respectively from the chipset.

Standard micro-ATX install

Mounting follows the usual micro-ATX screw pattern and the bundled I/O shield simplifies rear-port alignment. The board includes headers for front-panel USB 2.0, 5 Gbps Type-A, 10 Gbps Type-A and 10 Gbps Type-C plus a rear 20 Gbps Type-C, so cable routing depends on case support. Builders sometimes forget the Wi-Fi antenna or the extra 12 V CPU power connector, which are both required for full functionality.

Highlights

  • Supports Intel Core 12 13 14 Gen processors via LGA 1700 socket
  • Dual channel DDR5 memory up to 7000 MHz overclocked with 256 GB maximum capacity
  • PCIe 5.0 x16 slot and PCIe 4.0 x4 slot for high speed graphics and storage expansion
  • Realtek 2.5 Gbps LAN plus Wi Fi antenna included for fast wired and wireless networking
  • Realtek ALC897 7.1 channel audio with S/PDIF output for immersive sound quality

Specifications

BrandMSI
SeriesMSI MAG B760M MORTAR WIFI
ModelMSI MAG B760M MORTAR WIFI
CPU Socket TypeLGA 1700
CPU TypeSupport Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
LGA1700
ChipsetIntel B760
Memory StandardSupport dual channel DDR5 7000 + (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (JEDEC)/5400 (JEDEC)/5200 (JEDEC)/5000 (JEDEC)/4800 (JEDEC) MHz memory
Maximum Memory Supported256GB
PCI Slots2X PCI-E x16 slots (quantity)
Supports x16/x4
1X PCI-E x1 slot (quantity)
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
SATA RAID2XM.2 interface, 4xSATA III interface
Audio ChipsetRealtek ALC897 Codec
7.1-Channel High Performance Audio
Supports S/PDIF output
LAN ChipsetRealtek 2.5Gbps LAN
Onboard USB4X USB 2.0 (rear)
4X USB 2.0 (front)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)

Questions about this item

Will my Intel Core 13th gen CPU fit this LGA 1700 socket?

Yes, the board supports Intel Core 12th, 13th and 14th gen processors as well as Pentium Gold and Celeron CPUs in the LGA 1700 socket.

Can I install 256 GB of DDR5 memory?

The board has four DDR5 slots and supports up to 256 GB total capacity with JEDEC speeds from 4800 to 5600 MHz and overclocked speeds up to 7000 MHz.

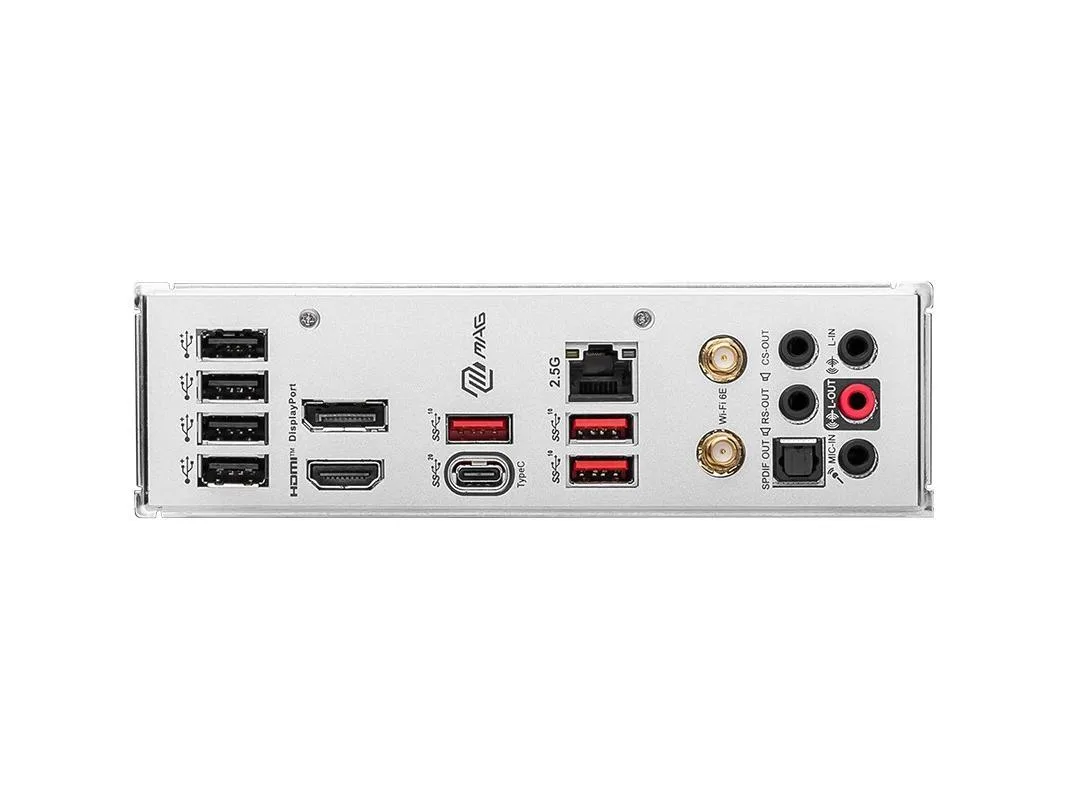

Does the rear I/O include a USB 20 Gbps Type-C port?

Yes, the rear panel provides one USB 20 Gbps Type-C port, three USB 10 Gbps Type-A ports and four USB 2.0 ports.
