MSI
MSI MAG B760M MORTAR WIFI Intel motherboard FF4D516G6000HC38ADC01
Micro ATX board for LGA 1700 CPUs with DDR5 memory, PCIe 5.0 graphics slot, Wi-Fi 6E and 2.5Gb LAN
- CPU Socket TypeLGA 1700
- CPU TypeIntel Core 13th Gen (LGA 1700)
- ChipsetIntel B760
- Number of Memory Slots4x288pin (DDR5)
- Memory StandardDDR5 5600
- Maximum Memory Supported128GB
- Supports Intel 12th, 13th and 14th Gen CPUs on LGA 1700 socket
- PCIe 5.0 x16 slot provides up to 128GB/s bandwidth for graphics cards
- DDR5 memory overclocking up to 7000+ MHz with four 288-pin slots
- Wi-Fi 6E and 2.5Gbps LAN for high-speed wireless and wired networking
- M.2 Shield FROZR cools two M.2 SSDs to prevent thermal throttling

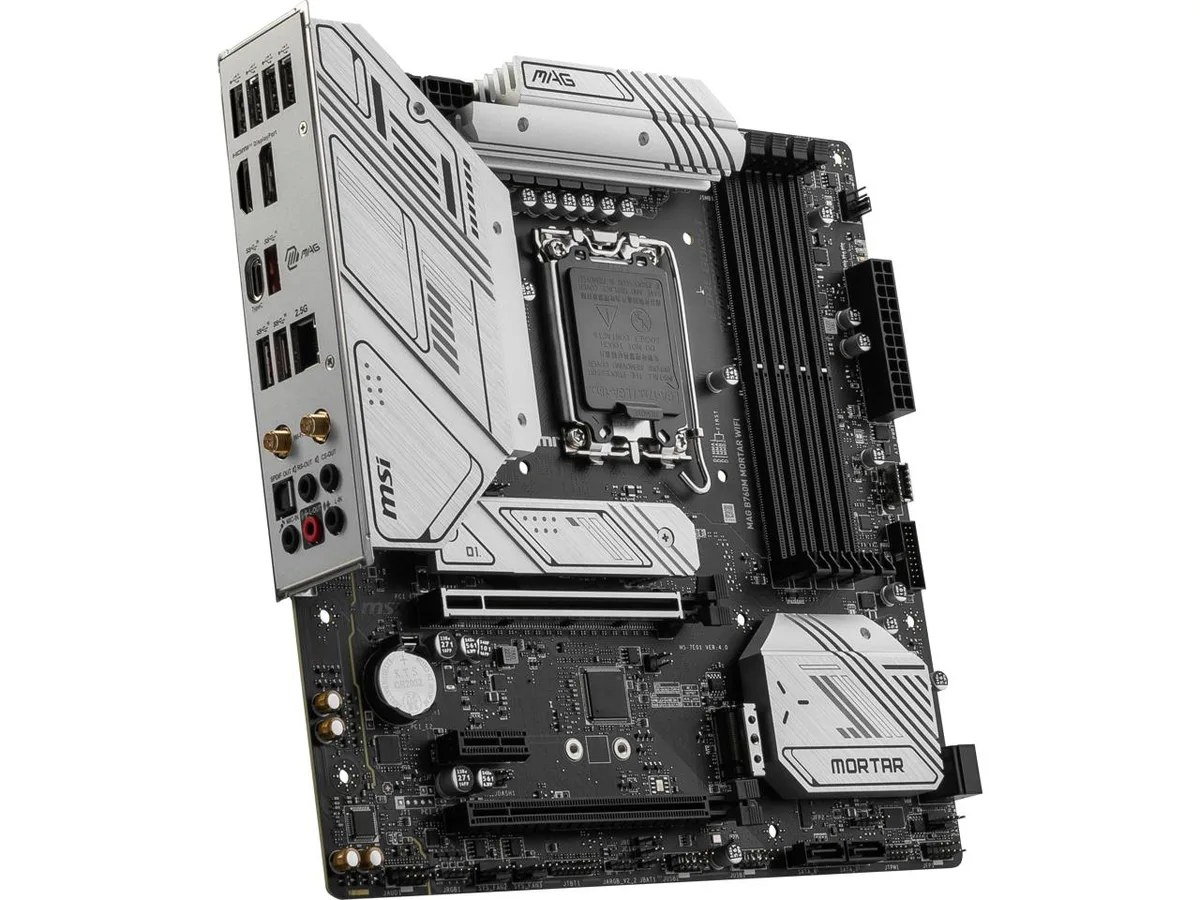

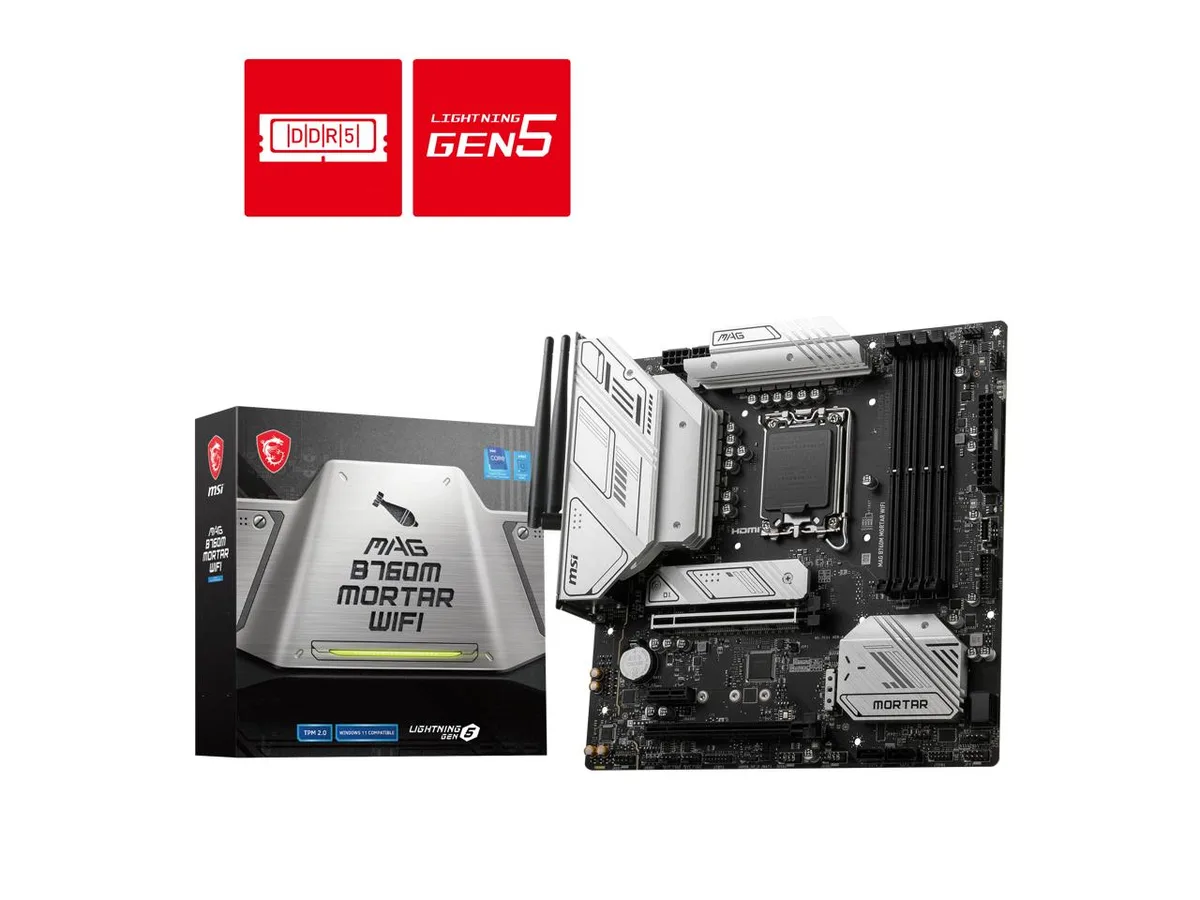

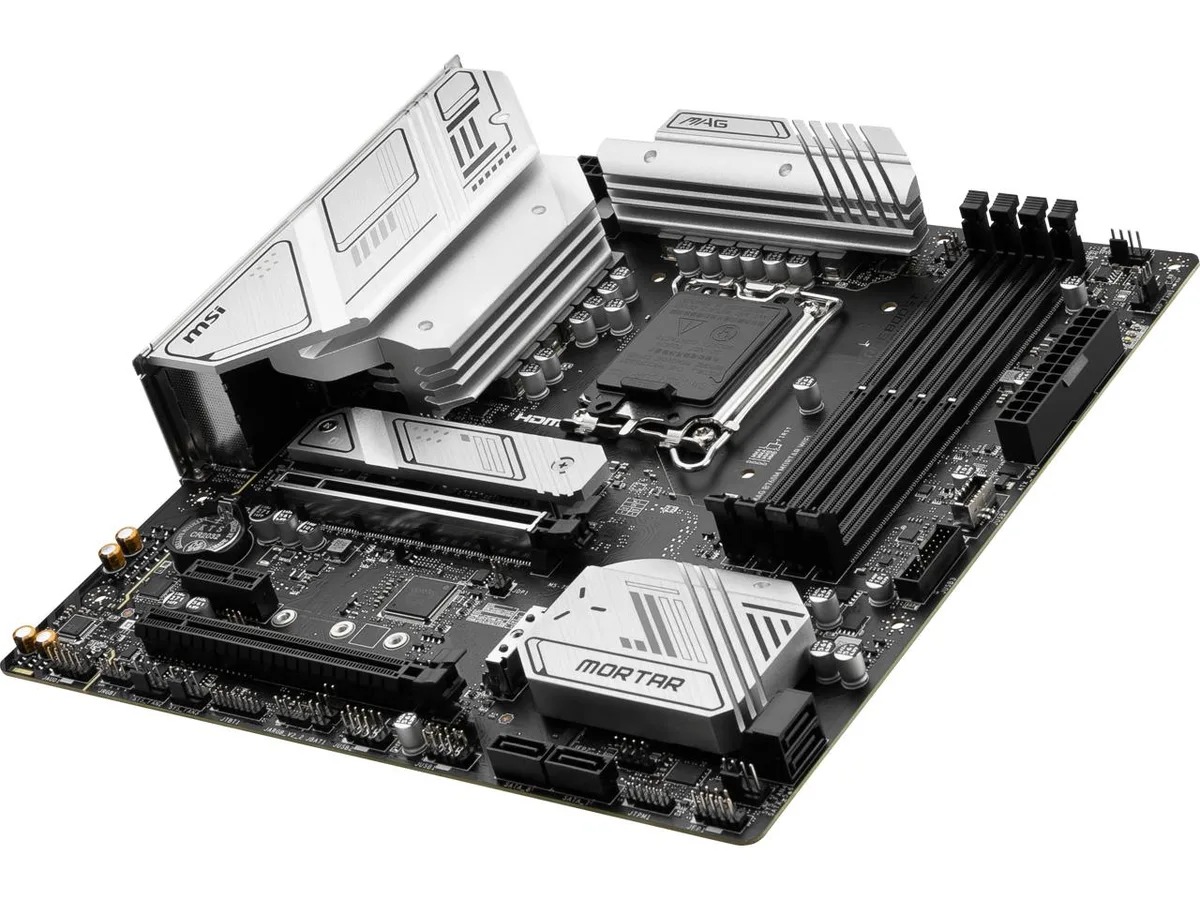

LGA 1700 Micro ATX DDR5 Board
The MSI MAG B760M MORTAR WIFI fits Intel Core 12th, 13th and 14th Gen processors in a Micro ATX layout. Four 288-pin slots support up to 128GB of DDR5 memory running at 5600 MT/s by JEDEC. It targets builders who need a compact platform with modern connectivity.
Sustained Load Thermal Behaviour
The M.2 Shield FROZR covers the primary M.2 slot to dissipate heat during long write sessions. PCIe 5.0 x16 and dual PCIe 4.0 x4 M.2 interfaces keep bandwidth high for extended transfers. The OC Engine clock generator helps the CPU maintain higher frequencies under continuous multi-threaded workloads.
Build Quality and Daily Connections
A Realtek ALC897 codec drives 7.1-channel audio through standard rear jacks. Rear I/O includes a USB 3.2 Gen 2x2 port at 20Gbps, 2.5GbE LAN and Wi-Fi 6E with 6GHz support. Four SATA 6Gb/s ports and two M.2 slots (2242/2260/2280/22110) give flexible storage options for daily use.
Highlights
- Supports Intel 12th, 13th and 14th Gen CPUs on LGA 1700 socket
- PCIe 5.0 x16 slot provides up to 128GB/s bandwidth for graphics cards
- DDR5 memory overclocking up to 7000+ MHz with four 288-pin slots
- Wi-Fi 6E and 2.5Gbps LAN for high-speed wireless and wired networking
- M.2 Shield FROZR cools two M.2 SSDs to prevent thermal throttling
Specifications
| Brand | MSI |
|---|---|
| Model | MAG B760M MORTAR WIFI |
| CPU Socket Type | LGA 1700 |
| CPU Type | Intel Core 13th Gen (LGA 1700) |
| Chipset | Intel B760 |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | DDR5 5600 |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| Memory Feature | Supports 1R 5600 MHz (by JEDEC & POR) Max. overclocking frequency: 1DPC 1R Max speed up to 7000+ MHz 1DPC 2R Max speed up to 6400+ MHz 2DPC 1R Max speed up to 6400+ MHz 2DPC 2R Max speed up to 5600+ MHz Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16 |
| PCI Express x4 | 1 x PCI Express 4.0 x4 |
| PCI Express x1 | 1 x PCI Express 3.0 x1 |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | 2 x M.2 slots (Key M) M2_1 slot (From CPU) Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (From B760 chipset) Supports up to PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot supports Intel Optane Memory |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC897 |
| Audio Channels | 7.1-Channel High Definition Audio |
| LAN Chipset | 1 x Realtek RTL8125BG 2.5Gbps LAN controller |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Intel Wi-Fi 6E |
| Bluetooth | Bluetooth 5.2 |
| Back I/O Ports | 4 x USB 2.0 Type-A ports 1 x DisplayPort 1 x HDMI port 3 x USB 3.2 Gen 2 10Gbps Type-A ports 1 x USB 3.2 Gen 2x2 20Gbps Type-C port 1 x 2.5G LAN (RJ45) port 2 x Wi-Fi Antenna connectors 5 x Audio jacks 1 x Optical S/PDIF OUT connector |
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin water-pump fan connector 4 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x TPM module connector 1 x Tuning Controller connector |
| Windows 11 | Supported |
| Form Factor | Micro ATX |
| LED Lighting | 1 x 4-pin RGB LED connector 2 x 3-pin ARGB V2 LED connectors 4 x EZ Debug LED |
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors |
| Features | MSI Center - Gaming Mode - Smart Priority - Game Highlights - Mystic Light - Ambient Link - Frozr AI Cooling - User Scenario - True Color - Live Update - Hardware Monitoring - Super Charger - Devices Speed Up - Smart Image Finder - MSI Companion - System Diagnosis Thermal Features - Extended Heatsink Design - M.2 Shield Frozr - K7 MOSFET thermal pad / Extra choke pad - Fan headers Perforrmance - Core Boost - VRM Power Design - Dual CPU Power - Memory Boost - Lightning Gen 4 PCI-E / M.2 Slot - Front USB Type-C - Server Grade PCB - 2oz Copper thickened PCB DIY Friendly - PCI-E Steel Ar |
Questions about this item
How much power does the 12+1+1 phase VRM draw when the board runs all day with a 13th Gen Intel Core CPU?
The board uses a 12+1+1 phase power design with OC Engine technology to release maximum CPU power; sustained VRM power draw depends on the specific processor and workload rather than a fixed board figure.
Which DDR5 memory kit must I already own to reach the rated 5600 MHz speed on the four 288-pin slots?
A DDR5 kit rated at 5600 MHz (1R, JEDEC/POR) will run at the rated speed on all four slots; the board supports up to 128 GB total in dual-channel mode.
Will my existing SATA 6Gb/s SSDs and PCIe 3.0 x1 add-in card work alongside the PCIe 5.0 x16 slot and two M.2 slots?
Yes — the board provides four SATA 6Gb/s ports, one PCIe 3.0 x1 slot, one PCIe 4.0 x4 slot, one PCIe 5.0 x16 slot, and two M.2 slots (Key M) that accept 2242/2260/2280/22110 devices, so older SATA drives and PCIe 3.0 cards remain fully usable.
