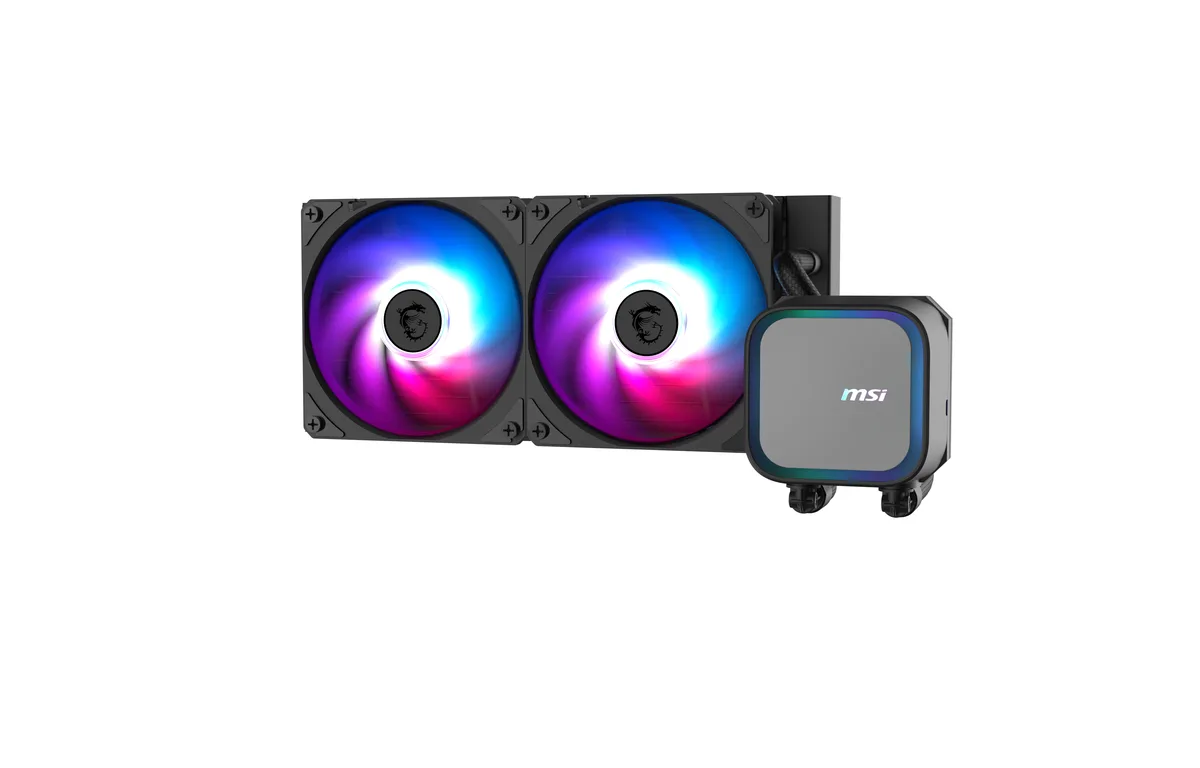

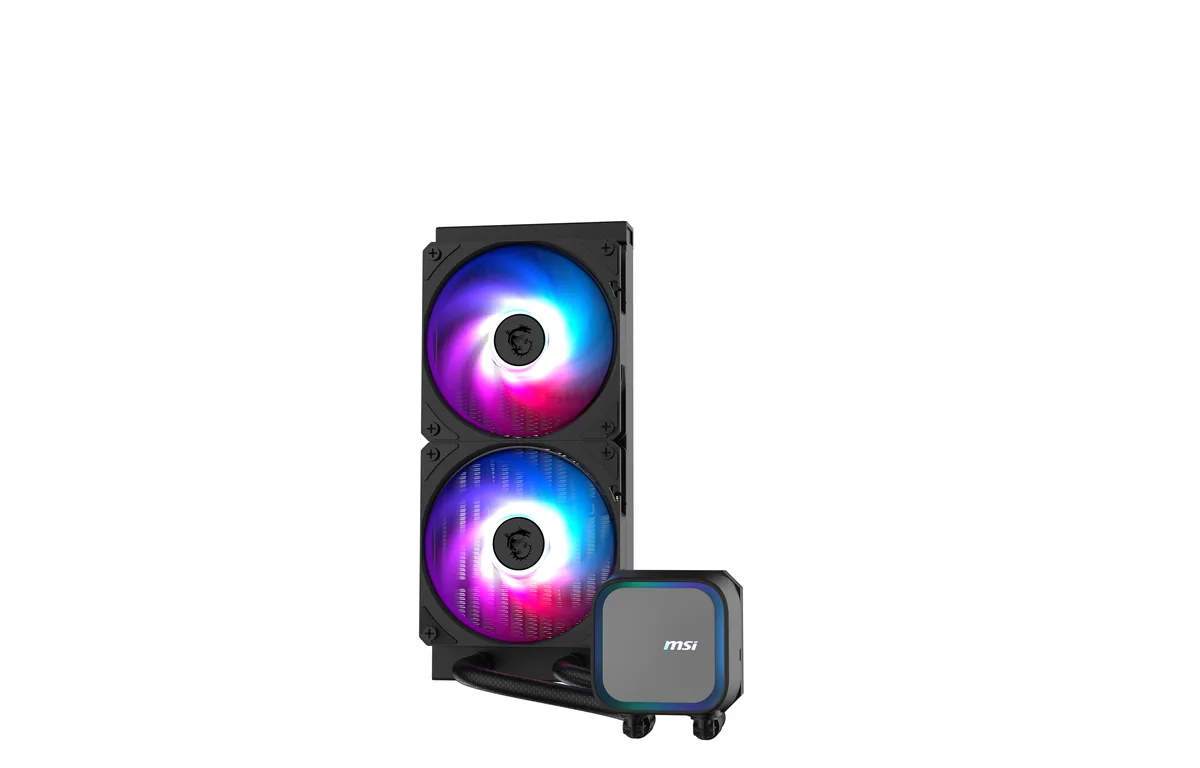

Black 240 mm AIO liquid cooler with dual 120 mm ARGB fans and 390 mm tubing

MSI

MSI MAG Coreliquid A13 240 liquid cooler

SKU CH-NYQD-N02R4 MPN MAG Coreliquid A13 240

A 240 mm radiator with dual 120 mm ARGB PWM fans cools Intel LGA 1700/1851 and AMD AM5/AM4 sockets using a 3800 RPM pump and EPDM tubing

  • TypeAIO
  • Block CompatibilityIntel Socket LGA 1700 / 1851 AMD Socket AM5/AM4
  • Block Compatibility - AMDAMD Socket AM5/AM4
  • Block Compatibility - IntelIntel Socket LGA 1700 / 1851
  • Block Dim.70.9 x 69.3 x 56.98 mm
  • Pump Speed3800 RPM ± 300 RPM

Fan Size 2 Fan Slots (120mm)

Color Black

  • Full-plane copper base with 0.1 mm micro-channels for efficient heat absorption
  • Pump runs at 3800 RPM with 20 dBA average noise for quiet performance
  • 240 mm aluminium radiator paired with dual 120 mm ARGB PWM fans delivering 62.6 CFM
  • Rifle bearing fans rated 500–2000 RPM at 31.1 dBA for durable low-noise airflow
  • EPDM tubing 390 mm long resists evaporation and supports LGA 1700/1851, AM5/AM4 sockets

Design and Compatibility

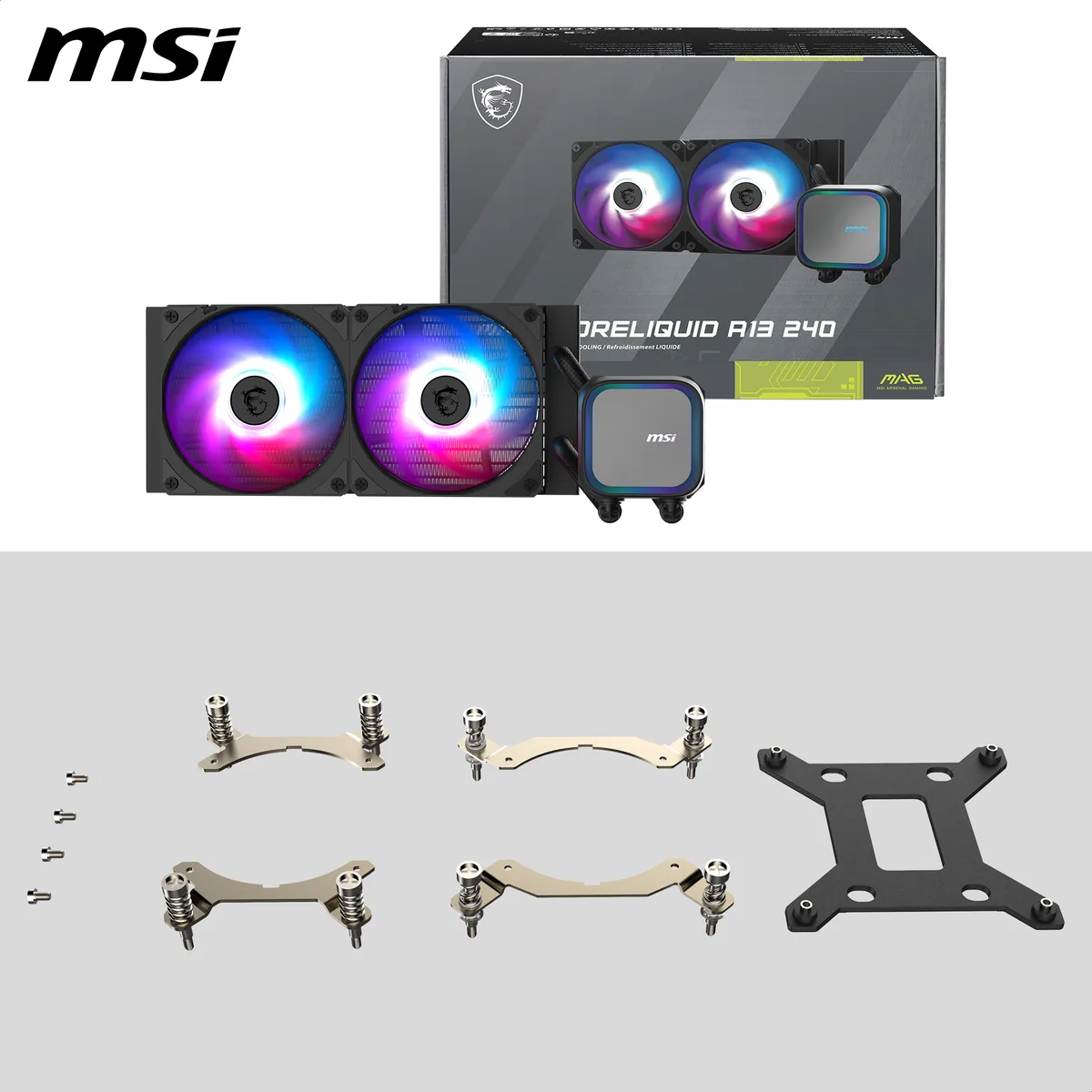

The MSI MAG Coreliquid A13 240 is an all-in-one liquid cooler with a 240 mm aluminum radiator and dual 120 mm ARGB PWM fans. It supports Intel LGA 1700 and 1851 sockets alongside AMD AM5 and AM4 platforms. The water block measures 70.9 x 69.3 x 56.98 mm and includes a pre-installed Intel bracket for faster assembly.

Build Integration

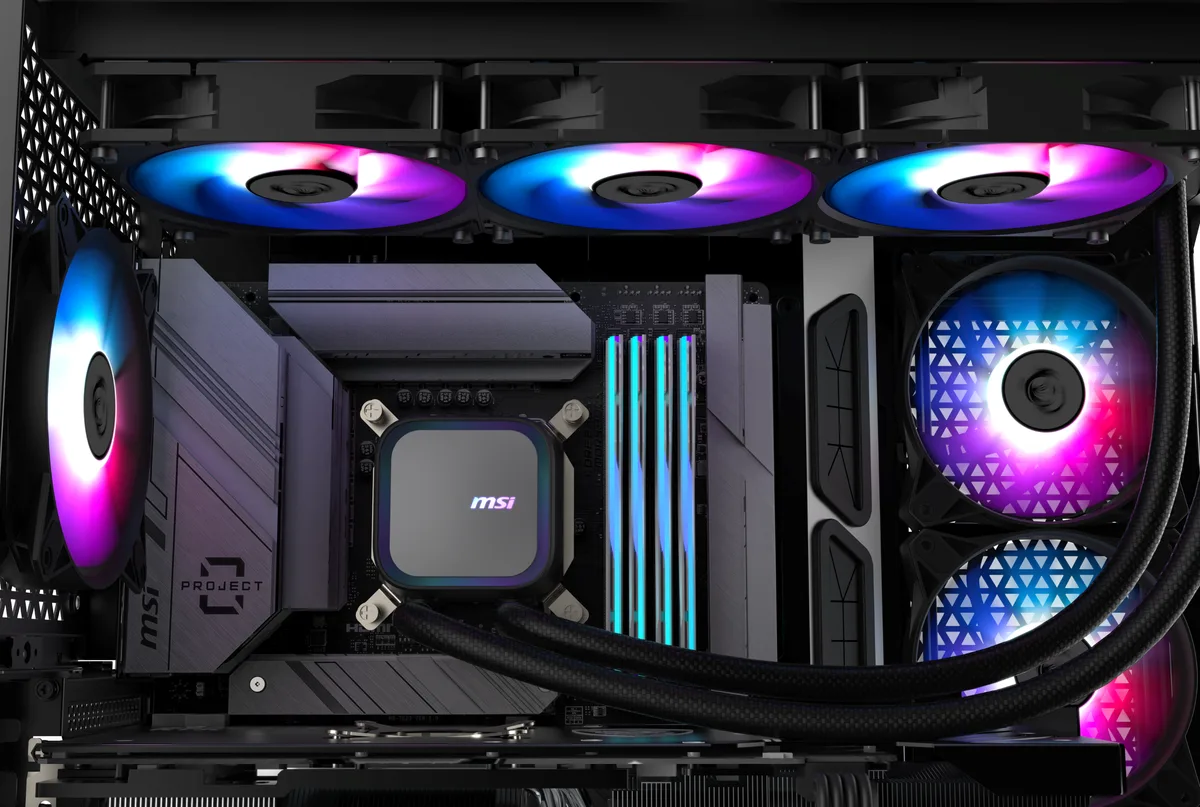

The 390 mm EPDM tubing provides routing flexibility inside standard chassis layouts while resisting coolant evaporation. Pre-installed 120 x 120 x 25 mm fans with Rifle bearings reduce installation time and free up internal space by eliminating separate fan mounting steps. ARGB GEN2 lighting is controllable through MSI Center software without additional controllers.

Sustained Load Behaviour

The pump runs at 3800 RPM ± 300 RPM with an average noise level of 20 dBA, maintaining steady flow through the 0.1 mm micro-channels of the full-plane copper base. Fans operate between 500 and 2000 ± 10% RPM, delivering 62.6 CFM airflow at 2.36 mmH2O static pressure while peaking at 31.1 dBA. This combination keeps temperatures stable during extended workloads.

Highlights

  • Full-plane copper base with 0.1 mm micro-channels for efficient heat absorption
  • Pump runs at 3800 RPM with 20 dBA average noise for quiet performance
  • 240 mm aluminium radiator paired with dual 120 mm ARGB PWM fans delivering 62.6 CFM
  • Rifle bearing fans rated 500–2000 RPM at 31.1 dBA for durable low-noise airflow
  • EPDM tubing 390 mm long resists evaporation and supports LGA 1700/1851, AM5/AM4 sockets

Specifications

BrandMSI
TypeAIO
Block CompatibilityIntel Socket LGA 1700 / 1851
AMD Socket AM5/AM4
Block Compatibility - AMDAMD Socket AM5/AM4
Block Compatibility - IntelIntel Socket LGA 1700 / 1851
Block Dim.70.9 x 69.3 x 56.98 mm
Pump Speed3800 RPM ± 300 RPM
Pump Noise20 dBA (avg.)
Radiator Size240 mm
Radiator MaterialAluminum
Fan Size2 Fan Slots (120 mm)
Fan Dim.120 x 120 x 25 mm
Bearing TypeRifle Bearing
Fan RPM500~2000 ± 10% RPM
Fan Air Flow62.6 CFM
Fan Noise31.1 dBA
ColorBlack
LED ColorARGB
Pressure2.36 mmH2O
Tube Dim.390 mm / 15.35 inches
Tube MaterialEPDM
Shipping weight2.09 kg
Package size343 × 267 × 140 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will this cooler fit my LGA 1700 motherboard without extra brackets?

The cooler ships with a pre-installed Intel bracket for LGA 1700 and 1851 sockets, so no additional bracket is required for those platforms.

How much clearance do I need inside my case for the 240 mm radiator and fans?

The radiator is 240 mm long and each fan is 120 x 120 x 25 mm, so allow at least 25 mm depth plus radiator thickness and tubing routing space.

What is the length of the tubing and will it reach a top-mounted radiator in a mid-tower case?

The tubes are 390 mm long, which typically reaches a top-mount position in most mid-tower chassis when the pump sits on the CPU.
