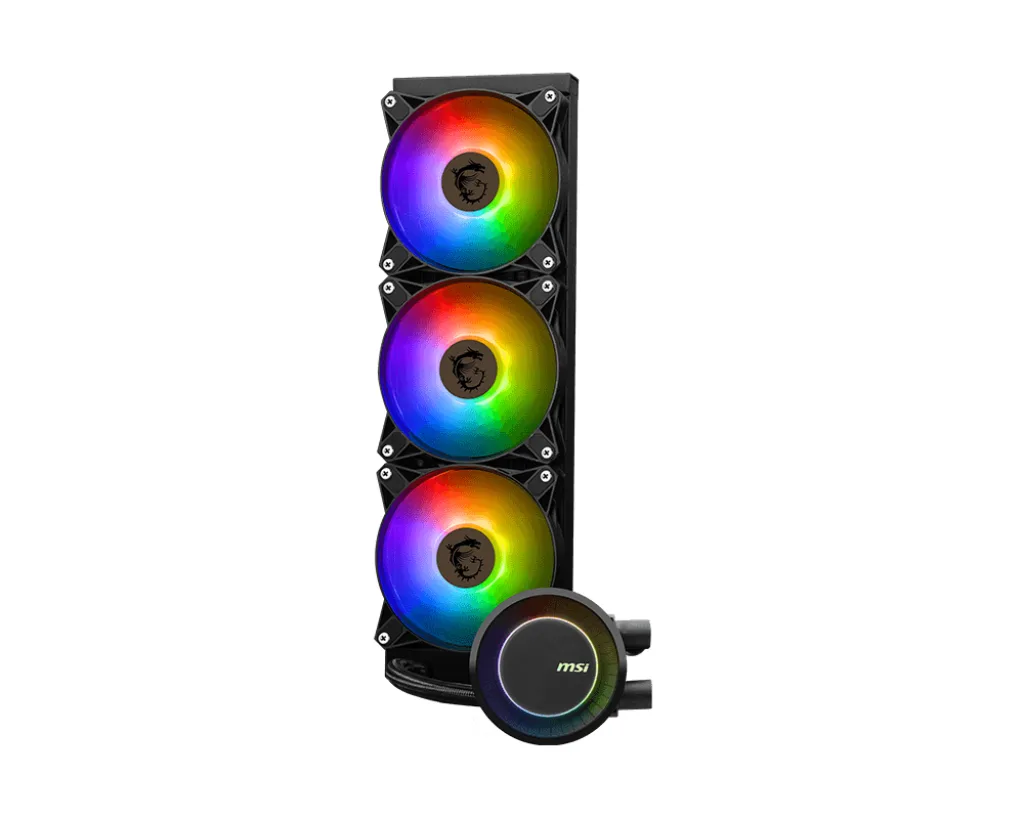

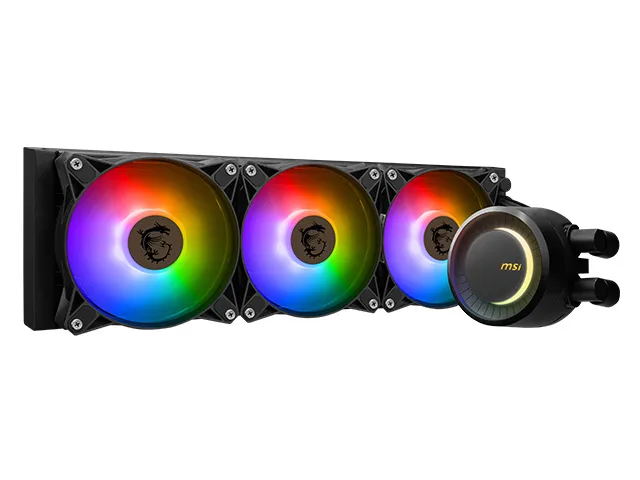

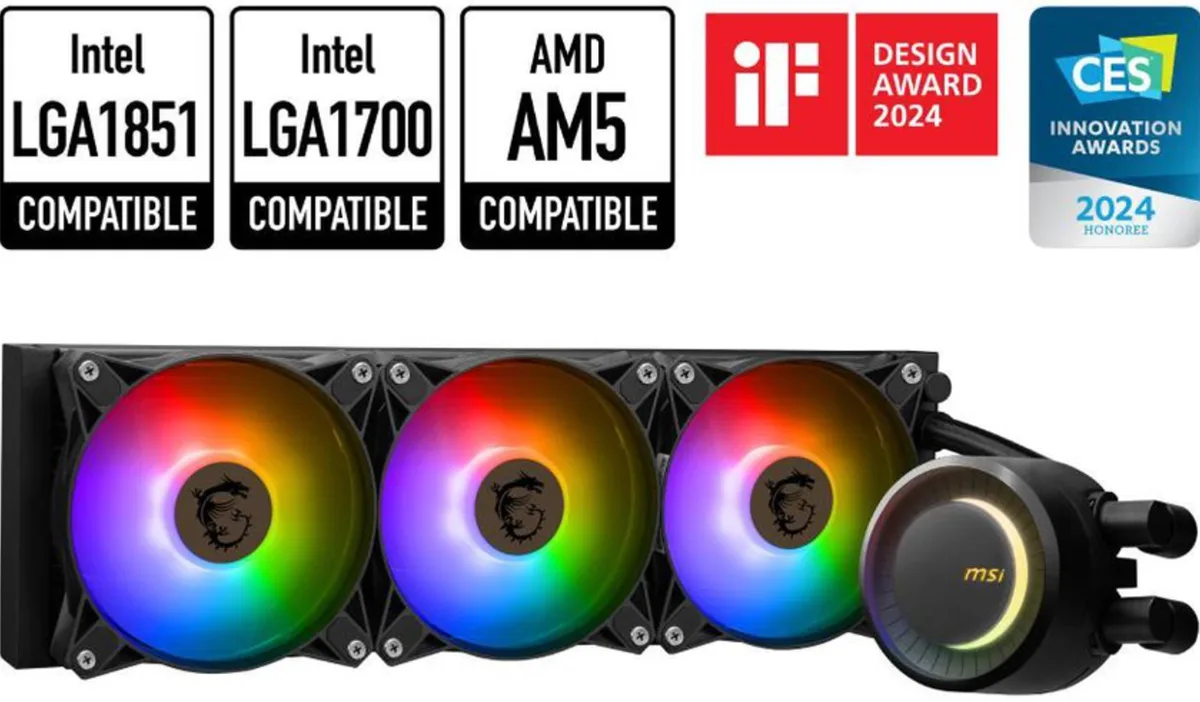

Black AIO liquid cooler with 360mm radiator, three 120mm ARGB fans, rotatable pump cap, black rubber tubes

MSI

MSI MAG CORELIQUID E360 liquid cooler

SKU CH-V4C9-GN5AD MPN MAG CORELIQUID E360

A 360 mm radiator with triple 120 mm ARGB PWM fans cools Intel LGA 1700, 1851 and AMD AM5 CPUs through a split-flow design and rotatable water block cap

  • TypeLiquid Cooling System
  • Block CompatibilityAMD Socket AM4 / AMD Socket AM5 / AMD Socket sTR4 / Intel LG
  • Block Dim.41 (+/-0.2) x 47.6 (+/-0.2) mm
  • Block MaterialCopper
  • Radiator SizeRadiator Size: 360 mm Radiator Dimensions: 394 x 119.2 x 27m
  • Radiator MaterialAluminum

Fan Size 3 Fan Slots (120mm)

Color Black

  • Enlarged copper base covers multi-die CPUs for full heat-spread
  • Split-flow radiator separates hot and cold coolant to lower source temperature
  • Rotatable block cap turns 270 degrees for flexible tube routing
  • Triple 120mm ARGB PWM fans adjust 600-1800 RPM via MSI Center
  • Three-phase pump motor reduces vibration for long-lasting operation

Socket coverage and purpose

The MAG CORELIQUID E360 is an all-in-one liquid cooler built around a 360 mm aluminum radiator and three 120 mm ARGB fans. It supports Intel LGA 1150, 1151, 1155, 1156, 1200, 1700 and 1851 plus AMD AM4, AM5 and sTR4 sockets, making it suitable for current mainstream and high-end desktop CPUs.

Clearance and mounting check

Verify that your case can accommodate a 394 mm long radiator that is 119.2 mm wide and 27 mm thick, plus 25 mm fan depth. The water block measures 41 mm by 47.6 mm, so confirm motherboard keep-out zones around the socket. The 400 mm rubber tubes must reach the chosen radiator location without sharp bends or tension.

Build quality and daily use

A copper cold plate with enlarged surface area and maximised micro-channels transfers heat into a split-flow radiator that separates hot and cold coolant paths. The pump uses a durable three-phase motor designed for low vibration, while the rotatable block cap turns up to 270 degrees for flexible logo orientation. Fans run on fluid dynamic bearings from 600 to 1800 RPM, producing 11.2 to 32.5 dBA, and connect via pin-and-socket headers for PWM control and ARGB sync through MSI Center.

Highlights

  • Enlarged copper base covers multi-die CPUs for full heat-spread
  • Split-flow radiator separates hot and cold coolant to lower source temperature
  • Rotatable block cap turns 270 degrees for flexible tube routing
  • Triple 120mm ARGB PWM fans adjust 600-1800 RPM via MSI Center
  • Three-phase pump motor reduces vibration for long-lasting operation

Specifications

BrandMSI
ModelMAG CORELIQUID E360
TypeLiquid Cooling System
Block CompatibilityAMD Socket AM4 / AMD Socket AM5 / AMD Socket sTR4 / Intel LGA 1150 / Intel LGA 1151 / Intel LGA 1155 / Intel LGA 1156 / Intel LGA 1200 / Intel LGA 1700 / Intel LGA 1851
Block Dim.41 (+/-0.2) x 47.6 (+/-0.2) mm
Block MaterialCopper
Radiator SizeRadiator Size: 360 mm
Radiator Dimensions: 394 x 119.2 x 27mm / 15.51 x 4.69 x 1.06 inches
Radiator MaterialAluminum
Fan Size3 Fan Slots (120 mm)
Fan Dim.120 x 120 x 25mm / 4.7 x 4.7 x 0.98 inches
Bearing TypeFluid Dynamic Bearing (FDB)
Fan RPM600 +/-250RPM ~ 1800 +/-200RPM
Fan Air Flow25.5~75.04 CFM
Fan Noise11.2~32.5 dBA
Fan ConnectorPin + Socket
ColorBlack
LED ColorARGB
Tube Dim.Water Cooling Tube Length: 400mm / 15.75 inches
Tube MaterialBlack Rubber
FeaturesThe enlarged copper base surface area helps to achieve ultimate heat exchange with the latest CPU generation
Maximize micro channels to dissipate heat efficiently
Rotatable water block cap for 270 degree.
ARGB fan can change the lighting by MSI center.
Enhanced fan performance to dissipate heat quickly.

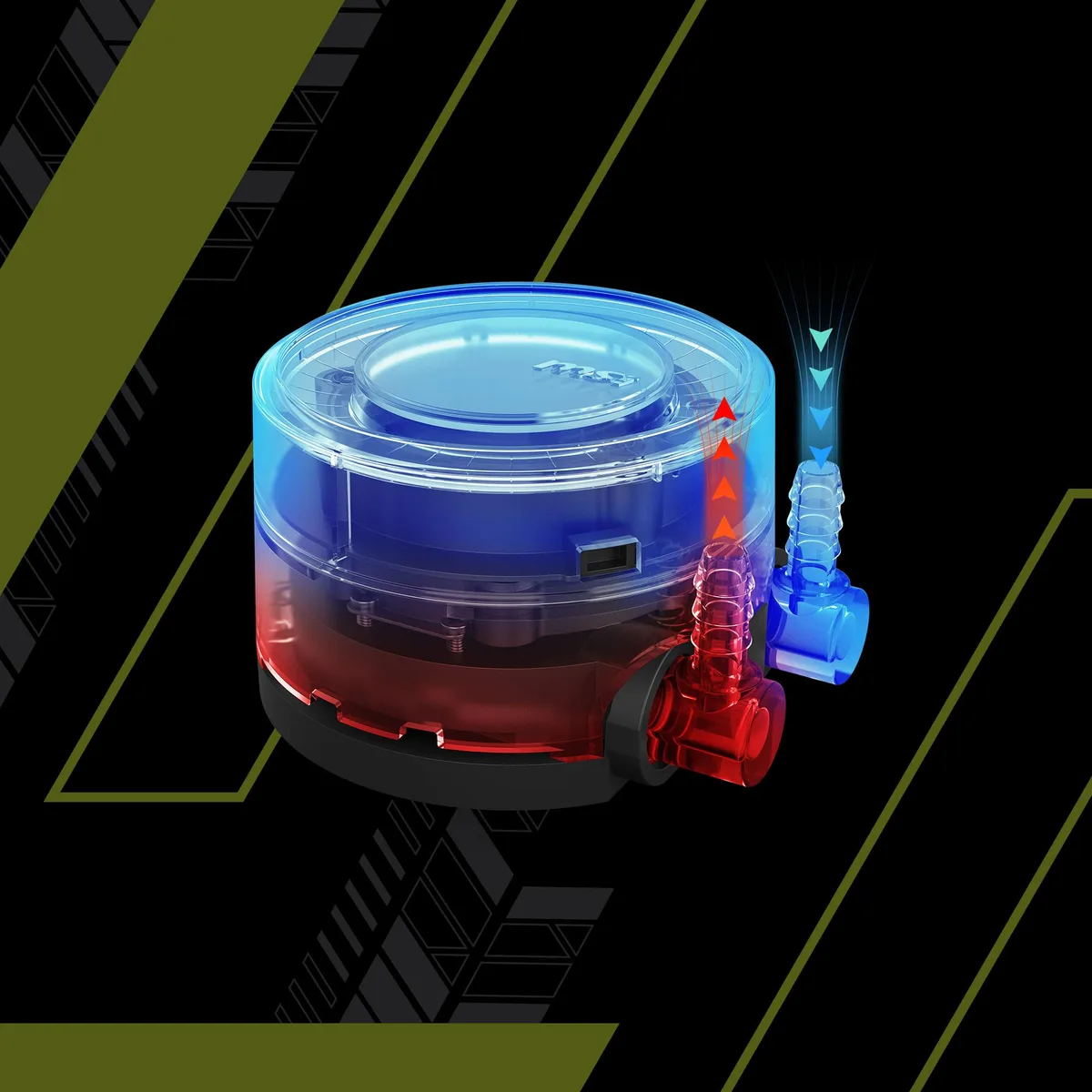

Pump is separating the rooms of cool water and hot water to avoid mixing water temperatures and effectively reduce the heat source.
Durable three phase motor of the pump generates minimal vibrations for long lasting operation.
Spilt pathway through the radiator rapidly dissipates heat
Package Contents1 to 3 Fan PWM cable x 1
Molex 4-Pin to 4-Pin fan cable x 1
Noise reducer cable x 1
Thermal paste x 1
Shipping weight2.54 kg
Package size457 × 208 × 140 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What comes in the box and is any mounting hardware sold separately?

The cooler includes the pump block, 360 mm aluminum radiator, three 120 mm ARGB PWM fans and 400 mm rubber tubes. Mounting brackets for LGA 1700, LGA 1851 and AM5 are supplied so no extra hardware is needed for those sockets.

Should I choose the 360 mm version or a smaller radiator?

Only the 360 mm model exists in this E-Series line; it uses a 394 x 119.2 x 27 mm radiator with twelve split-flow channels and triple 120 mm fans for maximum surface area.

What does the 1800 RPM fan speed mean for actual CPU temperatures?

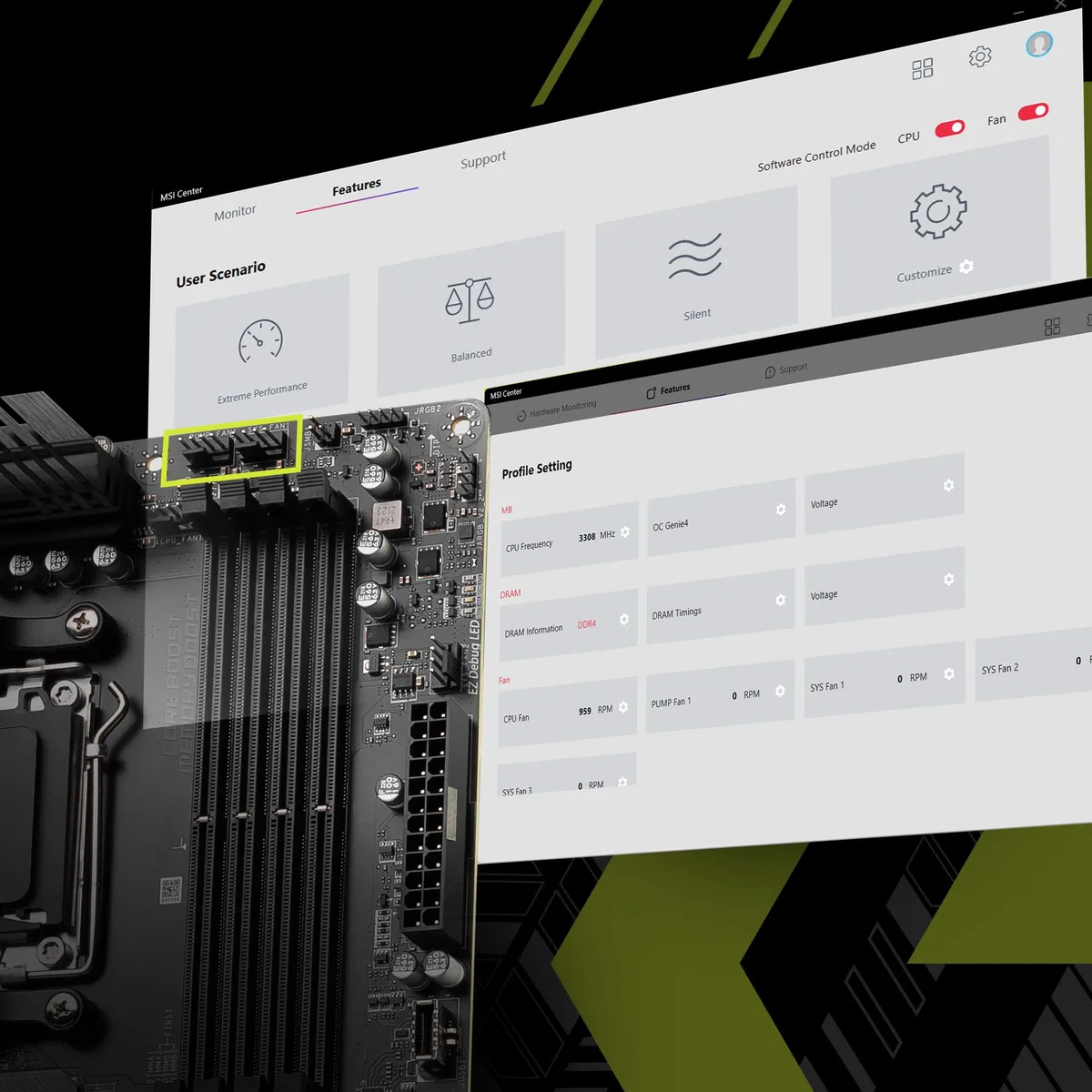

Fans run from 600 to 1800 RPM delivering 25.5 to 75.04 CFM at 11.2 to 32.5 dBA; MSI Center lets you pick Silent, Balanced or Game profiles to match noise and cooling to the workload.
