MSI

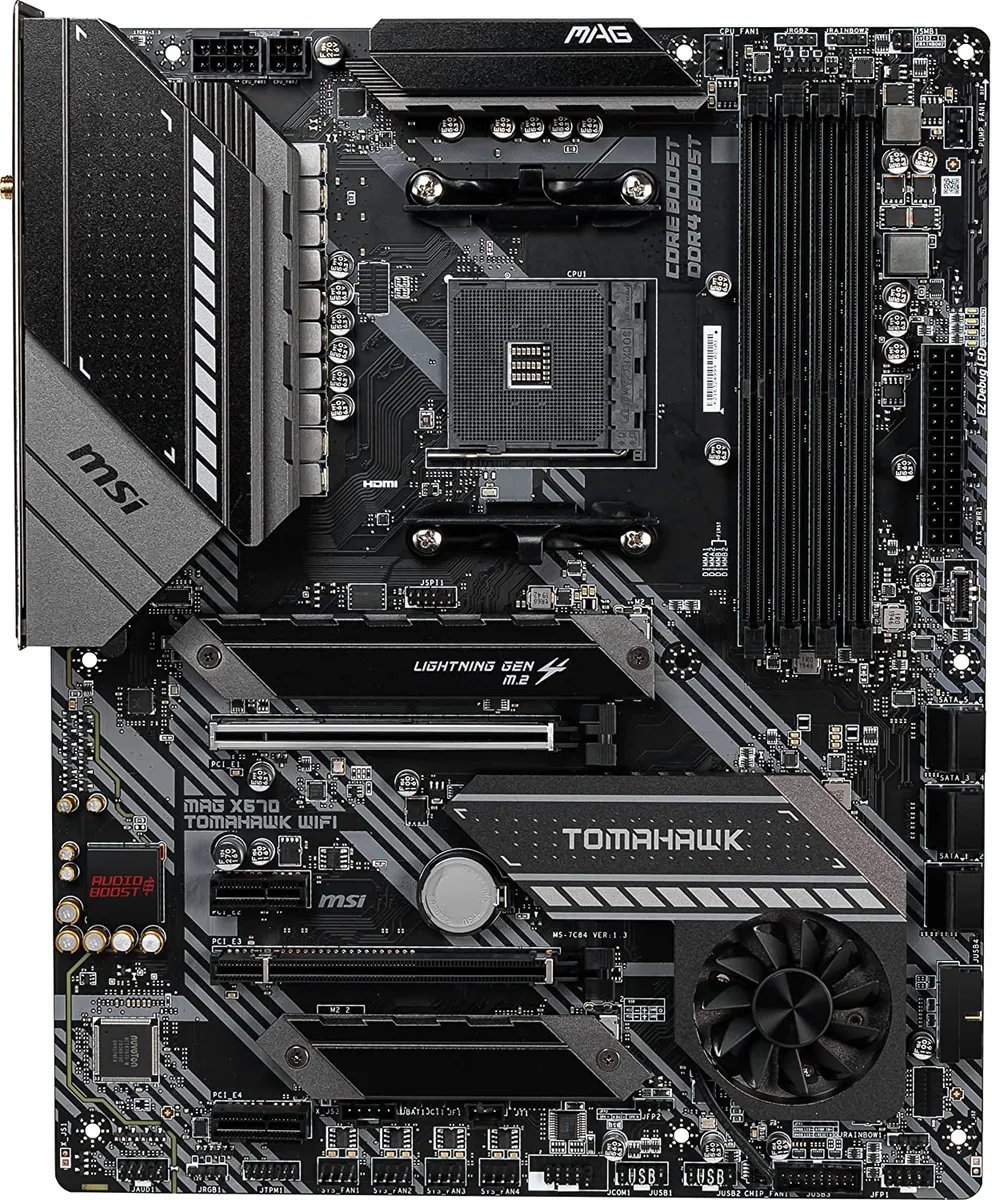

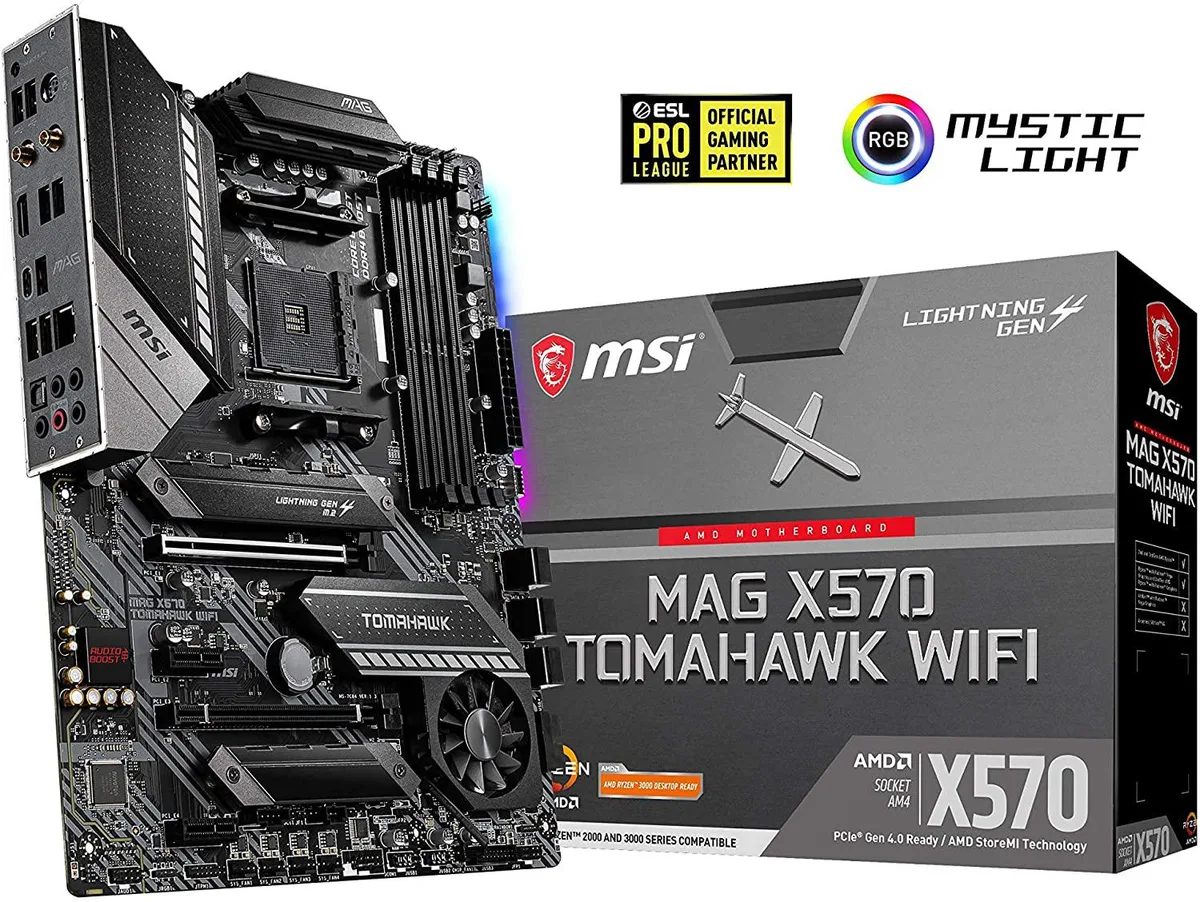

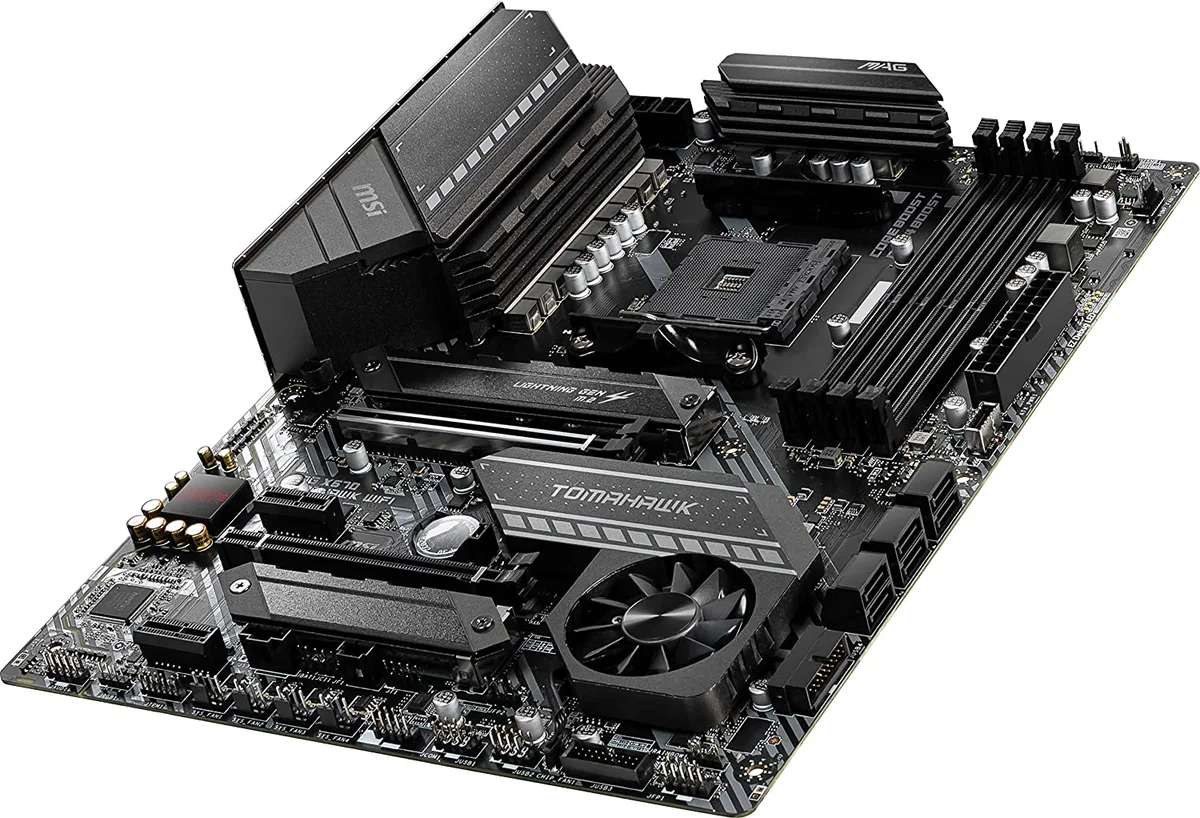

MSI MAG X570 TOMAHAWK WIFI AMD motherboard
Socket AM4 board for Ryzen processors with DDR4 memory up to 4600 MHz, two PCIe 4.0 x16 slots, six SATA ports, dual M.2, 2.5 Gbps LAN and 7.1 audio
- CPU Socket TypeAM4
- CPU TypeRyzen Series
- ChipsetAMD X570
- Number of Memory Slots4x288pin (DDR4)
- Memory StandardDDR4 4600+ / 4533 / 4400 / 4266 / 4133 / 4000 / 3866 / 3733
- Maximum Memory Supported128GB
- Supports Ryzen 5000 series and earlier AM4 processors
- DDR4 memory speeds up to 4600 MHz via A-XMP OC mode
- Dual PCIe 4.0 x16 slots for high-bandwidth graphics
- 5 Gbps LAN with Realtek 8125B controller
- 1 channel audio from Realtek ALC1200 chipset
Chipset X570 pour socket AM4
Cette carte mère ATX équipe les processeurs Ryzen compatibles AM4. Elle accepte les séries 3000, 4000 G-Series et 5000 ainsi que les générations antérieures avec graphiques Radeon Vega. Le chipset X570 débloque la bande passante PCIe 4.0 pour les cartes graphiques et le stockage rapide.
Pour constructeurs exigeants.
Le VRM renforcé, le dissipateur Frozr avec ventilateur à double roulement à billes et les connecteurs CPU 8+4 broches ciblent l'overclocking et les charges lourdes prolongées. Une configuration bureautique simple n'exploitera pas cet étagement thermique et cette alimentation.
Mémoire DDR4 jusqu'à 4600 MHz en dual-channel
Quatre emplacements 288 broches gèrent 128 Go maximum en DDR4 non-ECC unbuffered. Les profils A-XMP OC MODE atteignent 4600 MHz avec les Ryzen de 3e génération, tandis que les puces 2e génération plafonnent à 3466 MHz. Ce plafond détermine la bande passante réelle du système.
Highlights
- Supports Ryzen 5000 series and earlier AM4 processors
- DDR4 memory speeds up to 4600 MHz via A-XMP OC mode
- Dual PCIe 4.0 x16 slots for high-bandwidth graphics
- 5 Gbps LAN with Realtek 8125B controller
- 1 channel audio from Realtek ALC1200 chipset
Specifications
| Brand | MSI |
|---|---|
| Model | MAG X570 TOMAHAWK WIFI |
| CPU Socket Type | AM4 |
| CPU Type | Ryzen Series |
| Chipset | AMD X570 |
| Number of Memory Slots | 4x288pin (DDR4) |
| Memory Standard | DDR4 4600+ / 4533 / 4400 / 4266 / 4133 / 4000 / 3866 / 3733 / 3600 / 3466 / 3200 / 3066 / 3000 / 2933 / 2800 / 2667 (3rd Gen AMD Ryzen Processors, by A-XMP OC MODE) DDR4 3466+ / 3200 / 3066 / 3000 / 2933 / 2800 / 2667 (2nd Gen AMD Ryzen Processors, 1st and 2nd Gen AMD Ryzen with Radeon Vega Graphics Processors, by A-XMP OC MODE)DDR4 3200 / 3066 / 3000 / 2933 / 2800 / 2667 / 2400 / 2133 / 1866 by JEDEC |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| ECC Supported | Non-ECC |
| Buffer Supported | Un-buffered |
| PCI Express 4.0 x16 | 2 x PCI Express 4.0 x16** Actual support may vary by CPU. |
| PCI Express x1 | 2 x PCIe 3.0 x1 |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
| M.2 | 2 x M.2 slots (Key M): *M2_1 slot (from AMD Processor):Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen)Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen / Ryzen 4000 G-Series, Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics)Supports 2242/2260/2280/22110 storage devicesM2_2 slot (from AMD X570 Chipset):Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen)Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen / Ryzen 4000 G-Series, Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics)Supports SATA 6Gb/sSupports 2242/2260/2280 storage devices* The speeds may vary for different device |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
| Audio Chipset | Realtek ALC1200 |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek 8125B |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Intel Wi-Fi 6 AX200802.11 a/b/g/n/ac/ax |
| Bluetooth | Bluetooth 5.1 |
| Back I/O Ports | 1 x HDMI1 x LAN (RJ45)1 x PS/2 Keyboard/Mouse Combo1 x USB 3.2 Gen 2 Type-C3 x USB 3.2 Gen 2 Type-A2 x USB 3.2 Gen 1 Type-A2 x USB 2.0/1.11 x Optical S/PDIF Out5 x Audio JacksFlash BIOS buttonWireless / Bluetooth |
| Onboard USB | 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)2 x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)1 x USB 3.2 Gen 2 10Gbps Type-C Port |
| Other Connectors | 1 x 4-pin CPU fan connector1 x 4-pin water-pump connector4 x 4-pin system fan connectors1 x Front panel audio connector2 x System panel connectors1 x TPM module connector1 x Serial port connector1 x Clear CMOS jumper1 x Chassis Intrusion connector2 x 4-pin RGB LED connectors2 x 3-pin RAINBOW LED connectors4x EZ Debug LEDs1 x TBT connector *1 x RTD3 connector* Thunderbolt card needs to support RTD3. |
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x 4-pin ATX 12V power connector |
| Windows 11 | Supported |
| Features | Supports AMD Ryzen 5000 Series / 2nd and 3rd Gen AMD Ryzen / Ryzen 4000 G-Series / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for AM4 socketSupports DDR4 Memory, up to 4600 MHzLightning Fast Game experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 Gen 2MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED stripFrozr Heatsink Design: Designed with the patented fan and double ball bearings to provide the best performance |
Questions about this item
Should I choose a 2nd Gen or 3rd Gen Ryzen to reach the highest DDR4 speeds on this board?
3rd Gen Ryzen processors unlock the full DDR4 4600+ MHz range via A-XMP OC MODE, while 2nd Gen Ryzen tops out at DDR4 3466+ MHz with the same feature.
What does the 2.5 Gbps LAN rating actually deliver in a real system?
The Realtek 8125B controller provides up to 2.5 Gbps wired throughput, so file transfers and low-latency gaming exceed standard 1 Gbps Ethernet when paired with a 2.5 Gbps switch or router.
How does the PCIe 4.0 x4 M.2 slot perform with a 2nd Gen Ryzen CPU installed?
With 2nd Gen Ryzen the primary M.2 slot runs at PCIe 3.0 x4 speeds, halving the theoretical bandwidth compared to the PCIe 4.0 x4 operation available with 3rd Gen Ryzen.
