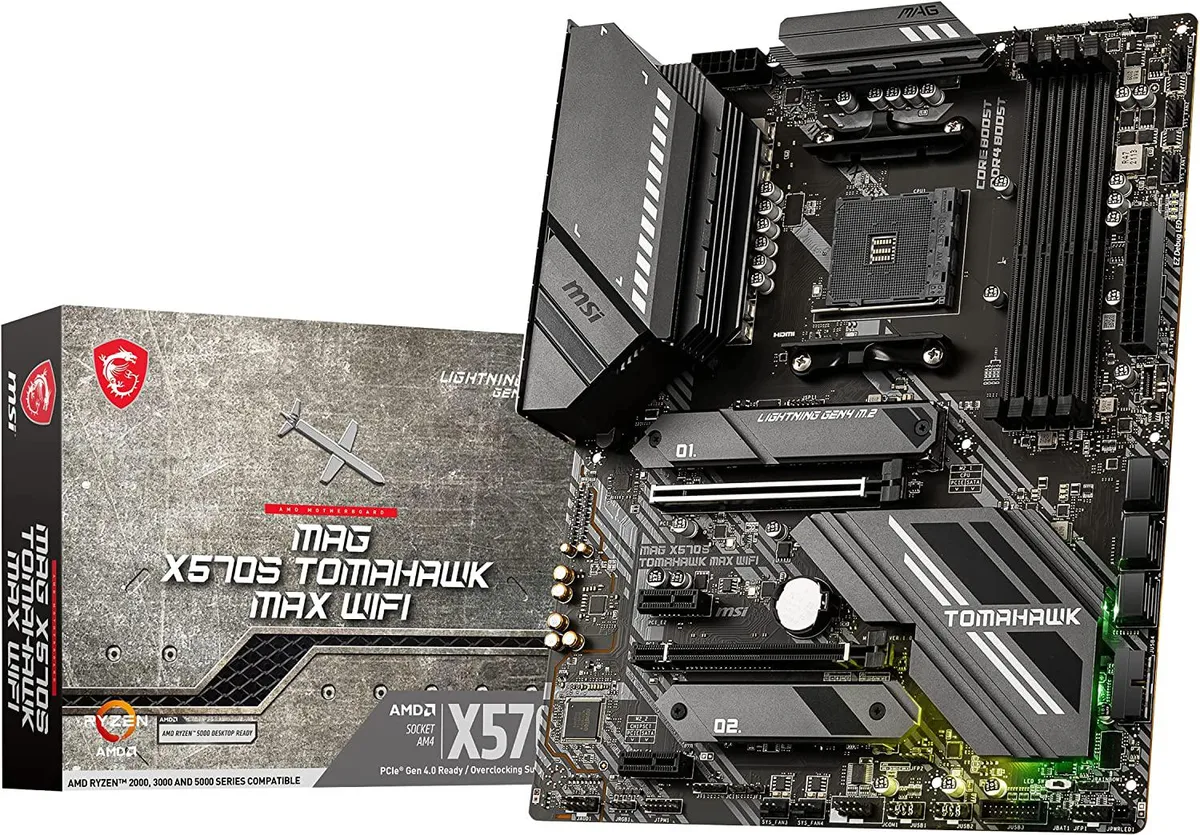

ATX motherboard in black with silver heatsinks and silver I/O shield

MSI

MSI MAG X570S TOMAHAWK MAX WIFI AMD motherboard

SKU CH-N4R7-6B68A

ATX AMD motherboard with X570 chipset, AM4 socket, DDR4 support up to 3200 JEDEC and A-XMP overclocking to 5100

  • CPU Socket TypeAM4
  • CPU TypeSupports AMD Ryzen 5000 Series / 5000 G-Series
  • Broad CPU compatibility with AM4 socket supporting Ryzen 5000, 4000, 3000 and 2000 series processors
  • Flexible memory options with DDR4 speeds from 1866 to 3200 MHz by JEDEC standard
  • High overclocking headroom reaching 5100 MHz with Ryzen 5000 G-Series and single-rank DIMMs
  • Stable dual-rank performance up to 4000 MHz on Ryzen 5000 G-Series in single-DIMM configs
  • Reliable four-DIMM operation at 3600 MHz with Ryzen 5000 and 3000 series CPUs

AM4 X570S board for Ryzen builds

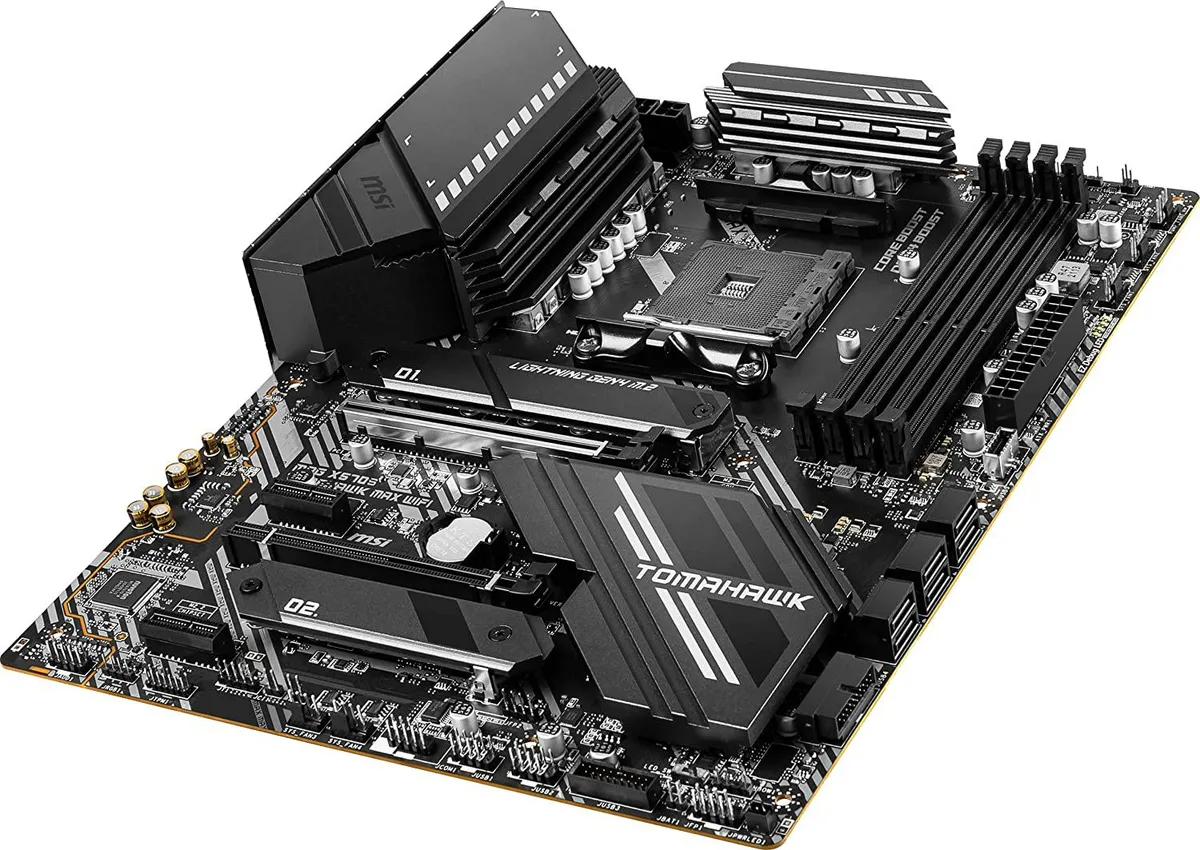

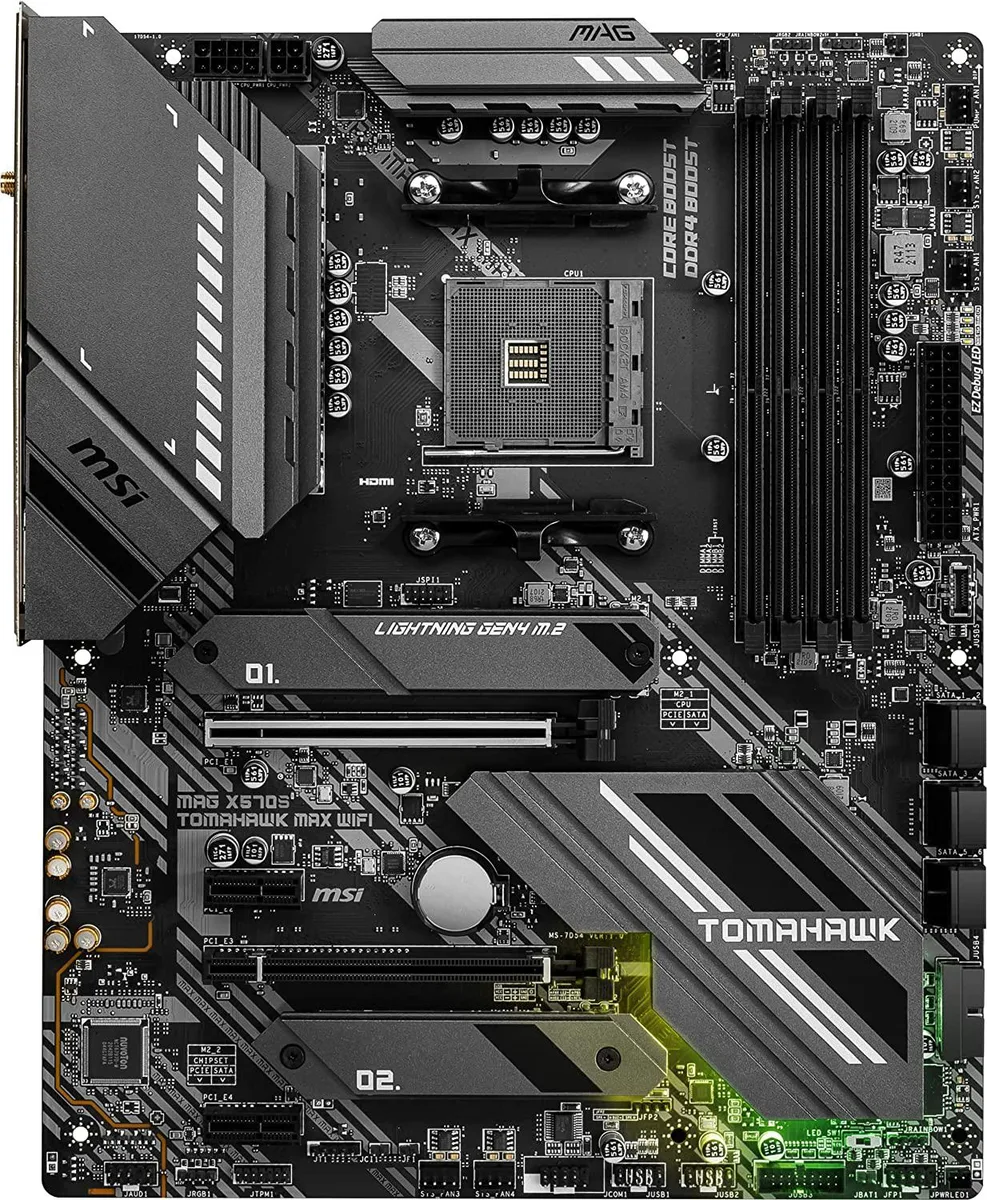

This ATX motherboard uses the AMD X570 chipset and the AM4 socket. It supports Ryzen 5000, 5000 G-Series, 4000 G-Series, 3000, 3000 G-Series, 2000 and 2000 G-Series processors. The board is suited for enthusiasts who want a full-size layout with modern connectivity.

Standard ATX install with BIOS flashback

The board follows the standard ATX mounting pattern and uses common DDR4 DIMM slots. A USB BIOS Flashback button lets you update firmware without a CPU installed, which avoids the most common issue when pairing a new board with a newer Ryzen processor. Clear CMOS and debug LEDs are also present for quick troubleshooting.

Passive chipset cooling under sustained load

The X570S chipset is cooled by a large heatsink without a fan, so there is no moving part to wear out or spin up under heavy I/O. Extended VRM heatsinks cover the power phases, keeping temperatures stable during long rendering or compile sessions. M.2 shields add thermal mass for drives that see continuous writes.

Highlights

  • Broad CPU compatibility with AM4 socket supporting Ryzen 5000, 4000, 3000 and 2000 series processors
  • Flexible memory options with DDR4 speeds from 1866 to 3200 MHz by JEDEC standard
  • High overclocking headroom reaching 5100 MHz with Ryzen 5000 G-Series and single-rank DIMMs
  • Stable dual-rank performance up to 4000 MHz on Ryzen 5000 G-Series in single-DIMM configs
  • Reliable four-DIMM operation at 3600 MHz with Ryzen 5000 and 3000 series CPUs

Specifications

BrandMSI
CPU Socket TypeAM4
CPU TypeSupports AMD Ryzen 5000 Series / 5000 G-Series

Questions about this item

How do I confirm the board is running my Ryzen 5000 CPU at the correct DDR4 3200 JEDEC speed after first boot?

Enter the BIOS and check the memory frequency readout; it should show 3200 MHz for the installed DDR4 modules when running at JEDEC default.

What cables or accessories are included with the motherboard and what must I source separately?

The board ships with SATA cables, I/O shield and driver disc; CPU cooler mounting hardware, DDR4 memory modules and M.2 standoffs are not included.

Which supported Ryzen series should I choose to reach the highest A-XMP OC memory speed of 5100?

Ryzen 5000 Series or 5000 G-Series processors in a single-rank single-DIMM-per-channel configuration can achieve the 5100 MT/s ceiling.
