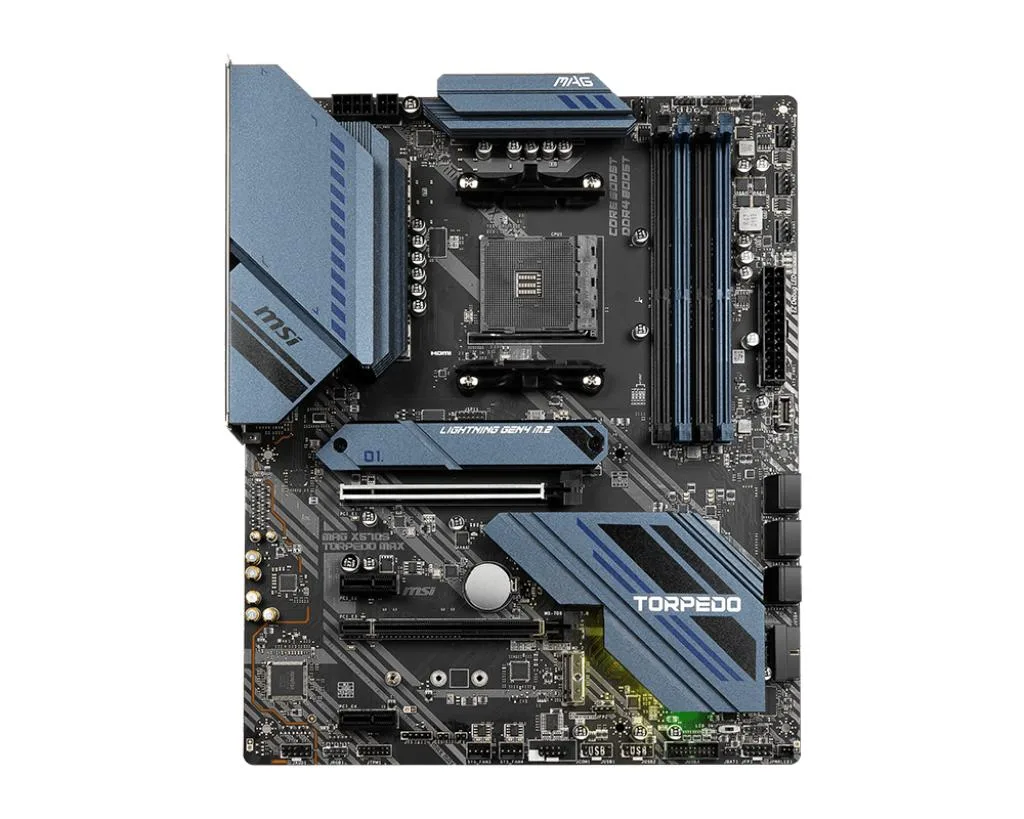

Black ATX motherboard with silver heatsinks and reinforced PCIe slots

MSI

MSI MAG X570S TORPEDO MAX AMD motherboard

SKU CH-1RNP-K2X2H

Socket AM4 AMD X570 board supports Ryzen 5000, 3000, 2000 series CPUs with 128GB DDR4, 2.5Gbps LAN, 7.1 audio, PCIe 4.0 and USB 3.2 Gen 2 10Gbps ports

  • CPU Socket TypeSocket AM4
  • CPU TypeSupports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Serie
  • ChipsetAMD X570
  • Memory StandardSupport dual-channel DDR4 1866/2133/2400/2667/2800/2933/3000
  • Maximum Memory Supported128GB
  • PCI SlotsSupports PCIe 4.0 / PCIe 3.0 specification PCIe 4.0 is avail
  • Supports up to 128GB DDR4 for heavy multitasking
  • PCIe 4.0 x16 slot enables full graphics bandwidth
  • Dual LAN with 2.5Gbps and 1Gbps controllers for flexible networking
  • Realtek ALC4080 delivers 7.1-channel high-definition audio
  • X570 chipset runs fanless for silent operation

Socket AM4 platform for Ryzen builders

The MSI MAG X570S TORPEDO MAX is an ATX motherboard built around the AMD X570 chipset and the Socket AM4 interface. It accepts AMD Ryzen 5000, 4000 G, 3000 and 2000 series desktop processors. Four DIMM slots support dual-channel DDR4 up to 128 GB at speeds from 1866 to 5100 MHz. The board targets enthusiasts who want a full-size layout with current-generation connectivity.

Expansion layout and rear I/O

A primary PCIe 4.0 x16 slot runs from the processor when a Ryzen 5000 or 3000 series CPU is installed, while a second x16-sized slot and additional x1 slots connect through the chipset. Two M.2 sockets and six SATA III ports provide storage flexibility. The rear panel supplies two USB 3.2 Gen 2 10 Gbps Type-A ports, a USB 3.2 Gen 2 10 Gbps Type-C internal header, four USB 3.2 Gen 1 5 Gbps internal headers, six USB 2.0 ports, 7.1-channel audio with S/PDIF, a 2.5 Gbps LAN port and a 1 Gbps LAN port.

Passive chipset cooling and power delivery

The X570S chipset uses a fanless heatsink, removing a moving part and reducing system noise. A 10+2+1 Duet Rail power phase design feeds the CPU socket. Dual 8-pin CPU power connectors are present. The Realtek ALC4080 codec handles audio, while the twin Realtek 8125B and 8111H controllers manage networking without active cooling.

Highlights

  • Supports up to 128GB DDR4 for heavy multitasking
  • PCIe 4.0 x16 slot enables full graphics bandwidth
  • Dual LAN with 2.5Gbps and 1Gbps controllers for flexible networking
  • Realtek ALC4080 delivers 7.1-channel high-definition audio
  • X570 chipset runs fanless for silent operation

Specifications

BrandMSI
SeriesMSI MAG X570S TORPEDO MAX
ModelMSI MAG X570S TORPEDO MAX
CPU Socket TypeSocket AM4
CPU TypeSupports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
Supports Socket AM4
ChipsetAMD X570
Memory StandardSupport dual-channel DDR4 1866/2133/2400/2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400/4533/4600/4733/4866/5000/5100MHz memory
Maximum Memory Supported128GB
PCI SlotsSupports PCIe 4.0 / PCIe 3.0 specification
PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors
1x PCIe x16 slot (From processor)
PCI_E1 supports PCIe 4.0/ 3.0 x16
1x PCIe x16 slot (From X570 chipset)
PCI_E3 supports PCIe 4.0/ 3.0 x4
2x PCIe 3.0 x1 slots (From X570 chipset)
SATA RAID2XM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC4080 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN Chipset1x Realtek 8125B 2.5Gbps LAN Controller
1x Realtek RTL8111H 1Gbps LAN Controller
Onboard USBAMD X570 Chipset
3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector)
4x USB 3.2 Gen 1 5Gbps ports available through the internal USB 3.2 Gen 1 5Gbps connectors
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
AMD Processor
2x USB 3.2 Gen 2 10Gbps ports on the back panel (Type-A &Type-C)
2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

Questions about this item

What maximum DDR4 memory capacity does the board support?

The board supports up to 128GB of dual-channel DDR4 memory across its four slots.

How loud does the chipset fan get during continuous load?

The X570S chipset uses a fanless heatsink design, so there is no chipset fan noise under sustained workloads.

Which CPU power connector must my power supply provide?

The board requires an 8-pin EPS connector for CPU power delivery.
