MSI
MSI MAG Z390 TOMAHAWK LGA 1151 ATX Intel motherboard
ATX Intel Z390 board for 8th and 9th Gen Core CPUs with four DDR4 slots up to 128 GB, three PCIe 3.0 x16 slots, two M.2 slots, six SATA ports, HDMI 1.4 and DisplayPort 1.2 outputs.
- CPU Socket TypeLGA 1151 (300 Series)
- CPU TypeSupports Intel Core 9000 Series family / 8th Gen Intel Core
- ChipsetIntel Z390
- Onboard Video ChipsetSupported only by CPU with integrated graphic:1 x HDMI port
- Number of Memory Slots4x288pin (DDR4)
- Memory StandardDDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(
- Supports 9th and 8th Gen Intel Core processors for LGA 1151 socket

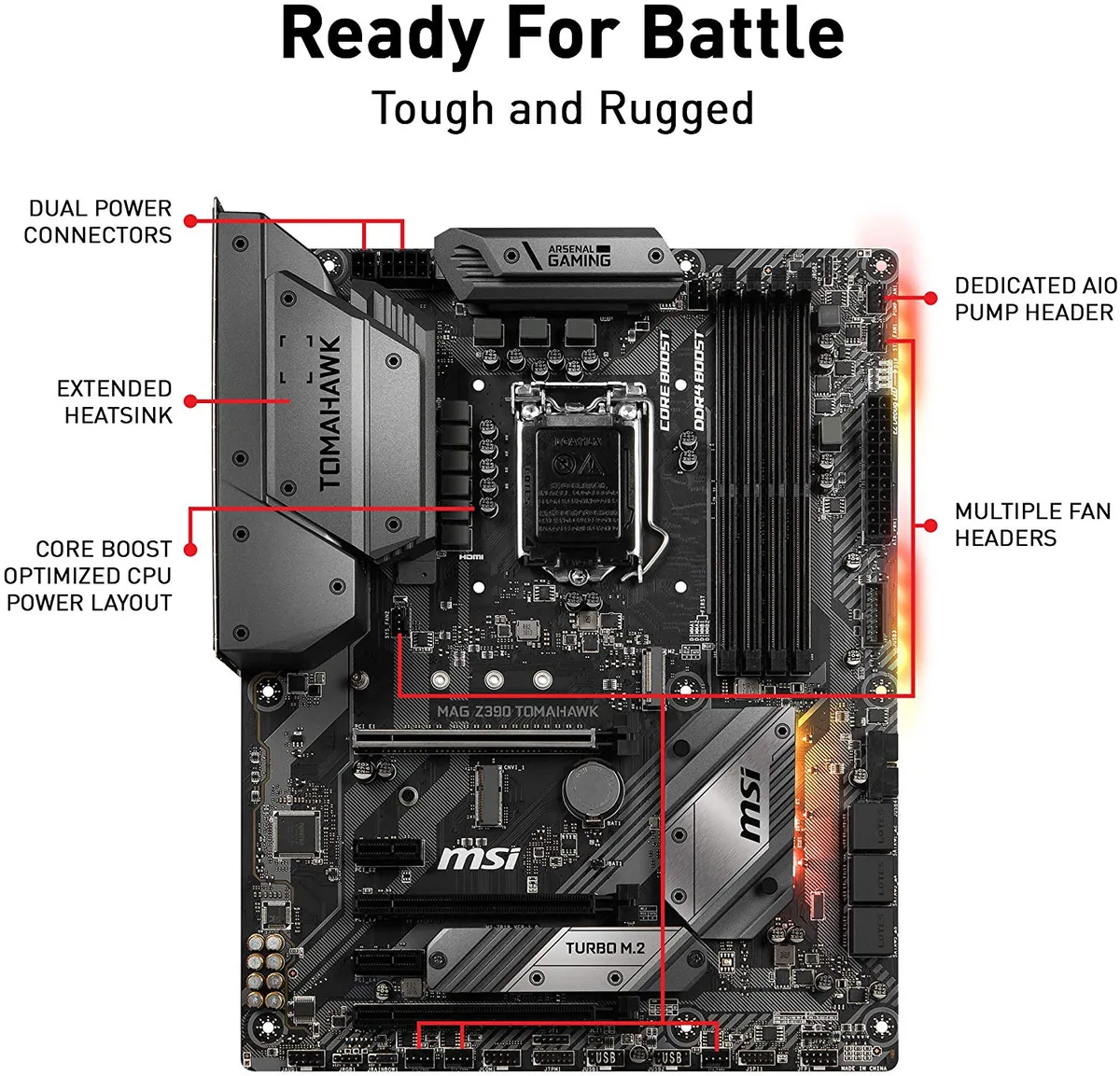

- Pre-installed I/O shield and extended heatsink design for easier installation and cooling
- Dual Intel LAN with Intel I219-V controller for reliable network connectivity
- Two M.2 slots with Shield Frozr and Intel Optane Memory Ready for fast storage

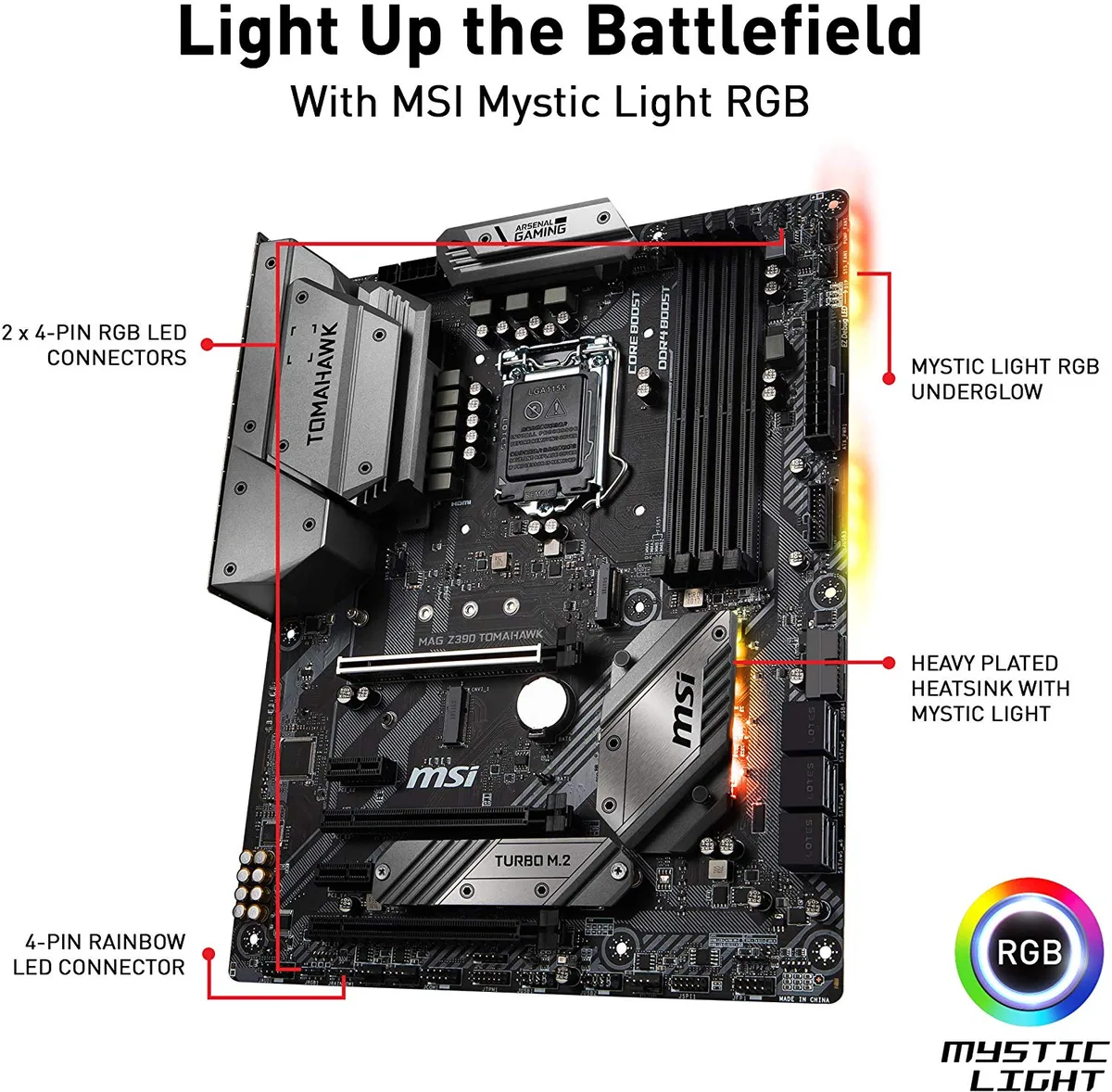

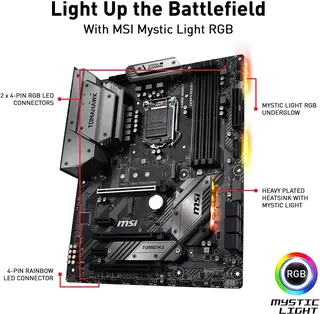

- 8 million colour Mystic Light with 29 effects and RGB strip support
Intel Z390 ATX Motherboard

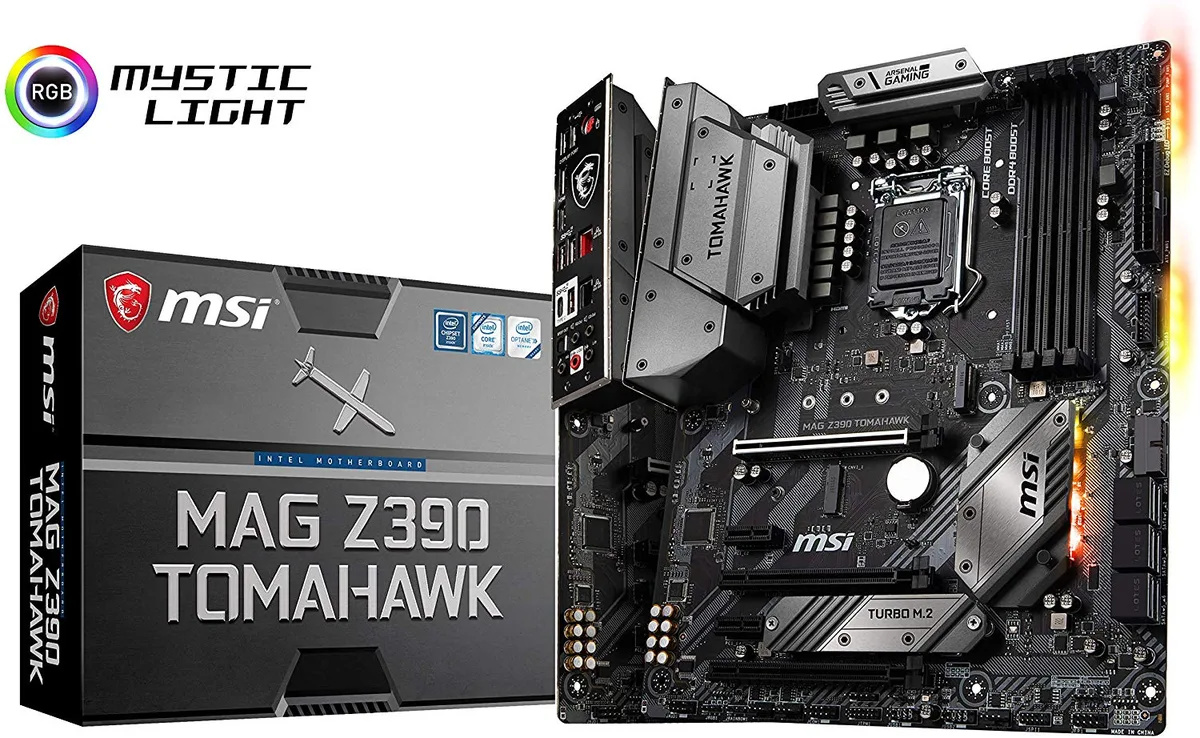

The MSI MAG Z390 TOMAHAWK is an ATX Intel motherboard built on the Z390 chipset for LGA 1151 (300 Series) processors. It supports 9th and 8th Generation Intel Core, Pentium Gold and Celeron CPUs. Four DDR4 slots accept up to 128 GB of memory in dual-channel mode. The board targets builders who need a full-size platform with extensive expansion room.
PCIe 3.0 And SATA 6Gb/s Limits
Three PCIe 3.0 x16 slots operate in x16/x4/x1 configurations alongside two PCIe 3.0 x1 slots for add-in cards. Six SATA 6Gb/s ports provide high-throughput storage connections, though bandwidth is shared with the M.2 slots. An M.2 Key E slot accepts only an Intel CNVi wireless module. The HDMI 1.4 output reaches 4096x2160@24Hz while DisplayPort 1.2 delivers 4096x2304@60Hz when a CPU with integrated graphics is installed.
Memory Capacity And M.2 Storage Headroom
Dual-channel DDR4 scales to 128 GB across four 288-pin slots with supported speeds ranging from 2133 up to 4400(OC). Two M.2 Key M slots each handle PCIe 3.0 x4 or SATA 6Gb/s drives in 2242, 2260, 2280 and, on the first slot, 22110 lengths. RAID 0/1/5/10 is available on the SATA array. Intel Optane memory readiness adds caching headroom for responsive system drives.
Highlights
- Supports 9th and 8th Gen Intel Core processors for LGA 1151 socket
- Pre-installed I/O shield and extended heatsink design for easier installation and cooling
- Dual Intel LAN with Intel I219-V controller for reliable network connectivity
- Two M.2 slots with Shield Frozr and Intel Optane Memory Ready for fast storage
- 8 million colour Mystic Light with 29 effects and RGB strip support
Specifications
| Brand | MSI |
|---|---|
| Model | MAG Z390 TOMAHAWK |
| CPU Socket Type | LGA 1151 (300 Series) |
| CPU Type | Supports Intel Core 9000 Series family / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket* Not backward compatible with older generation of LGA 1151 CPUs |
| Chipset | Intel Z390 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic:1 x HDMI port 1.4, supports a maximum resolution of 4096x2160@24Hz1 x DisplayPort port 1.2, supports a maximum resolution of 4096x2304@60Hz |
| Number of Memory Slots | 4x288pin (DDR4) |
| Memory Standard | DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2666/ 2400/ 2133 |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 3 x PCIe 3.0 x16 slots (support x16/x4/x1 modes) |
| PCI Express x1 | 2 x PCIe 3.0 x1 slots |
| Other Slots | 1 x M.2 slot (Key E) for an Intel CNVi wireless module only |
| Serial ATA (SATA) | 6 x SATA 6Gb/s ports** M.2 slots and SATA ports share the bandwidth. Please refer to user manual for details. |
| M.2 | 2 x M.2 slots (Key M)*M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/2260/2280/22110 storage devicesM2_2 Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/2260/2280 storage devices* M.2 slots and SATA ports share the bandwidth. Please refer to user manual for details. |
| Intel Optane Ready | Yes* Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC892 |
| Audio Channels | 7.1-Channel High Definition AudioSupports S/PDIF output |
| LAN Chipset | Intel I219-V |
| Second LAN Chipset | Intel I211-AT |
| Max LAN Speed | 2 x 1Gbps |
| PS/2 | 1 x PS/2 keyboard/mouse port |
| HDMI | 1 x HDMI |
| RJ45 | 2 x RJ45 |
| DisplayPort | 1 x DisplayPort |
| USB 3.1 | 3 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (Type-A) |
| USB 1.1/2.0 | 2 x USB 2.0 (High-speed USB) ports (Type-A) |
| USB Type-C | 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) port (Type-C) |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 Ports |
| Onboard USB | 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) |
| Other Connectors | 1 x 4-pin CPU fan connector1 x 4-pin Water Pump connector5 x 4-pin system fan connectors1 x Serial port connector1 x Front panel audio connector2 x System panel connectors1 x Chassis Intrusion connector1 x TPM module connector2 x 4-pin RGB LED connectors1 x 3-pin RAINBOW LED connector |
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x 4-pin ATX 12V power connector |
| Features | DIY Friendly:Pre-installed I/O ShieldingKeep Out ZoneXL PCI-E ClipEasy Button3EZ Debug LEDPump FanTotal Fan ControlEnhance Performance:Extended Heatsink Design8-Pin + 4-Pin Power ConnectorsTwin Turbo M.2Intel Turbo USB 3.1 Gen2Core BoostDDR4 BoostMulti GPU-2-Way AMD CrossFire TechnologyGame Boost*BIOSClick BIOS5XMPHardware Moniter*SoftwareDragon CenterMSI APP PlayerMystic Light 3In-Game Advantages:*AudioAudio Boost*LANDual Intel LANIntel CNVi ReadyGAMING LAN ManagerGAMING HOTKEYGAMING MOUSE ControlVR ReadyExhilarating and Inspiring:Mystic LightMystic Light Extension (RGB)Mystic Light |
Questions about this item
Will this board fit in a standard ATX case and line up with the pre-installed I/O shield?
The board follows the ATX form factor and ships with a pre-installed I/O shield, so it mounts directly into any standard ATX chassis without a separate shield.
Which Intel processors are supported and do I need a BIOS update for 9th-generation CPUs?
The socket is LGA 1151 300 Series and supports 8th and 9th generation Core, Pentium Gold and Celeron CPUs; 9th generation chips work out of the box with the shipping BIOS.
How many M.2 drives can I install and what lengths do the two slots accept?
Two M.2 Key M slots are provided — the first takes 2242, 2260, 2280 and 22110 lengths, the second takes 2242, 2260 and 2280 lengths, both running at PCIe 3.0 x4 or SATA 6Gb/s.
