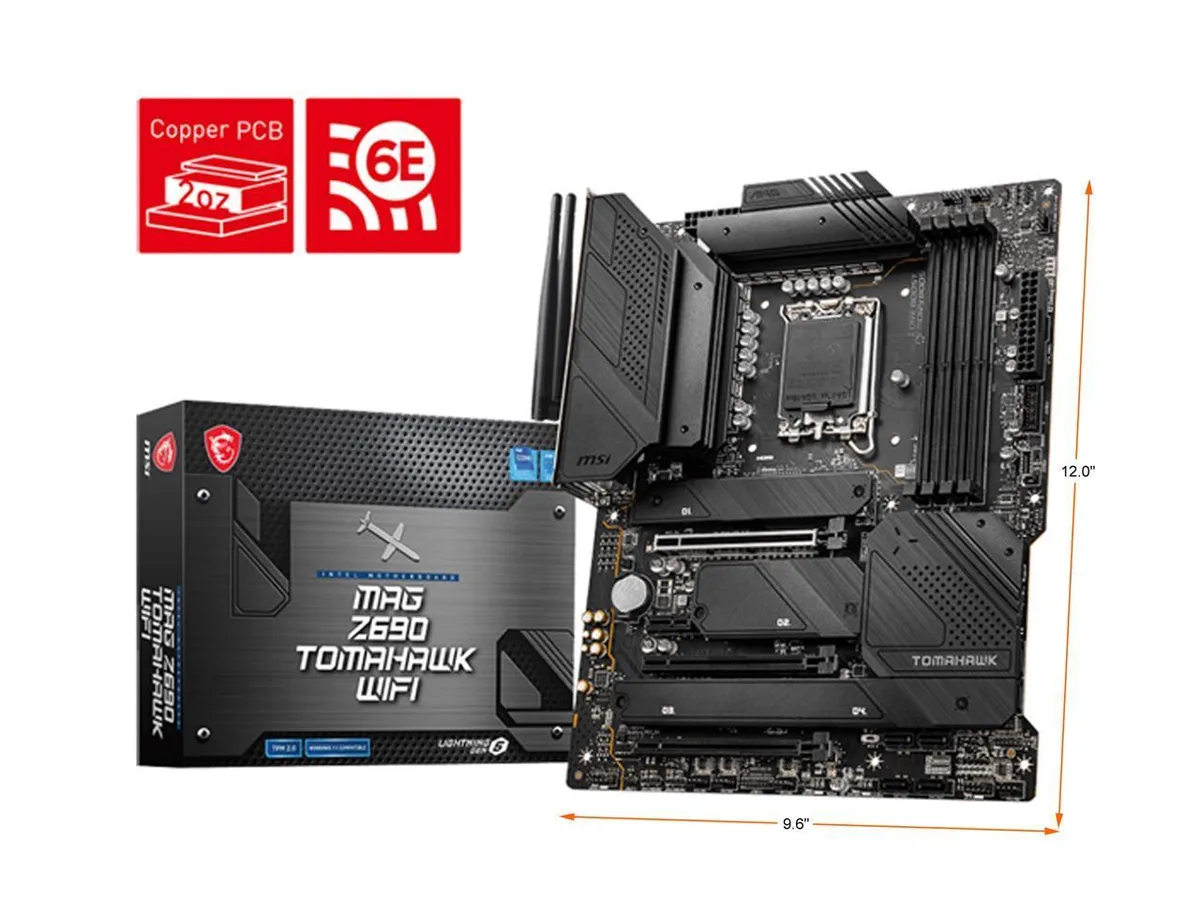

ATX motherboard black PCB silver heatsinks integrated I/O shield

MSI

MSI MAG Z690 TOMAHAWK WIFI Intel motherboard

SKU CH-T5D8-6SNS9

LGA 1700 ATX board with Intel Z690 chipset, four DDR5 slots up to 192 GB, PCIe 5.0 x16, four M.2 sockets, 2.5 GbE LAN, Wi‑Fi, USB 3.2 Gen 2x2 and Realtek ALC4080 7.1 audio

  • CPU Socket TypeLGA 1700 * Dedicated LGA1700 mounting bracket is required.
  • CPU TypeSupports 12th Gen Intel Core Processors (LGA1700) Supports 1
  • ChipsetIntel Z690
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 1R 4800 (by JEDEC & POR) Max overclocking frequency: 1D
  • Supports 12th and 13th gen Intel Core processors on LGA 1700 socket
  • DDR5 memory up to 6400 MHz overclocked with four slots and 192 GB maximum
  • PCIe 5.0 x16 slot and four M.2 slots including one from CPU at PCIe 4.0 x4
  • 5 Gbps LAN plus Intel Wi-Fi for fast, stable wired and wireless networking
  • Realtek ALC4080 audio with 7.1 channel output for immersive sound

Z690 ATX motherboard for 12th and 13th Gen Intel

The MSI MAG Z690 TOMAHAWK WIFI uses the LGA 1700 socket and Intel Z690 chipset to support 12th Gen Intel Core processors and 13th Gen Intel Core desktop processors. A BIOS update may be needed before a 13th Gen CPU will boot. Four 288-pin slots accept DDR5 memory up to 192 GB in dual-channel mode.

Four M.2 slots and six SATA ports for storage

The board provides four M.2 Key M slots: M2_1 runs at PCIe 5.0 x4 from the CPU and takes 2242, 2260, 2280 and 22110 devices, while M2_2 runs at PCIe 4.0 x4 from the chipset and takes 2242, 2260 and 2280 devices. Six SATA 6Gb/s ports support RAID 0, 1, 5 and 10. A single PCIe 5.0 x16 slot, two PCIe 3.0 x16 slots and one PCIe 3.0 x1 slot handle add-in cards.

Extended heatsinks and M.2 Shield Frozr

Premium thermal solution combines an extended heatsink design with M.2 Shield Frozr to keep the VRM and M.2 drives cool during non-stop work. Realtek ALC4080 delivers 7.1-channel audio. Intel I225-V 2.5G LAN and Intel Wi-Fi provide a stable wired and wireless link. A built-in USB 3.2 Gen 2x2 port reaches 20 Gbps for fast external transfers.

Highlights

  • Supports 12th and 13th gen Intel Core processors on LGA 1700 socket
  • DDR5 memory up to 6400 MHz overclocked with four slots and 192 GB maximum
  • PCIe 5.0 x16 slot and four M.2 slots including one from CPU at PCIe 4.0 x4
  • 5 Gbps LAN plus Intel Wi-Fi for fast, stable wired and wireless networking
  • Realtek ALC4080 audio with 7.1 channel output for immersive sound

Specifications

BrandMSI
ModelMAG Z690 TOMAHAWK WIFI
CPU Socket TypeLGA 1700
* Dedicated LGA1700 mounting bracket is required.
CPU TypeSupports 12th Gen Intel Core Processors (LGA1700)
Supports 13th gen Intel® Core desktop processors.
May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors.
ChipsetIntel Z690
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 1R 4800 (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 6400+
1DPC 2R Max speed up to 5400+
2DPC 1R Max speed up to 4000+
2DPC 2R Max speed up to 4000+
Maximum Memory Supported192GB
Channel SupportedDual Channel
PCI Express 5.0 x161 x PCI Express 5.0 x16
* Actual support may vary by CPU.
PCI Express 3.0 x162 x PCI Express 3.0 x16
* PCI_E3 Support up to PCIe 3.0 x4.
* PCI_E4 Support up to PCIe 3.0 x1.
PCI Express x11 x PCI Express 3.0 x1
Serial ATA (SATA)6 x SATA 6Gb/s
M.24 x M.2 slots (Key M):
M2_1 slot (From CPU):
Supports up to PCIe 4.0 x4
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (From Z690 chipset):
Supports up to PCIe 4.0 x4
Supports 2242/ 2260/ 2280 storage devices
M2_3 slot (From Z690 chipset):
Supports up to PCIe 3.0 x4
Supports up to SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_4 slot (From Z690 chipset):
Supports up to PCIe 4.0 x4
Supports up to SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Intel Optane ReadyIntel Optane Memory Ready for M.2 slots from Z690 Chipset
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC4080
Audio Channels7.1 Channels
LAN ChipsetIntel I225-V
Max LAN Speed2.5Gbps
Wireless LANIntel WIFI 6E
802.11 a/b/g/n/ac/ax
BluetoothBluetooth 5.2

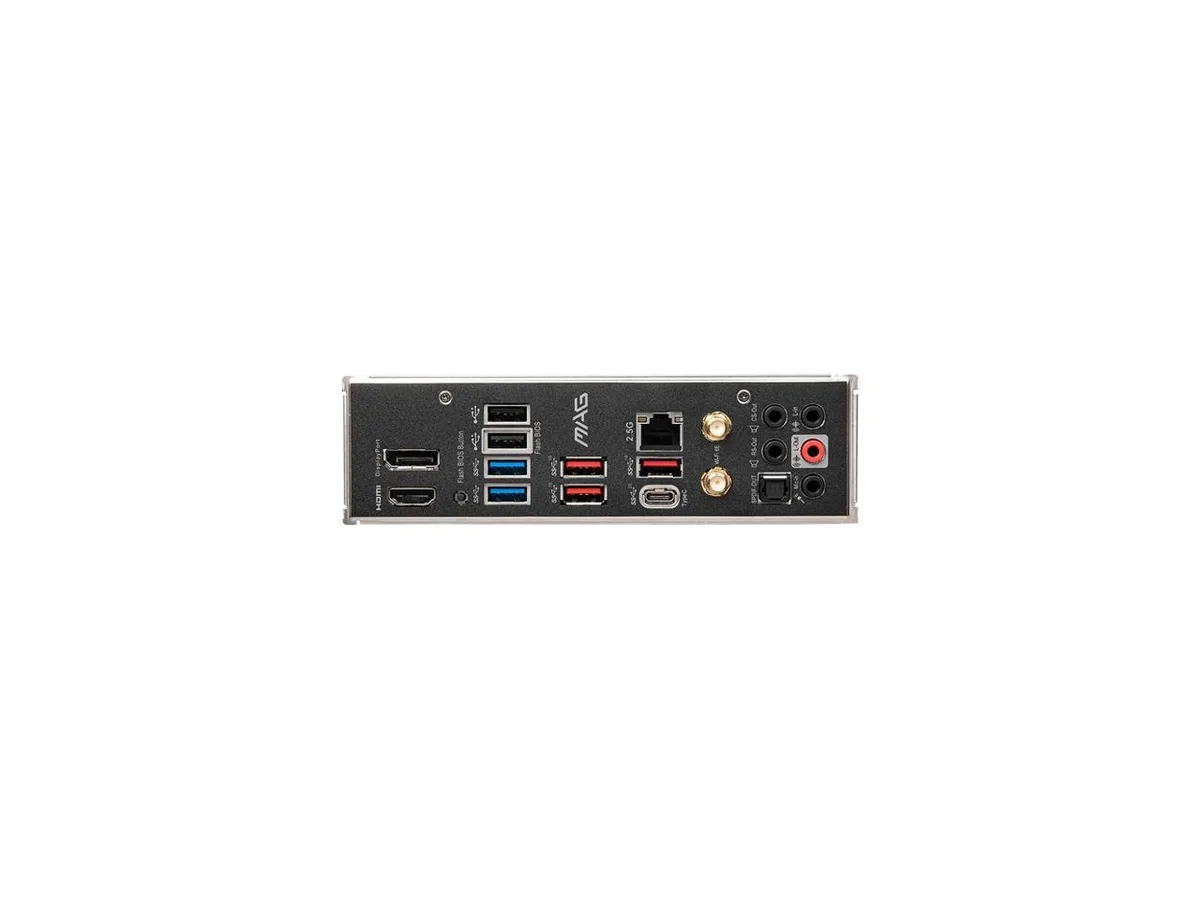

Back I/O Ports1 x DisplayPort 1.4
1 x HDMI 2.1
1 x Flash BIOS Button
1 x LAN (RJ45)
2 x Antenna Bracket
1 x Optical S/PDIF Out
5 x Audio Jacks
1 x USB 3.2 Gen 2x2 Type-C
3 x USB 3.2 Gen 2 Type-A
2 x USB 3.2 Gen 1 Type-A
2 x USB 2.0/1.1
Onboard USB1 x USB 3.2 Gen 2 10Gbps Type-C port
1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2 x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
Other Connectors1 x 4-pin CPU fan connector
1 x 4-pin water-pump fan connector
6 x 4-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x TPM module connector
1 x Clear CMOS jumper
1 x TBT connector (supports RTD3)
1 x Tuning Controller connector
1 x EZ LED Control switch
1 x 4-pin RGB LED connectors
3 x 3-pin RAINBOW LED connectors
4 x EZ Debug LED
Windows 11Supported
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX main power connecto
2 x 8-pin ATX 12V power connectors
FeaturesSupports 12th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket
Supports DDR5 Memory, up to 6400(OC) MHz
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Lightning M.2: Running at PCIe Gen 5 maximizes performance for NVMe based SSDs
Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB

Questions about this item

What is the maximum DDR5 overclock speed the board supports with a single-rank module in one slot?

The board supports up to 6400+ MHz with one single-rank DDR5 DIMM per channel.

How does the extended heatsink and M.2 Shield Frozr handle thermals during continuous load?

The extended heatsink design and M.2 Shield Frozr are built for high-performance, non-stop operation to manage heat from the VRM and M.2 SSDs.

Which CPU socket and cooler mounting bracket are required for this motherboard?

It uses the LGA 1700 socket and requires a dedicated LGA 1700 mounting bracket for the CPU cooler.
