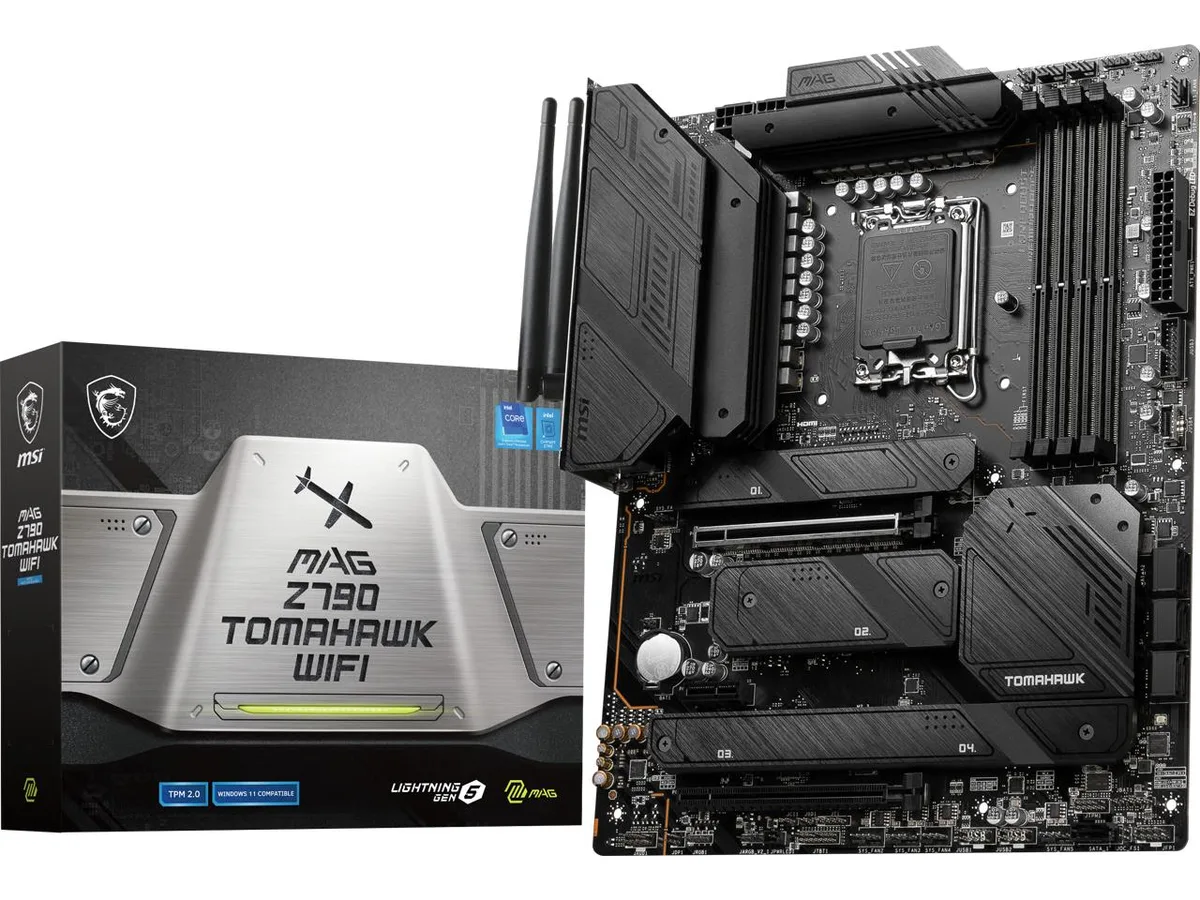

ATX motherboard in dark grey with black heatsinks and silver accents

MSI

MSI MAG Z790 TOMAHAWK WIFI LGA 1700 Intel motherboard

SKU CH-GRAF-5RVHR

ATX board for 12th and 13th Gen Intel CPUs with DDR5 memory, four M.2 slots, PCIe 5.0 graphics, 2.5G LAN, Wi‑Fi 6E and USB 20G

  • CPU Socket TypeLGA 1700
  • CPU TypeSupports 13th / 12th Gen Intel Core Processors, Intel Pentiu
  • ChipsetIntel Z790
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports 1R 5600 MHz (by JEDEC & POR) - 1DPC 1R Max speed up
  • Maximum Memory Supported192GB
  • Supports 12th and 13th Gen Intel Core processors via LGA 1700 socket
  • DDR5 memory up to 6800 MHz on four 288-pin slots with 192 GB maximum capacity
  • PCIe 5.0 x16 slot and four M.2 connectors for high-speed storage and graphics
  • Intel Wi-Fi 6E with 6 GHz spectrum and 2.5 Gbps wired LAN for fast networking
  • USB 3.2 Gen 2x2 port delivering 20 Gbps transfer speed for external devices

Socket LGA 1700 Z790 motherboard

This ATX board uses the Intel Z790 chipset and the LGA 1700 socket to support 12th and 13th generation Intel Core processors plus Pentium Gold and Celeron CPUs. Four 288-pin DDR5 slots accept up to 192 GB in dual-channel mode with XMP 3.0 profiles. A PCIe 5.0 x16 slot connects directly to the CPU for the latest graphics cards.

Quad M.2 slots and 2.5 Gbps LAN

Four Key M M.2 connectors provide flexible storage expansion; the CPU-linked M2_1 slot runs at PCIe 4.0 x4 and fits 2260, 2280 or 22110 drives. A shielded thermal cover helps keep SSDs cool under load. Seven SATA 6 Gb/s ports add further capacity, while an Intel 2.5 Gbps Ethernet controller and pre-installed Wi-Fi 6E module cover wired and wireless networking.

Check CPU generation and BIOS before ordering

Some 14th generation Intel Core processors may require a BIOS update, so verify the board revision or plan an update path. Confirm that your chosen DDR5 kit matches the supported speed table for one or two DIMMs per channel. Ensure your case fits an ATX form factor and that the power supply provides the required EPS connectors.

Highlights

  • Supports 12th and 13th Gen Intel Core processors via LGA 1700 socket
  • DDR5 memory up to 6800 MHz on four 288-pin slots with 192 GB maximum capacity
  • PCIe 5.0 x16 slot and four M.2 connectors for high-speed storage and graphics
  • Intel Wi-Fi 6E with 6 GHz spectrum and 2.5 Gbps wired LAN for fast networking
  • USB 3.2 Gen 2x2 port delivering 20 Gbps transfer speed for external devices

Specifications

BrandMSI
ModelMAG Z790 TOMAHAWK WIFI
CPU Socket TypeLGA 1700
CPU TypeSupports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors
ChipsetIntel Z790
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports 1R 5600 MHz (by JEDEC & POR)
- 1DPC 1R Max speed up to 6800+ MHz
- 1DPC 2R Max speed up to 6400+ MHz
- 2DPC 1R Max speed up to 6400+ MHz
- 2DPC 2R Max speed up to 5600+ MHz
Supports Intel XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Maximum Memory Supported192GB
Channel SupportedDual Channel
PCI Express 5.0 x16PCI_E1 slot (From CPU)
- Supports up to PCIe 5.0 x16
PCI Express 4.0 x16PCI_E3 slot (From Z790 Chipset)
- Supports up to PCIe 4.0 x4
PCI Express x1PCI_E2 slot (From Z790 Chipset)
- Supports up to PCIe 3.0 x1
Serial ATA (SATA)7x SATA 6Gb/s ports
- SATA_1& SATA_5_6& SATA_7_8 (From Z790 chipset)
- SATA_A1_A2 (From ASM1061)
M.21 x Key M (CPU) + 1 x Key M (PCIe/SATA) + 2 x Key M (PCIe) + 1 x Key E (WiFi/BT)
4x M.2 slots (Key M)
M2_1 slot (From CPU)
- Supports up to PCIe 4.0 x4
- Supports 2260/ 2280/ 22110 storage devices
M2_2 slot (From Z790 chipset)
- Supports up to PCIe 4.0 x4
- Supports 2260/ 2280 storage devices
M2_3 slot (From Z790 chipset)
- Supports up to PCIe 4.0 x4
- Supports up to SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
M2_4 slot (From Z790 chipset)
- Supports up to PCIe 4.0 x4
- Supports 2242/ 2260/ 2280 storage devices
* SATA_1 will be unavailable when installing M.2 SATA SSD in t
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC4080
Audio Channels7.1 Channels
LAN Chipset1x Intel 2.5Gbps LAN controller
Max LAN Speed2.5Gbps
Wireless LANIntel Wi-Fi 6E
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz*(160MHz) up to 2.4Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
BluetoothSupports Bluetooth 5.2*, FIPS, FISMA
* Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.
Back I/O Ports1x DisplayPort
1x HDMI port
1x Clear CMOS button
1x Flash BIOS button
4x USB 3.2 Gen 1 5Gbps Type-A ports (From Hub GL3523)
4x USB 3.2 Gen 2 10Gbps Type-A ports (From Z790 chipset)
1x USB 3.2 Gen 2 10Gbps Type-C port (From Z790 chipset)
1x USB 3.2 Gen 2x2 20Gbps Type-C port (From Z790 chipset)
1x 2.5Gbps LAN (RJ45) jack
2x Wi-Fi Antenna connectors
5x Audio jacks
1x Optical S/PDIF Out connector
Onboard USB1x USB 3.2 Gen 2 10Gbps Type-C front panel connector (From Z790 chipset)
1x USB 3.2 Gen 1 5Gbps connector (From Hub GL3523)
- Support additional 2 USB 3.2 Gen 1 5Gbps ports
2x USB 2.0 Type-A connectors (From Hub GL850G)
- Supports additional 4 USB 2.0 ports
Other ConnectorsFan Connectors
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
System Connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
1x Tuning Controller connector
1x TBT connector (Supports RTD3)
Jumpers
1x Clear CMOS jumper
1x OC force enter BIOS jumper (Supports lower PCIe mode)
LED Features
1x 4-pin RGB LED connector
3x 3-pin ARGB Gen2 LED connectors
4x EZ Debug LED
Windows 11Supported
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1x 24-pin ATX main power connector
2x 8-pin +12V power connectors
FeaturesMSI Center Features
- Gaming Mode
- Smart Priority
- Game Highlights
- Mystic light
- Ambient Devices
- Frozr AI Cooling
- User Scenario
- True Color
- Live Update
- Hardware Monitoring
- Super Charger
- Devices Speed Up
- Smart Image Finder
- MSI Companion
- System Diagnosis
- System Info
- Microsoft App
- My Device
- MSI Display kit
Thermal Features
- Extended Heatsink Design
- M.2 Shield Frozr
- K7 MOSFET thermal pad / Extra choke pad
- Fan headers (CPU + PUMP + SYSTEM)
Performance
- Core Boost
- VRM Power Design (VCPU / VGT / AUX)
- Dual CPU Power
- Memory Boost
- Lightning Gen 5

Questions about this item

What PCIe generation does the primary x16 slot use, and what bandwidth does that cap at?

The primary PCI_E1 slot runs at PCIe 5.0 x16 directly from the CPU, delivering up to 128 GB/s of bandwidth for graphics or accelerator cards.

What physical clearance does the board require for its M.2 heatsinks and ATX mounting?

The board uses the standard ATX mounting pattern and includes M.2 Shield Frozr heatsinks that add height over the four Key M slots; verify your case and CPU cooler clearances before fitting double-sided 22110 drives.

How is the Wi-Fi 6E module installed, and what step do builders often miss?

The Intel Wi-Fi 6E module comes pre-installed in the M.2 Key-E slot; the step many miss is attaching the two external antenna cables to the gold connectors on the module before closing the case.
