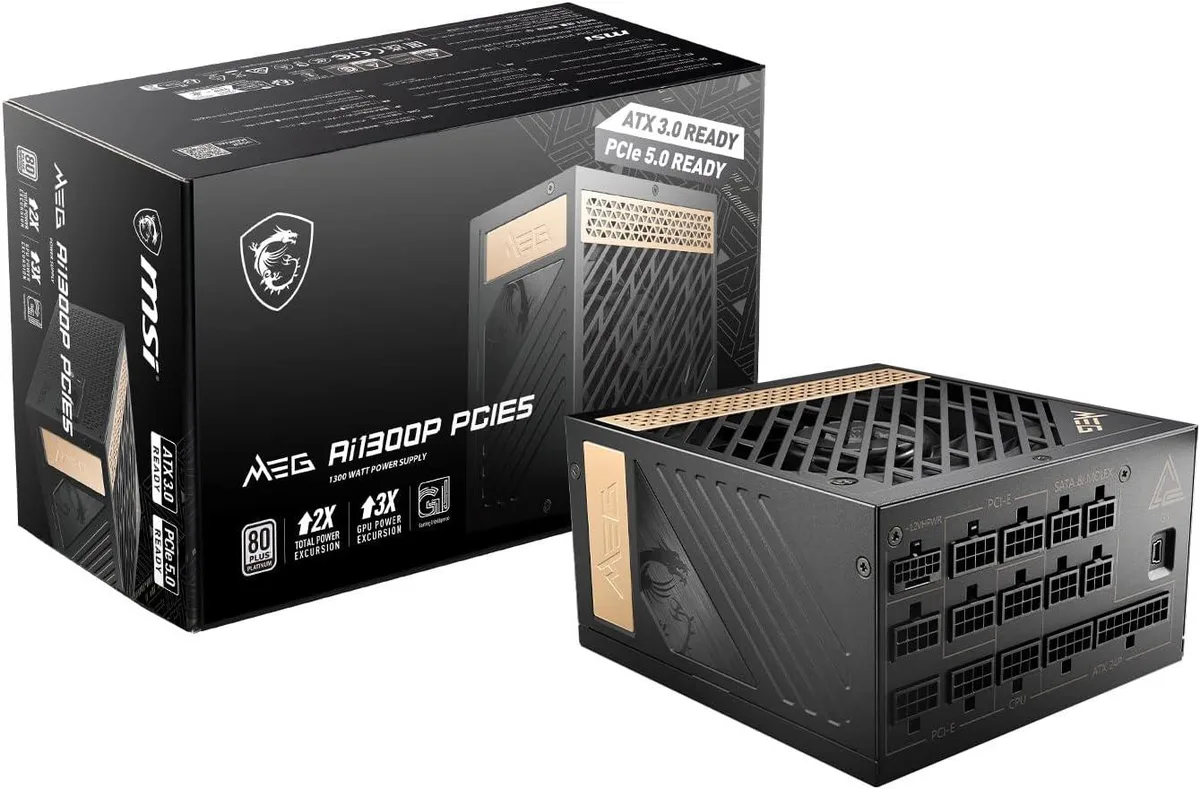

MSI MEG Ai1300P PCIE5 1300W ATX 3.0 power supply
Delivers 1300 W through a fully modular ATX 3.0 design with 80 PLUS Platinum efficiency and native 12VHPWR for 4080 and 4090 graphics cards
- TypeATX12V
- Maximum Power1300 W
- FansHydro Dynamic Bearing
- PFCActive
- Main Connector24Pin
- +12V RailsSingle
- Delivers 1300 W for 4080 4090 builds

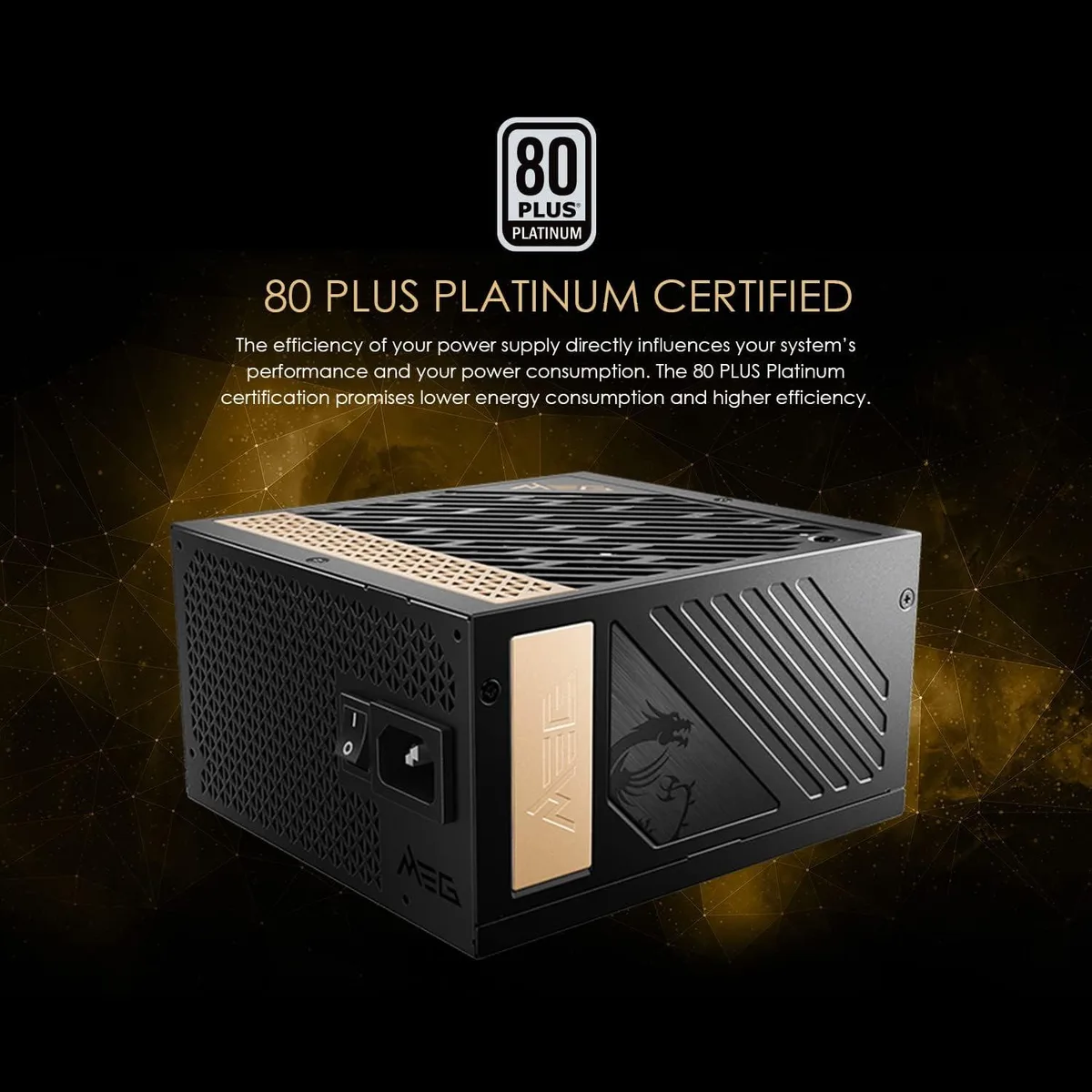

- 80 PLUS Platinum certified for up to 92% efficiency

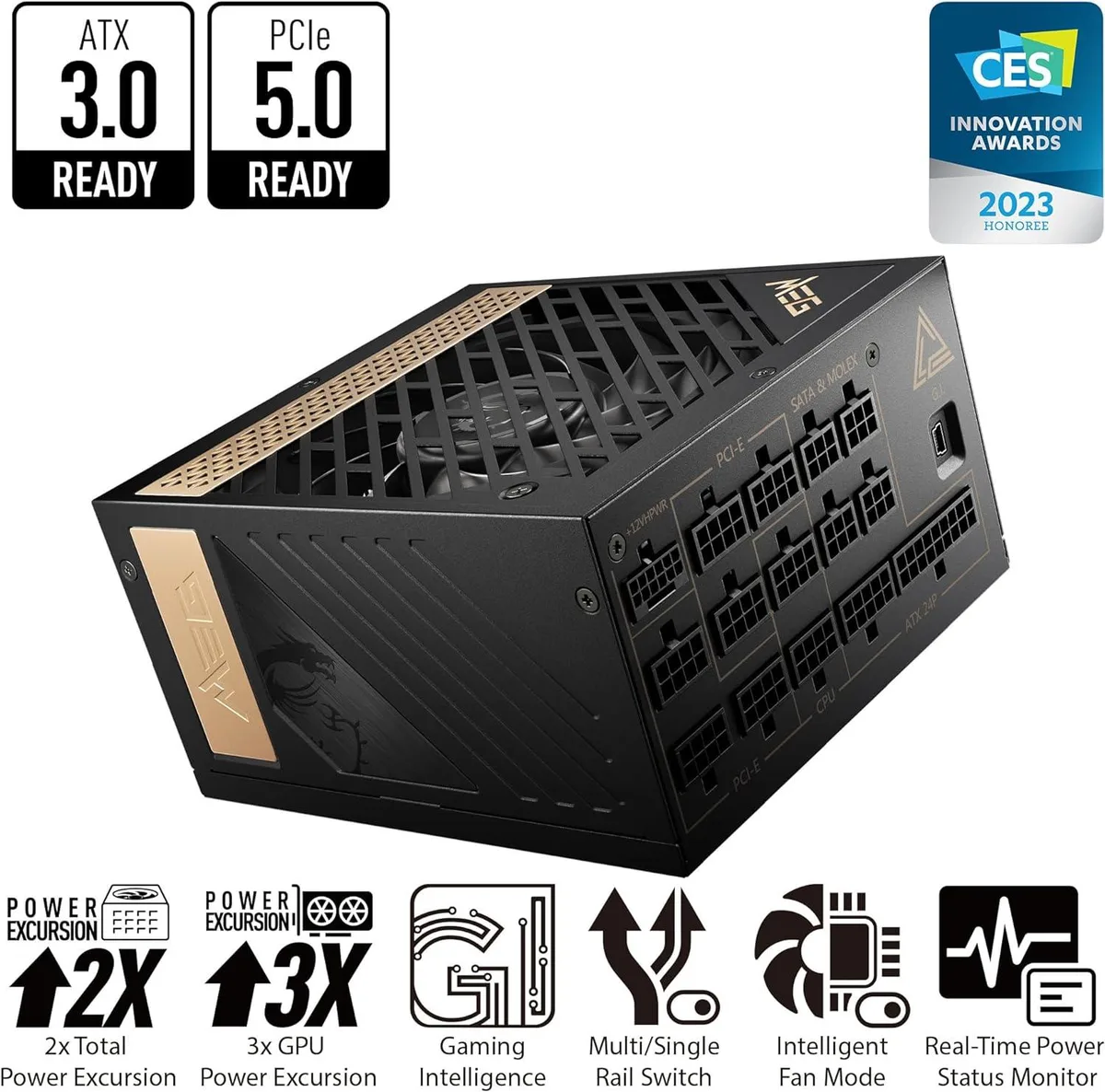

- PCIe 5.0 and ATX 3.0 ready with 12VHPWR cable
- Full modular design with sleeved cables for clean routing
- Hydro Dynamic Bearing fan rated Cybenetics Standard ++
High-wattage ATX 3.0 power supply
The MSI MEG Ai1300P PCIE5 delivers 1300 W through a single +12 V rail and meets ATX 3.0 and PCIe 5.0 specifications. It targets builders running flagship graphics cards such as the 4080 or 4090 and workstations that demand sustained high loads. The 80 PLUS Platinum rating confirms up to 92 % efficiency at typical loads.
Full-modular installation with 150 mm depth
A full-modular cable set lets you connect only the leads you need, including eight 6+2-pin PCIe connectors, 16 SATA plugs and the 12VHPWR cable for modern GPUs. The 150 mm chassis fits most mid-tower and larger cases, but compact builds should verify clearance. Sleeved cables improve routing but add stiffness; plan bends before tightening screws.
Check GPU power needs and case length
Confirm your graphics card requires the 12VHPWR connector or multiple 6+2-pin leads before ordering. Measure the available PSU bay depth against the 150 mm unit length. Ensure the motherboard accepts a 24-pin main connector and that the 100-240 V input range matches your local mains supply.
Highlights
- Delivers 1300 W for 4080 4090 builds
- 80 PLUS Platinum certified for up to 92% efficiency
- PCIe 5.0 and ATX 3.0 ready with 12VHPWR cable
- Full modular design with sleeved cables for clean routing
- Hydro Dynamic Bearing fan rated Cybenetics Standard ++
Specifications
| Brand | MSI |
|---|---|
| Model | MEG Ai1300P PCIE5 |
| Part Number | MEG Ai1300P PCIE5 |
| Type | ATX12V |
| Maximum Power | 1300 W |
| Fans | Hydro Dynamic Bearing |
| PFC | Active |
| Main Connector | 24Pin |
| +12V Rails | Single |
| PCI-Express Connector | 8 x 6+2-Pin |
| SATA Power Connector | 16 |
| Max PSU Length | 150 mm |
| Modular | Full Modular |
| Power Good Signal | 100-500ms |
| Efficiency | up to 92% |
| Energy-Efficient | 80 PLUS PLATINUM Certified |
| PSU Noise Level | Cybenetics Standard ++ |
| Over Voltage Protection | Yes |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Connectors | 1 x ATX Sleeved Cable 1 x EPS (8 PIN to 4+4 PIN) Sleeved Cable 1 x EPS (8 PIN to 8 PIN) Sleeved Cable 6 x PCIe (8 PIN to 6+2 PIN) Sleeved Cable 1 x PCIe (16 PIN to 16 PIN) Sleeved Cable 1 x PCIe (16 PIN to 6+2 PIN) Sleeved Cable 4 x SATA Sleeved Cable 1 x MOLEX/FDD Sleeved Cable 1 x MINI USB to 9PIN 1 x MINI USB to USB Type-A |
| Dimensions | 6.30" x 5.91" x 3.39" |
Questions about this item
How can I confirm the PSU is delivering stable power after installation?
The power-good signal triggers between 100 ms and 500 ms, showing the rails are within spec; the single +12 V rail design and 80 PLUS Platinum efficiency up to 92 % also indicate correct operation.
Which cables come in the box and what must I source separately?
The full-modular unit includes a 24-pin ATX connector, eight 6+2-pin PCIe connectors, sixteen SATA power connectors and a 12VHPWR cable for PCIe 5.0 graphics cards; no extra cables are required for standard builds.
Which capacity should I pick for a system with a 4080 or 4090 class GPU?
The 1300 W Platinum model is ATX 3.0 and PCIe 5.0 ready, providing ample headroom for a 4080 or 4090 plus other components while maintaining high efficiency and low noise.
