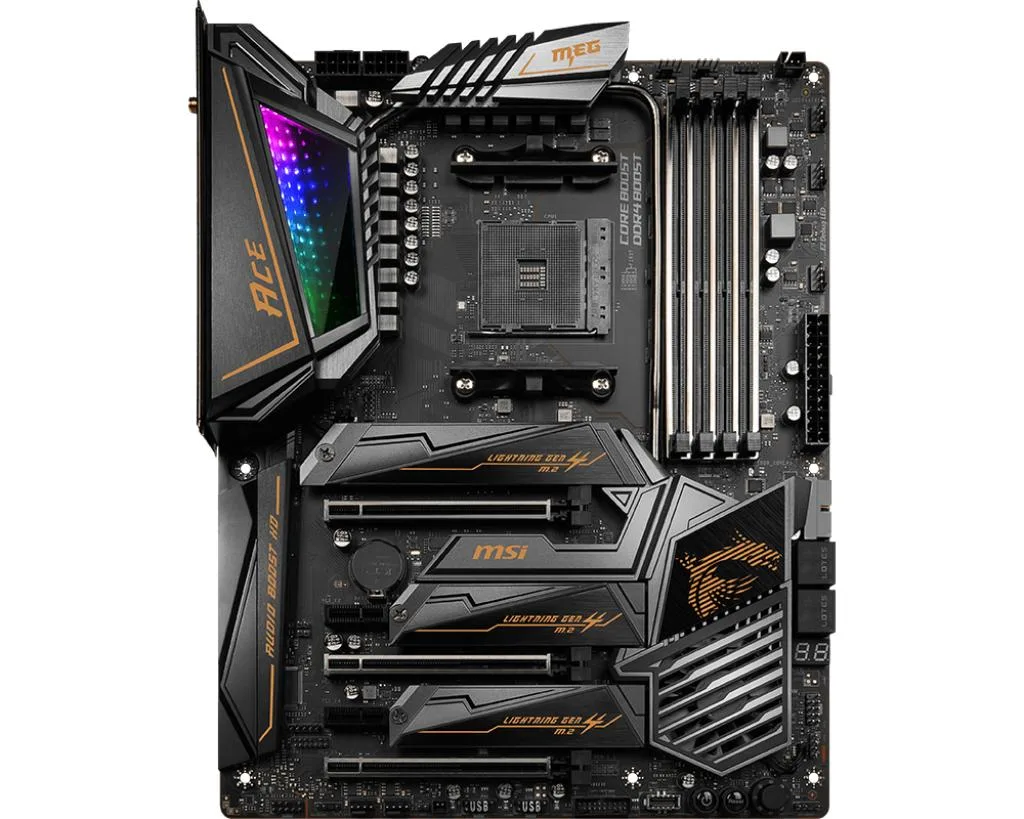

ATX motherboard with black PCB and silver heatsinks

MSI

MSI MEG X570 ACE AMD motherboard

SKU CH-48TD-GQRHG

ATX board for Socket AM4 Ryzen CPUs with X570 chipset, 128 GB DDR4 support, two PCIe 4.0 x16 slots, 2.5 Gbps and Gigabit LAN, Realtek ALC1220 7.1 audio.

  • CPU Socket TypeSocket AM4
  • CPU TypeSupport AM4 pin second and third generation AMD Ryzen ™/Rade
  • ChipsetAMD X570
  • Memory StandardSupport dual-channel DDR4 1866/2133/2400/2667/2800/2933/3000
  • Maximum Memory Supported128GB
  • PCI Slots2 PCIe 4.0/3.0 x16 slots (PCI_E1, PCI_E3) Third generation A
  • Supports up to 128GB DDR4 memory for heavy multitasking
  • PCIe 4.0 x16 slots ready for third-generation Ryzen processors
  • Dual LAN with Intel 2.5Gbps and Gigabit controllers for flexible networking
  • Realtek ALC1220 audio delivers 7.1 channel sound with S/PDIF output
  • Four SATA III ports plus three M.2 PCIe Gen4x4 interfaces for storage expansion

AM4 platform with X570 chipset

The MSI MEG X570 ACE is an ATX motherboard built on the AMD X570 chipset for Socket AM4 processors. It supports second and third generation Ryzen desktop CPUs including Radeon Vega display variants. Dual-channel DDR4 memory runs at speeds from 1866 up to 4600 MHz with a maximum capacity of 128 GB.

Enthusiast builders needing PCIe 4.0

This board suits builders who want PCIe 4.0 x16 or x8/x8 operation with third generation Ryzen and a 2.5 Gbps Realtek 8125 controller alongside Intel Gigabit LAN. Users staying with second generation Ryzen lose PCIe 4.0 support and drop to 3.0 speeds. Anyone needing a newer socket or different chipset should look elsewhere.

ATX layout with dual x16 slots and three M.2 sockets

The board fits standard ATX cases and provides two PCIe 4.0/3.0 x16 slots for multi-GPU or add-in cards. Three M.2 PCIe Gen4 x4 interfaces and four SATA III ports handle fast storage without using expansion slots. Rear I/O includes two USB 3.2 Gen2 Type-A ports plus a front-panel Type-C header and four internal USB 3.2 Gen1 ports. Realtek ALC1220 delivers 7.1 channel audio with optical S/PDIF output.

Highlights

  • Supports up to 128GB DDR4 memory for heavy multitasking
  • PCIe 4.0 x16 slots ready for third-generation Ryzen processors
  • Dual LAN with Intel 2.5Gbps and Gigabit controllers for flexible networking
  • Realtek ALC1220 audio delivers 7.1 channel sound with S/PDIF output
  • Four SATA III ports plus three M.2 PCIe Gen4x4 interfaces for storage expansion

Specifications

BrandMSI
SeriesMSI MEG X570 ACE
ModelMSI MEG X570 ACE
CPU Socket TypeSocket AM4
CPU TypeSupport AM4 pin second and third generation AMD Ryzen ™/Radeon ™ Vega display chip Ryzen ™/Radeon ™ display chip second generation AMD Ryzen ™ desktop processor
ChipsetAMD X570
Memory StandardSupport dual-channel DDR4 1866/2133/2400/2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400/4533/4600MHz memory
Maximum Memory Supported128GB
PCI Slots2 PCIe 4.0/3.0 x16 slots (PCI_E1, PCI_E3)
Third generation AMD Ryzen ™ supports PCIe 4.0 x16/x0, x8/x8 speeds
2nd generation AMD Ryzen ™ supports PCIe 3.0 x16/x0, x8/x8 speeds
Ryzen ™ processor with Radeon ™ Vega display chip/2nd generation AMD Ryzen ™ processor with Radeon ™ display chip supports PCIe 3.0 x8 speed
1 PCIe 4.0/3.0 x16 slot (PCI_E5, supports x4 speeds)
2 PCIe 4.0/3.0 x1 slots
SATA RAID4XSATA III interface, 3xM.2 PCIe (Gen4x4)
Audio ChipsetRealtek ALC1220 Decoder Chip
7.1 channel high-quality sound effects
Support fiber S/PDIF output
LAN Chipset1 Intel WGI211AT Gigabit network controller
1 Realtek RTL8125 2.5 Gbps network controller
Onboard USBAMD X570 chipset
3 USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (2 Type-A ports on the backplane, 1 Type-C internal connector)
4 USB 3.2 Gen1 (SuperSpeed USB) ports are provided through an internal USB 3.2 Gen1 connector
6 USB 2.0 (High-speed USB) ports (2 Type-A ports on the backplane, 4 ports via internal USB 2.0 connector)
AMD Processor
2 USB 3.2 Gen2 (3rd generation AMD Ryzen ™) ports or USB 3.2 Gen1 (2nd generation AMD Ryzen ™/Ryzen with Radeon ™ Vega display chips ™ and 2nd generation AMD Ryzen ™) ports with Radeon ™ display chips (1 Type-A and 1 Type-C) on the backplane
2 USB 3.

Questions about this item

Does the MEG X570 ACE need DDR4 memory modules to reach the 128GB limit?

Yes, the board only accepts DDR4 DIMMs and supports up to 128GB across four slots.

Will a second-generation Ryzen CPU run the PCIe x16 slots at 4.0 speeds on this board?

No, second-generation Ryzen processors limit the slots to PCIe 3.0 x16 or x8/x8 operation.

How can I confirm the Realtek ALC1220 codec is delivering 7.1-channel output after build?

Open the Realtek audio console in Windows, select 7.1 speaker configuration and run the speaker test tones.
