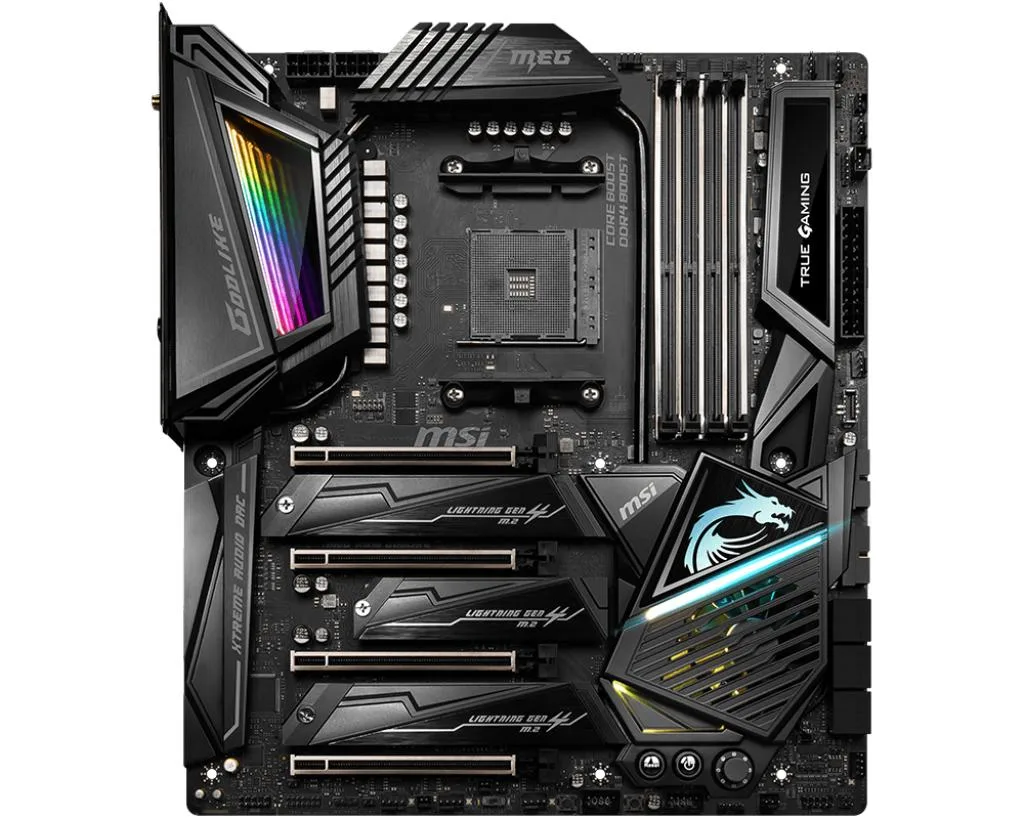

Black E-ATX motherboard with silver heatsinks and gold accents

MSI

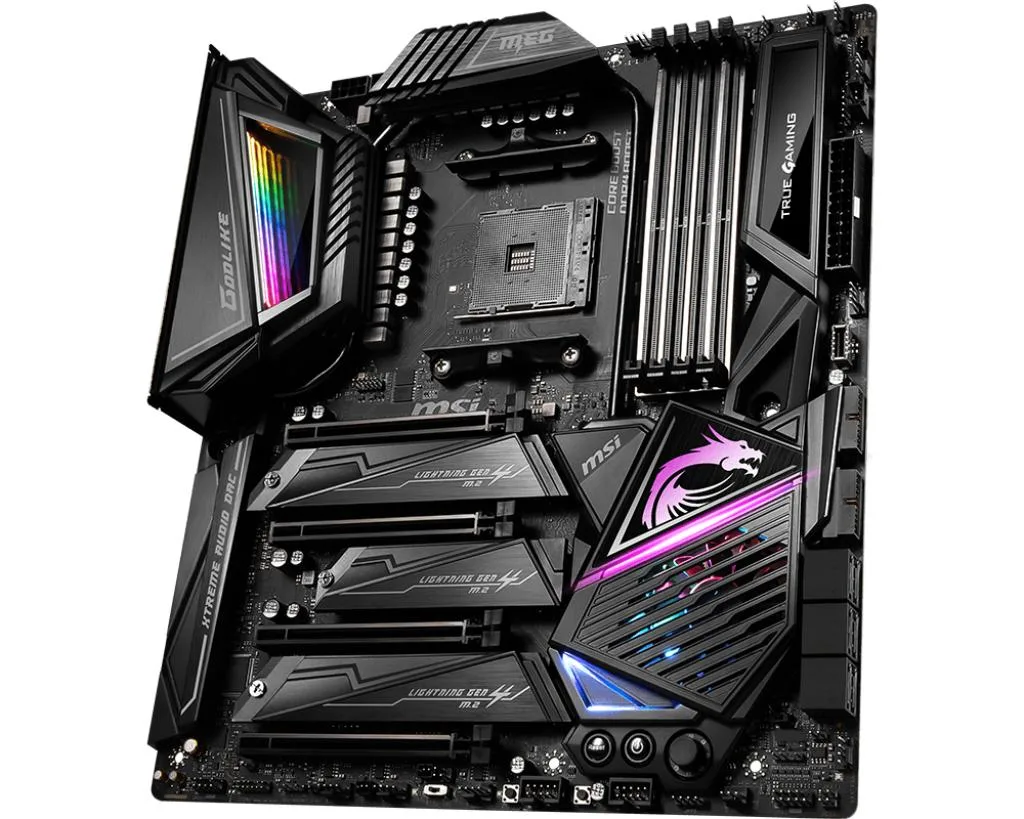

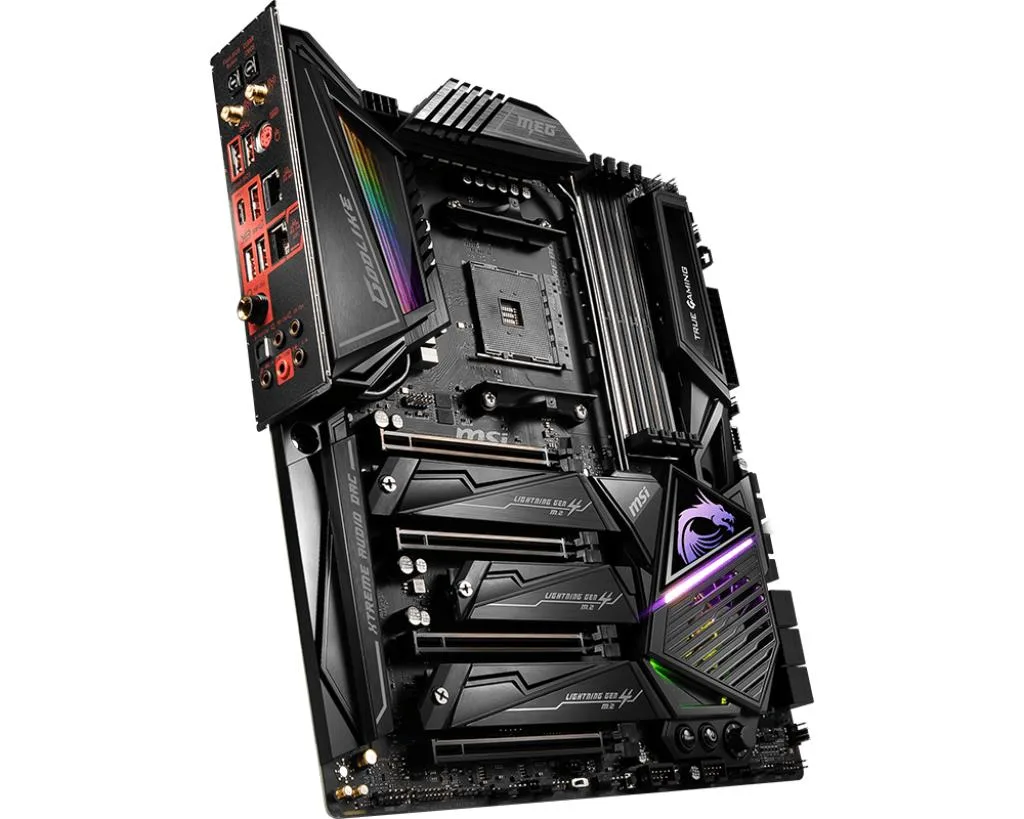

MSI MEG X570 GODLIKE AMD motherboard Socket AM4 128GB DDR4

SKU CH-4D4A-9KCJP

Supports second and third generation Ryzen processors with 128GB DDR4, three PCIe 4.0 x16 slots, 7.1 audio via dual ALC1220 and ESS 9018 chips, 2.5Gbps Killer E3000 LAN plus Gigabit E2600.

  • CPU Socket TypeSocket AM4
  • CPU TypeSupport AM4 pin second and third generation AMD Ryzen ™/Rade
  • ChipsetAMD X570
  • Memory StandardNo data yet
  • Maximum Memory Supported128GB
  • PCI Slots3 PCIe 4.0/3.0 x16 slots (PCI_E1~ 3) 3rd generation AMD Ryze
  • Supports up to 128GB DDR4 for heavy multitasking
  • Three PCIe 4.0 x16 slots give high-bandwidth GPU options
  • Dual Killer LAN controllers deliver 2.5 Gbps and Gigabit wired speed
  • ESS E9018 DAC plus dual Realtek ALC1220 chips enable 7.1-channel audio
  • 3mm gold-plated headphone jack drives high-impedance cans directly

MEG X570 GODLIKE AM4 Platform

The MSI MEG X570 GODLIKE is an AMD X570 motherboard built for Socket AM4 processors. It supports second and third generation Ryzen desktop CPUs and Radeon Vega display chips. Four DDR4 slots accept up to 128GB of system memory for high-capacity workloads.

E-ATX Installation and Clearance

This board uses the E-ATX form factor so verify that your chassis accepts the larger footprint before fitting. Align the nine mounting holes with the case standoffs and use the supplied I/O shield. The primary PCIe x16 slot sits close to the CPU socket; bulky cooler bases can block the retention lever or the first expansion card.

128GB DDR4 Maximum Capacity

The memory controller is validated to 128GB across four DDR4 slots. Populate all four slots with matched modules to reach the limit; mixing densities or speeds may prevent the system from posting at the rated capacity.

Highlights

  • Supports up to 128GB DDR4 for heavy multitasking
  • Three PCIe 4.0 x16 slots give high-bandwidth GPU options
  • Dual Killer LAN controllers deliver 2.5 Gbps and Gigabit wired speed
  • ESS E9018 DAC plus dual Realtek ALC1220 chips enable 7.1-channel audio
  • 3mm gold-plated headphone jack drives high-impedance cans directly

Specifications

BrandMSI
SeriesMSI MEG X570 GODLIKE
ModelMSI MEG X570 GODLIKE
CPU Socket TypeSocket AM4
CPU TypeSupport AM4 pin second and third generation AMD Ryzen ™/Radeon ™ Vega display chip Ryzen ™/Radeon ™ display chip second generation AMD Ryzen ™ desktop processor
ChipsetAMD X570
Memory StandardNo data yet
Maximum Memory Supported128GB
PCI Slots3 PCIe 4.0/3.0 x16 slots (PCI_E1~ 3)
3rd generation AMD Ryzen ™ supports PCIe 4.0 x16/x0/x0, x8/x0/x8, x8/x4/x4 modes
2nd generation AMD Ryzen ™ supports PCIe 3.0x16/x0/x0, x8/x0/x8, x8/x4/x4 modes
Ryzen ™ processor with Radeon ™ Vega display chip/2nd generation AMD Ryzen ™ processor with Radeon ™ display chip supports PCIe 3.0 x8/x0/x0 mode
1 PCIe 4.0/3.0 x16 slot (PCI_E4, supports x4 mode)
SATA RAID6XSATA III interface, M.2 PCIe (Gen4x4)
Audio Chipset2 Realtek ALC1220 decoding chips
7.1 channel high-quality sound effects
Supports S/PDIF output
ESS E9018 decoding chip
Support 6.3mm gold-plated stereo headphone output
LAN Chipset1 Killer ™ E2600 Gigabit Network Controller
1 Killer ™ E3000 2.5 Gbps Network Controller
Onboard USBAMD X570 chipset
3 USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (2 Type-A ports on the backplane, 1 Type-C internal connector)
4 USB 3.2 Gen1 (SuperSpeed USB) ports are available via an internal USB connector
Four USB 2.0 (High-speed USB) ports are provided through internal USB connectors
AMD processor
2 USB 3.2 Gen2 (3rd generation AMD Ryzen ™) or USB 3.2 Gen1 (2nd generation AMD Ryzen ™/Ryzen with Radeon ™ Vega display chip ™/2nd generation AMD Ryzen with Radeon ™ display chip ™) Type-A and Type-C ports on the backplane
2 USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the backplane

Questions about this item

How can I confirm the board is running at PCIe 4.0 x16 after installing a third-generation Ryzen processor?

The three full-length slots operate at PCIe 4.0 x16/x0/x0, x8/x0/x8 or x8/x4/x4 with a third-generation Ryzen CPU; check the active lane configuration in the BIOS or a system-information utility to verify the expected mode.

Which accessories are included and which common items are not supplied with this motherboard?

The package contains the motherboard, a CMOS battery, one SATA cable and the chassis I/O back panel; a Wi-Fi antenna is added only when the board has a built-in Wi-Fi module, while CPU cooler brackets, additional SATA cables, M.2 screws and RGB strips are not included.

Should I choose this X570 model if I need 128 GB of DDR4 memory?

Yes — the board supports up to 128 GB of DDR4 across four slots, making it the appropriate X570 option for that capacity requirement.
