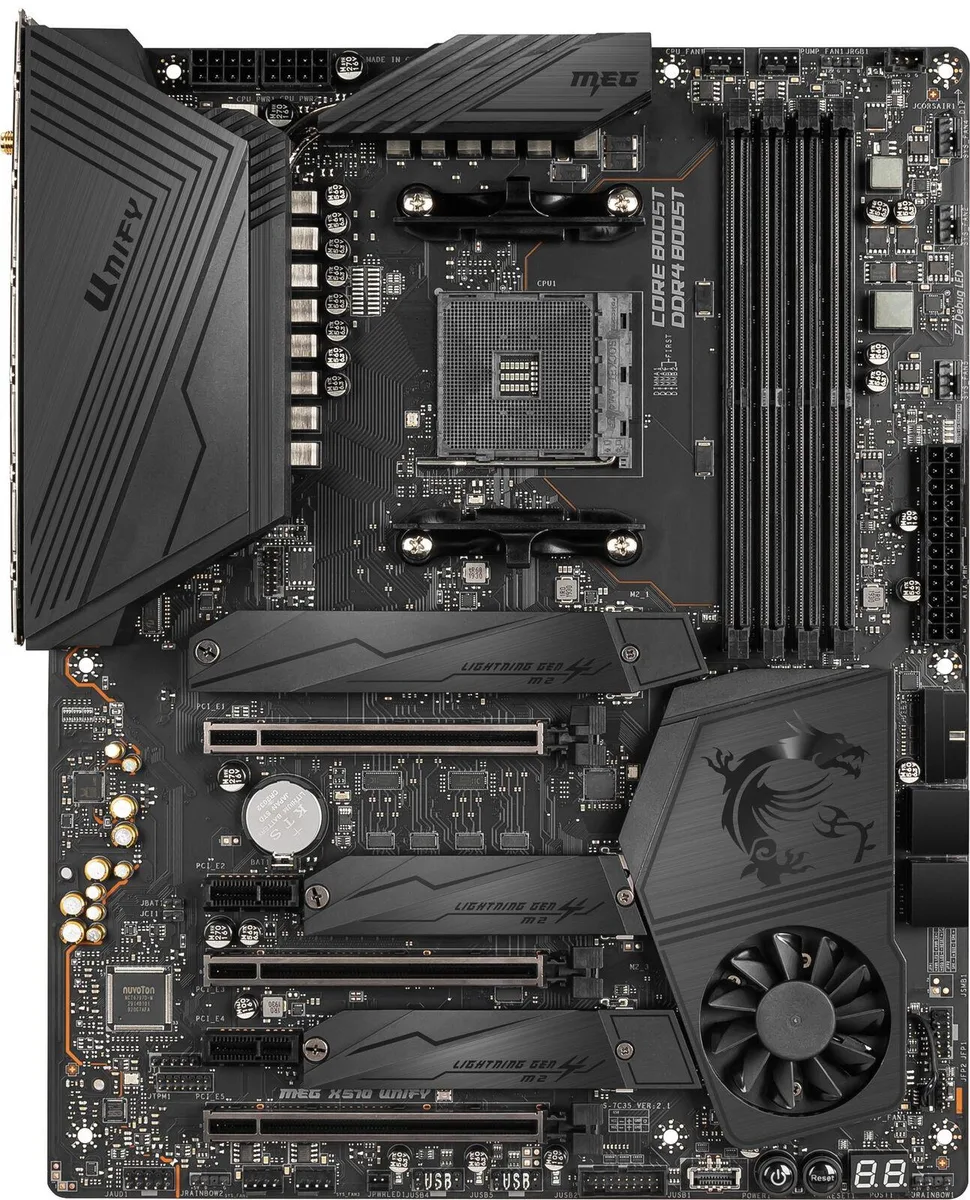

Black ATX motherboard with full aluminium heatsink cover and pre-fitted I/O shield

MSI

MSI MEG X570 Unify AMD motherboard

SKU CH-W6SF-7EZVC

ATX board for Socket AM4 Ryzen CPUs with DDR4 up to 5000 MHz, PCIe 4.0 slots, 2.5 Gbps LAN, Wi-Fi 6 and 7.1 audio

  • CPU Socket TypeSocket AM4
  • CPU TypeSupport AM4 pin second and third generation AMD Ryzen ™/Rade
  • ChipsetAMD X570
  • Memory StandardSupport dual-channel DDR4 1866/2133/2400/2667/2800/2933/3000
  • Maximum Memory Supported128GB
  • PCI Slots2x PCIe 4.0/ 3.0 x16 slots (PCI_E1, PCI_E3) 3rd Gen AMD Ryze
  • Supports DDR4 memory up to 5000 MHz overclocked
  • Extended aluminium heatsink keeps high-end CPUs running at full speed
  • 5 Gbps LAN plus Wi-Fi 6 with MU-MIMO for responsive online play
  • Pre-installed I/O shield simplifies build and improves EMI protection
  • Four SATA III and three M.2 PCIe 4.0 slots give flexible storage options

AM4 Platform Foundation

This ATX motherboard uses the AMD X570 chipset and Socket AM4 to support second and third generation Ryzen desktop processors, including models with integrated Radeon Vega graphics. It provides a stable base for high core count CPUs and dual-channel DDR4 memory up to 128GB capacity.

PCIe 4.0 Lane Reality

Third generation Ryzen CPUs unlock PCIe 4.0 x16 or x8/x8 operation on the two full length slots, while second generation CPUs limit those slots to PCIe 3.0 speeds. Three M.2 sockets share Gen4 x4 bandwidth only when a compatible processor is installed, otherwise they fall back to Gen3.

2.5 Gbps Wired Networking

The onboard Realtek RTL8125 controller delivers 2.5 Gbps Ethernet, a practical uplift over standard gigabit for local file transfers and low latency gaming without requiring a separate add-in card.

Highlights

  • Supports DDR4 memory up to 5000 MHz overclocked
  • Extended aluminium heatsink keeps high-end CPUs running at full speed
  • 5 Gbps LAN plus Wi-Fi 6 with MU-MIMO for responsive online play
  • Pre-installed I/O shield simplifies build and improves EMI protection
  • Four SATA III and three M.2 PCIe 4.0 slots give flexible storage options

Specifications

BrandMSI
SeriesMSI MEG X570 UNIFY
ModelMEG X570 UNIFY
CPU Socket TypeSocket AM4
CPU TypeSupport AM4 pin second and third generation AMD Ryzen ™/Radeon ™ Vega display chip Ryzen ™/Radeon ™ display chip second generation AMD Ryzen ™ desktop processor
ChipsetAMD X570
Memory StandardSupport dual-channel DDR4 1866/2133/2400/2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400/4533/4600MHz memory
Maximum Memory Supported128GB
PCI Slots2x PCIe 4.0/ 3.0 x16 slots (PCI_E1, PCI_E3)
3rd Gen AMD Ryzen™ support PCIe 4.0 x16/x0, x8/x8 modes
2nd Gen AMD Ryzen™ support PCIe 3.0 x16/x0, x8/x8 modes
Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode
1x PCIe 4.0/ 3.0 x16 slot (PCI_E5, supports x4 mode)
2x PCIe 4.0/ 3.0 x1 slots
SATA RAID4XSATA III interface, 3xM.2 PCIe (Gen4x4)
Audio ChipsetRealtek ALC1220 Codec
7.1-Channel High Definition Audio
Supports Optical S/PDIF output
LAN Chipset1x Realtek RTL8125 2.5 Gbps LAN controller
Onboard USBAMD X570 chipset
3x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (2 Type-A ports on the back panel, 1 Type-C internal connector)
4x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connectors
6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD processor
2x USB 3.2 Gen2 (3rd Gen AMD Ryzen™) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) ports (1x Type-A & 1x Type-C) on the back panel
2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports
Form FactorATX

Questions about this item

How much DDR4 memory can the board hold and what speeds does it support?

The board has four DDR4 slots supporting up to 128 GB total. Official JEDEC speeds run from 1866 MHz to 4600 MHz, and the manufacturer rates the board for DDR4 5000+ MHz when overclocked.

What does the PCIe 4.0 x16 slot actually deliver with a third-generation Ryzen CPU?

With a third-generation Ryzen processor the primary slot runs at PCIe 4.0 x16 bandwidth. When both x16 slots are populated the board splits the lanes to x8/x8, still at PCIe 4.0 speeds.

How fast is the onboard LAN and which controller does it use?

The board uses a Realtek RTL8125 controller providing a single 2.5 Gbps Ethernet port.
