MSI

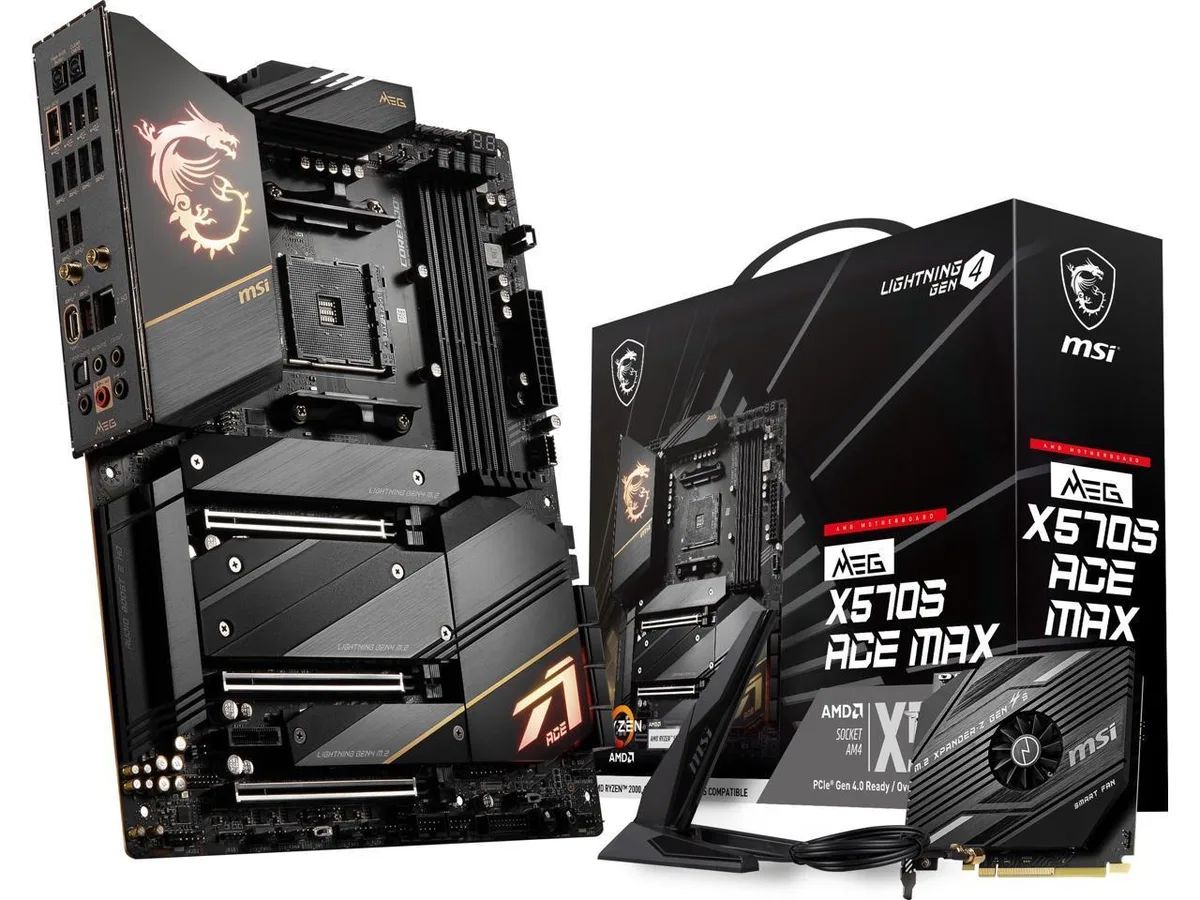

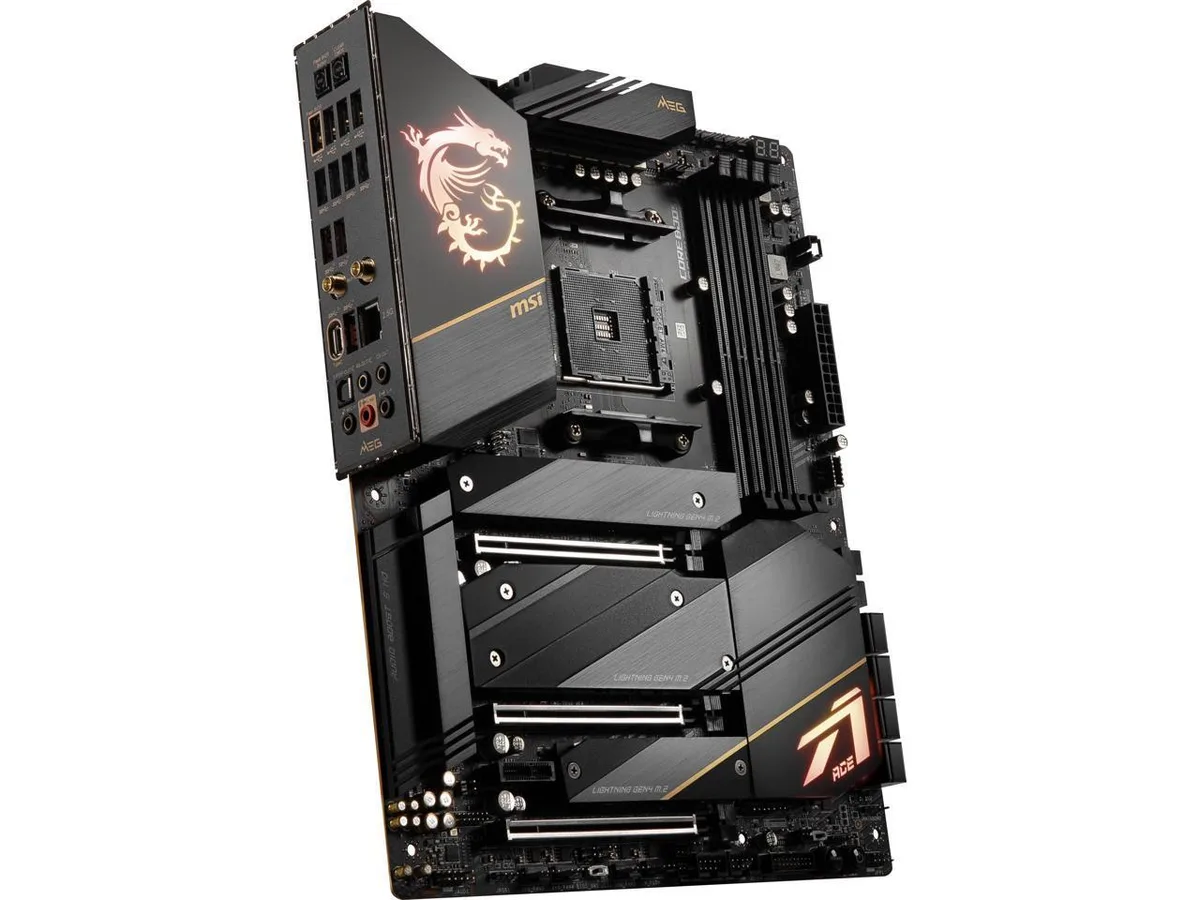

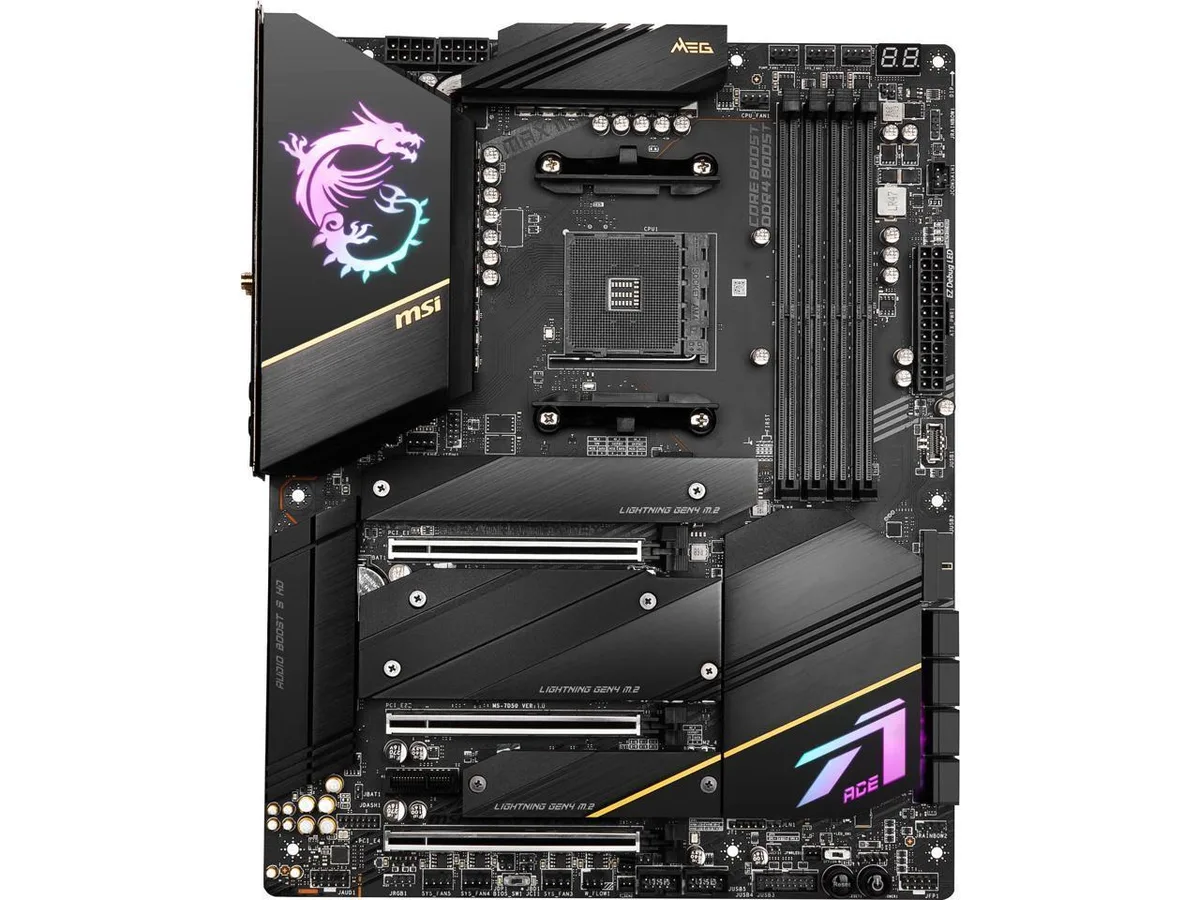

MSI MEG X570S ACE MAX AMD motherboard
ATX board for AM4 Ryzen CPUs with 16+2+1 phase 90A power, four M.2 slots, eight SATA ports and 128 GB DDR4 5300 OC support
- CPU Socket TypeAM4
- CPU TypeSupports AMD Ryzen 5000 Series / 5000 G-Series / 4000 G-Seri
- ChipsetAMD X570
- Number of Memory Slots4x288pin (DDR4)
- Memory StandardDDR4 3200 / 3066 / 3000 / 2933 / 2800 / 2667 / 2400 / 2133 /
- Maximum Memory Supported128GB
- Supports Ryzen 5000 to 2000 Series processors for broad CPU compatibility
- DDR4 memory overclocks to 5300 MHz for high-speed performance
- 16+2+1 phase 90A power design delivers stable current to the CPU
- Four M.2 slots with PCIe 4.0 support enable fast storage expansion
- Aluminium cover, heat-pipe and 7W/mK pads keep VRM and M.2 drives cool
AM4 Platform Coverage
This motherboard fits the AM4 socket and accepts AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors. It targets enthusiasts who want a single board that spans multiple CPU generations without changing platform. The X570 chipset unlocks full PCIe 4.0 support from compatible Ryzen CPUs.
Memory Capacity And Speed Limits
Four DDR4 slots support up to 128 GB in dual-channel mode with JEDEC speeds from 1866 to 3200 MT/s. A-XMP overclocking can push 1 DPC 1R modules to 5300 MT/s on Ryzen 5000 G-Series and 4000 G-Series processors. Beyond that frequency headroom the memory controller becomes the limiting factor.
Power Phase Upgrade And M.2 Expansion
The 16+2+1 phase VRM uses 90 A smart power stages and dual CPU power connectors, a clear step up from mainstream 10 to 12 phase designs on earlier X570 boards. Four M.2 slots with PCIe 4.0 on Ryzen 5000 and 3000 Series CPUs replace the two or three slots typical of mid-range models. The jump is worth it when you need both sustained high current delivery and maximum Gen 4 storage density.
Highlights
- Supports Ryzen 5000 to 2000 Series processors for broad CPU compatibility
- DDR4 memory overclocks to 5300 MHz for high-speed performance
- 16+2+1 phase 90A power design delivers stable current to the CPU
- Four M.2 slots with PCIe 4.0 support enable fast storage expansion
- Aluminium cover, heat-pipe and 7W/mK pads keep VRM and M.2 drives cool
Specifications
| Brand | MSI |
|---|---|
| Model | MEG X570S ACE MAX |
| CPU Socket Type | AM4 |
| CPU Type | Supports AMD Ryzen 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series / 3000 G-Series / 2000 Series and 2000 G-Series processors* * Please refer www.msi.com for more information on compatible memory. |
| Chipset | AMD X570 |
| Number of Memory Slots | 4x288pin (DDR4) |
| Memory Standard | DDR4 3200 / 3066 / 3000 / 2933 / 2800 / 2667 / 2400 / 2133 / 1866 (by JEDEC) Max frequency by A-XMP OC mode: For Ryzen 5000 G-Series & 4000 G-Series processors: - 1DPC 1R Max speed up to 5300 (support overclocking up to 5500+) - 1DPC 2R Max speed up to 4266 - 2DPC 1R Max speed up to 4400 - 2DPC 2R Max speed up to 3600 For Ryzen 5000 Series & 3000 Series processors: - 1DPC 1R Max speed up to 5100 - 1DPC 2R Max speed up to 4000 - 2DPC 1R Max speed up to 4000 - 2DPC 2R Max speed up to 3600 |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| ECC Supported | Non-ECC |
| Buffer Supported | Un-buffered |
| PCI Express 4.0 x16 | 3 x PCI Express 4.0 x16* * Actual support may vary by CPU. * PCI_E4 supports x8. * PCI_E4, M2_3, M2_4 and SATA5~8 share the same bandwidth. |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
| PCI Express x16 | 1 x PCI Express x16 |
| PCI Express x1 | 1 x PCI Express x1* * Actual support may vary by CPU. * The PCIe x1 slot and onboard Wi-Fi module share the same bandwidth, you can not use both of them simultaneously, and the default setting is the Wi-Fi module for the system. Please disable the Onboard Wi-Fi Module Control in BIOS if you want to use the PCIe x1 slot. |
| Serial ATA (SATA) | 8 x SATA 6Gb/s |
| M.2 | 4 x M.2 slots (Key M): Supports PCIe 4.0 / PCIe 3.0 PCIe 4.0 is available only on AMD Ryzen 5000 Series and 3000 Series desktop processors Support SATA 6Gbps (For M2_1, M2_3 & M2_4) M2_1 (From processor): Supports 2280/22110 storage devices M2_2 (From X570 chipset): Supports 2260/2280 storage devices M2_3 * (From X570 chipset): Supports 2280/22110 storage devices M2_4 * (From X570 chipset): Supports 2260/2280 storage devices * PCI_E4, M2_3, M2_4 and SATA5~8 share the same bandwidth. |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
| Audio Chipset | Realtek ALC4082 Codec + ESS SABRE9018Q2C Combo DAC/HPA |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek RTL8125B |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Intel Wi-Fi 6E AX210 802.11 a/b/g/n/ac/ax |
| Bluetooth | Bluetooth 5.2 |
| Back I/O Ports | 1 x Clear CMOS Button 1 x Flash BIOS Button 1 x LAN (RJ45) 2 x Antenna Bracket 1 x USB 3.2 Gen 2x2 Type-C 3 x USB 3.2 Gen 2 4 x USB 3.2 Gen 1 4 x USB 2.0/1.1 1 x Optical S/PDIF Out 5 x Audio Jacks |
| USB 3.0 | 4 x USB 3.0 |
| Onboard USB | 2 x USB 2.0 connectors (support additional 4 USB ports) 2 x USB 3.2 Gen 1 5Gbps connectors (support additional 4 USB ports) 1 x USB 3.2 Gen 2 10Gbps Type-C connector |
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin water-pump connector 6 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 2 x 2-pin Thermal sensors connectors 1 x Water Flow Meter connector 1 x Tuning Controller connector 1 x 4-pin RGB LED connector 2 x 3-pin RAINBOW LED connectors 1 x 3-pin CORSAIR connector 1 x EZ LED Control switch 1 x 2-Digit Debug Code LED 4 x EZ Debug LEDs |
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors |
| Windows 11 | Supported |
| Features | Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors Supports DDR4 Memory, Dual Channel 5300(OC) MHz+ Extreme Power Design: Direct 16+2+1 phases with 90A Smart Power Stage and dual CPU power connectors to unleash the maximum performance Quadruple M.2 Connectors: Onboard 4 x M.2 connectors for the maximum storage performance with Lightning Gen 4 solution. Double-sided M.2 Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster Premium Thermal Solution: Aluminum Cov |
Questions about this item
Will my existing DDR4-3200 memory work with the four 288-pin slots on this board?
Yes — the board runs DDR4 at JEDEC speeds from 1866 up to 3200 MHz across all four slots, and supports up to 128 GB in dual-channel mode.
How can I verify the Realtek ALC4082 and ESS SABRE9018Q2C audio combo is active after first boot?
Open Windows Device Manager or your OS sound control panel; both codecs should appear as separate audio devices with driver versions listed.
Which cables and brackets ship with the MEG X570S ACE MAX, and what must I source myself?
The box includes SATA cables, M.2 mounting screws, I/O shield and documentation; you supply the CPU, DDR4 modules, storage drives, graphics card and ATX power supply.
