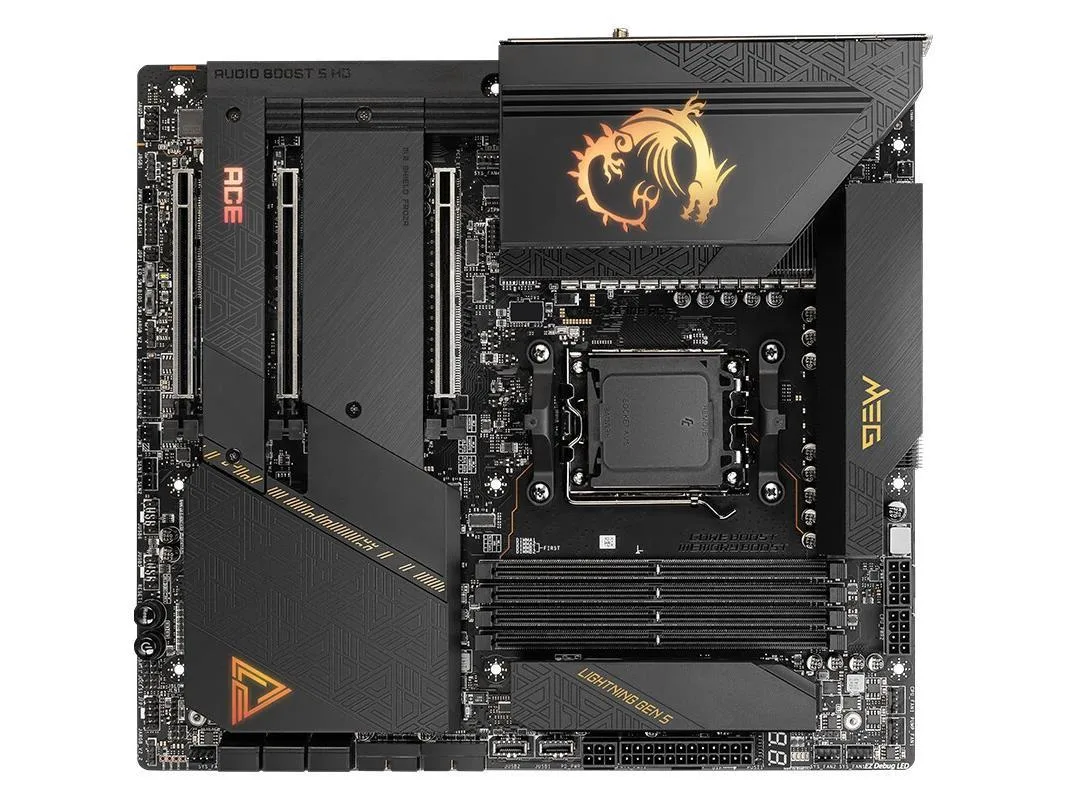

Black rectangular E-ATX motherboard with silver heatsinks and gold accents

MSI

MSI MEG X670E ACE AMD motherboard

SKU CH-YG8Q-G8F52

Socket AM5 motherboard with AMD X670 chipset supporting Ryzen 7000 and 8000 series CPUs, dual-channel DDR5 up to 6666 MHz and 256 GB memory, 10 Gbps LAN, Realtek ALC4082 plus ESS ES9280AQ 7.1 audio.

  • CPU Socket TypeSocket AM5
  • CPU TypeSupports AMD Ryzen™ 8000/ 7000 Series Desktop Processors Soc
  • ChipsetAMD X670
  • Memory StandardSupports dual-channel DDR5 6666 + MHz
  • Maximum Memory Supported256GB
  • PCI Slots3X PCI-E x16 slots (quantity) Supports x16/x0/x4 or x8/x8/x4
  • Supports Ryzen 7000 and 8000 series CPUs via Socket AM5
  • Dual-channel DDR5 memory up to 6666+ MHz with 256 GB capacity
  • 10 Gbps LAN plus multiple USB 10 Gbps and 20 Gbps ports
  • Realtek ALC4082 with ESS ES9280AQ DAC for 7.1-channel 32-bit/384 kHz audio
  • AMD X670 chipset with three PCIe x16 slots and six SATA III ports

Socket AM5 X670E DDR5 256GB

The MSI MEG X670E ACE is an AMD motherboard built on the X670 chipset for Socket AM5 processors. It supports Ryzen 7000 and 8000 series CPUs with dual-channel DDR5 memory up to 256GB at 6666 MHz.

Enthusiast DDR5 platform not entry builds

This board suits users who need high memory capacity, 10Gbps LAN, and a 7.1-channel audio implementation with ESS DAC. Builders on a strict budget or using older Ryzen generations should consider other chipsets.

Three PCIe x16 slots configurable by CPU

The board provides three PCI-E x16 slots that operate at x16/x0/x4 or x8/x8/x4 with Ryzen 7000 series, x8/x0/x4 with Ryzen 7 8700G and Ryzen 5 8600G, and x4/x0/x2 with Ryzen 5 8500G.

Highlights

  • Supports Ryzen 7000 and 8000 series CPUs via Socket AM5
  • Dual-channel DDR5 memory up to 6666+ MHz with 256 GB capacity
  • 10 Gbps LAN plus multiple USB 10 Gbps and 20 Gbps ports
  • Realtek ALC4082 with ESS ES9280AQ DAC for 7.1-channel 32-bit/384 kHz audio
  • AMD X670 chipset with three PCIe x16 slots and six SATA III ports

Specifications

BrandMSI
SeriesMSI MEG X670E ACE
ModelMSI MEG X670E ACE
CPU Socket TypeSocket AM5
CPU TypeSupports AMD Ryzen™ 8000/ 7000 Series Desktop Processors
Socket AM5
ChipsetAMD X670
Memory StandardSupports dual-channel DDR5 6666 + MHz
Maximum Memory Supported256GB
PCI Slots3X PCI-E x16 slots (quantity)
Supports x16/x0/x4 or x8/x8/x4 (For Ryzen™ 7000 Series processors)
Supports x8/x0/x4 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
Supports x4/x0/x2 (For Ryzen™ 5 8500G processor)
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 Gen PCIe 5.0 supports up to x4 (From CPU)
SATA RAID4XM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA
7.1-Channel USB High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
LAN ChipsetMarvell AQC113CS-B1-C 10Gbps LAN
Onboard USB4X USB 2.0 (front)
4X USB 2.0 interface (front)
4x USB 5Gbps Type A (Front)
8x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
2x USB 20Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)

Questions about this item

Will my Ryzen 7 8700G run at full PCIe x16 speed on the top slot?

With Ryzen 7 8700G the board routes the top slot at x8 and the third at x4, so a single GPU will operate at x8 electrical.

Can I install four DDR5 modules to reach 256 GB?

Yes, the board supports dual-channel DDR5 up to 6666+ MHz and a maximum of 256 GB across four slots.

What front-panel USB headers are available for my case?

The board provides four USB 2.0, four USB 5 Gbps Type-A, one USB 10 Gbps Type-C and one USB 20 Gbps Type-C header.
