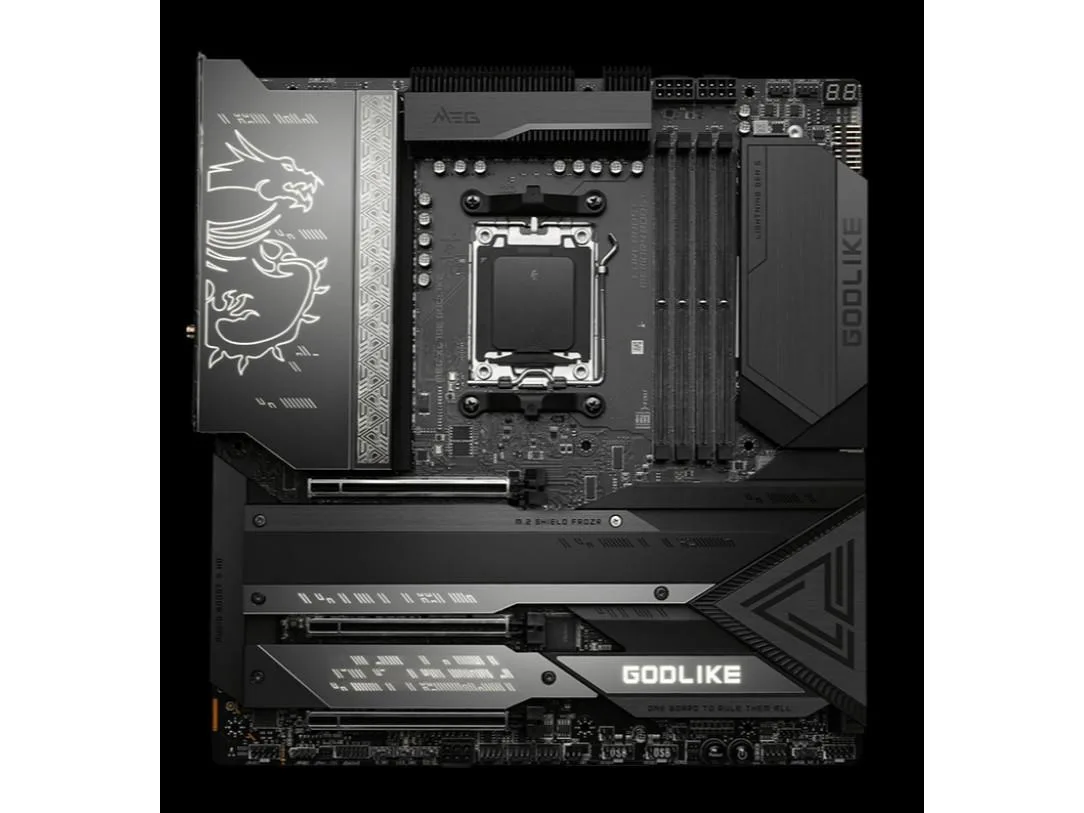

Large rectangular E-ATX motherboard, black finish with gold accents and integrated I/O shield

MSI

MSI MEG X670E GODLIKE AMD motherboard

SKU CH-4JYK-5T1T0

Supports Ryzen processors on Socket AM5 with DDR5 memory up to 256GB and 8000MHz overclocking, featuring 10Gbps and 2.5Gbps LAN, 7.1-channel audio with ESS DAC.

  • CPU Socket TypeSocket AM5
  • CPU Type4x DDR5, Maximum Memory Capacity 256GB Memory support DDR5 8
  • ChipsetAMD X670
  • Memory StandardSupport Dual Channel DDR5 6600 + (OC)/6400 (OC)/6200 (OC)/60
  • Maximum Memory Supported256GB
  • PCI Slots3X PCI-E x16 slots (quantity) Supports x16/x0/x4 or x8/x8/x4
  • Supports up to 256GB DDR5 memory for extreme multitasking
  • DDR5 speeds up to 8000MHz OC for maximum bandwidth
  • 10Gbps and 2.5Gbps dual LAN for high-speed networking
  • 1-channel audio with ESS ES9280AQ DAC for premium sound
  • Three PCI-E x16 slots with x16/x0/x4 or x8/x8/x4 configurations

Socket AM5 Flagship

The MSI MEG X670E GODLIKE is an AMD X670 motherboard built for Socket AM5 processors. It targets enthusiasts who need maximum memory capacity and extensive connectivity in an E-ATX form factor. Four DDR5 slots support up to 256GB of system memory.

Upgrade From Older Platforms

Moving to this board replaces any pre-AM5 motherboard and unlocks DDR5 memory with speeds from 4800 to 8000 MT/s when overclocked. The jump is worth it when you require 10Gbps and 2.5Gbps LAN plus a 7.1-channel audio solution driven by Realtek ALC4082 and ESS ES9280AQ.

Build Integration

Three PCIe x16 slots operate at x16/x0/x4 or x8/x8/x4 with Ryzen 7000 series CPUs and at reduced lane counts with 8000G series processors. Four M.2 interfaces and eight SATA III ports provide dense storage options. Rear I/O supplies seven USB 10Gbps Type-A and two USB 20Gbps Type-C ports while front headers add four USB 2.0, four USB 5Gbps Type-A and one USB 20Gbps Type-C connection.

Highlights

  • Supports up to 256GB DDR5 memory for extreme multitasking
  • DDR5 speeds up to 8000MHz OC for maximum bandwidth
  • 10Gbps and 2.5Gbps dual LAN for high-speed networking
  • 1-channel audio with ESS ES9280AQ DAC for premium sound
  • Three PCI-E x16 slots with x16/x0/x4 or x8/x8/x4 configurations

Specifications

BrandMSI
SeriesMSI MEG X670E GODLIKE
ModelMSI MEG X670E GODLIKE
CPU Socket TypeSocket AM5
CPU Type4x DDR5, Maximum Memory Capacity 256GB
Memory support DDR5 8000 + (OC)/7800 (OC)/7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800 (JEDEC) MHz
Max. overclocking frequency:
1DPC 1R Max speed up to 8000+ MHz
1DPC 2R Max speed up to 6400+ MHz
2DPC 1R Max speed up to 6400+ MHz
2DPC 2R Max speed up to 5400+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO
ChipsetAMD X670
Memory StandardSupport Dual Channel DDR5 6600 + (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800 (JEDEC) MHz
Maximum Memory Supported256GB
PCI Slots3X PCI-E x16 slots (quantity)
Supports x16/x0/x4 or x8/x8/x4 (For Ryzen™ 7000 Series processors)
Supports x8/x0/x4 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
Supports x4/x0/x2 (For Ryzen™ 5 8500G processor)
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 Gen PCIe 5.0 supports up to x4 (From CPU)
SATA RAID4XM.2 interface, 8xSATA III interface
Audio ChipsetRealtek ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA
7.1-Channel USB High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
LAN ChipsetMarvell AQC113CS-B1-C 10Gbps LAN
Intel I225V 2.5Gbps LAN
Onboard USB4X USB 2.0 (front)
4X USB 2.0 interface (front)
4x USB 5Gbps Type A (Front)
7x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
2x USB 20Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)

Questions about this item

What clearance does the E-ATX board and its 256 GB DDR5 support require in a case?

The board follows the E-ATX form factor, so the case must accept that size; four DDR5 slots support up to 256 GB of memory.

Which step is often missed when seating DDR5 modules in the four slots?

Open both retention clips, align the notch on each DDR5 module with the slot key, press down firmly until both clips click shut, then verify the board posts at the rated speed.

Which onboard component will need replacement to keep BIOS settings and 7.1 audio configuration after power loss?

The socketed CMOS battery maintains the Realtek ALC4082 and ESS ES9280AQ audio settings along with BIOS data; swap it when the system loses time or reverts to defaults.
