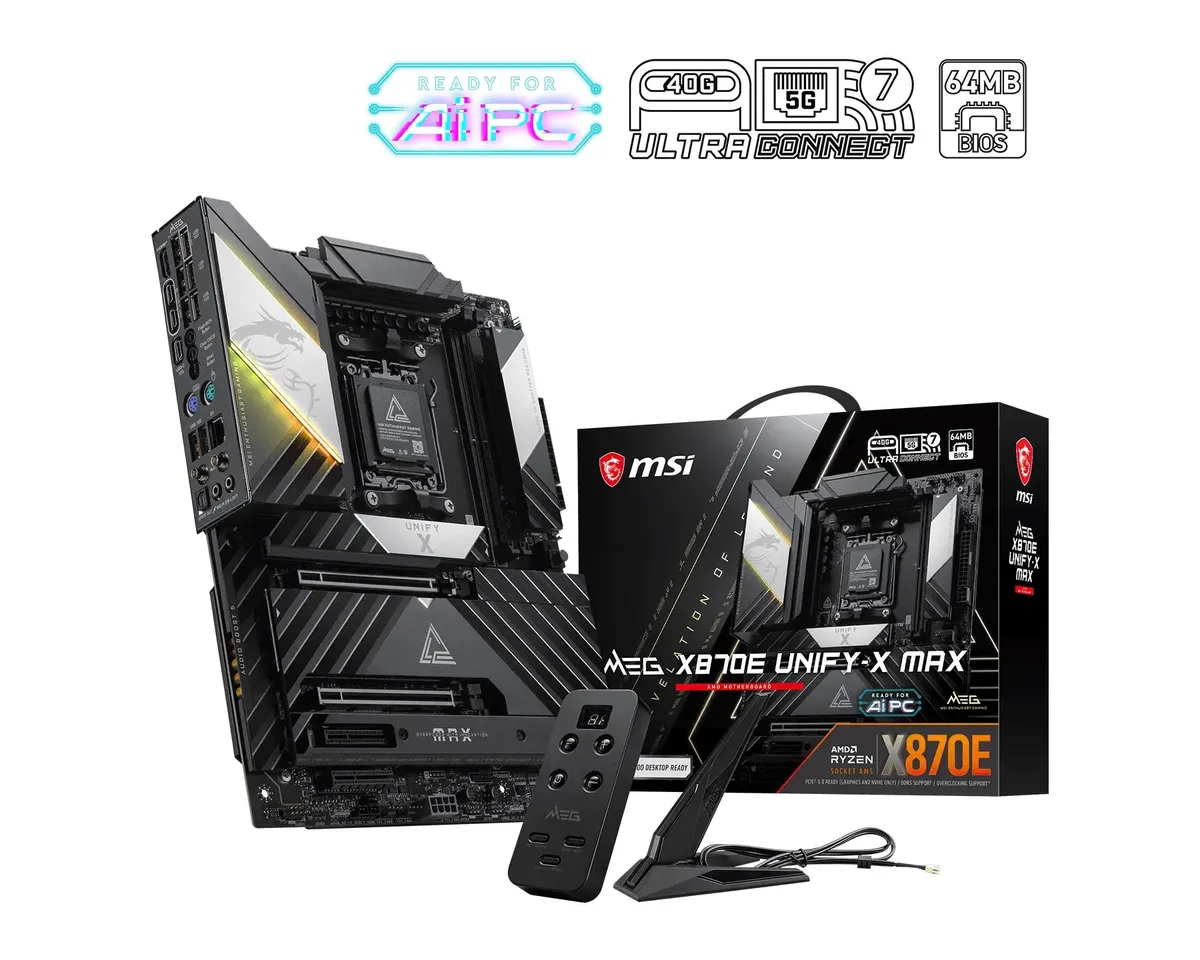

Rectangular dark motherboard with silver heatsinks and black PCB visible

MSI

MSI MEG X870E UNIFY-X MAX AMD motherboard

SKU CH-VZ2N-B5DAF

Supports Ryzen 9000, 8000 and 7000 CPUs with DDR5 up to 10600 MT/s, 18+2+1 110 A power stages, five Gen 5.0 M.2 slots, Wi‑Fi 7, 5G LAN, USB4 and front USB 20 Gbps Type‑C with 60 W charging

  • CPU Socket TypeAM5
  • ChipsetAMD X870E
  • Channel SupportedDual Channel
  • Ryzen 9000 8000 7000 ready for high-end builds
  • DDR5 10600 MT/s OC headroom for faster memory
  • 18 phase 110A power delivery keeps CPU stable
  • PCIe 5.0 and five M.2 Gen5 slots for speed
  • Wi-Fi 7 5G LAN USB4 20G 60W front USB-C connectivity

AM5 Ryzen 9000/8000/7000 Platform

This ATX motherboard targets enthusiasts building AMD Ryzen 9000, 8000 or 7000 systems. It pairs the X870E chipset with a 18+2+1 phase VRM rated at 110 A per phase and dual 8-pin CPU power connectors. Dual-channel DDR5 memory runs up to 10600 MT/s when overclocked. An 8-layer server-grade PCB with 2oz copper underpins the power delivery. Five M.2 slots and PCIe 5.0 slots provide high-speed storage and graphics expansion.

Sustained Load Thermal Behaviour

Aluminium armour, direct-contact cross-heat pipes and 9 W/mK thermal pads spread VRM and M.2 heat across a large surface area. M.2 Frost Armor covers each drive slot. AI-powered cooling adjusts fan curves in real time to keep temperatures low during long rendering or gaming sessions. The 2oz copper PCB layers further dissipate heat from the 18+2+1 power stages. Together these measures maintain stable clocks without throttling under continuous heavy workloads.

Installation Experience

A 64 MB BIOS chip stores multiple firmware profiles and an overclocking controller for quick tuning. Second-generation tool-free M.2 Frost Armor and quick-release mechanisms let you add or remove drives without screws. Quick-release GPU design simplifies graphics card swaps. Plug-and-play Wi-Fi antenna and EZ CONN front-panel headers reduce cable routing errors. Front-panel USB 20 G Type-C with 60 W charging is ready for high-power peripherals.

Highlights

  • Ryzen 9000 8000 7000 ready for high-end builds
  • DDR5 10600 MT/s OC headroom for faster memory
  • 18 phase 110A power delivery keeps CPU stable
  • PCIe 5.0 and five M.2 Gen5 slots for speed
  • Wi-Fi 7 5G LAN USB4 20G 60W front USB-C connectivity

Specifications

BrandMSI
ModelMEG X870E UNIFY-X MAX
CPU Socket TypeAM5
ChipsetAMD X870E
Channel SupportedDual Channel

Questions about this item

How loud and hot does the 18+2+1 110A power delivery get during all-day loads?

The 18(110A)+2+1 Smart Power Delivery uses an 8-layer server-grade PCB with 2oz copper, aluminum armor, direct-contact cross-heat pipes and 9W/mK thermal pads to keep VRM temperatures low under sustained load.

What CPU and memory must I already have to use this board?

You need an AMD Ryzen 9000, 8000 or 7000 series processor for the AM5 socket and DDR5 modules; the board runs dual-channel DDR5 up to 10600+ MT/s when overclocked.

Will my PCIe 4.0 graphics card and Gen 4 M.2 drives run at full speed in the PCIe 5.0 slots and five M.2 connectors?

Yes, PCIe 5.0 slots and the five onboard M.2 interfaces supporting Gen 5 speeds are backward compatible, so older PCIe 4.0 GPUs and Gen 4 storage devices operate at their rated speeds.
