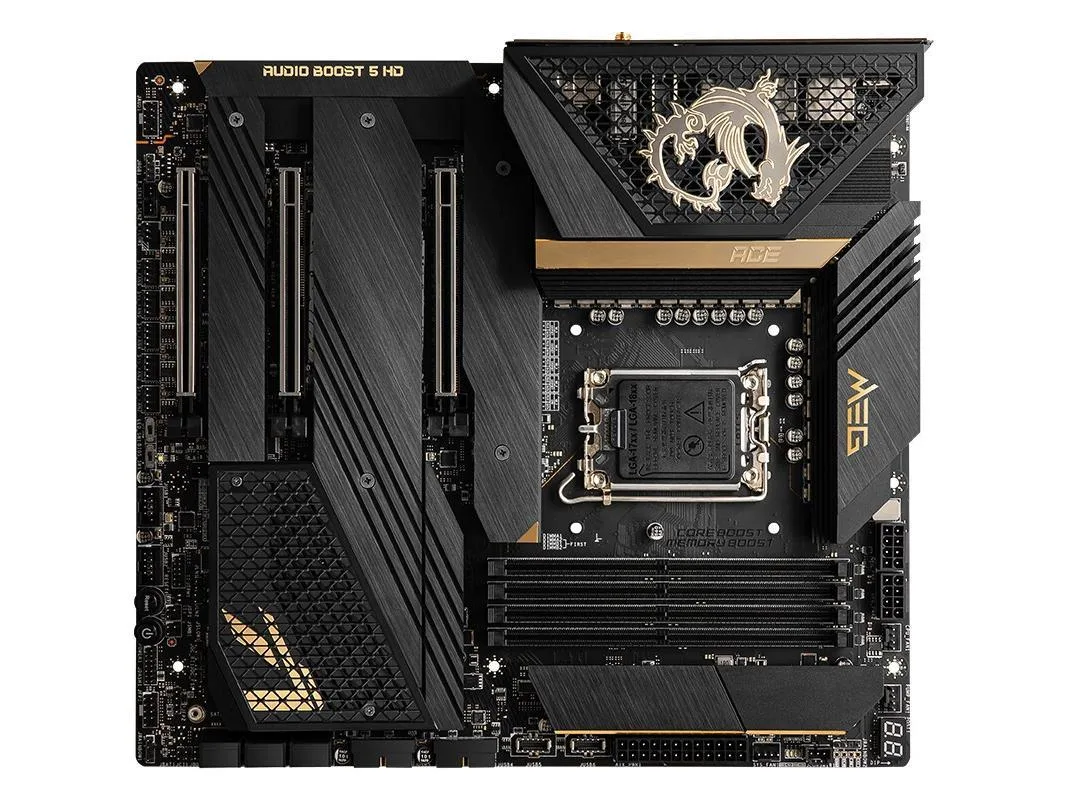

Black rectangular E-ATX motherboard with silver heatsinks and LGA 1700 socket

MSI

MSI MEG Z690 ACE Intel motherboard

SKU CH-BGFG-73MSW

Supports 12th Gen Intel Core processors on LGA 1700 with DDR5 memory up to 128GB and 2.5Gbps dual LAN

  • CPU Socket TypeLGA 1700
  • CPU TypeSupports 12th Gen Intel Core™ Processors, Pentium Gold and C
  • ChipsetIntel Z690
  • Memory StandardSupports dual-channel DDR5 6666 + MHz memory
  • Maximum Memory Supported128GB
  • PCI Slots3x PCIe x16 slots Supports x16/x0/x4, x8/x8/x4 PCI_E1 & PCI_
  • Supports 12th Gen Intel Core processors on LGA 1700 socket
  • Dual-channel DDR5 memory up to 6666 MHz with 128 GB capacity
  • PCIe 5.0 x16 and PCIe 4.0 x4 slots for high-speed expansion
  • Realtek ALC4082 with ESS SABRE9018Q2C delivers 7.1-channel high-definition audio
  • Dual Intel I225V 2.5 Gbps LAN controllers for fast wired networking

Z690 platform for 12th Gen Intel Core

The MSI MEG Z690 ACE is an Intel Z690 motherboard built for the LGA 1700 socket. It supports 12th Gen Intel Core, Pentium Gold and Celeron processors in an E-ATX layout. Dual-channel DDR5 memory runs up to 6666 MHz with a 128 GB maximum capacity. The board targets enthusiasts building high-end desktop systems.

PCIe 5.0 x16 slot and dual 2.5 Gbps LAN

The primary PCIe x16 slot runs at PCIe 5.0 x16 directly from the CPU, replacing older PCIe 4.0 links for graphics and high-speed add-in cards. Two additional x16 slots operate at x8 and x4, while a chipset-driven slot provides PCIe 4.0 x4. Two Intel I225V controllers deliver dual 2.5 Gbps Ethernet, upgrading from single 1 Gbps connections on typical mainstream boards.

20 Gbps USB Type-C and 7.1 audio with ESS DAC

Front-panel I/O includes two USB 3.2 Gen 2x2 20 Gbps Type-C connectors, while the rear panel supplies one Type-C and three Type-A ports at 10 Gbps. Six SATA III ports and five M.2 interfaces handle storage expansion. Audio uses a Realtek ALC4082 codec paired with an ESS SABRE9018Q2C DAC for 7.1-channel output and S/PDIF. The package includes the motherboard, CMOS battery, one SATA cable, an I/O shield and a Wi-Fi antenna.

Highlights

  • Supports 12th Gen Intel Core processors on LGA 1700 socket
  • Dual-channel DDR5 memory up to 6666 MHz with 128 GB capacity
  • PCIe 5.0 x16 and PCIe 4.0 x4 slots for high-speed expansion
  • Realtek ALC4082 with ESS SABRE9018Q2C delivers 7.1-channel high-definition audio
  • Dual Intel I225V 2.5 Gbps LAN controllers for fast wired networking

Specifications

BrandMSI
SeriesMSI MEG Z690 ACE
ModelMSI MEG Z690 ACE
CPU Socket TypeLGA 1700
CPU TypeSupports 12th Gen Intel Core™ Processors, Pentium Gold and Celeron Processors
Processor socket LGA1700
ChipsetIntel Z690
Memory StandardSupports dual-channel DDR5 6666 + MHz memory
Maximum Memory Supported128GB
PCI Slots3x PCIe x16 slots
Supports x16/x0/x4, x8/x8/x4
PCI_E1 & PCI_E2 slots (From CPU)
PCI_E1 supports up to PCIe 5.0 x16
PCI_E2 supports up to PCIe 5.0 x8
PCI_E3 (From Z690 chipset)
?Supports up to PCIe 4.0 x4
SATA RAID5XM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC4082 Codec + ESS SABRE9018Q2C Combo DAC/HPA
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN Chipset2x Intel I225V 2.5Gbps LAN controllers
Onboard USBIntel Z690 Chipset
2x USB3.2 Gen2x2 20Gbps ports (2 Type-C internal connectors)
4x USB 3.2 Gen 2 10Gbps ports (1 Type-C port on the back panel, 3 Type-A ports on the back panel)
Hub-GL3590
4x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
ASM1074
4x USB 3.2 Gen 1 5Gbps Type-A ports available through the internal connecto
Hub-GL850G
4x USB 2.0 Type-A ports available through the internal connectors

Questions about this item

What case clearance does the E-ATX board and its 128GB DDR5 capacity require?

The board follows the E-ATX form factor, so the chassis must accept that larger footprint; four DDR5 slots support up to 128GB total.

Which mounting step is most often missed when fitting the LGA 1700 socket and Z690 chipset?

Install the CPU into the LGA 1700 socket, secure the retention lever, then apply thermal paste and attach the cooler before powering on.

When will the CMOS battery and SATA cable included in the box need replacement?

Replace the CMOS battery when the system loses time or BIOS settings; swap the SATA cable if drive errors or connection issues appear.
