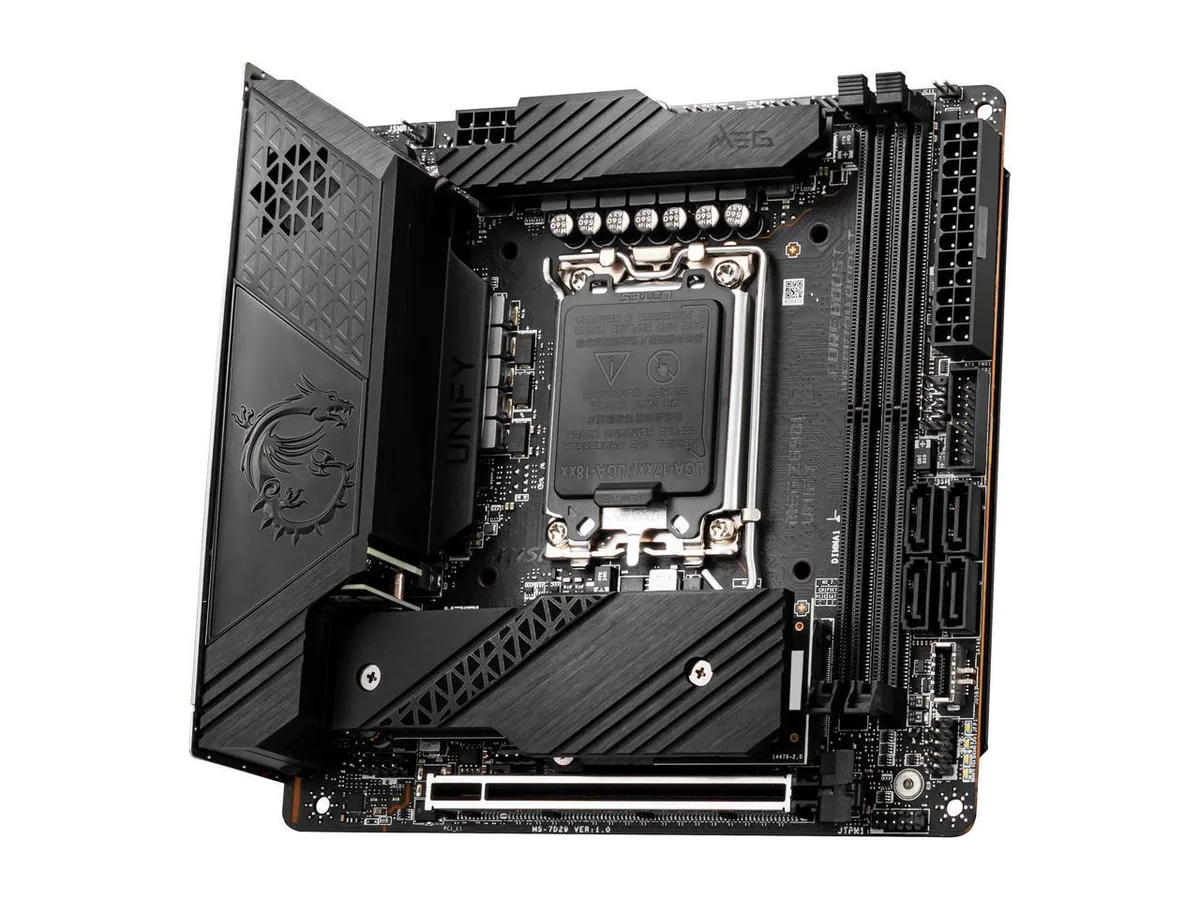

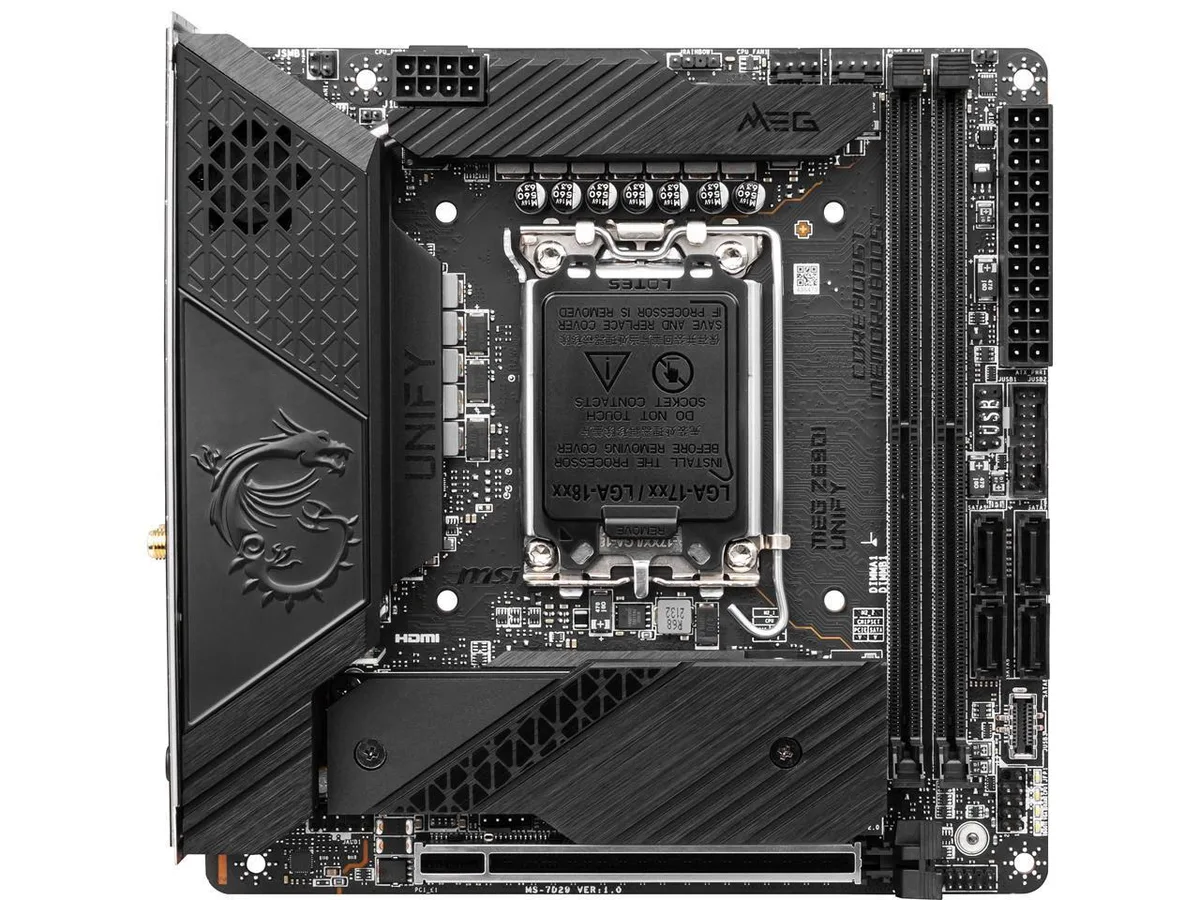

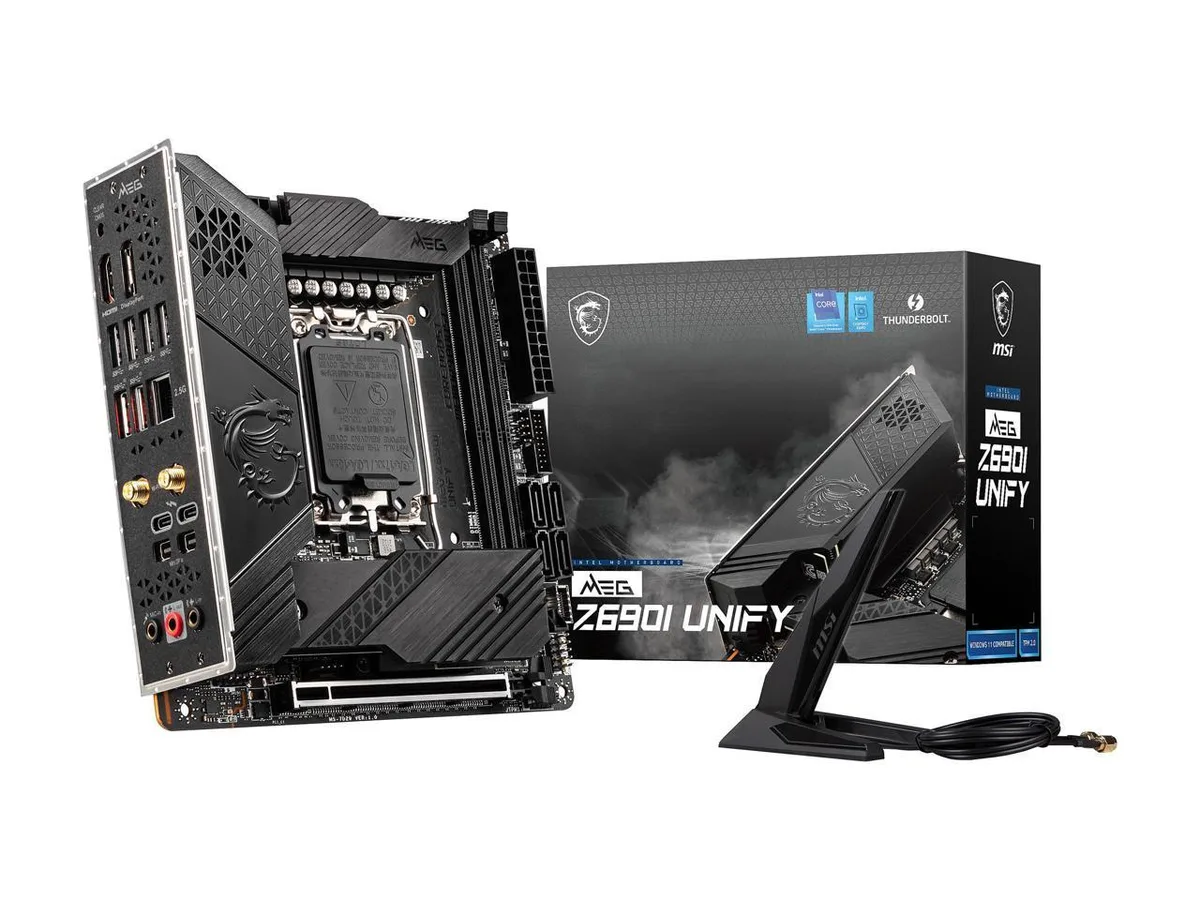

Compact Mini-ITX board, dark matte finish, two vertical DDR5 slots, triple M.2 heatsinks, prominent rear I/O shield

MSI

MSI MEG Z690I UNIFY DDR5 LGA 1700 Intel Motherboard

SKU CH-CW0T-QNF1D

Mini-ITX Z690 board for 12th- and 13th-gen Intel CPUs with DDR5-6800 support, dual Thunderbolt 4, 2.5 GbE, Wi-Fi 6E and three M.2 slots

  • CPU Socket TypeLGA 1700 * Dedicated LGA1700 mounting bracket is required.
  • CPU TypeSupports 13th / 12th Gen Intel Core, Pentium Gold, Celeron P
  • ChipsetIntel Z690
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots2x288pin (DDR5)
  • Memory StandardDDR5 6800+ (OC)
  • Dual-channel DDR5 up to 6800 MHz for high-speed memory performance
  • 10+1+1 power phases with 105 A Smart Power Stages for stable CPU delivery
  • Three M.2 slots including one PCIe 4.0 x4 for fast storage expansion
  • Dual Thunderbolt 4 ports at 40 Gb/s with 8K display support
  • 5 Gbps Intel LAN plus Wi-Fi 6E and Bluetooth 5.2 for versatile connectivity

Socket and CPU Support

This Mini-ITX board uses the LGA 1700 socket and the Intel Z690 chipset. It accepts 12th and 13th Gen Intel Core, Pentium Gold and Celeron processors. A dedicated LGA 1700 mounting bracket is required for the cooler. A BIOS update may be needed before a 13th Gen CPU will boot.

Memory Topology and Speed

Two 288-pin DDR5 slots run in dual channel up to 6800 MT/s when overclocked. The two-DIMM layout is designed for cleaner signal integrity at high frequencies. Maximum capacity is 64 GB across the two slots.

Storage and Connectivity Headroom

Three M.2 slots are provided: one from the CPU at PCIe 4.0 x4, two from the chipset at PCIe 3.0 x4 and SATA. All support 2280 devices. Four SATA 6 Gb/s ports add further drive options. Dual Thunderbolt 4 ports deliver 40 Gb/s, 2.5 GbE LAN and Wi-Fi 6E with Bluetooth 5.2 complete the I/O.

Highlights

  • Dual-channel DDR5 up to 6800 MHz for high-speed memory performance
  • 10+1+1 power phases with 105 A Smart Power Stages for stable CPU delivery
  • Three M.2 slots including one PCIe 4.0 x4 for fast storage expansion
  • Dual Thunderbolt 4 ports at 40 Gb/s with 8K display support
  • 5 Gbps Intel LAN plus Wi-Fi 6E and Bluetooth 5.2 for versatile connectivity

Specifications

BrandMSI
ModelMEG Z690I UNIFY
CPU Socket TypeLGA 1700
* Dedicated LGA1700 mounting bracket is required.
CPU TypeSupports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors*
May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors.
ChipsetIntel Z690
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots2x288pin (DDR5)
Memory StandardDDR5 6800+ (OC)
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 5.0 x161 x PCI Express 5.0 x16
Serial ATA (SATA)4 x SATA 6Gb/s
M.23 x M.2 slots (Key M):
M2_1 slot (from CPU):
- Supports up to PCIe 4.0 x4
- Supports 2280 storage devices
M2_2 slot (from Z690 chipset):
- M2_2 supports up to PCIe 3.0 x4
- Supports up to SATA 6Gb/s
- Supports 2280 storage devices
M2_3 slot (from Z690 chipset):
- M2_3 supports up to PCIe 4.0 x4
- Supports 2280 storage devices
- Intel Optane Memory
Intel Optane ReadyYes
Audio ChipsetRealtek ALC4080 Codec
Audio Channels7.1 Channels
LAN ChipsetIntel I225-V
Max LAN Speed2.5Gbps
Wireless LANIntel Wi-Fi 6E
BluetoothBluetooth 5.2
Back I/O Ports1 x Clear CMOS Button
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45)
2 x Antenna Bracket
2 x Mini DisplayPort Input (for Thunderbolt passthrough)
2 x Thunderbolt 4
2 x USB 3.2 Gen 2
4 x USB 3.2 Gen 1
3 x Audio Jacks
Form FactorMini ITX

Questions about this item

What does the DDR5-6800+ (OC) rating mean once the board is built?

The board supports dual-channel DDR5 memory overclocked beyond 6800 MT/s, with only two slots to keep signal integrity high for extreme memory speeds.

How does the Thunderbolt 4 interface limit real-world throughput?

Each USB-C port delivers up to 40 Gb/s, enabling 8K display output and daisy-chaining of Thunderbolt devices without bandwidth sharing.

What physical mounting hardware is required for the LGA 1700 socket?

A dedicated LGA 1700 mounting bracket is required to secure the CPU cooler to the socket on this Mini-ITX board.
