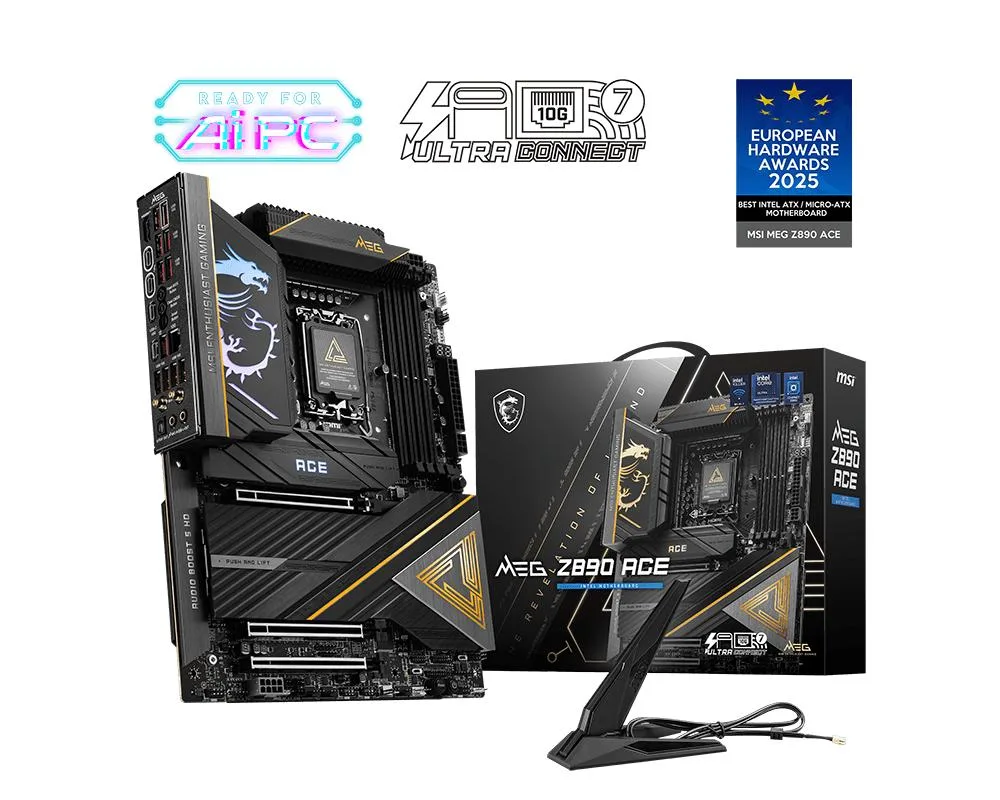

Dark rectangular motherboard with silver heatsinks and black PCB visible

MSI

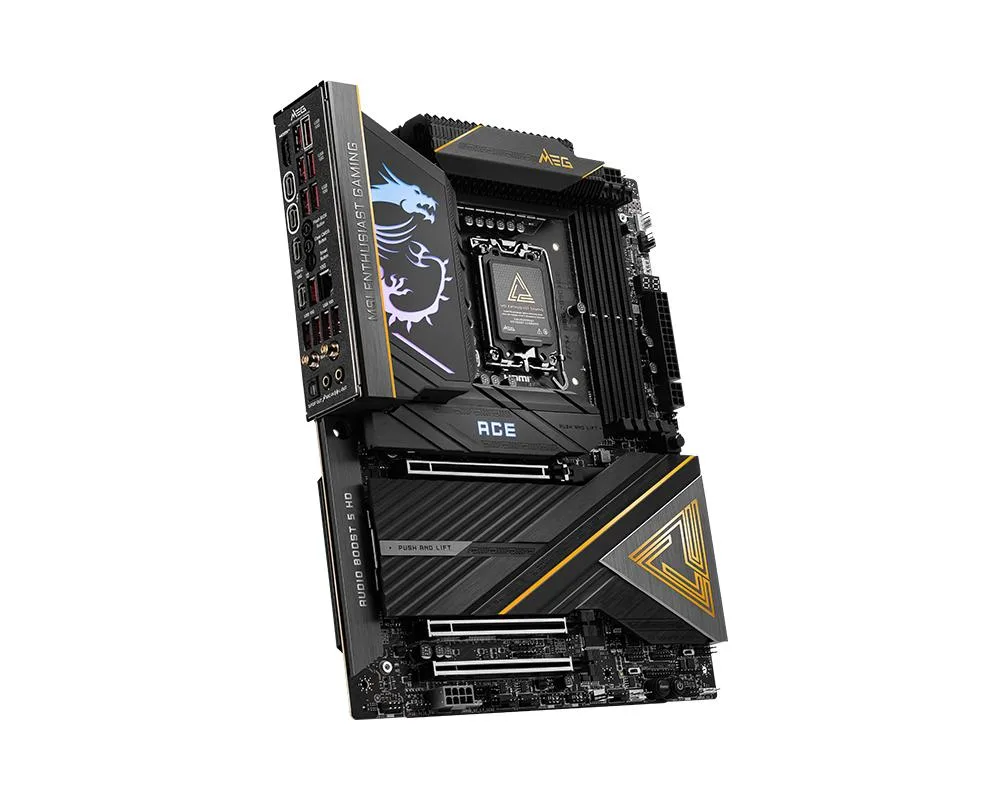

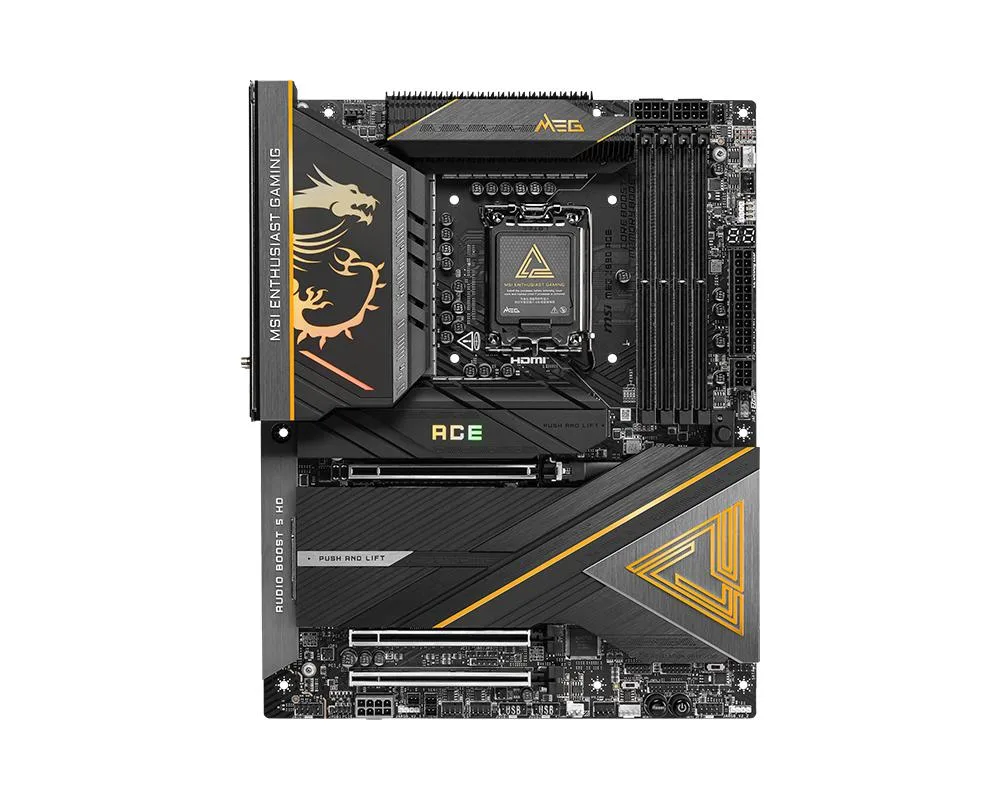

MSI MEG Z890 ACE WIFI7 War God Intel motherboard

SKU CH-M27Z-DK0MQ

Intel LGA 1851 motherboard with 24+2+1+1 110A power stages, DDR5 9200 MT/s support, five M.2 slots, PCIe 5.0, 10G LAN, Wi-Fi 7, Thunderbolt 4 and 20G USB with 60W charging

  • Supports Intel Core Ultra Series 2 processors with LGA 1851 socket
  • DDR5 memory runs at 9200+ MT/s dual-channel for high bandwidth
  • 24+2+1+1 Duet Rail power system with 110A SPS delivers stable overclocking
  • Wavy fin heatsinks and cross-heat pipes keep VRM and M.2 temperatures low
  • Thunderbolt 4, 10G LAN and Wi-Fi 7 give fast wired and wireless connectivity

Built for Intel Core Ultra Series 2

This motherboard targets enthusiasts and creators who want the latest Intel Core Ultra processors with LGA 1851 socket support. It runs DDR5 memory in dual-channel mode at speeds up to 9200 MT/s when overclocked. The 24+2+1+1 Duet Rail power system uses 110A SPS stages alongside dual 8-pin CPU connectors to deliver stable current for heavy workloads.

Thermal Armor keeps VRMs and storage cool

A wavy fin array, cross heat pipes and a MOSFET backplate work with 9W/mK thermal pads to move heat away from the power delivery. Dual-sided M.2 Shield Frozr armour covers the five onboard M.2 slots, while AI software adjusts fan curves automatically. The 8-layer server-grade PCB with 2oz copper spreads heat evenly across the board surface.

EZ DIY hardware speeds up assembly

Quick-release PCIe and M.2 Clip II mechanisms let you swap graphics cards and drives without tools. The bundled EZ Antenna simplifies Wi-Fi 7 antenna placement. Front-panel connectivity includes a 20G USB port with 60W fast charging, Thunderbolt 4 ports and a 10G LAN jack for high-speed wired networking. Audio Boost 5 HD uses an ALC4082 processor with ESS DAC for clean output.

Highlights

  • Supports Intel Core Ultra Series 2 processors with LGA 1851 socket
  • DDR5 memory runs at 9200+ MT/s dual-channel for high bandwidth
  • 24+2+1+1 Duet Rail power system with 110A SPS delivers stable overclocking
  • Wavy fin heatsinks and cross-heat pipes keep VRM and M.2 temperatures low
  • Thunderbolt 4, 10G LAN and Wi-Fi 7 give fast wired and wireless connectivity

Specifications

BrandMSI
ModelMEG Z890 ACE WIFI7

Questions about this item

How do I install the CPU into the LGA 1851 socket without bending pins?

Align the triangle marker on the processor with the socket corner, lower it straight down without pressure, then close the retention lever until it clicks — the lever does the seating, not your fingers.

Which thermal pads will need replacing after a few years of heavy load?

The 9W/mK MOSFET thermal pads between the power stages and the heatsink are the first to dry out; peel them off and apply fresh pads of the same thickness when temperatures climb.

At what memory speed does the dual-channel controller hit its ceiling under sustained OC?

The board validates DDR5 up to 9200 MT/s in dual-channel; pushing beyond that typically requires loosening timings or dropping to single-rank modules to stay stable.
