MSI

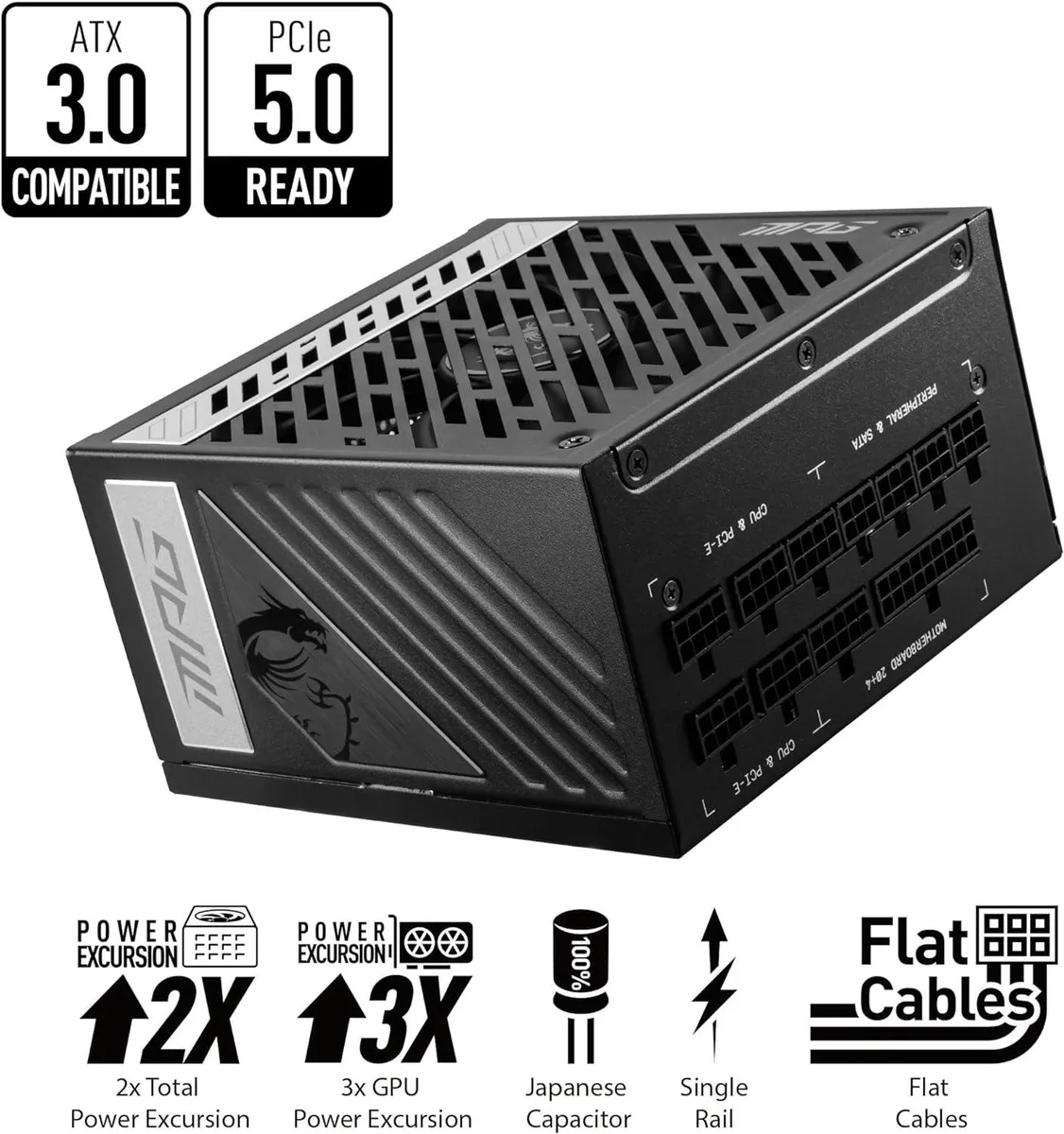

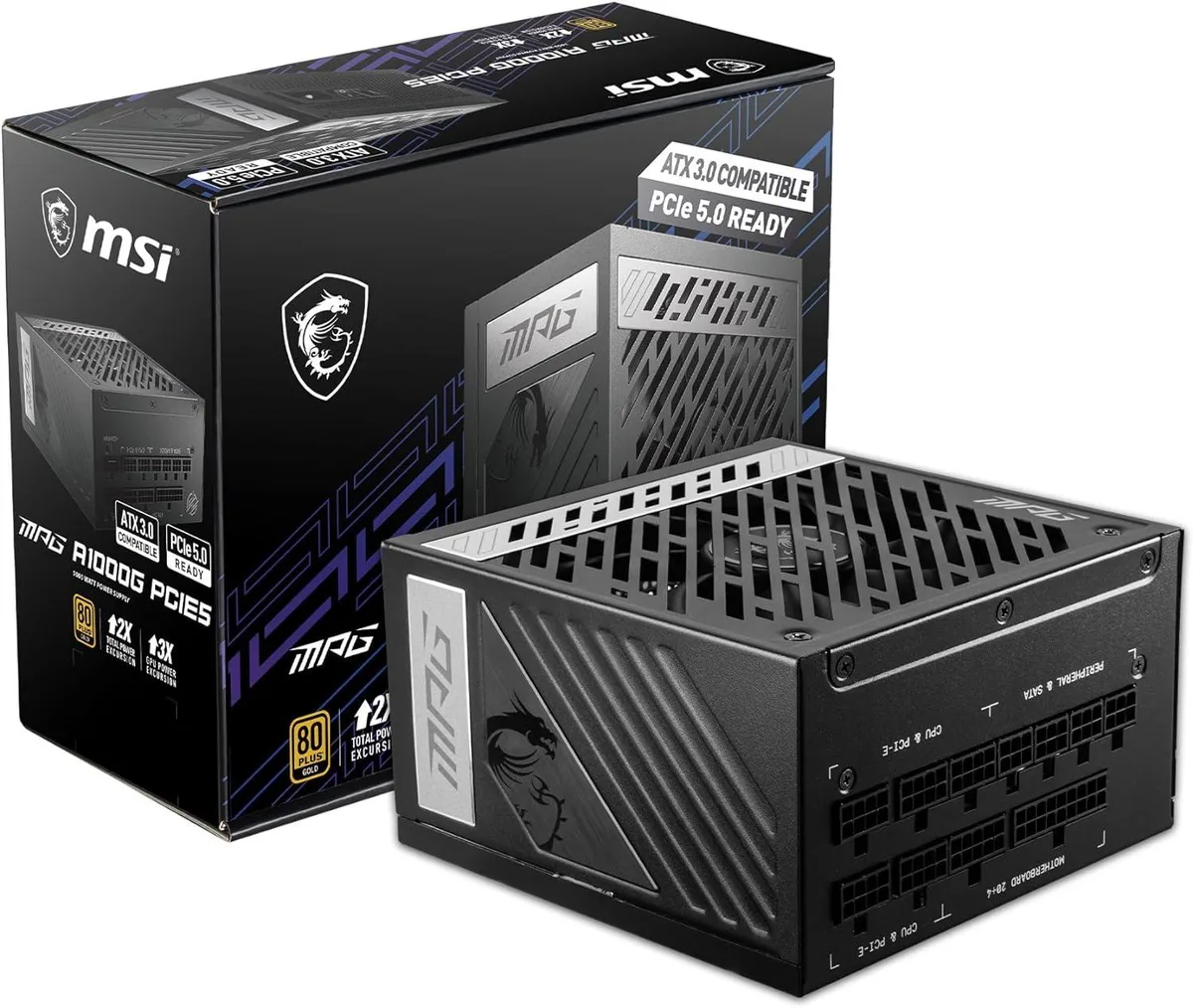

MSI MPG A1000G PCIE5 1000W power supply
Fully modular ATX 3.0 unit delivers 1000 W with a 16-pin PCIe 5.0 cable, 80 PLUS Gold efficiency and a 135 mm fluid-dynamic fan
- ColorBlack
- TypeATX 3.0 Compatible
- Maximum Power1000 W
- Fans1 x 135 mm Fluid Dynamic Bearing Fan
- PFCActive
- Main Connector24Pin
- 80 PLUS Gold certification delivers over 90% efficiency at typical loads
- PCIe 5.0 and ATX 3.0 compatibility includes a 16-pin 12VHPWR connector for 4080 and 4090 graphics cards
- Full modular design with flat cables lets you connect only the 24-pin, six 6+2-pin and twelve SATA leads you need
- 135 mm fluid dynamic bearing fan with 0 RPM mode runs silently until higher loads demand airflow
- Single +12V rail backed by OCP, OVP, OPP, OTP, SCP and UVP protections safeguards every component
1000 W ATX 3.0 power supply
The MSI MPG A1000G PCIE5 delivers 1000 W through a single +12 V rail and meets the ATX 3.0 and PCIe 5.0 specifications. It includes a 16-pin 12VHPWR cable alongside six 6+2-pin PCIe connectors and twelve SATA power connectors. A 135 mm fluid-dynamic-bearing fan runs with a 0 RPM mode at low load, and the unit carries 80 PLUS Gold certification with Cybenetics Standard++ noise rating.
Suitable for high-end GPU builds.
This unit suits builders pairing a 4080 or 4090 graphics card with a modern motherboard that needs the 12VHPWR connection. The 150 mm depth and full-modular flat cables help cable management in standard ATX towers. Systems limited to shorter PSU bays or builds that do not require the new 16-pin interface should consider a smaller or older-specification unit.
12VHPWR connector decides compatibility
The defining specification is the native 16-pin 12VHPWR cable, which allows direct power delivery to PCIe 5.0 graphics cards without an adapter. If the target GPU uses only traditional 6+2-pin connectors, the 12VHPWR cable will remain unused and a different PSU may be more cost-effective.
Highlights
- 80 PLUS Gold certification delivers over 90% efficiency at typical loads
- PCIe 5.0 and ATX 3.0 compatibility includes a 16-pin 12VHPWR connector for 4080 and 4090 graphics cards
- Full modular design with flat cables lets you connect only the 24-pin, six 6+2-pin and twelve SATA leads you need
- 135 mm fluid dynamic bearing fan with 0 RPM mode runs silently until higher loads demand airflow
- Single +12V rail backed by OCP, OVP, OPP, OTP, SCP and UVP protections safeguards every component
Specifications
| Brand | MSI |
|---|---|
| Model | MPG A1000G PCIE5 |
| Color | Black |
| Type | ATX 3.0 Compatible |
| Maximum Power | 1000 W |
| Fans | 1 x 135 mm Fluid Dynamic Bearing Fan |
| PFC | Active |
| Main Connector | 24Pin |
| +12V Rails | Single |
| PCI-Express Connector | 1 x 16-Pin, 6 x 6+2-Pin |
| SATA Power Connector | 12 |
| Max PSU Length | 150 mm |
| Modular | Full Modular |
| Efficiency | > 90% |
| Energy-Efficient | 80 PLUS GOLD Certified |
| PSU Noise Level | Cybenetics Standard ++ |
| Protection | OCP, OVP, OPP, OTP, SCP, UVP |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Output | +5V@22A, +3.3V@22A, [email protected] , [email protected] , +5VSB@3A |

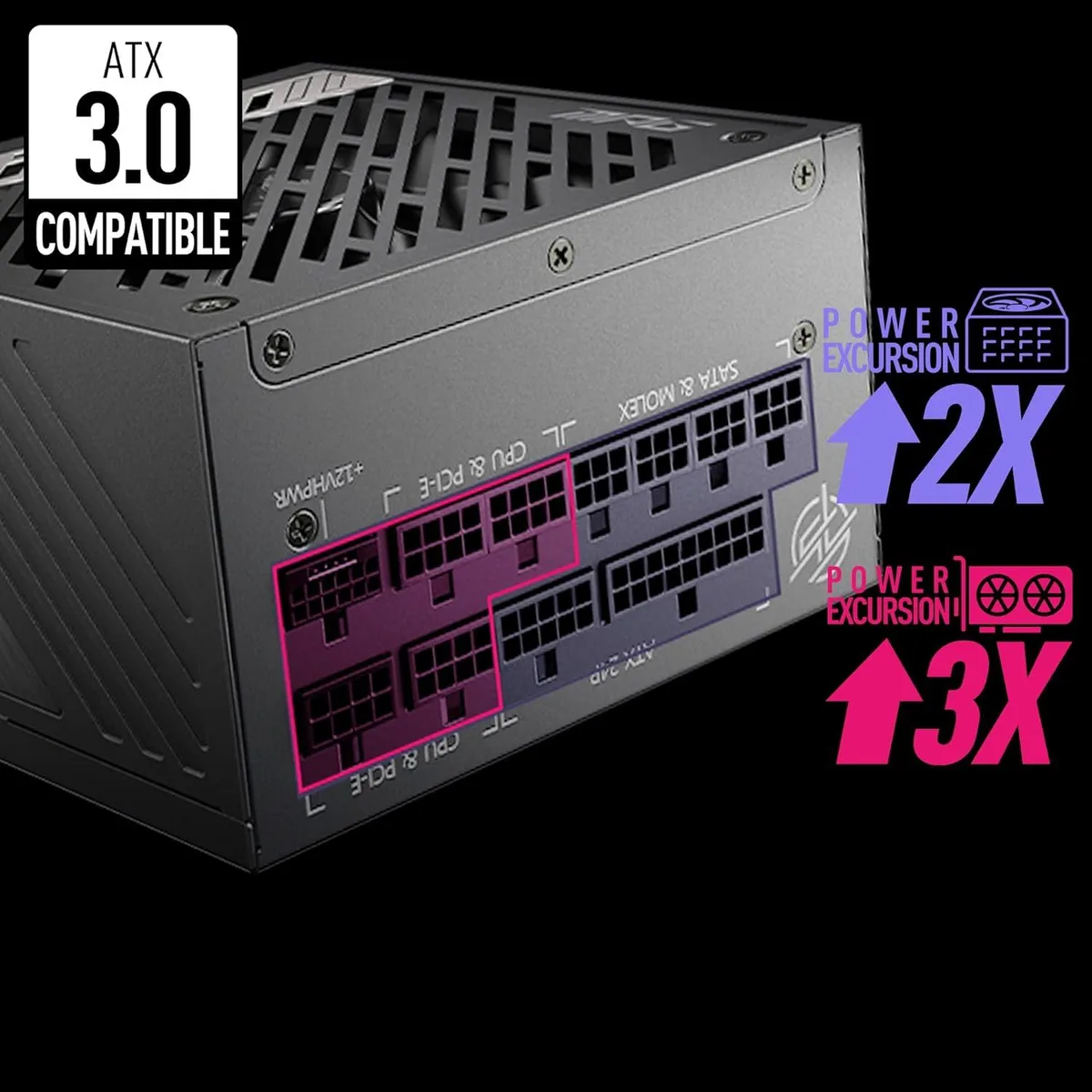

| Connectors | 1 x ATX (24 PIN) 2 x EPS (4+4 PIN) 1 x PCI-E 5.0 (16 PIN) (600W) 6 x PCI-E (6+2 PIN) 8 x SATA (15 PIN) 4 x MOLEX (4 PIN) 1 x FDD (4 PIN) |
| Cable Spec | 1 x ATX Cable (600mm) 2 x EPS (8 PIN to 4+4 PIN) Cable (700mm) 2 x PCIe (8 PIN to 6+2 PIN) Cable (600mm) 1 x PCIe (16 PIN to 16 PIN) Cable (600mm) 1 x PCIe (16 PIN to 6+2 PIN) Cable (600mm) 3 x SATA Sleeved Cable (500+150+150+150mm) 1 x MOLEX/FDD Sleeved Cable (500+150+150+150+150mm) |
| Features | 80 PLUS Gold Certification PCIe 5.0 and ATX 3.0 Compatible 100% Japanese Electrolytic capacitor Full Modular design Active PFC design Industrial level protection with OCP, OVP, OPP, OTP, SCP, UVP DC-DC Module Design Flat Cables Single Rail Design Fan 0 RPM Mode |
| Dimensions | 3.40" x 5.90" x 5.90" |
Questions about this item
Will the 150 mm length and 135 mm fan fit my ATX case?
The unit is 150 mm long with a single 135 mm fluid dynamic bearing fan; measure your case clearance for both length and fan height before ordering.
Which cables must I plug in during installation, and which step is often missed?
Connect the 24 pin main cable, the 16 pin PCIe 5.0 cable for the GPU, and only the modular cables your build needs; the step most often missed is seating the 16 pin connector fully until it clicks.
How long should the 100 % Japanese electrolytic capacitors last under load?
The 100 % Japanese electrolytic capacitors are rated for long life at high temperature; expect many years of continuous operation before any replacement is needed.
