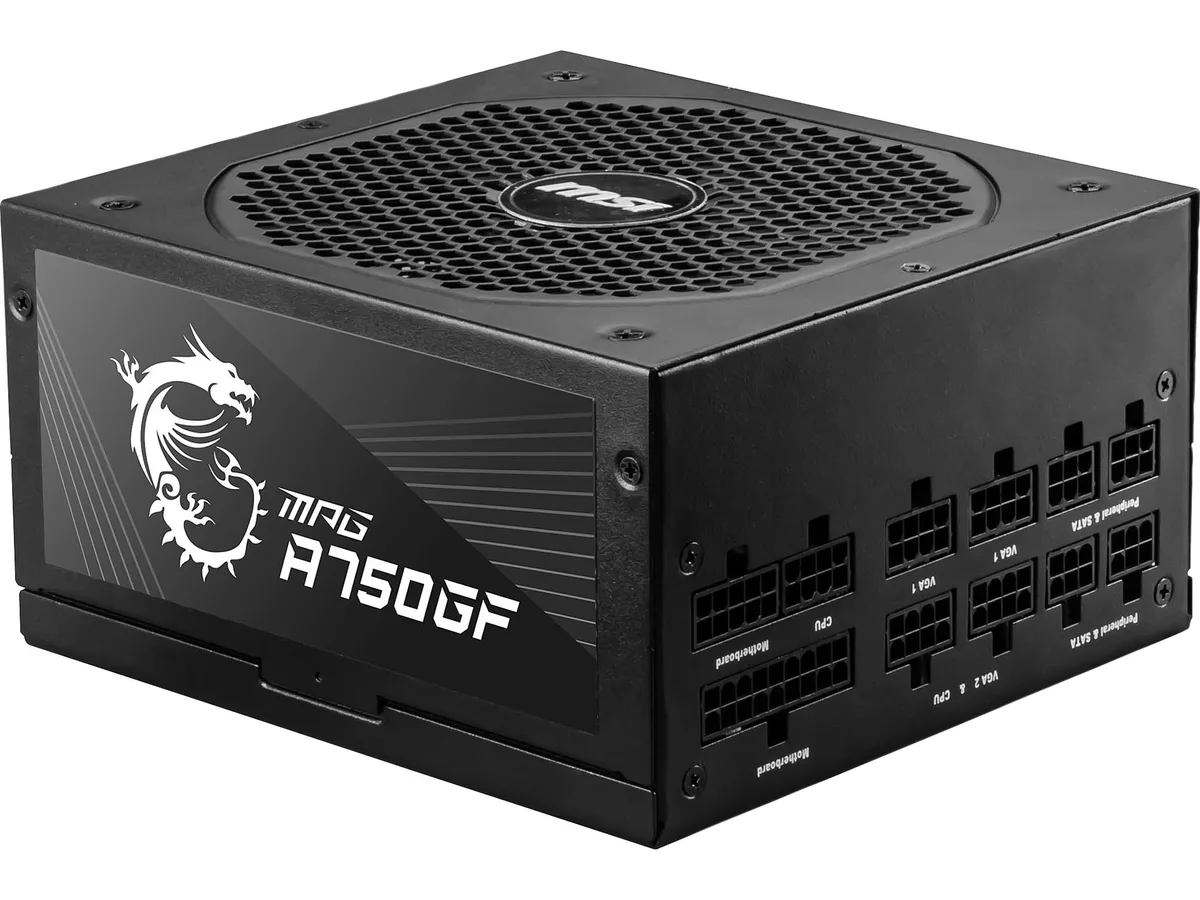

Rectangular black ATX power supply unit with modular cable sockets and a single large fan grille

MSI

MSI MPG A750GF 750W ATX power supply

SKU CH-7Z7J-KDVYA MPN MPG A750GF

A 750 W ATX unit with full modular cabling, 80 PLUS Gold efficiency and a 140 mm FDB fan in a 160 mm chassis

  • TypeATX
  • Maximum Power750 W
  • Fans1 x 140mm FDB Bearing Fan
  • PFCActive
  • Main Connector20+4Pin
  • +12V Rails4
  • 750 W output powers demanding builds with headroom
  • 80 PLUS Gold certification delivers up to 90 % efficiency
  • Fully modular cabling keeps the case interior tidy
  • 140 mm FDB fan runs quietly at Cybenetics Standard ++
  • Japanese 105 °C capacitors and six protections ensure long-term reliability

Power for mid-range builds

The MSI MPG A750GF is a 750 W ATX unit built for systems that need reliable delivery without excess capacity. Full modular cabling lets you connect only the leads your build requires, keeping the interior tidy.

Steady output under load

Four +12 V rails split the load across motherboard, CPU and two VGA domains, each rated for continuous current up to 25 A or 35 A. Active PFC and LLC half-bridge topology with DC-DC modules maintain regulation during extended sessions, while 80 PLUS Gold certification confirms up to 90 % efficiency at typical loads.

Japanese capacitors and quiet cooling

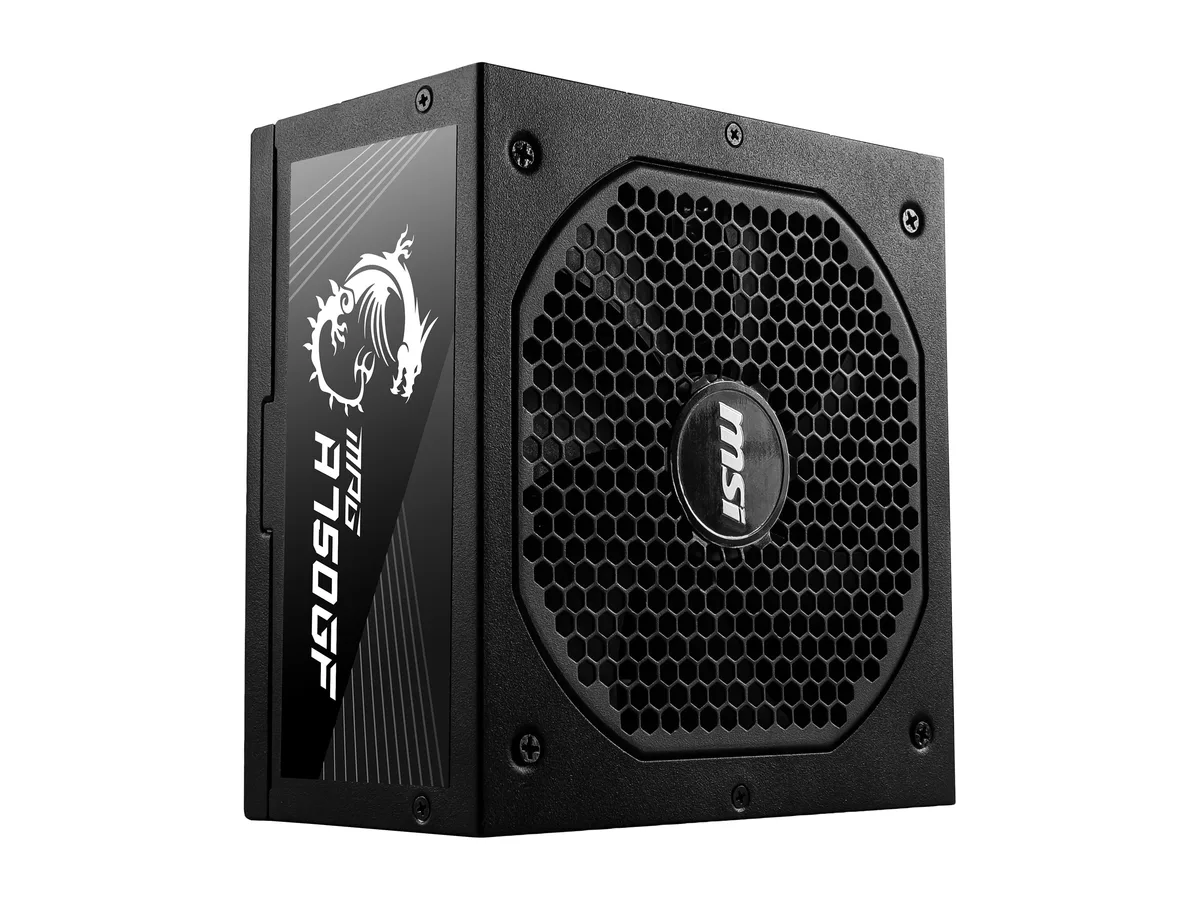

All electrolytic capacitors are rated 105 °C for long-term durability. A single 140 mm FDB bearing fan meets Cybenetics Standard ++ noise targets, and the 160 mm chassis depth fits most standard cases. Flat modular cables simplify routing, and the protection suite covers OCP, OVP, OPP, OTP, SCP and UVP.

Highlights

  • 750 W output powers demanding builds with headroom
  • 80 PLUS Gold certification delivers up to 90 % efficiency
  • Fully modular cabling keeps the case interior tidy
  • 140 mm FDB fan runs quietly at Cybenetics Standard ++
  • Japanese 105 °C capacitors and six protections ensure long-term reliability

Specifications

BrandMSI
ModelMPG A750GF
TypeATX
Maximum Power750 W
Fans1 x 140mm FDB Bearing Fan
PFCActive
Main Connector20+4Pin
+12V Rails4
PCI-Express Connector6 x 6+2-Pin
SATA Power Connector8
Max PSU Length160 mm
ModularFull Modular
EfficiencyUp to 90%
Energy-Efficient80 PLUS GOLD Certified
PSU Noise LevelCybenetics Standard ++
ProtectionOCP / OVP / OPP / OTP / SCP / UVP
Input Voltage100 - 240 V
Input Frequency Range47 - 63 Hz
Input Current10A @ 115V, 5A @ 230V
Output+5V@22A, +3.3V@22A, +12VMBPH@25A, +12VCPU@25A, +12VVGA1@35A, +12VVGA2@35A, [email protected] , [email protected]

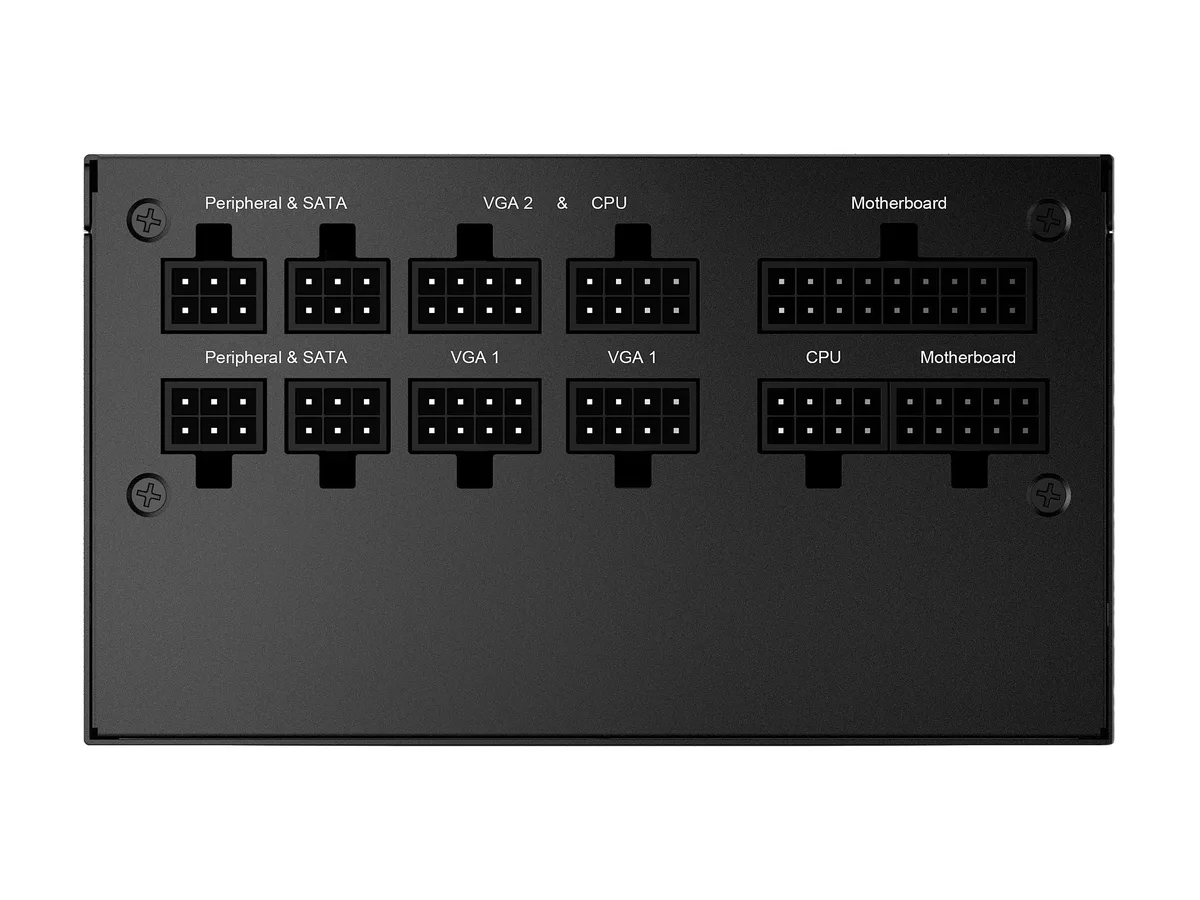

Connectors1 x ATX/MB 24 Pin
2 x CPU/EPS 4+4 Pin
6 x PCI-e 6+2 Pin
8 x SATA
5 x Peripheral
SLINo
CrossFireNo
FeaturesFull Module Cable design
Flat Cable equipment
80 Plus Gold Certified for High Efficiency
100% all Japanese 105oC capacitor
Active PFC design
10-year warranty
Supports latest Nvidia graphic card design
Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
LLC Half Bridge Topology with DC-DC Module Design

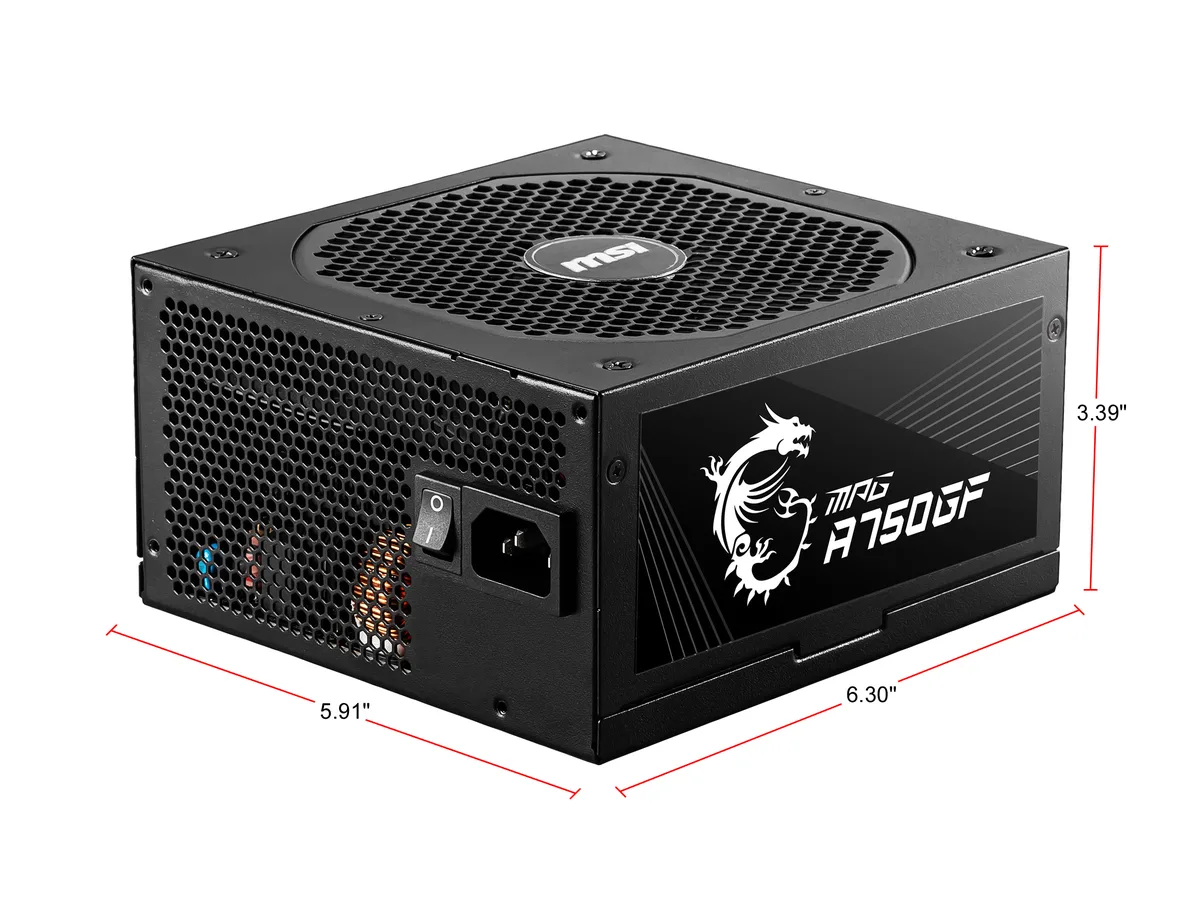

Dimensions3.39" x 5.91" x 6.30"
Shipping weight2.86 kg
Package size291 × 208 × 132 mm

Questions about this item

How loud is the 140 mm FDB fan on the MPG A750GF during all-day loads?

The unit carries a Cybenetics Standard ++ noise rating, meaning the 140 mm FDB bearing fan stays quiet even under sustained 750 W output.

Which cables must I already have to install this fully modular 750 W PSU?

No cables are permanently attached; the box includes the 24-pin ATX, two 4+4-pin CPU, six 6+2-pin PCIe, eight SATA and five peripheral cables you need for a typical build.

Will the four +12 V rails and 6+2-pin PCIe plugs work with my older graphics card and motherboard?

Yes — four independent +12 V rails (25 A, 25 A, 35 A, 35 A) and six 6+2-pin PCIe connectors support both legacy and current GPUs, while the 24-pin and 4+4-pin EPS plugs fit older boards.
