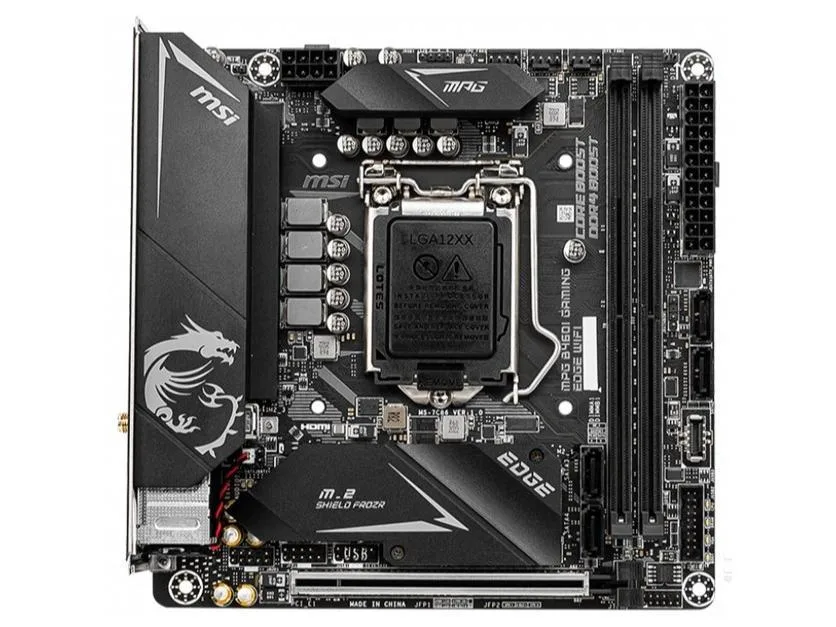

Mini-ITX motherboard with black PCB, silver heatsinks, rear I/O shield and M.2 covers

MSI

MSI MPG B460I GAMING EDGE WIFI Intel motherboard

SKU CH-PR2H-91T2J

Mini-ITX Intel B460 board with LGA 1200 socket, dual-channel DDR4 up to 2933 MHz, 64 GB max, 2.5 Gbps LAN and 7.1 audio

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports Intel 10th Gen processors for LGA 1200 socket
  • ChipsetIntel B460
  • Memory StandardSupports dual-channel DDR4 2933MHz memory (maximum)
  • Maximum Memory Supported64GB
  • PCI Slots1x PCIe 3.0 x16 slot (From CPU)
  • Supports 10th Gen Intel CPUs on LGA 1200 socket
  • Dual-channel DDR4 memory up to 2933 MHz and 64 GB capacity
  • 5 Gbps LAN via Realtek RTL8125B controller
  • 1-channel high-definition audio with Realtek ALC1200 codec
  • Mini-ITX form factor measuring 23.6 x 20.0 cm

LGA 1200 Mini-ITX board for 10th Gen Intel builds

This MSI MPG B460I GAMING EDGE WIFI motherboard uses the Intel B460 chipset and an LGA 1200 socket to support 10th Gen Intel processors in a Mini-ITX form factor. It targets compact gaming or workstation systems where space is limited but feature density matters. The board provides a single PCIe 3.0 x16 slot from the CPU for a discrete graphics card.

Sustained load behaviour with VRM and 2.5 Gbps LAN

The 2.5 Gbps Realtek RTL8125B LAN controller maintains throughput during long file transfers or streaming sessions without dropping to 1 Gbps. Onboard VRM cooling handles the power delivery for 10th Gen CPUs under continuous multi-core workloads. Dual-channel DDR4 2933 MHz memory support keeps bandwidth stable during extended compute tasks.

Simple Mini-ITX install

Installation follows standard Mini-ITX mounting points and the included I/O shield fits the rear cutout. The package supplies only the board, one SATA cable and the metal battery; no extra brackets or Wi-Fi antennas are provided. Builders must source any missing Wi-Fi antenna cables or additional SATA cables separately.

Highlights

  • Supports 10th Gen Intel CPUs on LGA 1200 socket
  • Dual-channel DDR4 memory up to 2933 MHz and 64 GB capacity
  • 5 Gbps LAN via Realtek RTL8125B controller
  • 1-channel high-definition audio with Realtek ALC1200 codec
  • Mini-ITX form factor measuring 23.6 x 20.0 cm

Specifications

BrandMSI
SeriesMSI MPG B460I GAMING EDGE WIFI
ModelMSI MPG B460I GAMING EDGE WIFI
CPU Socket TypeLGA 1200
CPU TypeSupports Intel 10th Gen processors for LGA 1200 socket
ChipsetIntel B460
Memory StandardSupports dual-channel DDR4 2933MHz memory (maximum)
Maximum Memory Supported64GB
PCI Slots1x PCIe 3.0 x16 slot (From CPU)
SATA RAID2XM.2 interface, 4xSATA III interface
Audio ChipsetRealtek ALC1200 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN Chipset1x Realtek RTL8125B 2.5Gbps LAN controller
Onboard USB2x USB 3.2 Gen 1 5Gbps Type-C ports (1 port on the back panel, 1 port is available through the internal USB 3.2 Gen 1 5Gbps Type-C connector)
5x USB 3.2 Gen 1 5Gbps ports (3 Type-A ports on the back panel, 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
4x USB 2.0 ports (2 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector)

Questions about this item

How loud and hot does the VRM area get when an Intel 10th Gen processor runs all day on the B460 chipset?

The board uses an Intel B460 chipset with an LGA 1200 socket for 10th Gen CPUs; VRM temperatures and fan noise depend on the specific processor and cooler you install.

Which DDR4 memory kit and cooler mounting hardware do I already need to have for this Mini-ITX board?

You need dual-channel DDR4 modules up to 2933 MHz for a maximum of 64 GB, plus an LGA 1200 compatible CPU cooler that fits the 23.6 × 20.0 cm layout.

Will my existing SATA SSDs and 2.5 Gbps network switch work with the Realtek LAN and four SATA III ports?

Yes, the board provides four SATA III connectors and a Realtek RTL8125B 2.5 Gbps LAN controller, so current SATA drives and 2.5 GbE switches connect directly.
