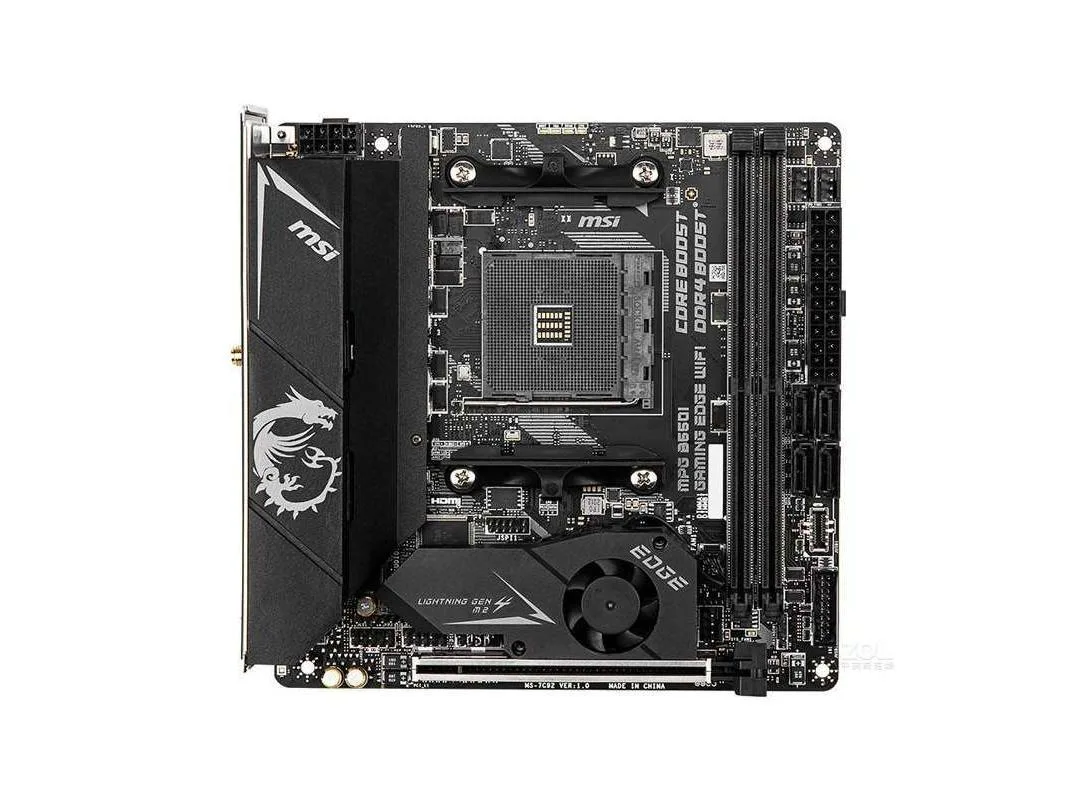

Mini-ITX motherboard with black PCB and silver heatsinks

MSI

MSI MPG B550I Gaming Edge WiFi AMD motherboard 64GB DDR4

SKU CH-QP8P-ZVVS9

Mini-ITX B550 board for AM4 Ryzen CPUs with dual-channel DDR4 up to 64GB, PCIe 4.0 x16, 2.5G LAN and 7.1 audio

  • CPU Socket TypeSocket AM4
  • CPU TypeSupports AM4 socket 3rd Gen AMD Ryzen processors, and future
  • ChipsetAMD B550
  • Memory StandardSupport dual-channel DDR4 1866/2133/2400/2667/2800/2933/3000
  • Maximum Memory Supported64GB
  • PCI Slots1x PCIe 4.0/ 3.0 x16 slot
  • Compact Mini-ITX design fits small cases
  • AMD B550 chipset supports 3rd Gen Ryzen CPUs
  • 64GB dual-channel DDR4 up to 4600 MHz
  • 5Gbps LAN plus Wi-Fi for fast networking
  • Realtek ALC1200 7.1-channel audio with S/PDIF

Socket AM4 Mini-ITX platform

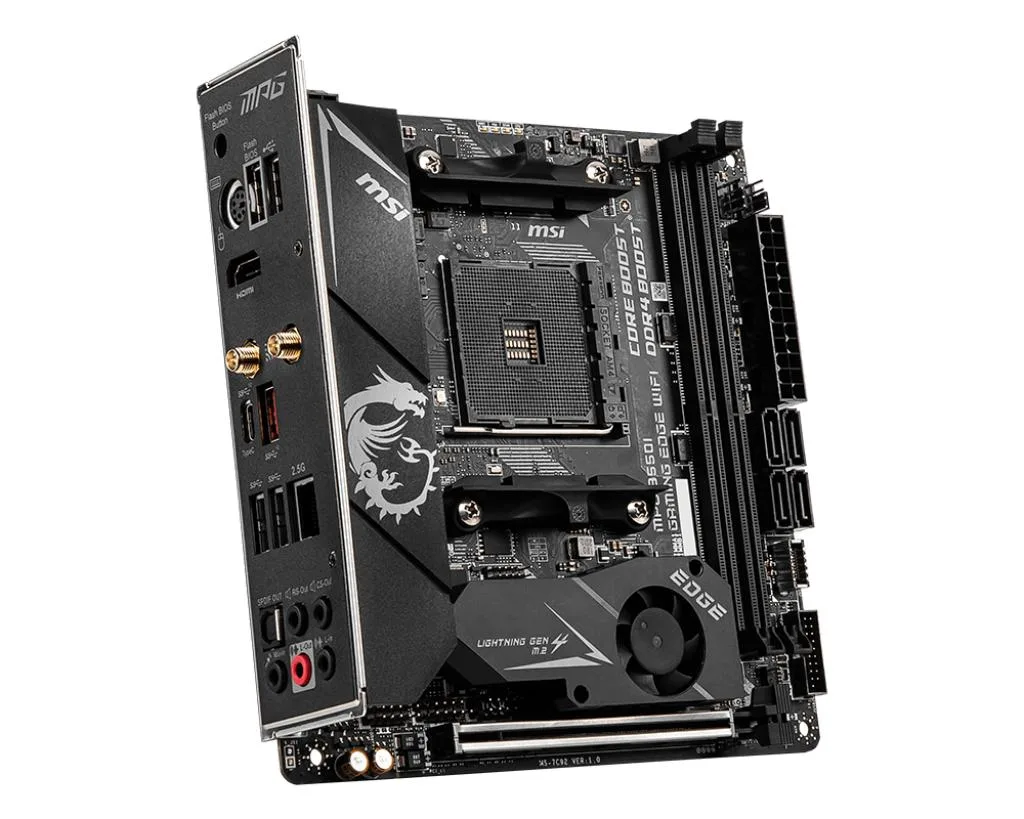

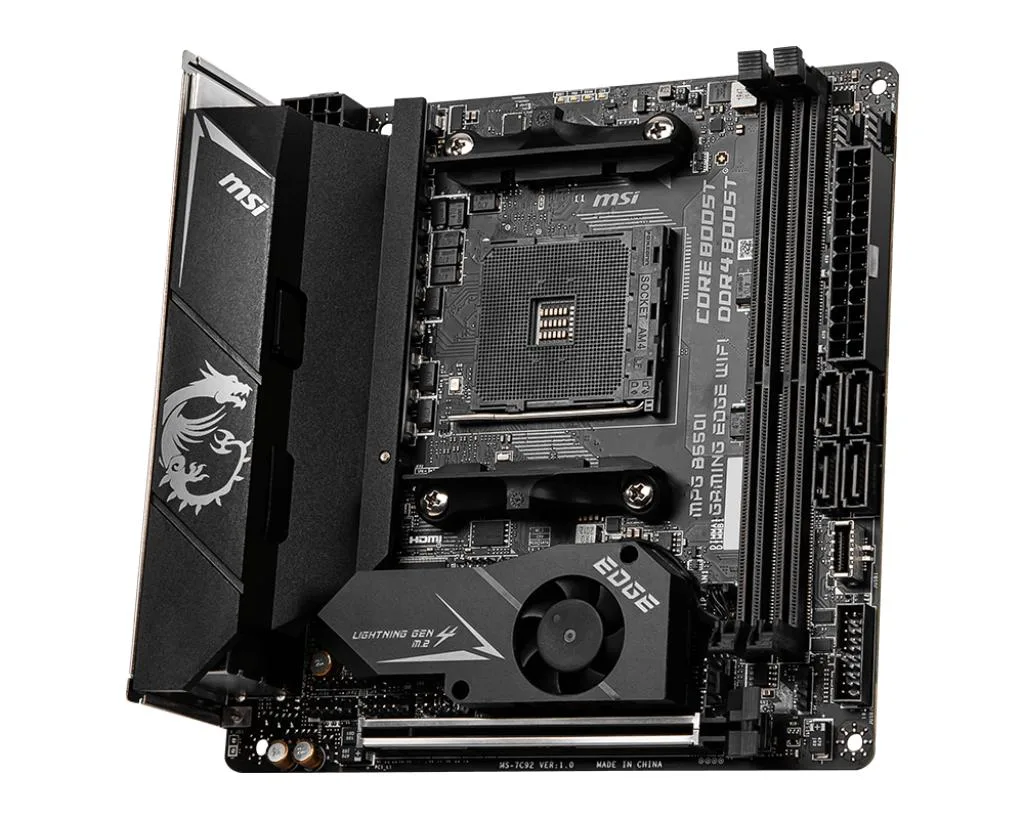

The MSI MPG B550I Gaming Edge WiFi is a Mini-ITX motherboard built around the AMD B550 chipset and Socket AM4. It supports 3rd Gen AMD Ryzen processors and future Ryzen CPUs with a BIOS update. Dual-channel DDR4 memory runs at speeds from 1866 up to 4600+ MHz with a 64 GB maximum capacity.

Compact builders and high-speed memory users

This board suits builders assembling a small-form-factor system who need 2.5 Gbps LAN, 7.1-channel audio and two M.2 slots alongside four SATA III ports. It is not suited for anyone requiring a larger ATX layout, more than one full-length PCIe slot or memory capacity beyond 64 GB.

Single PCIe 4.0 x16 slot

The board provides only one PCIe 4.0/3.0 x16 expansion slot. If your build demands a second graphics card, a capture card or additional expansion cards, this motherboard cannot accommodate them.

Highlights

  • Compact Mini-ITX design fits small cases
  • AMD B550 chipset supports 3rd Gen Ryzen CPUs
  • 64GB dual-channel DDR4 up to 4600 MHz
  • 5Gbps LAN plus Wi-Fi for fast networking
  • Realtek ALC1200 7.1-channel audio with S/PDIF

Specifications

BrandMSI
SeriesMSI MPG B550I GAMING EDGE WIFI
ModelMSI MPG B550I GAMING EDGE WIFI
CPU Socket TypeSocket AM4
CPU TypeSupports AM4 socket 3rd Gen AMD Ryzen processors, and future AMD Ryzen processors with BIOS update
ChipsetAMD B550
Memory StandardSupport dual-channel DDR4 1866/2133/2400/2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4533/4600 + MHz memory
Maximum Memory Supported64GB
PCI Slots1x PCIe 4.0/ 3.0 x16 slot
SATA RAID2XM.2 interface, 4xSATA III interface
Audio ChipsetRealtek ALC1200 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN Chipset1x Realtek RTL8125B 2.5Gbps LAN controller
Onboard USBAMD B550 Chipset
3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
4x USB 2.0 ports (2 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector)
AMD Processor
2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port) on the back panel
2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

Questions about this item

What comes in the box and what must I buy separately?

The package includes the motherboard, a CMOS battery, one SATA cable, the rear I/O shield and the Wi-Fi antenna. You still need to buy a Socket AM4 Ryzen processor, DDR4 memory modules, storage drives and a power supply.

Which memory speed should I choose for this board?

The board supports dual-channel DDR4 from 1866 MHz up to 4600 MHz and a maximum of 64 GB. Pick a kit that matches your CPU's memory controller and your budget; any speed in that range will work.

What does the 2.5 Gbps LAN figure mean in daily use?

The Realtek RTL8125B controller provides a 2.5 Gbps wired link, so large file transfers and low-latency gaming see higher throughput than standard 1 Gbps Ethernet when your router and cabling also support 2.5 Gbps.
