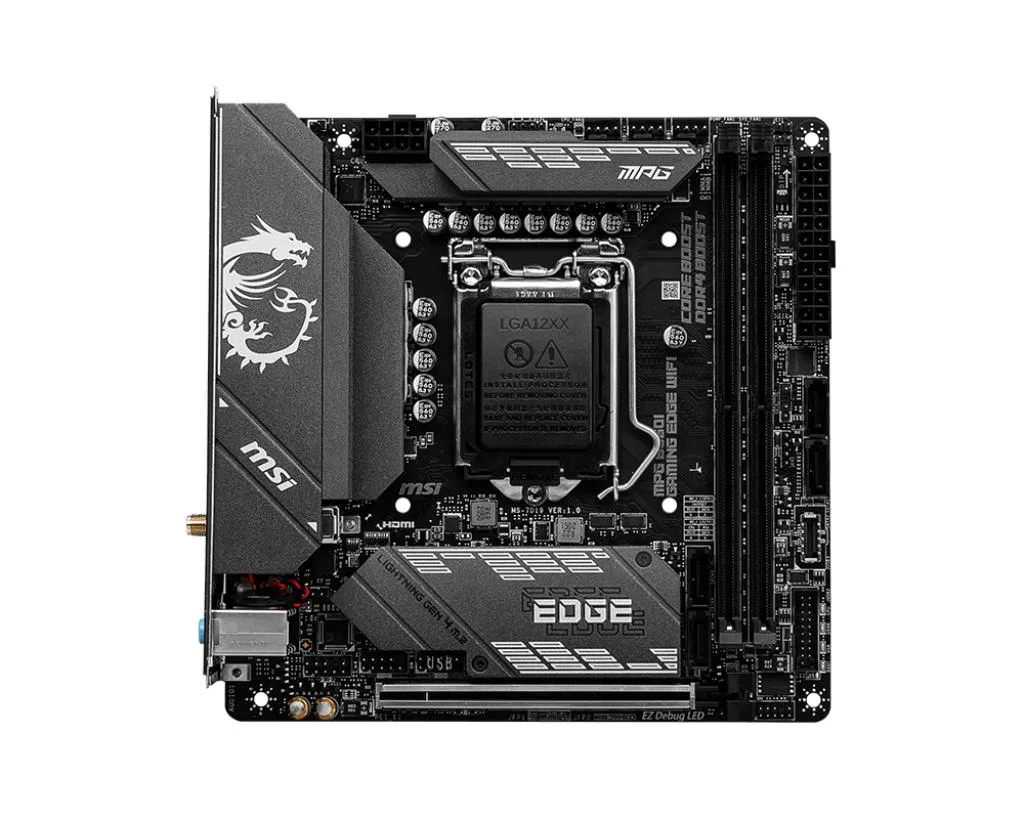

Mini-ITX motherboard, dark grey PCB with black heatsinks and silver accents

MSI

MSI MPG B560I Gaming Edge WiFi Intel motherboard

SKU CH-VXM5-HVA8G

Mini-ITX board for 10th and 11th Gen Intel CPUs with DDR4 up to 5200, 2.5Gb LAN, Wi-Fi and 7.1 audio

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 10th Gen Intel Core™ Processors, 11th Gen Intel Cor
  • ChipsetIntel B560
  • Memory StandardSupport dual channel DDR4 5200 (OC)/5000 (OC)/4800 (OC)/4600
  • Maximum Memory Supported64GB
  • PCI Slots1x PCIe x16 slot Support up to PCIe 4.0 for 11th Gen Intel C
  • Supports 10th and 11th Gen Intel Core processors on LGA 1200 socket
  • Dual-channel DDR4 memory up to 5200 OC with 64 GB maximum capacity
  • PCIe 4.0 x16 slot for 11th Gen CPUs and PCIe 3.0 for 10th Gen
  • Realtek ALC897 7.1-channel audio and 2.5 Gbps LAN via RTL8125B
  • USB 3.2 Gen 2 10 Gbps Type-C and Type-A plus Gen 1 5 Gbps ports

Compact ITX Board for 10th and 11th Gen Intel

The MSI MPG B560I Gaming Edge WiFi is a Mini-ITX motherboard built on the Intel B560 chipset with an LGA 1200 socket. It supports 10th and 11th Gen Intel Core, Pentium Gold and Celeron processors. Dual-channel DDR4 memory runs up to 5200 OC with a 64GB maximum capacity. A single PCIe x16 slot operates at 4.0 with 11th Gen CPUs and 3.0 with 10th Gen CPUs.

Suits Small-Form-Factor Gaming Builds

This board fits compact cases where only one expansion card is needed. The 2.5Gbps LAN and Wi-Fi module cover wired and wireless networking. Four SATA III ports and two M.2 sockets provide storage flexibility. Builders who require multiple graphics cards, extensive PCIe expansion or legacy PCI slots should look at larger ATX or micro-ATX platforms instead.

PCIe Generation Depends on CPU Generation

The x16 slot delivers PCIe 4.0 bandwidth only when paired with an 11th Gen Intel processor; with a 10th Gen chip it falls back to PCIe 3.0. That single detail decides whether a high-end graphics card or fast add-in card can run at its full potential on this platform.

Highlights

  • Supports 10th and 11th Gen Intel Core processors on LGA 1200 socket
  • Dual-channel DDR4 memory up to 5200 OC with 64 GB maximum capacity
  • PCIe 4.0 x16 slot for 11th Gen CPUs and PCIe 3.0 for 10th Gen
  • Realtek ALC897 7.1-channel audio and 2.5 Gbps LAN via RTL8125B
  • USB 3.2 Gen 2 10 Gbps Type-C and Type-A plus Gen 1 5 Gbps ports

Specifications

BrandMSI
SeriesMSI MPG B560I GAMING EDGE WIFI
ModelMSI MPG B560I GAMING EDGE WIFI
CPU Socket TypeLGA 1200
CPU TypeSupports 10th Gen Intel Core™ Processors, 11th Gen Intel Core™ Processors, Pentium Gold and Celeron Processors
Processor socket LGA1200
ChipsetIntel B560
Memory StandardSupport dual channel DDR4 5200 (OC)/5000 (OC)/4800 (OC)/4600 (OC)/4533 (OC)/4400 (OC)/4300 (OC)/4266 (OC)/4200 (OC)/4133 (OC)/4000 (OC)/3866 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3400 (OC)/3333 (OC)/3300 (OC)/3200 (OC)/3000 (OC)/2933 (JEDEC)/2666 (JEDEC)/2400 (JEDEC)/2133 (JEDEC) MHz memory
Maximum Memory Supported64GB
PCI Slots1x PCIe x16 slot
Support up to PCIe 4.0 for 11th Gen Intel CPU
Support up to PCIe 3.0 for 10th Gen Intel CPU
SATA RAID2XM.2 interface, 4xSATA III interface
Audio ChipsetRealtek ALC897 Codec
7.1-Channel High Definition Audio
LAN Chipset1x Realtek RTL8125B 2.5Gbps LAN controller
Onboard USB2x USB 3.2 Gen 2 10Gbps ports [1 Type-C port and 1 Type-A port on the back panel]
3x USB 3.2 Gen 1 5Gbps ports [1 Type-C port and 2 Type-A ports are available through the internal USB 3.2 Gen 1 5Gbps connectors]
6x USB 2.0 ports [4 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector]

Questions about this item

What PCIe standard does the single x16 slot run at with an 11th Gen CPU?

The single PCIe x16 slot supports up to PCIe 4.0 when an 11th Gen Intel Core processor is installed.

What mounting pattern and form factor does the board use?

The board uses the Mini-ITX form factor with the standard four-hole mounting pattern.

How is the Wi-Fi antenna attached and what is the common mistake?

Screw the external antenna onto the gold I/O shield connector; the step often missed is tightening it fully so the signal path is complete.
