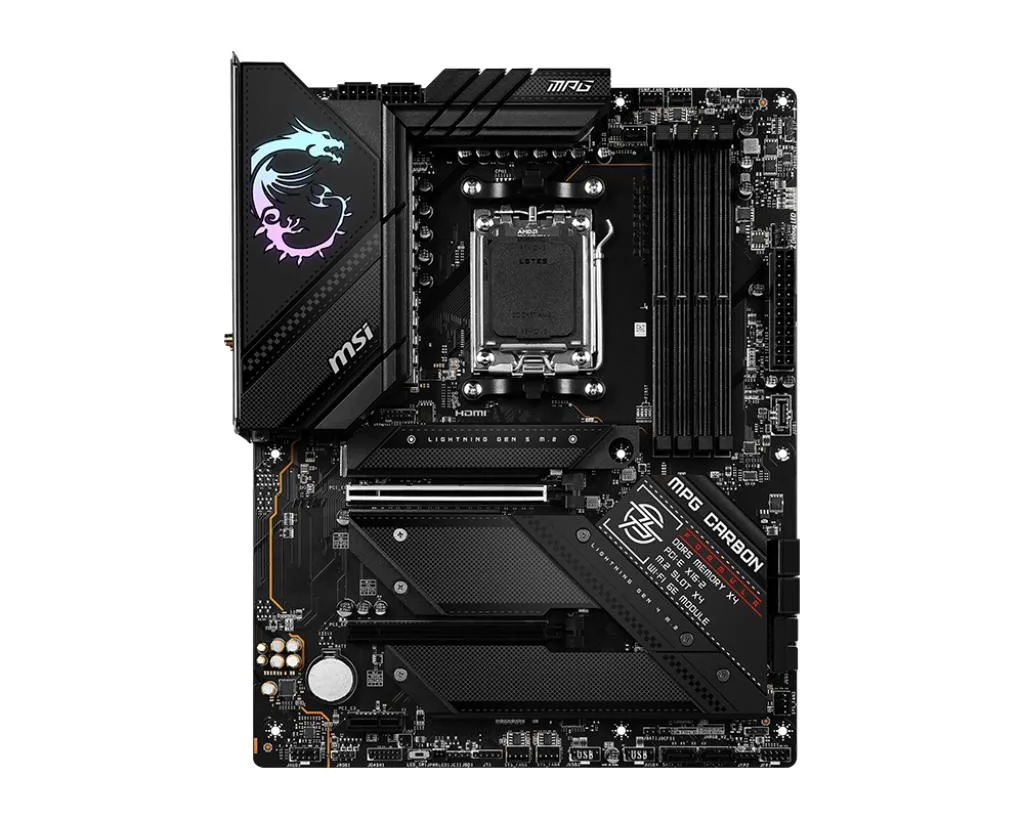

ATX motherboard with dark carbon-patterned finish and integrated I/O shield

MSI

MSI MPG B650 CARBON WIFI AMD motherboard

SKU CH-CCR1-PW2F5

Socket AM5 ATX board with AMD B650 chipset supporting Ryzen 7000 and 8000 series CPUs, dual-channel DDR5 up to 6600 MHz OC and 256 GB capacity, 2.5 Gbps LAN, Realtek ALC4080 7.1 audio.

  • CPU Socket TypeSocket AM5
  • CPU TypeSupports AMD Ryzen™ 8000/ 7000 Series Desktop Processors Soc
  • ChipsetAMD B650
  • Memory StandardSupport dual-channel DDR5 6600 + (OC)/6400 (OC)/6200 (OC)/60
  • Maximum Memory Supported256GB
  • PCI Slots2X PCI-E x16 slots (quantity) Supports x16/x4 (For Ryzen™ 70
  • Supports AMD Ryzen 8000 and 7000 series CPUs on Socket AM5
  • Dual-channel DDR5 memory up to 6600 MHz OC with 256 GB maximum capacity
  • Realtek ALC4080 codec delivers 7.1-channel audio at 32-bit 384 kHz
  • Realtek RTL8125 2.5 Gbps LAN for fast wired networking
  • USB 20 Gbps Type-C rear plus seven USB 10 Gbps Type-A rear ports

Socket AM5 DDR5 platform

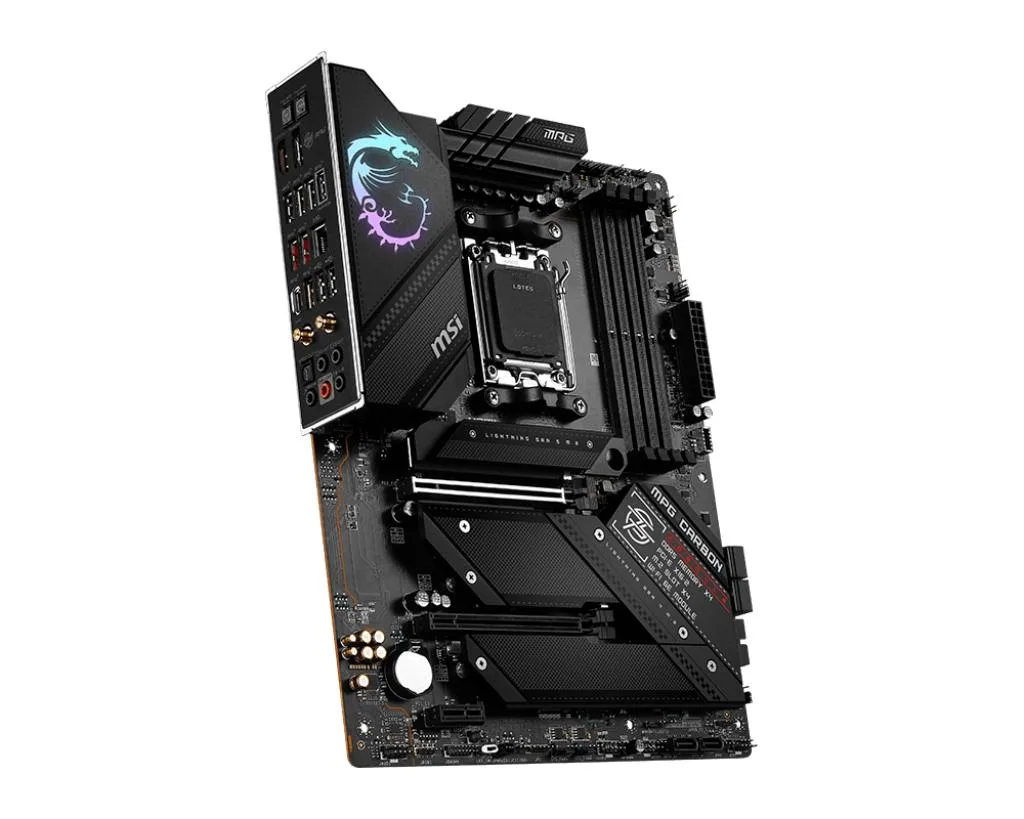

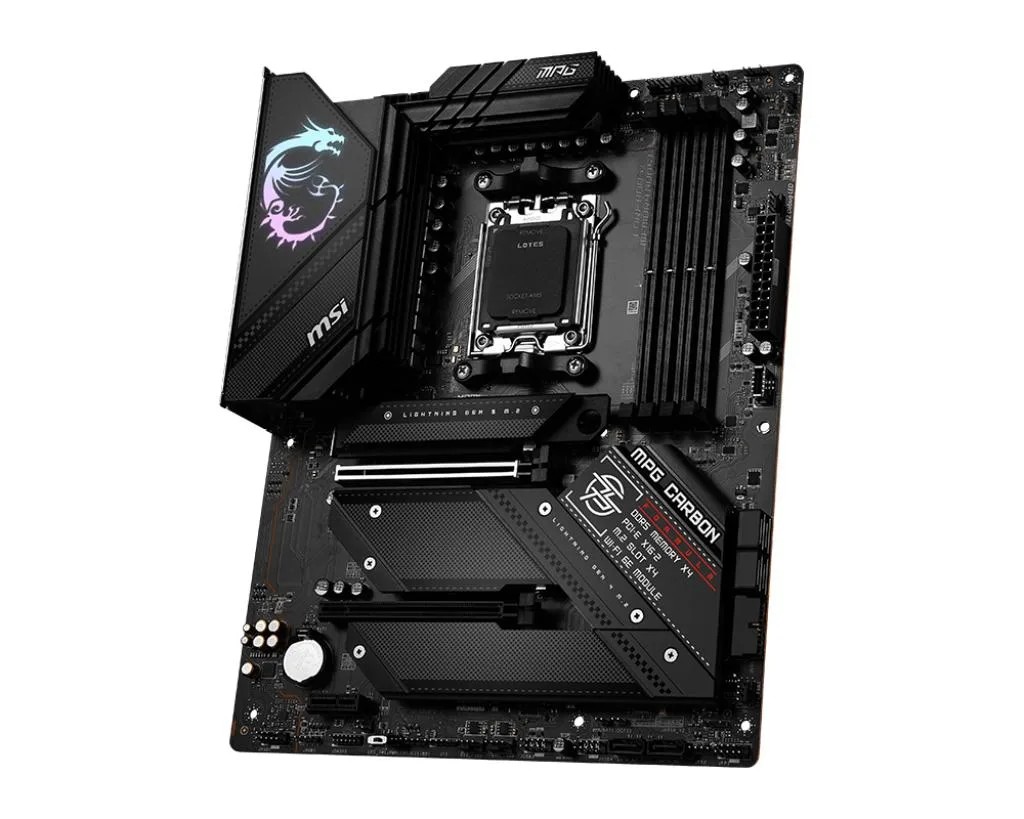

The MSI MPG B650 CARBON WIFI is an ATX motherboard built around the AMD B650 chipset for Socket AM5 processors. It supports AMD Ryzen 8000 and 7000 series desktop CPUs and runs dual-channel DDR5 memory up to 6600 MHz when overclocked. Maximum capacity reaches 256 GB across four slots.

Builders who need high-speed DDR5 and 2.5 Gbps LAN

This board suits enthusiasts who want fast DDR5 memory, 2.5 Gbps wired networking from the Realtek RTL8125 controller and 7.1-channel audio via the Realtek ALC4080 codec. It is not for buyers who require more than two PCIe x16 slots or who need more than six SATA 6 Gbps ports for additional storage drives.

Dual-channel DDR5 up to 256 GB

The single specification that decides fit is the memory subsystem: dual-channel DDR5 with a 256 GB ceiling and supported overclocked speeds from 4800 MHz to 6600 MHz. Verify that your chosen Ryzen 7000 or 8000 series processor and memory kit match these limits before purchase.

Highlights

  • Supports AMD Ryzen 8000 and 7000 series CPUs on Socket AM5
  • Dual-channel DDR5 memory up to 6600 MHz OC with 256 GB maximum capacity
  • Realtek ALC4080 codec delivers 7.1-channel audio at 32-bit 384 kHz
  • Realtek RTL8125 2.5 Gbps LAN for fast wired networking
  • USB 20 Gbps Type-C rear plus seven USB 10 Gbps Type-A rear ports

Specifications

BrandMSI
SeriesMSI MPG B650 CARBON WIFI
ModelMSI MPG B650 CARBON WIFI
CPU Socket TypeSocket AM5
CPU TypeSupports AMD Ryzen™ 8000/ 7000 Series Desktop Processors
Socket AM5
ChipsetAMD B650
Memory StandardSupport dual-channel DDR5 6600 + (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory
Maximum Memory Supported256GB
PCI Slots2X PCI-E x16 slots (quantity)
Supports x16/x4 (For Ryzen™ 7000 Series processors)
Supports x8/x4 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
Supports x4/x2 (For Ryzen™ 5 8500G processor)
1X PCI-E x1 slot (quantity)
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x4 (From CPU)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
* PCI_E1, M2_2 & M2_3 share the bandwidth. PCI_E1 will run at x8 speed when installing devices in M2_2 or M2_3 slots. Please see manual for more details.
SATA RAID4XM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
LAN ChipsetRealtek RTL8125 2.5Gbps LAN
Onboard USB2X USB 2.0 (rear)
4X USB 2.0 (front)
2x USB 5Gbps Type A (Front)
7x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)

Questions about this item

How long will the included CMOS battery last before the system clock drifts?

The board ships with a CMOS battery; typical life is several years before the system clock drifts, at which point the battery can be replaced.

What limits DDR5 memory speed under sustained load?

The VRM thermal design and memory topology set the practical ceiling for DDR5 overclocks during extended sessions.

How loud and hot does the VRM get when the CPU runs all day?

The extended heatsink and heatpipe keep VRM temperatures in check under continuous load, and fan headers let you tune airflow for quiet operation.
