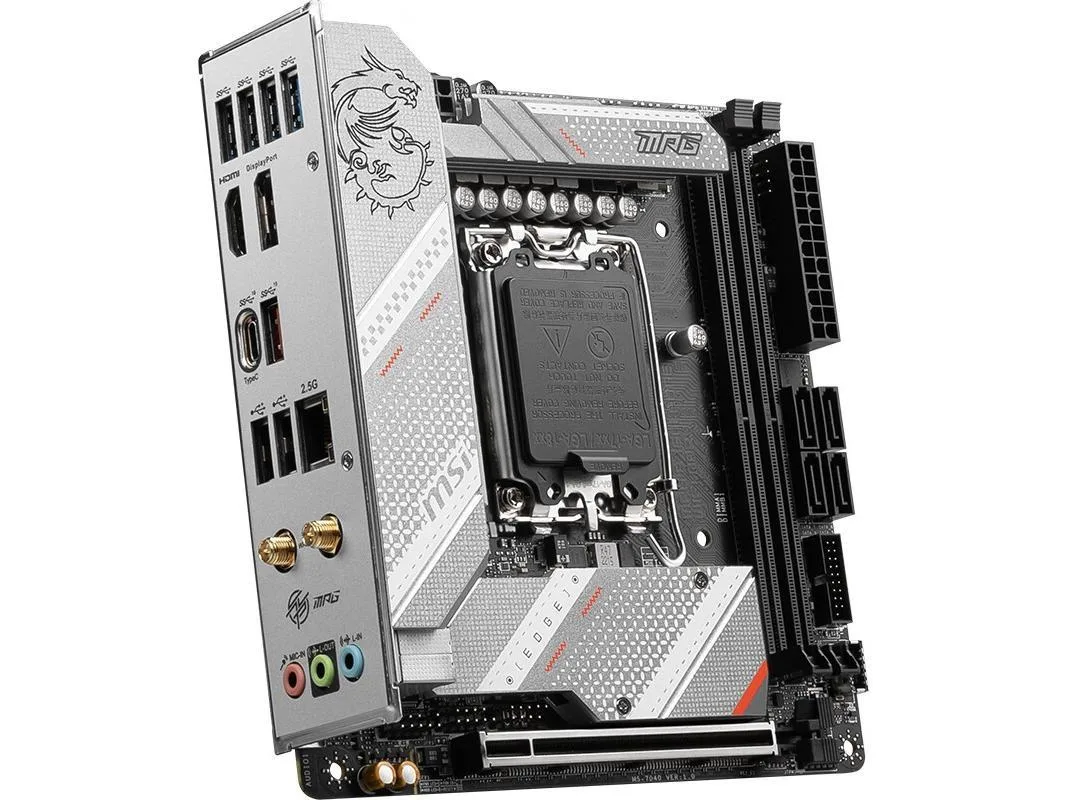

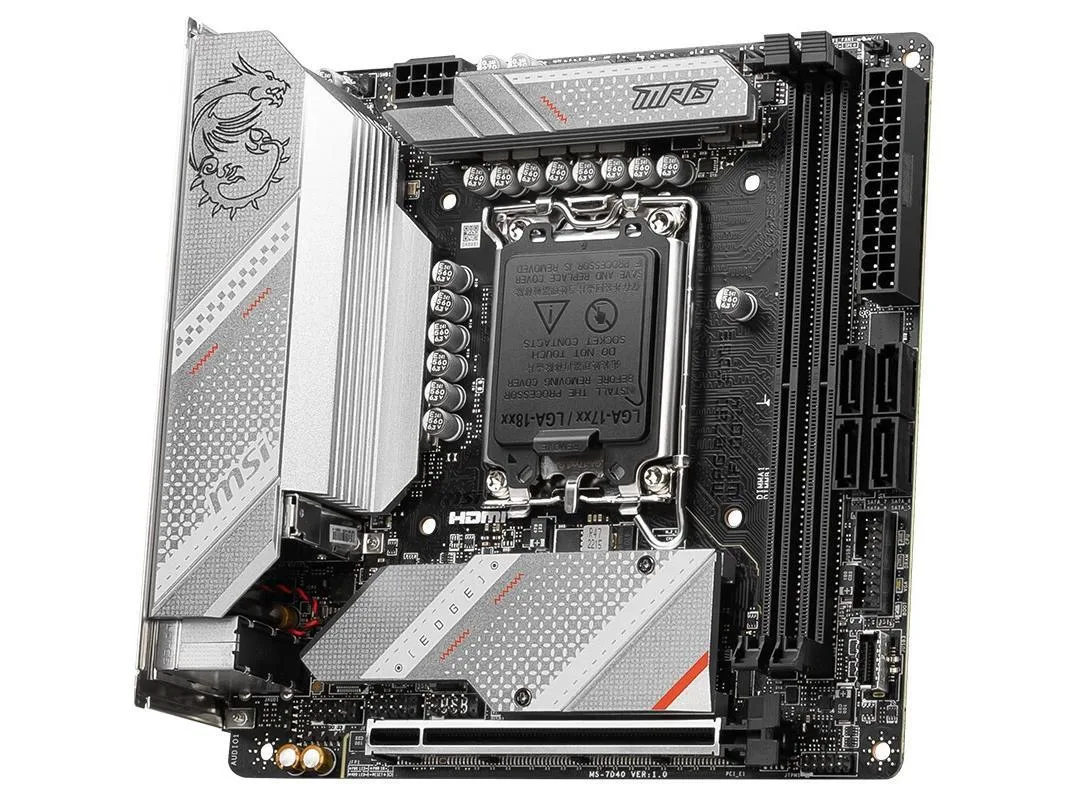

Compact Mini-ITX board, dark PCB, silver heatsinks, rear I/O shield

MSI

MSI MPG B760I EDGE WIFI DDR4 Intel motherboard

SKU CH-NCPZ-PA020

Mini-ITX B760 board for LGA 1700 CPUs with dual-channel DDR4 up to 64GB, PCIe 5.0 x16, 2.5Gb LAN and 10Gbps USB

  • CPU Socket TypeLGA 1700
  • CPU TypeSupport Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel P
  • ChipsetIntel B760
  • Memory StandardSupport dual-channel DDR4 5333/5200/5066/5000/4800/4600/4533
  • Maximum Memory Supported64GB
  • PCI Slots1X PCI-E x16 slots (quantity) PCI_E1 Gen PCIe 5.0 supports u
  • Supports Intel Core 12 13 14 Gen processors via LGA 1700 socket
  • Dual-channel DDR4 memory up to 64GB at 5333 MHz overclocked
  • PCIe 5.0 x16 slot ready for high-bandwidth graphics cards
  • Realtek ALC897 codec delivers 7.1-channel high-performance audio
  • Realtek RTL8125BG controller provides 2.5 Gbps wired LAN

Socket LGA 1700 Mini-ITX board for Intel Core 12

The MSI MPG B760I EDGE WIFI DDR4 is a Mini-ITX motherboard built around the Intel B760 chipset. It accepts LGA 1700 processors from the 12th 13th and 14th generations plus Pentium Gold and Celeron models. Dual-channel DDR4 memory runs at speeds up to 5333 MHz OC with a maximum capacity of 64 GB.

Compact builds with one PCIe 5.0 x16 slot

This board suits small-form-factor systems that need a single full-size graphics card on a PCIe 5.0 x16 link and fast wired networking via the Realtek 2.5 Gbps controller. It also provides 7.1-channel audio and a generous rear USB layout including 10 Gbps Type-A and Type-C ports. Builds requiring more than one x16 slot or more than two M.2 sockets should look elsewhere.

Dual-channel DDR4 up to 5333 MHz OC and 64 GB limit

The memory subsystem tops out at 64 GB across two slots with supported overclocked frequencies reaching 5333 MHz. This ceiling decides whether the platform fits workloads that demand higher capacity or faster memory standards.

Highlights

  • Supports Intel Core 12 13 14 Gen processors via LGA 1700 socket
  • Dual-channel DDR4 memory up to 64GB at 5333 MHz overclocked
  • PCIe 5.0 x16 slot ready for high-bandwidth graphics cards
  • Realtek ALC897 codec delivers 7.1-channel high-performance audio
  • Realtek RTL8125BG controller provides 2.5 Gbps wired LAN

Specifications

BrandMSI
SeriesMSI MPG B760I EDGE WIFI DDR4
ModelMSI MPG B760I EDGE WIFI DDR4
CPU Socket TypeLGA 1700
CPU TypeSupport Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
LGA 1700
ChipsetIntel B760
Memory StandardSupport dual-channel DDR4 5333/5200/5066/5000/4800/4600/4533/4400/4266/4000/3866/3733/3600/3466/3333 (O.C.)/3200/3000/2933/2800/2666/2400/2133MHz memory
Maximum Memory Supported64GB
PCI Slots1X PCI-E x16 slots (quantity)
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
SATA RAID2XM.2 interface, 4xSATA III interface
Audio ChipsetRealtek ALC897 Codec
7.1-Channel High Performance Audio
LAN ChipsetRealtek RTL8125BG 2.5Gbps LAN

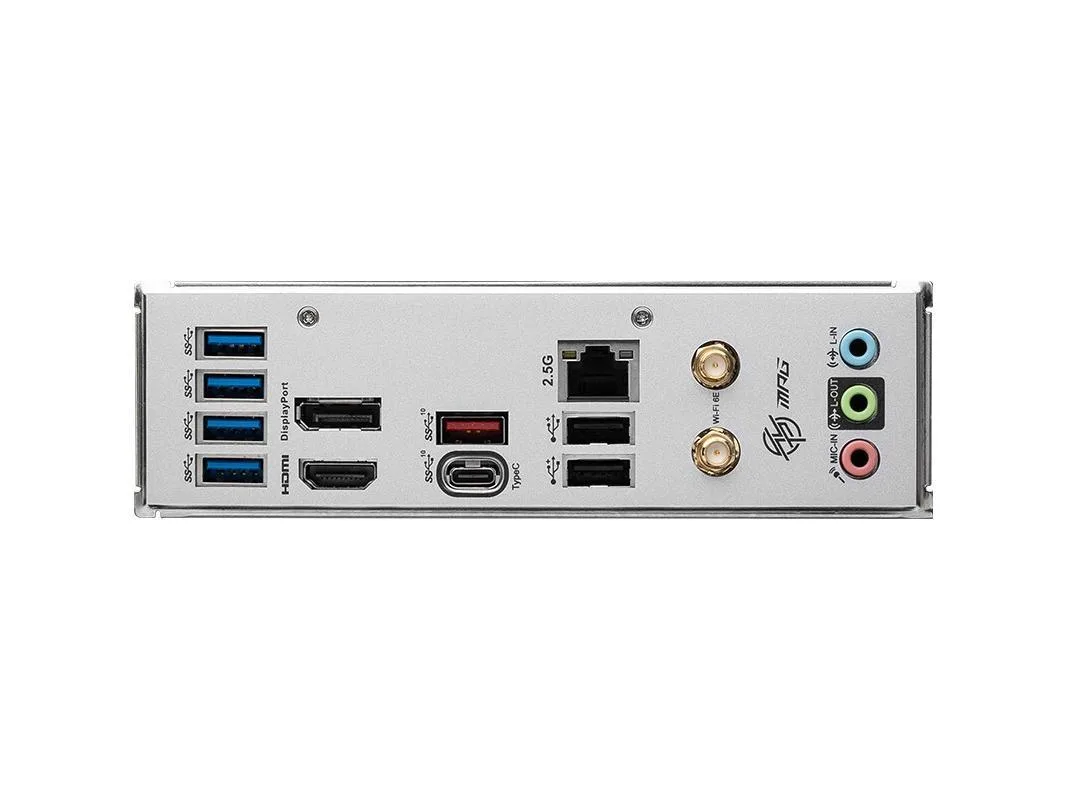

Onboard USB2X USB 2.0 (rear)
2X USB 2.0 (front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)

Questions about this item

Does the box contain the Wi-Fi antenna and back-panel I/O shield, or do I need to order them separately?

The package ships with the motherboard, a CMOS battery, one SATA cable, the chassis I/O back panel, and the Wi-Fi antenna because the board has a built-in Wi-Fi module. No other accessories are included.

Which DDR4 speeds can I run on this board if I want the highest supported frequency?

The board lists support up to 5333 MHz overclocked, then steps down through 5200, 5066, 5000, 4800 and lower standard JEDEC speeds to 2133 MHz.

What does the 2.5 Gbps LAN figure mean for my actual wired network throughput?

The Realtek RTL8125BG controller provides a 2.5 Gbps Ethernet link, so sustained file transfers can reach roughly 300 MB/s when the switch, cabling and client devices also support 2.5 Gbps.
