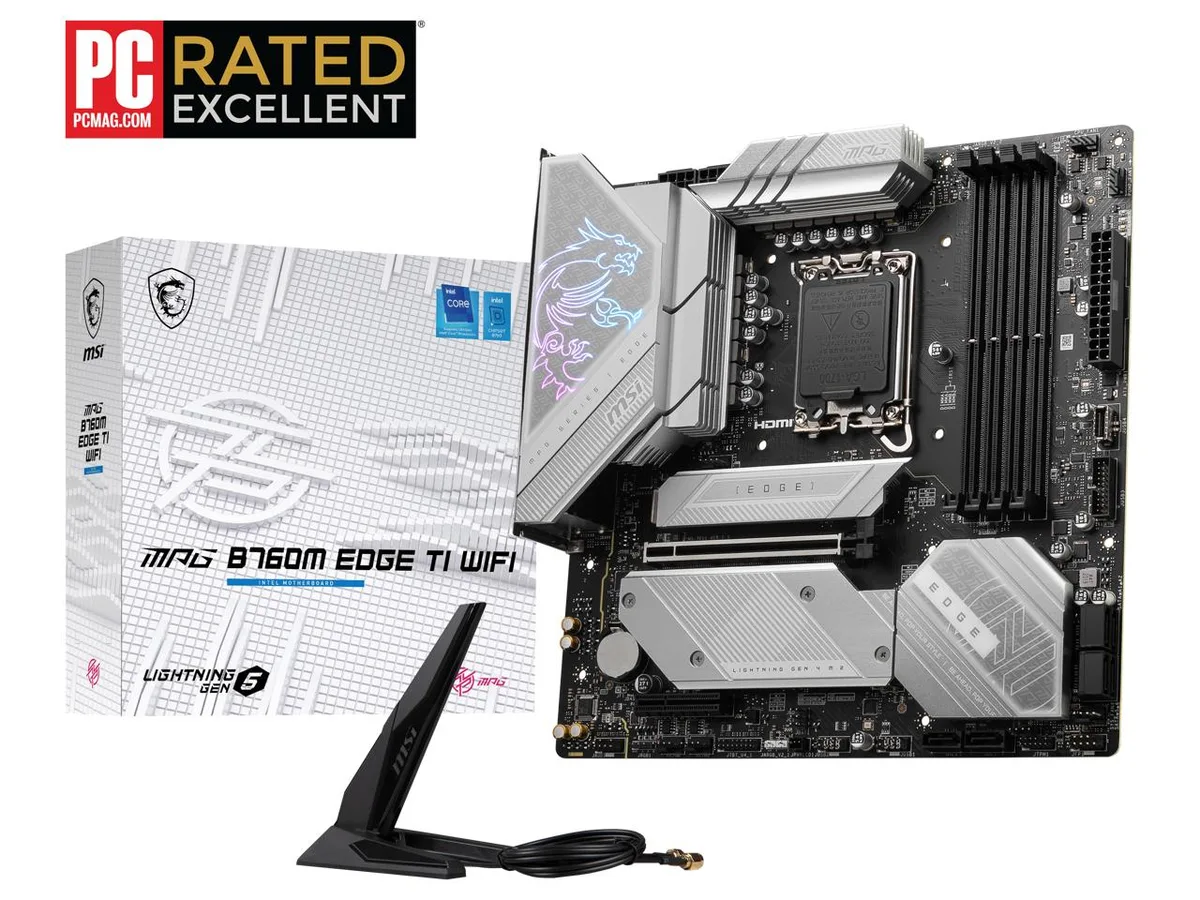

Micro-ATX motherboard in black with silver heatsinks and screwless M.2 shields

MSI

MSI MPG B760M EDGE TI WIFI Intel motherboard

SKU CH-R292-Y5J0B

Micro-ATX board for 12th to 14th Gen Intel CPUs with DDR5 up to 7800 MT/s, PCIe 5.0 x16, three M.2 slots, 2.5 GbE, Wi-Fi 6E and Bluetooth 5.3

  • CPU Socket TypeLGA 1700
  • CPU TypeIntel Core 13th Gen (LGA 1700)
  • ChipsetIntel B760
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 5600
  • Maximum Memory Supported192GB
  • PCIe 5.0 x16 slot delivers up to 128GB/s bandwidth for graphics cards
  • DDR5 memory support up to 7800 MHz overclocked across four slots for 192GB capacity
  • Screwless M.2 Shield Frozr secures three drives up to 2280 size without tools
  • Wi-Fi 6E and Bluetooth 5.3 provide 6 GHz spectrum and 2400 Mbps wireless speed
  • 5Gbps LAN and 7.1-channel Realtek ALC897 audio for wired networking and surround sound

Socket LGA 1700 DDR5 motherboard

The MSI MPG B760M EDGE TI WIFI is a Micro ATX board built around the Intel B760 chipset for 12th, 13th and 14th generation Core processors. It provides four 288-pin slots supporting dual-channel DDR5 up to 192 GB with a wide range of JEDEC and overclocked frequencies. Integrated 2.5 Gbps LAN, Wi-Fi 6E and Bluetooth 5.3 handle wired and wireless connectivity.

Suits compact DDR5 builds; not for multi-GPU

This board fits builders who want a small-form-factor platform with three M.2 slots, six SATA 6 Gb/s ports and a PCIe 5.0 x16 slot driven by the CPU. It lacks a second full-length PCIe slot, so users planning multiple graphics cards or additional x16 add-in cards should consider a full-size ATX alternative.

PCIe 5.0 x16 from the CPU

The primary expansion slot runs at PCIe 5.0 x16 directly from the processor, delivering up to 128 GB/s bandwidth for the latest graphics cards. A second x4 slot wired to the chipset operates at PCIe 3.0, while three M.2 sockets (one CPU-attached at PCIe 4.0 x4, two chipset-attached at PCIe 4.0 x4) provide high-speed storage options.

Highlights

  • PCIe 5.0 x16 slot delivers up to 128GB/s bandwidth for graphics cards
  • DDR5 memory support up to 7800 MHz overclocked across four slots for 192GB capacity
  • Screwless M.2 Shield Frozr secures three drives up to 2280 size without tools
  • Wi-Fi 6E and Bluetooth 5.3 provide 6 GHz spectrum and 2400 Mbps wireless speed
  • 5Gbps LAN and 7.1-channel Realtek ALC897 audio for wired networking and surround sound

Specifications

BrandMSI
ModelMPG B760M EDGE TI WIFI
CPU Socket TypeLGA 1700
CPU TypeIntel Core 13th Gen (LGA 1700)
ChipsetIntel B760
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 5600
Maximum Memory Supported192GB
Channel SupportedDual Channel
Memory FeatureMemory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
- 1DPC 1R Max speed up to 7800+ MHz
- 1DPC 2R Max speed up to 6600+ MHz
- 2DPC 1R Max speed up to 6400+ MHz
- 2DPC 2R Max speed up to 5600+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile
PCI Express 5.0 x16PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI Express x4PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)
Serial ATA (SATA)6 x SATA 6Gb/s
M.23 x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices
SATA RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio ChipsetRealtek ALC897
Audio Channels7.1 Channels
Max LAN Speed2.5Gbps
Wireless LANIntel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
BluetoothSupports Bluetooth 5.3, FIPS, FISMA
Back I/O Ports4 x USB 2.0
1 x DisplayPort 1.4
3 x USB 3.2 Gen 2 10Gbps Type-A
1 x 2.5G LAN Port
2 x Wi-Fi / Bluetooth Antenna
5 x HD Audio Connectors
1 x HDMI 2.1 Port
1 x Clear CMOS Button
1 x USB 3.2 Gen 2x2 20Gbps Type-C
1 x Optical S/PDIF OUT
Onboard USB4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
1x USB4 card connector (JTBT_U4_1, supports RTD3)
Other Connectors1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
Windows 11Supported
Form FactorMicro ATX
LED Lighting4x EZ Debug LED
Dimensions (W x L)9.6" x 9.6"
Power Pin1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
FeaturesSupport Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
Supports DDR5 Memory, up to 7800+(OC) MHz
Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
Audio Boost: Reward your ears with studio grade sound
High Quality PCB: 6-layer PCB made by 2oz thick

Questions about this item

Which DDR5 speed should I pick for the 4800 to 7800 MHz range listed on the MPG B760M EDGE TI WIFI?

JEDEC 4800–5600 MHz works out of the box; any kit rated above 5600 MHz up to 7800 MHz needs the XMP/EXPO profile enabled in BIOS to reach its advertised frequency.

What does the PCIe 5.0 x16 slot deliver once a graphics card is installed?

The primary PCI_E1 slot runs at PCIe 5.0 x16 straight from the CPU, giving up to 128 GB/s bandwidth for a compatible GPU or add-in card.

How fast is the wireless link on the board's Wi-Fi 6E module?

The pre-installed Intel Wi-Fi 6E module supports 2.4/5/6 GHz bands, 160 MHz channels and MU-MIMO, reaching up to 2400 Mbps over the air.
