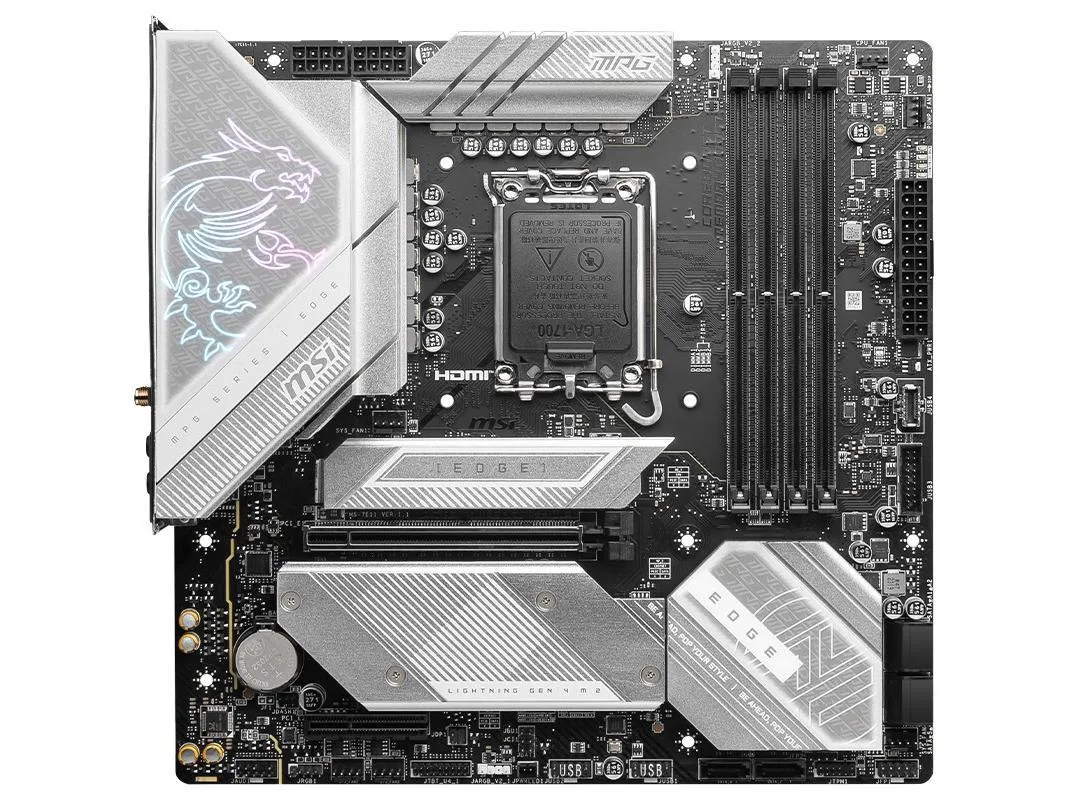

Dark grey Micro ATX board with silver heatsinks and a rear I/O shield visible

MSI

MSI MPG B760M EDGE TI WIFI Intel motherboard 256GB

SKU CH-CED0-WZKK4

Micro-ATX board for Intel Core 12, 13 and 14 Gen CPUs with DDR5 up to 256 GB, 2.5 Gb LAN, 7.1 audio and USB 20 Gbps Type-C

  • CPU Socket TypeLGA 1700
  • CPU TypeSupport Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel P
  • ChipsetIntel B760
  • Memory StandardSupport 7800 + (OC)/7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/
  • Maximum Memory Supported256GB
  • PCI Slots1X PCI-E x16 slots (quantity) Supports x16/x4 1x PCI-E x4 sl
  • Supports up to 256GB DDR5 for heavy multitasking
  • 1-channel Realtek ALC897 audio for immersive sound
  • 5Gbps LAN for fast wired networking
  • PCIe 5.0 x16 slot ready for latest graphics cards
  • USB 20Gbps Type-C port for rapid data transfers

LGA 1700 DDR5 platform

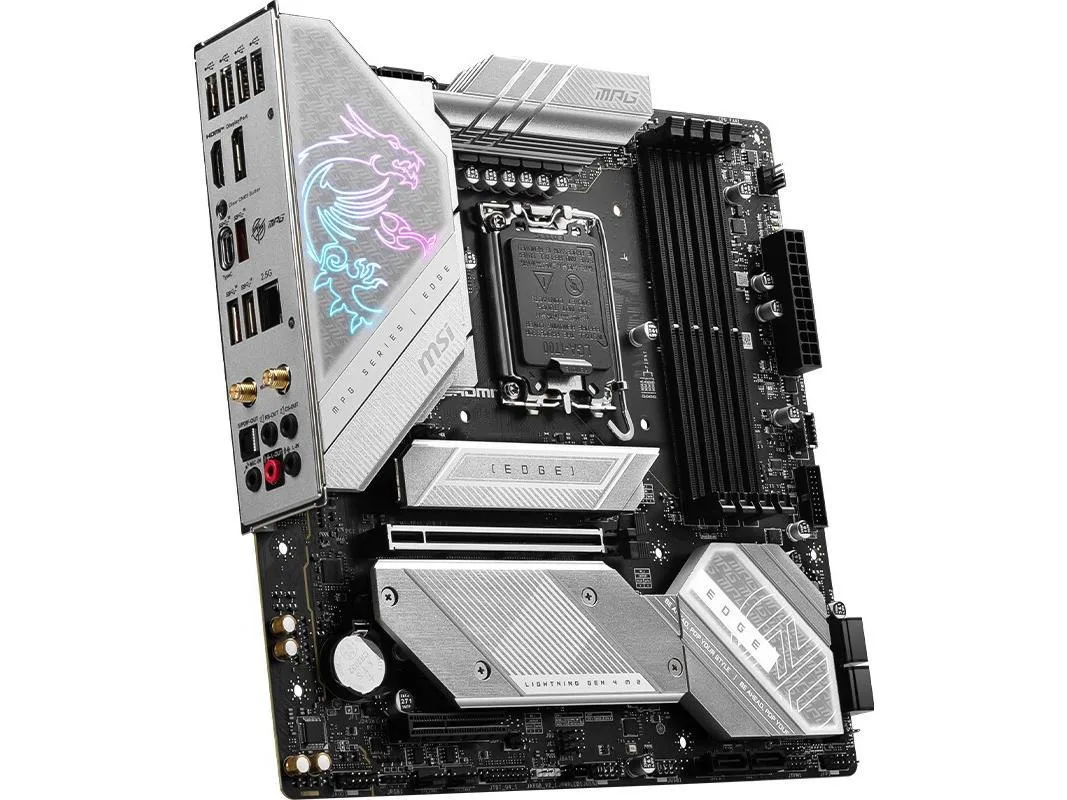

The MSI MPG B760M EDGE TI WIFI is a Micro-ATX motherboard built on the Intel B760 chipset for LGA 1700 processors. It supports Intel Core 12th, 13th and 14th generation CPUs along with Pentium Gold and Celeron models. Four DDR5 slots accept up to 256GB of memory.

Straightforward Micro-ATX fit

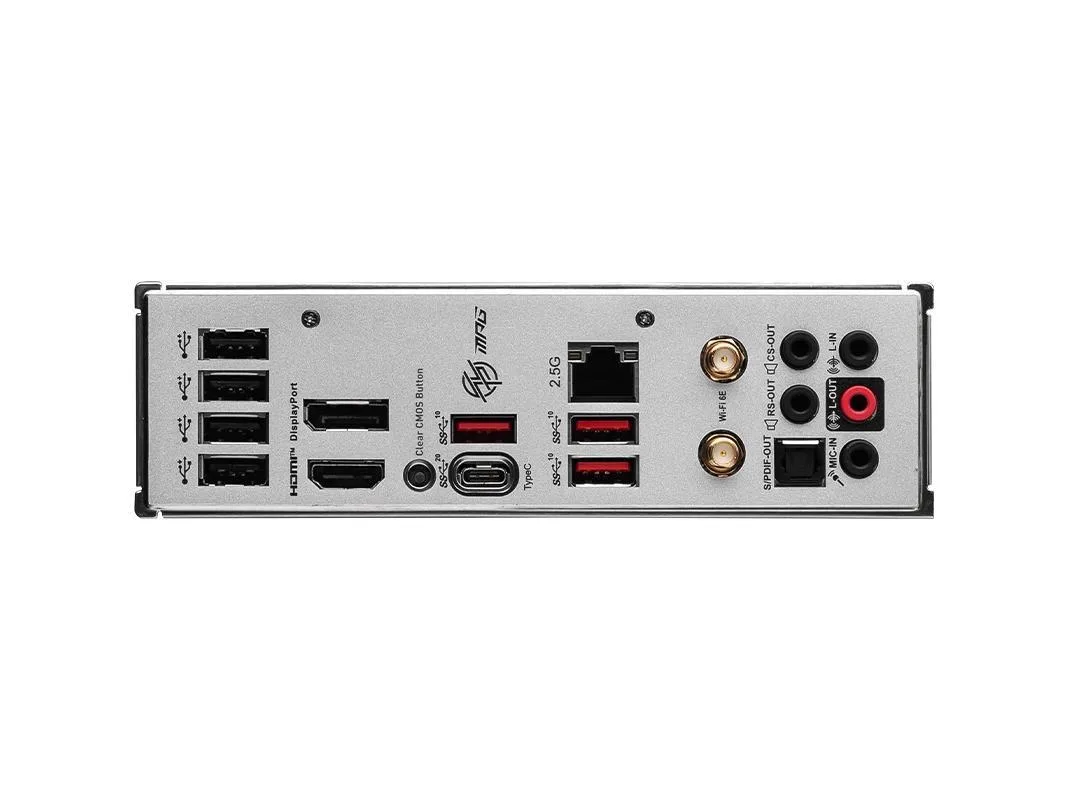

The board uses a standard Micro-ATX mounting pattern and a regular 24-pin ATX power connector plus an 8-pin CPU connector. Pre-installed I/O shield simplifies rear-panel alignment. The primary PCIe 5.0 x16 slot is reinforced; ensure the graphics-card retention latch is fully engaged after insertion. M.2 standoffs are pre-set for common lengths.

256GB DDR5 ceiling

Maximum supported memory is 256GB across four slots using DDR5 modules. The validated frequency list runs from 4800 JEDEC up to 7800 MT/s when overclocked. Populate all four slots only with kits rated for the target speed; mixed ranks may force the controller down to a lower JEDEC tier.

Highlights

  • Supports up to 256GB DDR5 for heavy multitasking
  • 1-channel Realtek ALC897 audio for immersive sound
  • 5Gbps LAN for fast wired networking
  • PCIe 5.0 x16 slot ready for latest graphics cards
  • USB 20Gbps Type-C port for rapid data transfers

Specifications

BrandMSI
SeriesMSI MPG B760M EDGE TI WIFI
ModelMSI MPG B760M EDGE TI WIFI
CPU Socket TypeLGA 1700
CPU TypeSupport Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
LGA1700
ChipsetIntel B760
Memory StandardSupport 7800 + (OC)/7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (JEDEC)/5400 (JEDEC)/5200 (JEDEC)/5000 (JEDEC)/4800 (JEDEC) MHz
Maximum Memory Supported256GB
PCI Slots1X PCI-E x16 slots (quantity)
Supports x16/x4
1x PCI-E x4 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)
SATA RAID3XM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC897 Codec
7.1-Channel High Performance Audio
Supports S/PDIF output
LAN ChipsetRealtek 2.5Gbps LAN
Onboard USB4X USB 2.0 (rear)
4X USB 2.0 (front)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)

Questions about this item

How can I confirm the motherboard is running correctly after I install it?

Power on the system and watch for the POST screen; the board will show the CPU and memory detected at speeds up to 7800 MHz and the 2.5 Gbps LAN link will light up when a cable is plugged in.

What accessories are included and what must I source myself?

The package contains the motherboard, a CMOS battery, one SATA cable and the rear I/O shield; a Wi-Fi antenna is also supplied. You will need to provide the CPU, DDR5 memory, storage drives and a power supply.

Which memory capacity should I select for this board?

The board supports up to 256 GB of DDR5 across four slots; pick a kit that matches your workload and stays within that limit.
