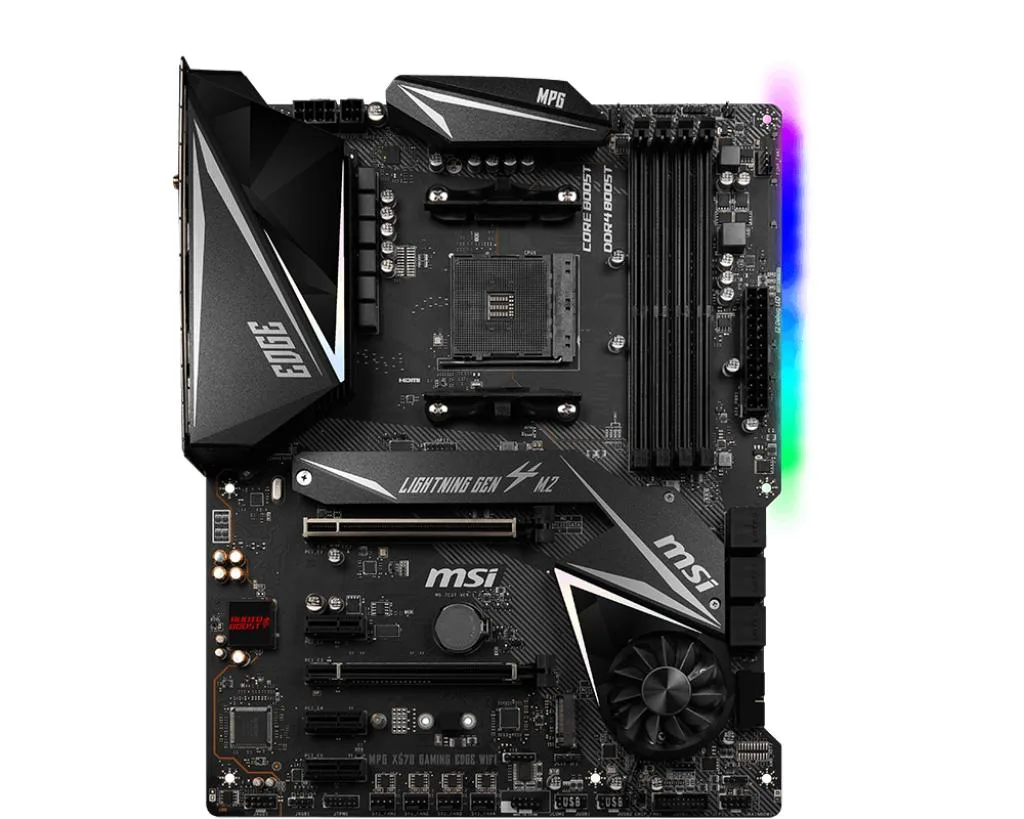

Rectangular ATX motherboard in dark grey and black with silver heatsinks and gold AM4 socket

MSI

MSI MPG X570 GAMING EDGE WIFI Socket AM4 DDR4 128GB AMD motherboard

SKU CH-KGBW-SRT96

AMD X570 ATX board for Socket AM4 Ryzen CPUs, dual-channel DDR4 up to 128GB, PCIe 4.0 x16, six SATA, two M.2, Realtek ALC1220 7.1 audio, Gigabit LAN, USB 3.2 Gen 2, Wi-Fi antenna included

  • CPU Socket TypeSocket AM4
  • CPU TypeSupports AMD Ryzen™ 5000 Series/ 2nd and 3rd Gen AMD Ryzen™
  • ChipsetAMD X570
  • Memory StandardSupport dual-channel DDR4 1866/2133/2400/2667/2800/2933/3000
  • Maximum Memory Supported128GB
  • PCI Slots1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 3rd Gen AMD Ryzen™ suppor
  • Supports up to 128GB DDR4 memory capacity
  • PCIe 4.0 x16 slot enables high-speed graphics with Ryzen 5000
  • Six SATA III and two M.2 PCIe Gen4x4 interfaces for storage
  • Realtek ALC1220 codec delivers 7.1-channel high-definition audio
  • Realtek 8111H Gigabit LAN provides wired network connectivity

AM4 platform for Ryzen 5000 and earlier

This ATX motherboard pairs the AMD X570 chipset with a Socket AM4 interface, accepting Ryzen 5000 series, 2nd and 3rd generation Ryzen, Ryzen 4000 G-Series and Ryzen with Radeon Vega Graphics desktop processors. It targets builders who want PCIe 4.0 support on a mature AM4 foundation without moving to a newer socket.

Bundled I/O shield, battery and SATA cable

The package supplies a chassis I/O back panel, a CMOS battery and one SATA cable so the board can be installed and powered immediately. A WiFi antenna is included because the board integrates a wireless module. No further accessories, documentation or driver media are provided.

128 GB DDR4 ceiling with broad frequency range

Four dual-channel slots accept up to 128 GB of DDR4 memory at speeds from 1866 to 4400 MHz, giving ample headroom for multitasking and content creation. Two M.2 sockets and six SATA III ports handle multiple SSDs and hard drives. The single PCIe x16 slot runs at 4.0 with Ryzen 5000 and 3.0 with older CPUs, limiting multi-GPU or high-bandwidth add-in card configurations.

Highlights

  • Supports up to 128GB DDR4 memory capacity
  • PCIe 4.0 x16 slot enables high-speed graphics with Ryzen 5000
  • Six SATA III and two M.2 PCIe Gen4x4 interfaces for storage
  • Realtek ALC1220 codec delivers 7.1-channel high-definition audio
  • Realtek 8111H Gigabit LAN provides wired network connectivity

Specifications

BrandMSI
SeriesMSI MPG X570 GAMING EDGE WIFI
ModelMSI MPG X570 GAMING EDGE WIFI
CPU Socket TypeSocket AM4
CPU TypeSupports AMD Ryzen™ 5000 Series/ 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ 4000 G-Series / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for AM4 socket
ChipsetAMD X570
Memory StandardSupport dual-channel DDR4 1866/2133/2400/2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400MHz memory
Maximum Memory Supported128GB
PCI Slots1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
3rd Gen AMD Ryzen™ support PCIe 4.0 x16 mode
2nd Gen AMD Ryzen™ support PCIe 3.0 x16 mode
Ryzen™ 4000 G-Series support PCIe 3.0x16/x0/x0, x8/x0/x8, x8/x4/x4 mode
Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode
1x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode)
3x PCIe 3.0 x1 slots
SATA RAID6XSATA III interface, 2xM.2 PCIe (Gen4x4)
Audio ChipsetRealtek ALC1220 Codec
7.1-Channel High Definition Audio
Supports Optical S/PDIF output
LAN Chipset1x Realtek 8111H Gigabit LAN Controller
Onboard USBAMD X570 Chipset
2x USB 3.2 Gen 2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
4x USB 3.2 Gen 1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connector
6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
AMD Processor
2x USB 3.2 Gen2 (3rd Gen AMD Ryzen™ / Ryzen™ 4000 G-Series) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) ports (1x Type-A & 1x Type-C) on the back panel
2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on t

Questions about this item

Will this motherboard fit my ATX case and work with my Ryzen 5000 CPU?

Yes, it uses the standard ATX form factor and the AM4 socket supports Ryzen 5000 series processors out of the box.

What memory speeds can I run with four DIMMs populated to reach 128GB?

The board validates DDR4 speeds from 1866 up to 4400 MHz; with four modules installed the highest stable frequency will depend on the CPU memory controller and the specific kit.

Which M.2 slots provide PCIe 4.0 x4 bandwidth for a fast SSD?

The two M.2 connectors are wired to the X570 chipset and both support PCIe 4.0 x4 when a 3rd Gen Ryzen CPU is installed.
