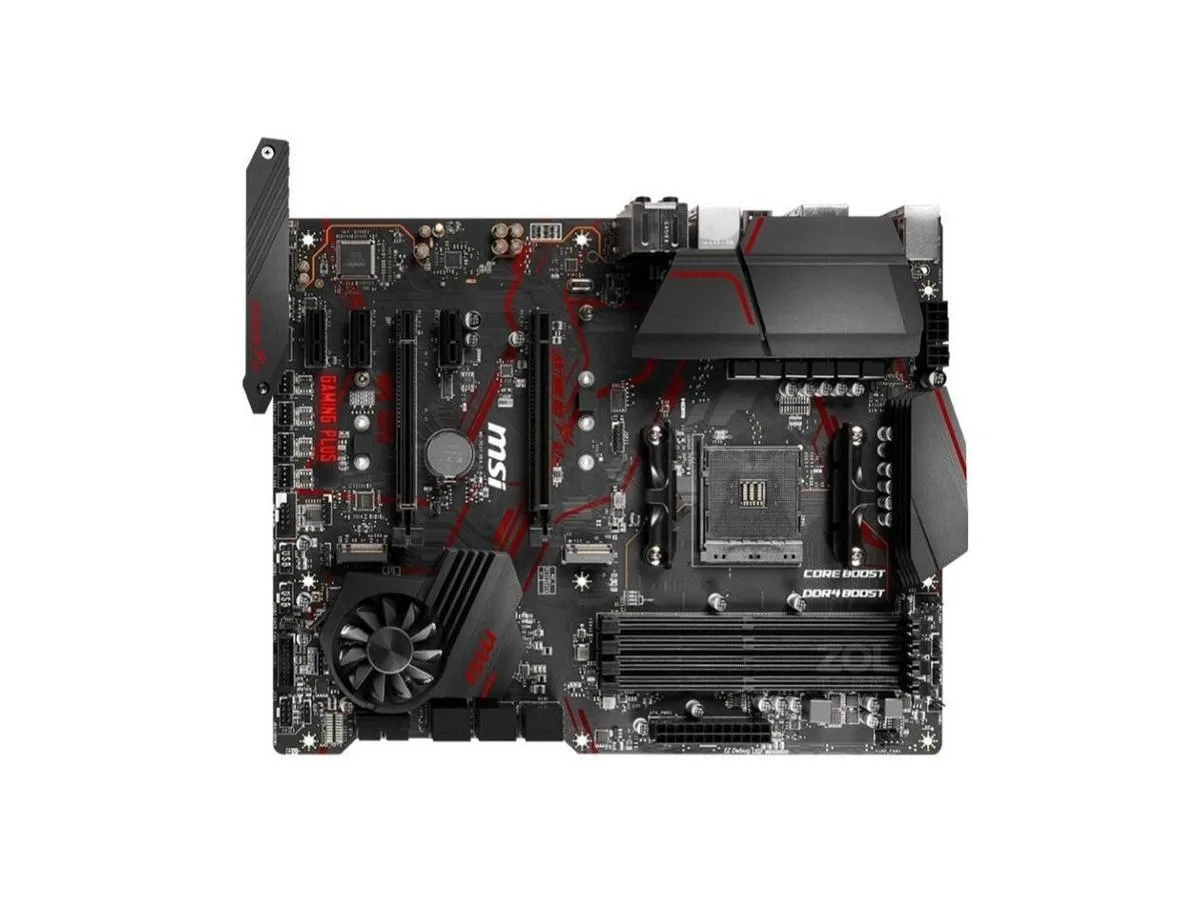

ATX motherboard, black PCB with silver heatsinks and reinforced PCIe slot

MSI

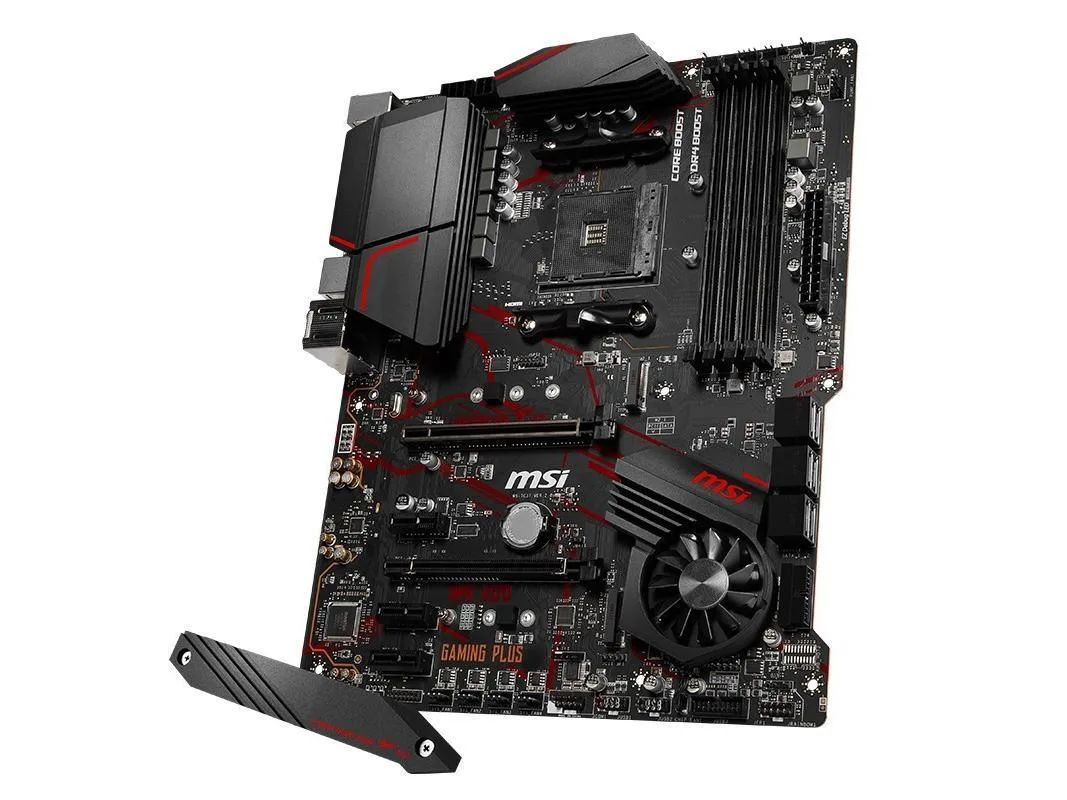

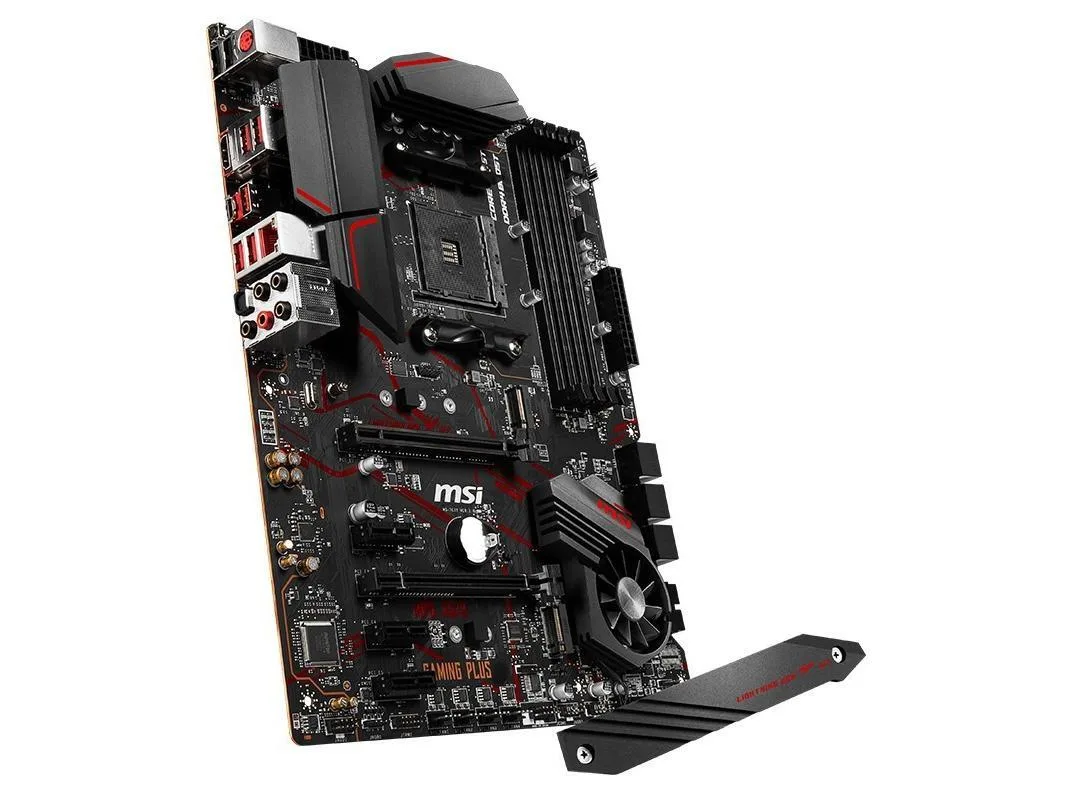

MSI MPG X570 GAMING PLUS AMD motherboard

SKU CH-C7YN-86RK3

Socket AM4 ATX board with AMD X570 chipset, dual-channel DDR4 up to 4400MHz and 128GB capacity, PCIe 4.0 x16 slot, six SATA III ports, two M.2 slots, Realtek ALC1220 7.1 audio and Gigabit LAN

  • CPU Socket TypeSocket AM4
  • CPU TypeSupports AMD Ryzen™ 5000 Series/ 2nd and 3rd Gen AMD Ryzen™
  • ChipsetAMD X570
  • Memory StandardSupport dual-channel DDR4 1866/2133/2400/2667/2800/2933/3000
  • Maximum Memory Supported128GB
  • PCI Slots1x PCIe 4.0/3.0 x16 slot (PCI_E1) 3rd Gen AMD Ryzen™ support
  • Supports AMD Ryzen 5000 and earlier desktop CPUs
  • Dual-channel DDR4 up to 4400 MHz with 128 GB capacity
  • PCIe 4.0 x16 slot for latest graphics cards
  • Realtek ALC1220 codec delivers 7.1-channel high-definition audio
  • Gigabit LAN via Realtek 8111H controller

Socket AM4 Ryzen platform

The MSI MPG X570 GAMING PLUS motherboard is built for AMD Ryzen desktop processors on the Socket AM4 interface. It supports 5000 Series, 4000 G-Series, 3rd Gen and 2nd Gen Ryzen CPUs, including models with Radeon Vega graphics. The AMD X570 chipset provides a stable foundation for gaming and workstation builds.

ATX layout and DDR4 slots

The board uses a standard ATX form factor measuring 23.6 by 20.0 centimetres, so it fits most mid-tower and full-tower cases. Four DDR4 DIMM slots accept up to 128GB total memory across speeds from 1866 to 4400 MHz. Installation follows normal ATX standoff patterns; the main challenge is routing the 24-pin and 8-pin power cables cleanly behind the motherboard tray.

CPU generation and M.2 lane allocation

Before ordering, confirm which Ryzen generation you will install because PCIe lane configuration changes. 3rd Gen Ryzen enables PCIe 4.0 x16 on the primary slot and Gen4 x4 on the M.2 sockets. 2nd Gen Ryzen and 4000 G-Series drop to PCIe 3.0 modes, altering GPU and storage bandwidth. Verify your CPU cooler clearance against the VRM heatsink height and ensure your power supply has the required 8-pin EPS connector.

Highlights

  • Supports AMD Ryzen 5000 and earlier desktop CPUs
  • Dual-channel DDR4 up to 4400 MHz with 128 GB capacity
  • PCIe 4.0 x16 slot for latest graphics cards
  • Realtek ALC1220 codec delivers 7.1-channel high-definition audio
  • Gigabit LAN via Realtek 8111H controller

Specifications

BrandMSI
SeriesMSI MPG X570 GAMING PLUS
ModelMSI MPG X570 GAMING PLUS
CPU Socket TypeSocket AM4
CPU TypeSupports AMD Ryzen™ 5000 Series/ 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ 4000 G-Series / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for AM4 socket
ChipsetAMD X570
Memory StandardSupport dual-channel DDR4 1866/2133/2400/2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400MHz memory
Maximum Memory Supported128GB
PCI Slots1x PCIe 4.0/3.0 x16 slot (PCI_E1)
3rd Gen AMD Ryzen™ support PCIe 4.0 x16 mode
2nd Gen AMD Ryzen™ support PCIe 3.0x16 mode
Ryzen™ 4000 G-Series support PCIe 3.0x16/x0/x0, x8/x0/x8, x8/x4/x4 mode
Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode
1x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode)
3x PCIe 3.0 x1 slots
SATA RAID6XSATA III interface, 2xM.2 PCIe (Gen4x4)
Audio ChipsetRealtek ALC1220 Codec
7.1-Channel High Definition Audio
Supports Optical S/PDIF output
LAN Chipset1x Realtek 8111H Gigabit LAN Controller
Onboard USBAMD X570 Chipset
6x USB 3.2 Gen 1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen 1 connectors)
6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
AMD Processor
2x USB 3.2 Gen 2 (3rd Gen AMD Ryzen™ / Ryzen™ 4000 G-Series) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) ports (1x Type-A & 1x Type-C) on the back panel
2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

Questions about this item

How do I confirm the Realtek ALC1220 codec is delivering 7.1-channel audio after installation?

Connect speakers to the rear panel audio jacks, open the Realtek Audio Console in Windows and verify the 7.1 speaker configuration test plays sound from each channel.

Which accessories are included and which must be purchased separately?

The box contains the motherboard, an I/O shield, three SATA cables and the CMOS battery. CPU, DDR4 memory, storage drives and a cooler are not included.

Which memory kit should I choose for the 128GB maximum capacity?

Populate all four DDR4 slots with 32GB modules running at any supported speed from 1866 to 4400 MHz to reach the 128GB limit.
