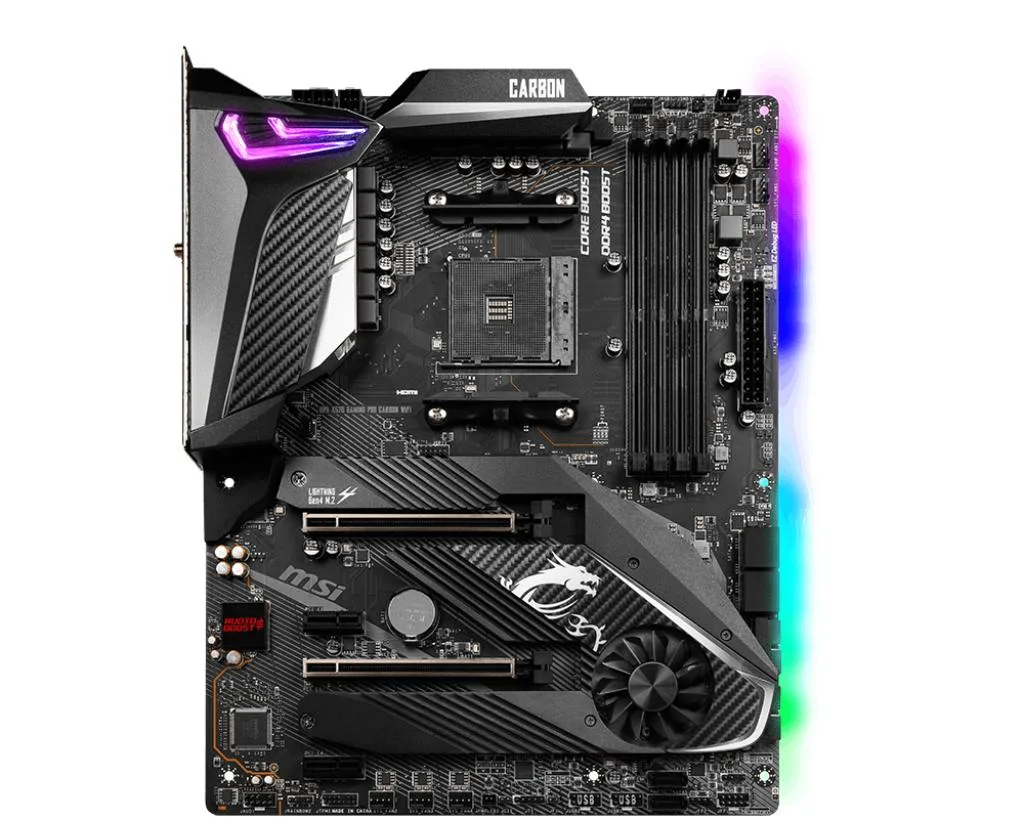

Black ATX motherboard with carbon-fibre pattern heatsinks and rear I/O shield

MSI

MSI MPG X570 GAMING PRO CARBON WIFI AMD motherboard

SKU CH-8F5N-NBQ1K

Socket AM4 board with AMD X570 chipset supporting Ryzen 5000 series and up to 128GB DDR4 memory

  • CPU Socket TypeSocket AM4
  • CPU TypeSupports AMD Ryzen™ 5000 Series/ 2nd and 3rd Gen AMD Ryzen™
  • ChipsetAMD X570
  • Memory StandardSupport dual-channel DDR4 1866/2133/2400/2667/2800/2933/3000
  • Maximum Memory Supported128GB
  • PCI Slots1x PCIe 4.0/3.0 x16 slot (PCI_E1) 3rd Gen AMD Ryzen™ support
  • Supports up to 128GB DDR4 for heavy multitasking
  • PCIe 4.0 x16 slot enables high-bandwidth graphics with Ryzen 5000
  • Dual M.2 PCIe Gen4x4 provides fast storage pathways
  • Realtek ALC1220 codec delivers 7.1-channel high-definition audio
  • Intel I211AT controller ensures reliable Gigabit LAN connectivity

Socket AM4 AMD X570 motherboard

The MSI MPG X570 GAMING PRO CARBON WIFI is an ATX board built for AMD Ryzen desktop processors on the AM4 socket. It supports 5000 Series, 2nd and 3rd Gen Ryzen, Ryzen 4000 G-Series and APUs with Radeon Vega graphics. The X570 chipset provides the platform foundation for high-performance builds.

PCIe 4.0 x16 primary slot

The single full-length slot runs at PCIe 4.0 x16 with 3rd Gen Ryzen CPUs and falls back to PCIe 3.0 x16 with 2nd Gen Ryzen. Ryzen 4000 G-Series processors operate the slot at PCIe 3.0 x16 or in bifurcated x8/x0/x8 and x8/x4/x4 modes. This slot choice determines the graphics and add-in card bandwidth available to the system.

128 GB DDR4 capacity

Four dual-channel DDR4 slots accept memory speeds from 1866 MHz up to 4400 MHz and a total of 128 GB. Six SATA III ports and two M.2 PCIe Gen4 x4 interfaces handle storage. Realtek ALC1220 delivers 7.1-channel audio with optical S/PDIF. Intel I211AT provides Gigabit LAN. Rear USB includes two 10 Gbps Type-A ports; internal headers add four 5 Gbps ports and six USB 2.0 ports.

Highlights

  • Supports up to 128GB DDR4 for heavy multitasking
  • PCIe 4.0 x16 slot enables high-bandwidth graphics with Ryzen 5000
  • Dual M.2 PCIe Gen4x4 provides fast storage pathways
  • Realtek ALC1220 codec delivers 7.1-channel high-definition audio
  • Intel I211AT controller ensures reliable Gigabit LAN connectivity

Specifications

BrandMSI
SeriesMSI MPG X570 GAMING PRO CARBON WIFI
ModelMSI MPG X570 GAMING PRO CARBON WIFI
CPU Socket TypeSocket AM4
CPU TypeSupports AMD Ryzen™ 5000 Series/ 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ 4000 G-Series / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for AM4 socket
ChipsetAMD X570
Memory StandardSupport dual-channel DDR4 1866/2133/2400/2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400MHz memory
Maximum Memory Supported128GB
PCI Slots1x PCIe 4.0/3.0 x16 slot (PCI_E1)
3rd Gen AMD Ryzen™ support PCIe 4.0 x16 mode
2nd Gen AMD Ryzen™ support PCIe 3.0x16 mode
Ryzen™ 4000 G-Series support PCIe 3.0x16/x0/x0, x8/x0/x8, x8/x4/x4 mode
Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode
1x PCIe 4.0/3.0 x16 slot (PCI_E3), supports x4 mode
2x PCIe 3.0 x1 slots
SATA RAID6XSATA III interface, 2xM.2 PCIe (Gen4x4)
Audio ChipsetRealtek ALC1220 Codec
7.1-Channel High Definition Audio
Supports Optical S/PDIF output
LAN Chipset1x Intel I211AT Gigabit LAN controller
Onboard USBAMD X570 Chipset
2x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panell
4x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector
6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
AMD Processor
2x USB 3.2 Gen2 (3rd Gen AMD Ryzen™ / Ryzen™ 4000 G-Series) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) Type-A and Type-C port on the back panel
2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on

Questions about this item

What does the 128 GB DDR4 ceiling mean when I populate the board?

The four DIMM slots accept up to 128 GB total, so you can run four 32 GB modules in dual-channel mode.

How does the PCIe 4.0 x16 slot behave with different Ryzen CPUs?

With a Ryzen 5000 or 3rd Gen chip the slot runs at PCIe 4.0 x16; with 2nd Gen or 4000 G-Series it drops to PCIe 3.0 x16 or x8/x4/x4 depending on the exact processor.

What mounting holes and back-panel cut-out does this ATX board need?

Standard ATX standoff pattern and the supplied I/O shield fit a regular ATX chassis cut-out.
