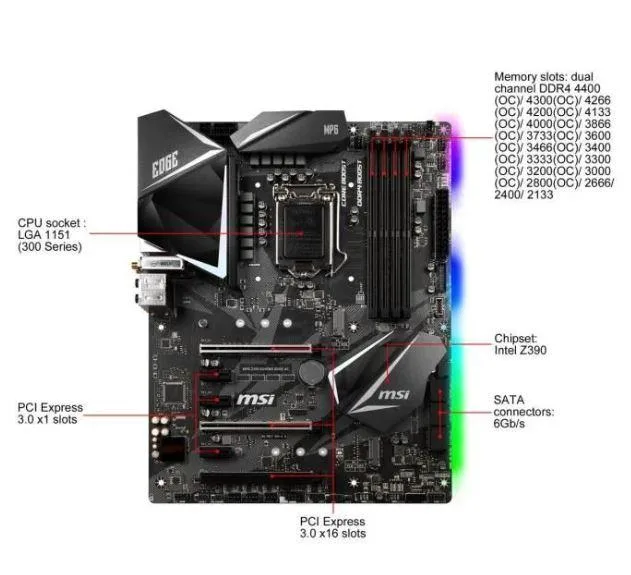

Black ATX motherboard with silver heatsinks and four DDR4 slots

MSI

MSI MPG Z390 GAMING EDGE AC Intel motherboard

SKU CH-JK6G-RTTDD

ATX board for 9th and 8th Gen Intel CPUs with dual-channel DDR4 to 4400 MHz, two M.2 slots, six SATA ports, Intel 1 Gb LAN and 802.11ac Wi-Fi

  • CPU TypeIntel Core 9th Gen (LGA 1151)
  • ChipsetIntel Z390
  • Onboard Video ChipsetSupported only by CPU with integrated graphic: 1 x HDMI port
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(
  • Maximum Memory Supported128GB
  • Supports 9th and 8th Gen Intel Core processors for LGA 1151 socket
  • Dual-channel DDR4 memory up to 4400 MHz overclocked across four slots
  • Two M.2 slots with PCIe 3.0 x4 and SATA 6Gb/s for fast storage
  • Intel I219-V Gigabit LAN plus Intel Wireless-AC 9462 for wired and wireless connectivity
  • Realtek ALC1220P codec delivers 7.1-channel high-definition audio with S/PDIF output

Target system

This ATX motherboard fits Intel Core 9th and 8th Gen processors in the LGA 1151 socket. It delivers a Z390 platform for enthusiasts who want overclocking headroom and multi-GPU flexibility in a standard chassis.

Memory ceiling

Four DDR4 slots accept up to 128GB in dual-channel mode with supported speeds from 2133 to 4400(OC) MHz. Builders who need large capacity or high frequency can populate all slots without changing boards.

Sustained operation

Extended heatsinks on the power delivery and M.2 areas spread heat during long sessions. The Intel I219-V 1Gbps LAN and Intel Wireless-AC 9462 2.4/5 GHz Wi-Fi maintain stable throughput when the system runs hot.

Highlights

  • Supports 9th and 8th Gen Intel Core processors for LGA 1151 socket
  • Dual-channel DDR4 memory up to 4400 MHz overclocked across four slots
  • Two M.2 slots with PCIe 3.0 x4 and SATA 6Gb/s for fast storage
  • Intel I219-V Gigabit LAN plus Intel Wireless-AC 9462 for wired and wireless connectivity
  • Realtek ALC1220P codec delivers 7.1-channel high-definition audio with S/PDIF output

Specifications

BrandMSI
ModelMPG Z390 GAMING EDGE AC
CPU TypeIntel Core 9th Gen (LGA 1151)
ChipsetIntel Z390
Onboard Video ChipsetSupported only by CPU with integrated graphic:
1 x HDMI port 1.4, supports a maximum resolution of 4096x2160@24Hz
1 x DisplayPort port 1.2, supports a maximum resolution of 4096x2304@60Hz
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2666/ 2400/ 2133
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 3.0 x163 x PCIe 3.0 x16 slots (support x16/x0/x4, x8/x8/x4 modes)
PCI Express x13 x PCIe 3.0 x1 slots
Serial ATA (SATA)6 x SATA 6Gb/s ports*
* M.2 slots and SATA ports share the bandwidth.
M.22 x M.2 slot (Key M)*
Support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/2260/2280/22110 storage devices
* M.2 slots and SATA ports share the bandwidth.
Intel Optane ReadyYes
* Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC1220P Codec
Audio Channels7.1-Channel High Definition Audio
Supports S/PDIF output
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps
Wireless LANIntel Wireless-AC 9462 card
Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4 GHz / 5 GHz up to 433 Mbps
BluetoothSupports Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, 5
Onboard USB1 x USB 3.1 Gen2 Type-C port
2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors1 x 4-pin CPU fan connector
1 x 4-pin Water Pump connector
5 x 4-pin system fan connectors
1 x Serial port connector
1 x Front panel audio connector
2 x System panel connectors
1 x Thunderbolt Add-on Card Connector
1 x Chassis Intrusion connector
1 x TPM module connector
2 x 4-pin RGB LED connectors
1 x 3-pin RAINBOW LED connector
1 x 3-pin CORSAIR LED connector
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
FeaturesDIY Friendly:
Keep Out Zone
XL PCI-E Clip
EZ Debug LED
Pump Fan
Total Fan Control
Enhance Performance:
Extended Heatsink Design
8-Pin + 4-Pin Power Connectors
Twin Turbo M.2
Intel Turbo USB 3.1 Gen2
Front USB Type-C
Core Boost
DDR4 Boost
Multi GPU-2-Way NVIDIA SLI Technology
Multi GPU-3-Way AMD CrossFire Technology
Game Boost
*BIOS
Click BIOS5
XMP
Hardware Moniter
*Software
Dragon Center
MSI APP Player
Mystic Light 3
In-Game Advantages:
*Audio
Audio Boost 4
Nahimic3
Voice Boost
*LAN
Intel LAN
Intel Wi-Fi
GAMING LAN Manager
GAMING HOTKEY
GAMING MOUSE Control
VR Ready
Exhilarating and
Package ContentsInternational Version

Questions about this item

What does the DDR4 4400 OC rating mean once the board is built?

The board can run memory at 4400 MHz when overclocked, but only with a compatible CPU and modules; standard speeds start at 2133 MHz.

How fast is the Intel I219-V LAN and Wireless-AC 9462 in practice?

Wired tops out at 1 Gbps; wireless reaches 433 Mbps on 2.4 GHz or 5 GHz with MU-MIMO receive.

What clearance does the extended heatsink need for a CPU cooler?

The board measures 12 x 9.6 x 1.2 inches and uses standard ATX mounting holes; check cooler specs against the heatsink height.
