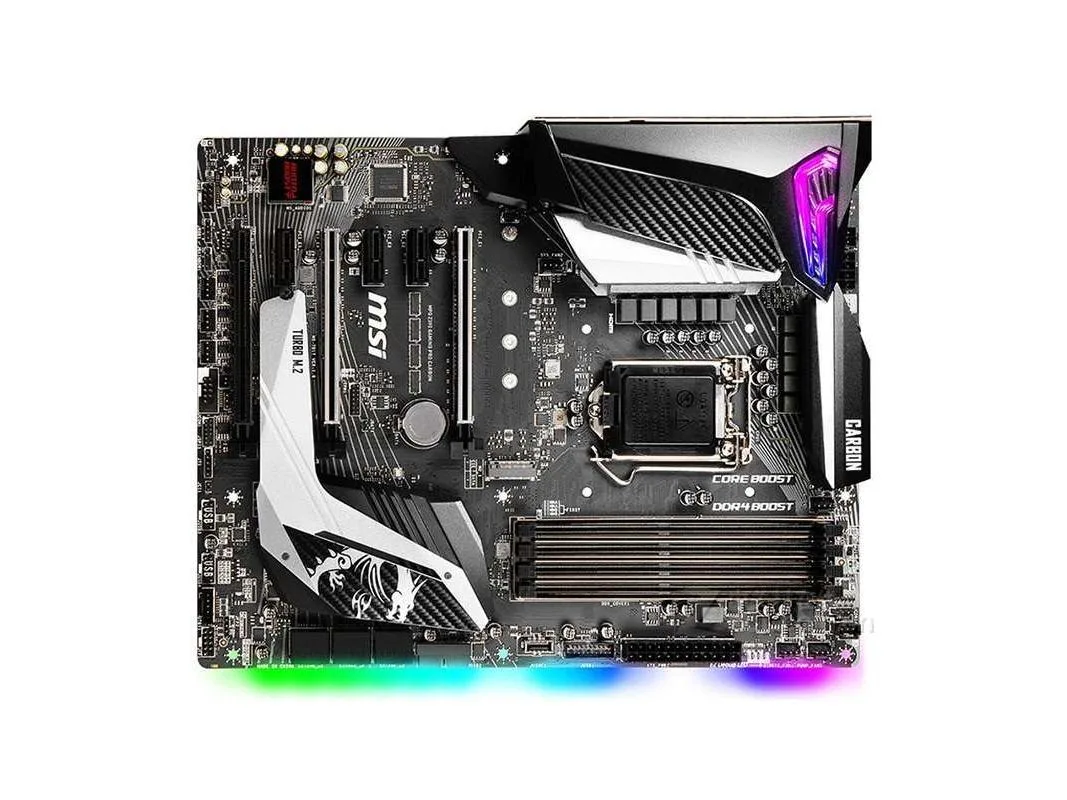

Black ATX motherboard with carbon-fibre finish and LGA 1151 socket

MSI

MSI MPG Z390 GAMING PRO CARBON Intel motherboard DDR4 128GB

SKU CH-1DEG-19HGH

Intel Z390 ATX board with LGA 1151 socket, dual-channel DDR4 up to 4400 MHz and 128 GB capacity, three PCIe 3.0 x16 slots, six SATA ports, 7.1 audio, Intel I219-V Gigabit LAN, and USB 3.1 Gen2 Type-C

  • CPU Socket TypeLGA 1151
  • CPU TypeIntel Core ™ 9000 Series/8th Gen Intel Core ™/Pentium Gold/C
  • ChipsetIntel Z390
  • Memory StandardSupports dual-channel DDR4 4400MHz memory
  • Maximum Memory Supported128GB
  • PCI Slots3 PCIe 3.0 x16 slots (supports x16/x0/x4, x8/x8/x4 modes) 3
  • Supports 128GB DDR4 memory for heavy multitasking
  • Intel Z390 chipset with LGA 1151 socket for 9000 series CPUs
  • Realtek ALC1220 delivers 7.1 channel high-quality audio
  • Three PCIe 3.0 x16 slots enable multi-GPU configurations
  • Five USB 3.1 Gen2 ports including Type-C for fast connectivity

Z390 chipset motherboard

This ATX board uses the Intel Z390 chipset and an LGA 1151 socket for 9th and 8th generation Core, Pentium Gold and Celeron processors. It targets builders who want a full-size platform with high memory capacity and multiple expansion slots.

Dual-channel DDR4 up to 4400 MHz

Four memory slots support dual-channel DDR4 at speeds up to 4400 MHz for a total of 128 GB. The layout and heatsink design help maintain stability during extended workloads rather than only brief bursts.

Three PCIe 3.0 x16 slots and six SATA III ports

The board provides three PCIe 3.0 x16 slots operating in x16/x0/x4 or x8/x8/x4 modes plus three PCIe 3.0 x1 slots. Six SATA III ports and an M.2 interface give plenty of storage options, while Realtek ALC1220P-VB2 delivers 7.1 channel audio and Intel I219-V handles Gigabit LAN.

Highlights

  • Supports 128GB DDR4 memory for heavy multitasking
  • Intel Z390 chipset with LGA 1151 socket for 9000 series CPUs
  • Realtek ALC1220 delivers 7.1 channel high-quality audio
  • Three PCIe 3.0 x16 slots enable multi-GPU configurations
  • Five USB 3.1 Gen2 ports including Type-C for fast connectivity

Specifications

BrandMSI
SeriesMSI MPG Z390 GAMING PRO CARBON
ModelMSI MPG Z390 GAMING PRO CARBON
CPU Socket TypeLGA 1151
CPU TypeIntel Core ™ 9000 Series/8th Gen Intel Core ™/Pentium Gold/Celeron processors with LGA1151 pin
ChipsetIntel Z390
Memory StandardSupports dual-channel DDR4 4400MHz memory
Maximum Memory Supported128GB
PCI Slots3 PCIe 3.0 x16 slots (supports x16/x0/x4, x8/x8/x4 modes)
3 PCIe 3.0 x1 slots
SATA RAIDM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC1220P-VB2 decoding chip
7.1 channel high-quality sound effects
Supports S/PDIF output
LAN Chipset1 Intel I219-V Gigabit network interface card
Onboard USBIntel Z390 chipset
5 USB 3.1 Gen2 (SuperSpeed USB 10Gbps) interfaces (1 Type-C and 3 Type-A interfaces on the backplane, 1 Type-C interface provided through the onboard interface)
4 USB 3.1 Gen1 (SuperSpeed USB) ports, provided via the onboard USB port
6 USB 2.0 (High-speed USB) ports (2 Type-A ports on the backplane, 4 via onboard USB 2.0 ports)

Questions about this item

How hot and loud does the Intel Z390 chipset and Realtek ALC1220P-VB2 audio area get under all-day load?

The board uses passive heatsinks on the Intel Z390 chipset and voltage regulators, so there is no chipset fan to spin up. Noise comes only from your CPU cooler and case fans. Heat output scales with the processor you install and the 128 GB DDR4 4400 MHz memory population.

Which DDR4 memory kits and LGA 1151 processor must I already have for this motherboard to POST?

You need a 9th or 8th Generation Intel Core, Pentium Gold or Celeron CPU in the LGA 1151 package plus dual-channel DDR4 modules up to 4400 MHz. The four slots accept 128 GB total. A PSU with 24-pin ATX and 8-pin EPS connectors, a chassis with ATX mounting points and your own SATA drives complete the minimum build.

Will my existing SATA III SSDs, PCIe 3.0 graphics card and USB 3.1 Gen 1 peripherals work without adapters?

Yes. Six SATA III ports and one M.2 SATA interface connect current SATA drives directly. Three PCIe 3.0 x16 slots (x16/x0/x4 or x8/x8/x4) and three PCIe 3.0 x1 slots accept legacy graphics and add-in cards. Rear I/O provides five USB 3.1 Gen 2 (10 Gbps) ports and four USB 3.1 Gen 1 ports for older peripherals.
