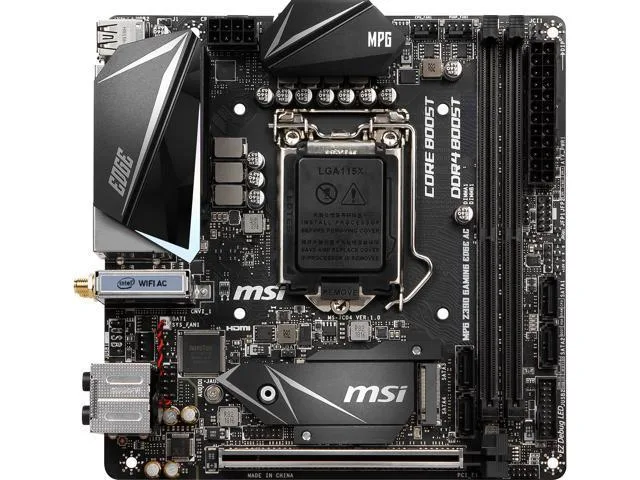

Compact Mini ITX motherboard with black PCB and silver heatsinks

MSI

MSI MPG Z390I GAMING EDGE AC Intel motherboard

SKU CH-WSVH-6JRVH

Mini ITX Z390 board with LGA 1151 socket, dual DDR4 slots up to 32 GB, 4600 OC memory support, single PCIe 3.0 x16, four SATA 6Gb/s ports, two M.2 slots, Realtek 8111H gigabit LAN.

  • CPU Socket TypeLGA 1151 (300 Series)
  • CPU TypeCore i7 / i5 / i3 (8th Gen, LGA1151)
  • ChipsetIntel Z390
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots2x288pin (DDR4)
  • Memory StandardDDR4 2666
  • Supports 9th and 8th Gen Intel Core processors via LGA 1151 socket
  • Dual-channel DDR4 memory up to 4600 MHz overclocked for high-speed performance
  • Two M.2 slots with Intel Optane readiness for fast storage expansion
  • Realtek ALC892 7.1 channel audio delivers immersive sound quality
  • Integrated Wi-Fi 802.11ac and 1 Gbps LAN for reliable connectivity

MPG Z390I GAMING EDGE AC Overview

This Mini-ITX board uses the Intel Z390 chipset and the LGA 1151 (300 Series) socket. It supports 9th and 8th Gen Core i7, i5, i3, Pentium Gold and Celeron processors. Two DDR4 slots accept up to 32 GB of dual-channel memory. The compact form factor fits small chassis while keeping full Z390 features.

Build Fit and Alternatives

Builders who want a compact Z390 platform with onboard Wi-Fi and dual M.2 slots will suit this board. It also provides 7.1-channel audio and a single PCI Express 3.0 x16 slot for one graphics card. Users needing more than two DIMM slots, additional PCIe expansion or a different chipset should consider ATX or micro-ATX alternatives.

Deciding Specification

The board offers two M.2 connectors that run at PCI Express 3.0 x4 speeds, each capable of up to 32 Gb/s per device. This bandwidth determines whether high-speed storage can reach its rated throughput. Verify that your chosen M.2 drives match the x4 interface to use the full capability.

Highlights

  • Supports 9th and 8th Gen Intel Core processors via LGA 1151 socket
  • Dual-channel DDR4 memory up to 4600 MHz overclocked for high-speed performance
  • Two M.2 slots with Intel Optane readiness for fast storage expansion
  • Realtek ALC892 7.1 channel audio delivers immersive sound quality
  • Integrated Wi-Fi 802.11ac and 1 Gbps LAN for reliable connectivity

Specifications

BrandMSI
ModelMPG Z390I GAMING EDGE AC
CPU Socket TypeLGA 1151 (300 Series)
CPU TypeCore i7 / i5 / i3 (8th Gen, LGA1151)
ChipsetIntel Z390
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots2x288pin (DDR4)
Memory StandardDDR4 2666
Maximum Memory Supported32GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express 3.0 x16
Serial ATA (SATA)4 x SATA 6Gb/s
M.22 x M.2
Intel Optane ReadyYes
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC892
Audio Channels7.1 Channels
LAN ChipsetRealtek 8111H
Max LAN Speed1Gbps
Wireless LANWiFi IEEE 802.11 a / b / g / n / ac
BluetoothYes
Back I/O Ports1 x DisplayPort / 1 x HDMI / 1 x Optical S/PDIF Out / 2 x USB 2.0/1.1 / 4 x USB 3.1 Gen 2 Type-A
HDMI1 x HDMI
RJ451 x RJ45
DisplayPort1 x DisplayPort
USB 3.14 x USB 3.1
USB 1.1/2.02 x USB 2.0
S/PDIF Out1 x Optical
Audio Ports5 Ports
Onboard USB2 x USB 3.1 + 2 x USB 2.0
Other Connectors1 x 4-pin CPU fan connector1 x 4-pin Water Pump connector1 x 4-pin system fan connector1 x Front panel audio connector2 x System panel connectors1 x Chassis Intrusion connector1 x 4-pin RGB LED connector1 x Clear CMOS jumper1 x TPM module connector
Form FactorMini ITX
LED LightingRGB
Dimensions (W x L)6.7" x 6.7"
Power Pin24 Pin
FeaturesDIY Friendly:Keep Out ZoneXL PCI-E ClipEZ Debug LEDTotal Fan ControlEnhance Performance:8-Pin Power ConnectorsTwin Turbo M.2Intel Turbo USB 3.1 Gen2Core BoostDDR4 BoostGame Boost*BIOSClick BIOS5XMPHardware Moniter*SoftwareDragon CenterMSI APP PlayerMystic Light 3In-Game Advantages:*AudioAudio Boost*LANIntel Wi-FiGAMING HOTKEYGAMING MOUSE ControlVR ReadyExhilarating and Inspiring:Mystic LightMystic Light Extension (RGB)Mystic Light SyncLoyal Comrade:PCI-E Steel Armor7000+ Quality Test

Questions about this item

Will my DDR4 2666 modules run at rated speed on the MPG Z390I GAMING EDGE AC?

Yes, DDR4 2666 is the native JEDEC speed supported by the board's two 288-pin slots up to 32 GB in dual-channel mode.

How can I confirm the Realtek 8111H LAN and 802.11ac Wi-Fi are active after assembly?

Check Device Manager for the Realtek 8111H Gigabit adapter and the Intel Wireless-AC entry; both should show "This device is working properly."

Does the box include the two M.2 mounting screws and the I/O shield?

The package supplies the I/O shield, two M.2 screws, SATA cables and the Wi-Fi antenna bracket; CPU cooler brackets are not included.
