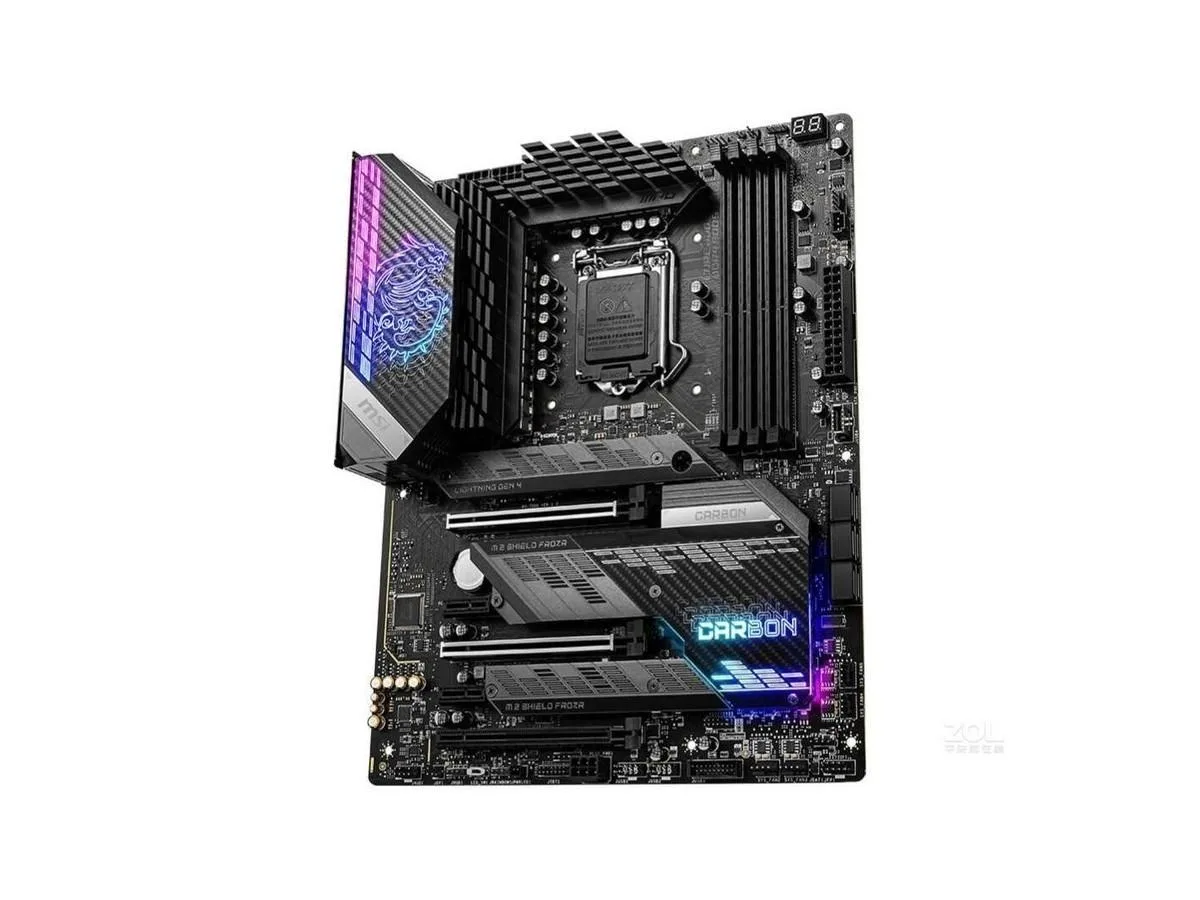

Black ATX motherboard with carbon fibre pattern and silver heatsinks

MSI

MSI MPG Z590 GAMING CARBON WiFi Intel motherboard

SKU CH-C89J-GJQTE

ATX board for 10th and 11th Gen Intel CPUs with LGA 1200 socket, Z590 chipset, up to 128 GB DDR4, 2.5 Gbps LAN and WiFi

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 10th Gen Intel Core™ Processors, 11th Gen Intel Cor
  • ChipsetIntel Z590
  • Memory StandardSupport dual channel DDR4 5333 (OC)/5200 (OC)/5000 (OC)/4800
  • Maximum Memory Supported128GB
  • PCI Slots3x PCIe x16 slots Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4 P
  • Supports 10th and 11th Gen Intel Core processors via LGA 1200 socket
  • Dual-channel DDR4 memory up to 128GB with overclocked speeds to 5333
  • Three PCIe x16 slots configurable x16/x0/x4 or x8/x8/x4 with PCIe 4.0 on 11th Gen CPUs
  • Realtek ALC4080 codec delivers 7.1-channel high-definition audio
  • Intel I225V 2.5Gbps LAN plus USB 3.2 Gen2x2 20Gbps Type-C port

Socket and chipset

This motherboard uses the Intel Z590 chipset and an LGA 1200 socket. It accepts 10th and 11th Gen Intel Core processors as well as Pentium Gold and Celeron chips. The ATX form factor fits standard full-size cases.

Build and connectivity

The board provides three PCIe x16 slots wired for x16/x0/x4 or x8/x8/x4 operation. Six SATA III ports and three M.2 interfaces handle storage. Rear I/O includes a USB 3.2 Gen 2x2 Type-C port at 20Gbps, four USB 3.2 Gen 2 ports at 10Gbps, and additional USB 3.2 Gen 1 ports. Networking uses an Intel I225V 2.5Gbps LAN controller. Audio runs through a Realtek ALC4080 codec for 7.1-channel output. A WiFi antenna is included.

Memory capacity

Four DDR4 slots support up to 128GB of memory. Speeds up to 5333 MT/s are listed for overclocked operation across a wide range of frequencies. The maximum supported capacity of 128GB determines whether this board suits high-density workloads.

Highlights

  • Supports 10th and 11th Gen Intel Core processors via LGA 1200 socket
  • Dual-channel DDR4 memory up to 128GB with overclocked speeds to 5333
  • Three PCIe x16 slots configurable x16/x0/x4 or x8/x8/x4 with PCIe 4.0 on 11th Gen CPUs
  • Realtek ALC4080 codec delivers 7.1-channel high-definition audio
  • Intel I225V 2.5Gbps LAN plus USB 3.2 Gen2x2 20Gbps Type-C port

Specifications

BrandMSI
SeriesMSI MPG Z590 GAMING CARBON WiFi
ModelMSI MPG Z590 GAMING CARBON WiFi
CPU Socket TypeLGA 1200
CPU TypeSupports 10th Gen Intel Core™ Processors, 11th Gen Intel Core™ Processors, Pentium Gold and Celeron Processors
Processor socket LGA1200
ChipsetIntel Z590
Memory StandardSupport dual channel DDR4 5333 (OC)/5200 (OC)/5000 (OC)/4800 (OC)/4600 (OC)/4533 (OC)/4400 (OC)/4300 (OC)/4266 (OC)/4200 (OC)/4133 (OC)/4000 (OC)/3866 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3400 (OC)/3333 (OC)/3300 (OC)/3200 (OC)/3000 (OC)/2933 (JEDEC)/2666 (JEDEC)/2400 (JEDEC)/2133 (JEDEC) MHz memory
Maximum Memory Supported128GB
PCI Slots3x PCIe x16 slots
Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4
PCI_E1 & PCI_E3 slots (From CPU)
Support PCIe 4.0 for 11th Gen Intel CPU
Support PCIe 3.0 for 10th Gen Intel CPU
PCI_E5 slot (From Z590 Chipset)
Supports PCIe 3.0
2x PCIe 3.0 x1 slots (From Z590 Chipset)
SATA RAID3XM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC4080 Codec
7.1-Channel High Definition Audio
LAN Chipset1x Intel I225V 2.5Gbps LAN controller
Onboard USBntel Z590 Chipset
1x USB3.2 Gen2x2 20Gbps port (Type-C port on the back panel)
4x USB 3.2 Gen 2 10Gbps ports (3 Type-A port on the back panel, 1 Type-C available through the internal connector)
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 Type-A ports available through the internal connector)
Hub-GL850G
8x USB 2.0 ports (4 Type-A ports on the back panel, 4 Type-A ports available through internal connectors)

Questions about this item

Will this board run an 11th Gen Intel Core processor and still give me PCIe 4.0 on the primary x16 slot?

Yes. The primary PCIe x16 slot and the third x16 slot are wired to the CPU, so an 11th Gen chip enables PCIe 4.0 on those lanes.

What is the highest memory speed the board can reach with four DIMMs populated?

The validated overclock list tops out at 5333 MT/s; with four sticks you will typically hit lower speeds depending on the memory kit and CPU memory controller.

Does the package include everything I need to install the board in a standard ATX case?

The box contains the motherboard, a CMOS battery, one SATA cable and the rear I/O shield. Standoffs, screws and any additional cables come with the case.
