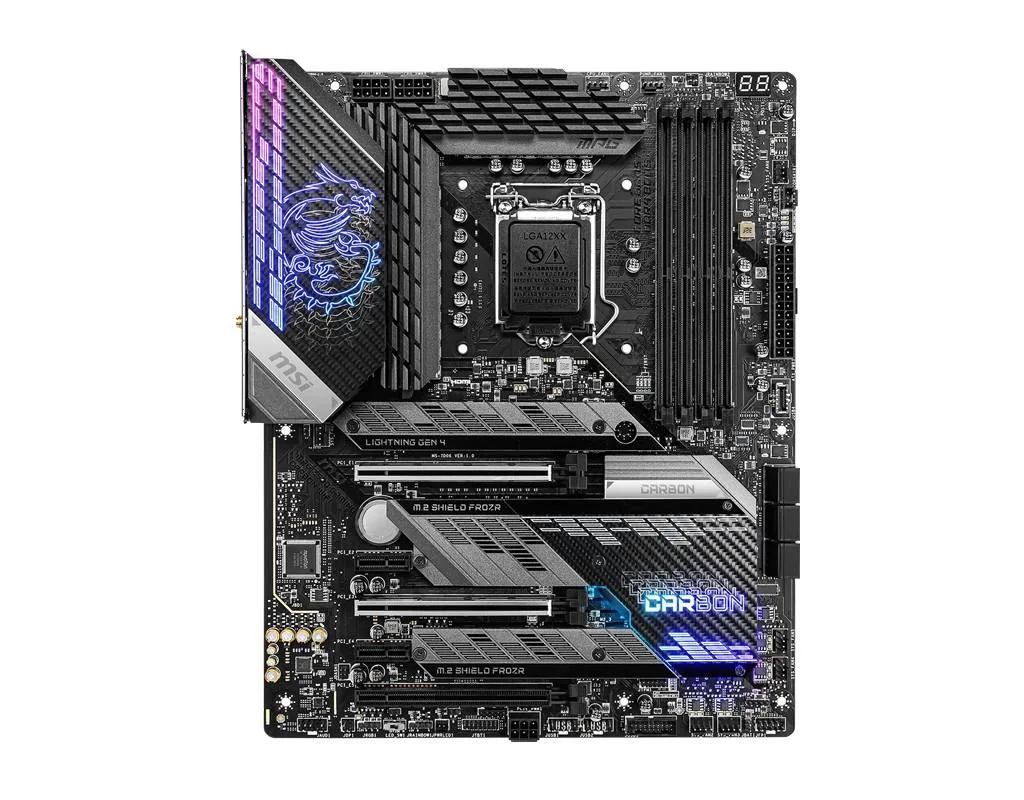

ATX motherboard in black carbon-fibre finish with silver heatsinks and I/O shield

MSI

MSI MPG Z590 GAMING CARBON WIFI LGA 1200 Intel motherboard

SKU CH-MMXM-9MCSY

LGA 1200 board with Intel Z590 chipset runs 11th and 10th Gen Core CPUs plus Pentium Gold and Celeron at DDR4 3200, 2933, 2666, 2133 speeds

  • CPU Socket TypeLGA 1200
  • CPU TypeCore i7 / i5 / i3 (LGA1200)
  • ChipsetIntel Z590
  • Supports 11th and 10th Gen Intel Core processors via LGA 1200 socket
  • Intel Z590 chipset enables high-performance desktop builds
  • DDR4 memory up to 3200 MT/s with 11th Gen CPUs
  • DDR4 memory up to 2933 MT/s with 10th Gen CPUs
  • Includes I/O shield and retail box for immediate installation

MPG Z590 Gaming Carbon WiFi LGA 1200 motherboard

This MSI MPG Z590 board uses the Intel Z590 chipset and an LGA 1200 socket. It accepts 10th and 11th Gen Intel Core processors plus Pentium Gold and Celeron CPUs. The board targets enthusiasts building a high-performance desktop platform.

Check CPU generation and memory speed before

An 11th Gen Core CPU enables DDR4 speeds up to 3200 MT/s at JEDEC POR, while a 10th Gen Core CPU tops out at 2933 MT/s. Verify your processor generation matches the memory frequency you plan to run. The package includes the I/O shield and retail box; no other accessories are guaranteed.

Fits ATX builds needing Z590 features

The Z590 chipset provides the connectivity and overclocking headroom for unlocked K-series CPUs. Onboard Wi-Fi frees a PCIe slot that would otherwise hold a wireless card. Ensure your chassis supports ATX dimensions and your power supply delivers the required EPS connectors.

Highlights

  • Supports 11th and 10th Gen Intel Core processors via LGA 1200 socket
  • Intel Z590 chipset enables high-performance desktop builds
  • DDR4 memory up to 3200 MT/s with 11th Gen CPUs
  • DDR4 memory up to 2933 MT/s with 10th Gen CPUs
  • Includes I/O shield and retail box for immediate installation

Specifications

BrandMSI
SeriesMPG
ModelMPG Z590 GAM CARB WI
Part NumberMPG Z590 GAM CARB WI
CPU Socket TypeLGA 1200
CPU TypeCore i7 / i5 / i3 (LGA1200)
ChipsetIntel Z590

Questions about this item

Does the box include anything besides the I/O shield?

The board ships with an I/O shield and the retail box; no other accessories are guaranteed and the box may show signs of use or damage.

Which DDR4 speed should I select for an 11th Gen Intel Core CPU?

With an 11th Gen Intel Core processor the board supports DDR4 3200, 2933, 2666 and 2133 MT/s by JEDEC and POR.

What memory speeds will actually run if I install a 10th Gen Intel Core processor?

A 10th Gen Intel Core CPU limits the board to DDR4 2933, 2666 and 2133 MT/s by JEDEC and POR.
