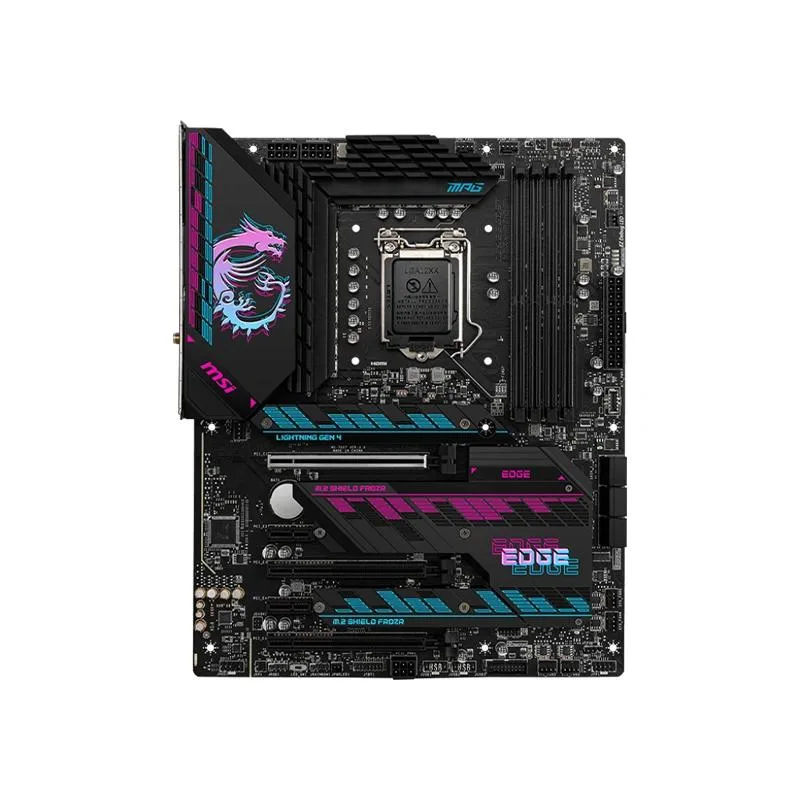

ATX motherboard, dark PCB with silver heatsinks and rear I/O shield

MSI

MSI MPG Z590 GAMING EDGE WIFI SP Intel motherboard

SKU CH-RCYF-C0B9Z

ATX board for 10th and 11th Gen Intel CPUs with DDR4 up to 128GB, PCIe 4.0 support on 11th Gen, 2.5Gbps LAN, 7.1 audio and USB 3.2 Gen2x2

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 10th Gen Intel Core™ Processors, 11th Gen Intel Cor
  • ChipsetIntel Z590
  • Memory StandardSupport dual channel DDR4 5333 (OC)/5200 (OC)/5000 (OC)/4800
  • Maximum Memory Supported128GB
  • PCI Slots3x PCIe x16 slots Support x16/x4/x4 PCI_E1 (From CPU) Suppor
  • Supports 10th and 11th Gen Intel Core processors via LGA 1200 socket
  • Intel Z590 chipset enables PCIe 4.0 with 11th Gen CPUs for faster GPU and storage performance
  • DDR4 memory overclocked up to 5333 MHz with 128 GB maximum capacity for high-speed multitasking
  • Realtek ALC4080 codec delivers 7.1-channel high-definition audio for immersive sound
  • Intel I225V 2.5 Gbps LAN provides low-latency wired networking for gaming and transfers

MSI MPG Z590 GAMING EDGE WIFI SP

This motherboard uses the Intel Z590 chipset and an LGA 1200 socket. It supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors. Dual-channel DDR4 memory runs up to 5333 MT/s overclocked with a maximum capacity of 128GB. The board provides 2.5Gbps LAN and 7.1-channel audio.

Ideal for 10th or 11th Gen Intel builds

Builders upgrading to an 11th Gen CPU gain PCIe 4.0 on the primary x16 slot and a rear USB 3.2 Gen2x2 20Gbps Type-C port. The three PCIe x16 slots and six SATA III ports suit multi-GPU or storage-heavy systems. Users with 12th Gen or newer processors need a different socket and chipset.

Primary x16 slot PCIe generation depends on CPU

With an 11th Gen Intel Core processor the top slot operates at PCIe 4.0 x16. With a 10th Gen Intel Core processor the same slot runs at PCIe 3.0 x16. This single difference dictates graphics and add-in card bandwidth for the platform.

Highlights

  • Supports 10th and 11th Gen Intel Core processors via LGA 1200 socket
  • Intel Z590 chipset enables PCIe 4.0 with 11th Gen CPUs for faster GPU and storage performance
  • DDR4 memory overclocked up to 5333 MHz with 128 GB maximum capacity for high-speed multitasking
  • Realtek ALC4080 codec delivers 7.1-channel high-definition audio for immersive sound
  • Intel I225V 2.5 Gbps LAN provides low-latency wired networking for gaming and transfers

Specifications

BrandMSI
SeriesMSI MPG Z590 GAMING EDGE WIFI SP
ModelMSI MPG Z590 GAMING EDGE WIFI SP
CPU Socket TypeLGA 1200
CPU TypeSupports 10th Gen Intel Core™ Processors, 11th Gen Intel Core™ Processors, Pentium Gold and Celeron Processors
Processor socket LGA1200
ChipsetIntel Z590
Memory StandardSupport dual channel DDR4 5333 (OC)/5200 (OC)/5000 (OC)/4800 (OC)/4600 (OC)/4533 (OC)/4400 (OC)/4300 (OC)/4266 (OC)/4200 (OC)/4133 (OC)/4000 (OC)/3866 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3400 (OC)/3333 (OC)/3300 (OC)/3200 (OC)/3000 (OC)/2933 (JEDEC)/2666 (JEDEC)/2400 (JEDEC)/2133 (JEDEC) MHz memory
Maximum Memory Supported128GB
PCI Slots3x PCIe x16 slots
Support x16/x4/x4
PCI_E1 (From CPU)
Supports up to PCIe 4.0 for 11th Gen Intel CPU
Supports up to PCIe 3.0 for 10th Gen Intel CPU
PCI_E3 & PCI_E5 (From Z590 Chipset)
Support up to PCIe 3.0
2x PCIe 3.0 x1 slots (From Z590 Chipset)
SATA RAID3XM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC4080 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN Chipset1x Intel I225V 2.5Gbps LAN controller
Onboard USBIntel Z590 Chipset
1x USB3.2 Gen2x2 20Gbps port (Type-C port on the back panel)
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A port on the back panel and 2 ports are available through the internal connectors)
4x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 3 Type-A ports on the back panel)
Hub-GL850G
6x USB 2.0 ports (2 Type-A port on the back panel and 4 ports are available through the internal connectors)

Questions about this item

How do I install the CPU into the LGA 1200 socket without bending pins?

Align the processor triangle marker with the socket corner, lower it straight down without pressure, then close the retention lever until it clicks; forcing the chip sideways is the step that damages contacts.

Which component will need replacement first during long-term ownership?

The included CMOS battery powers the real-time clock; when the system loses date and time at every cold start, replace the coin cell to restore BIOS settings retention.

What limit appears first when the VRM runs under sustained heavy load?

The 16-phase power delivery is rated for 11th Gen Intel Core processors; pushing continuous current beyond the design envelope triggers thermal throttling before any other subsystem hits its ceiling.
