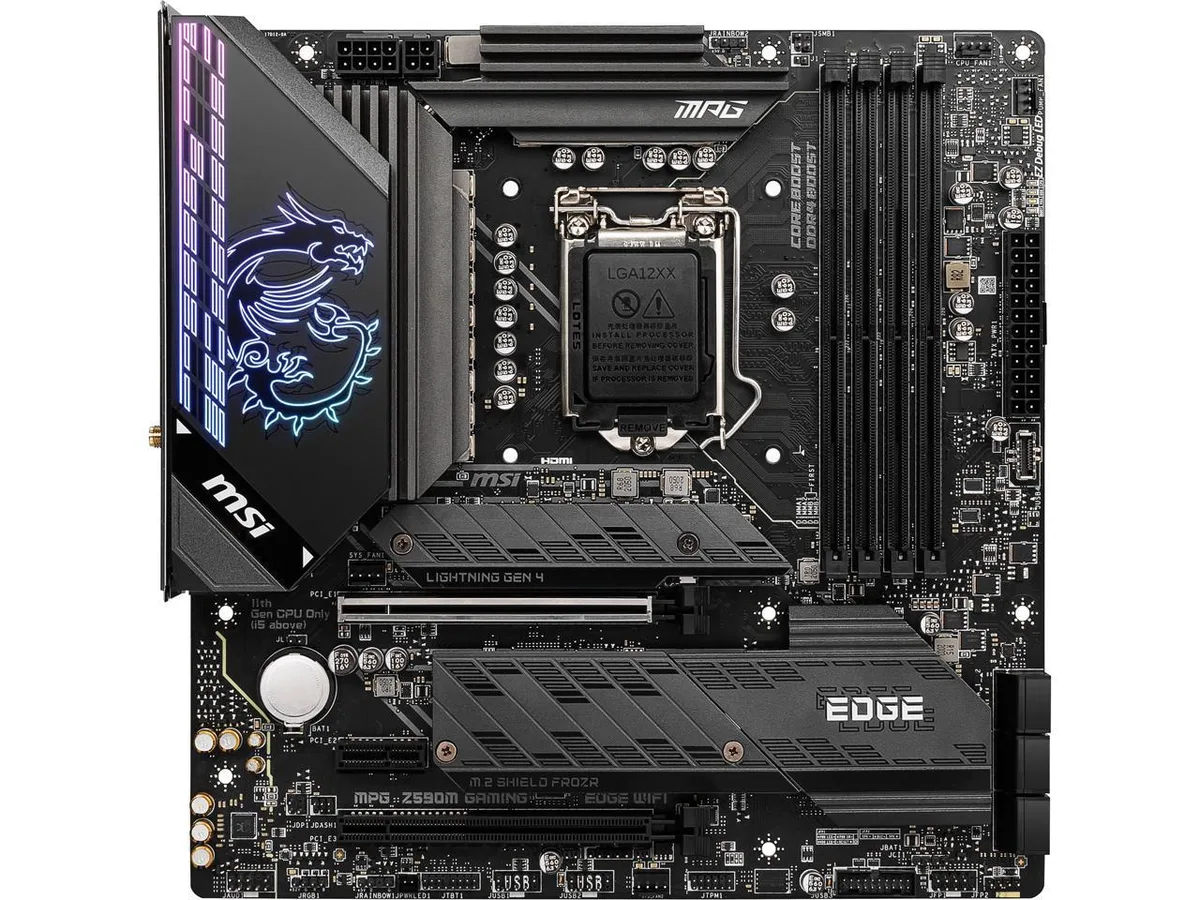

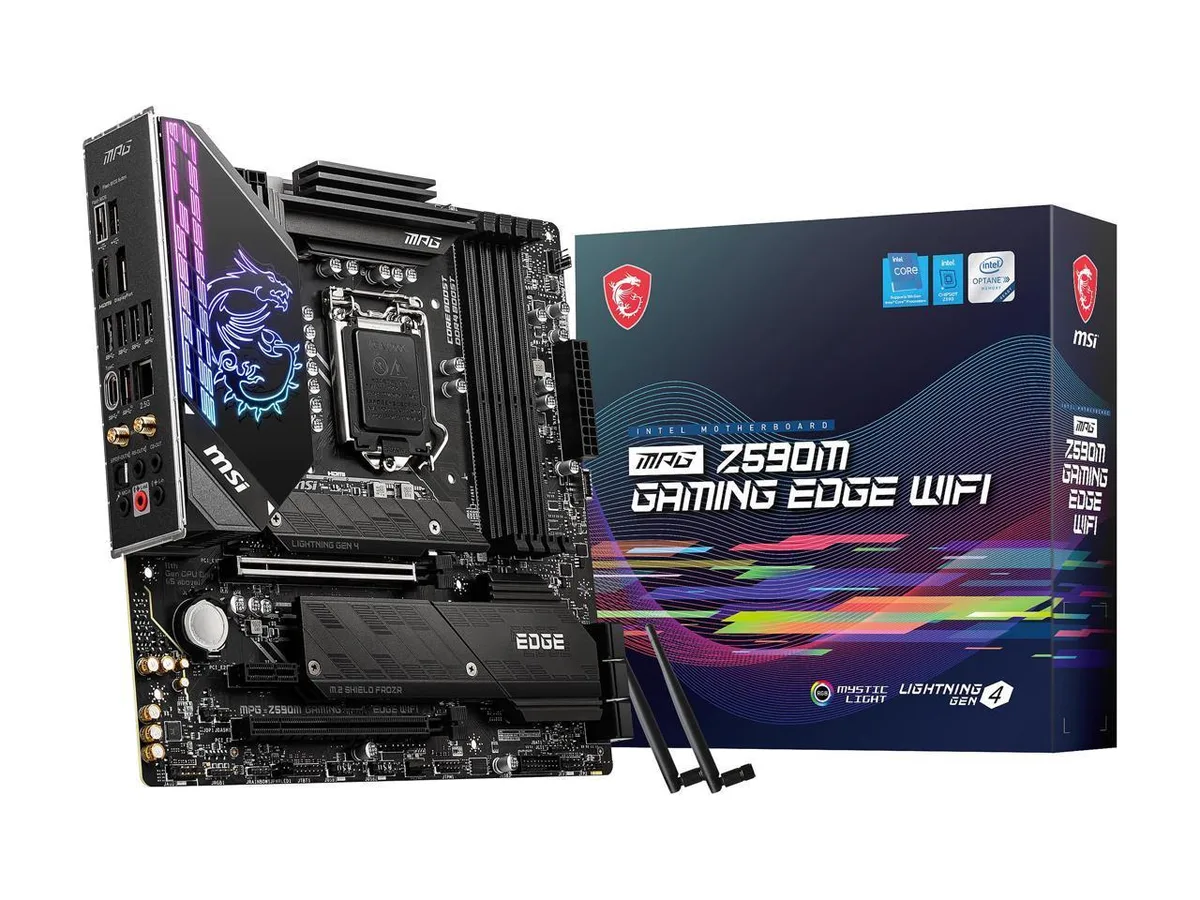

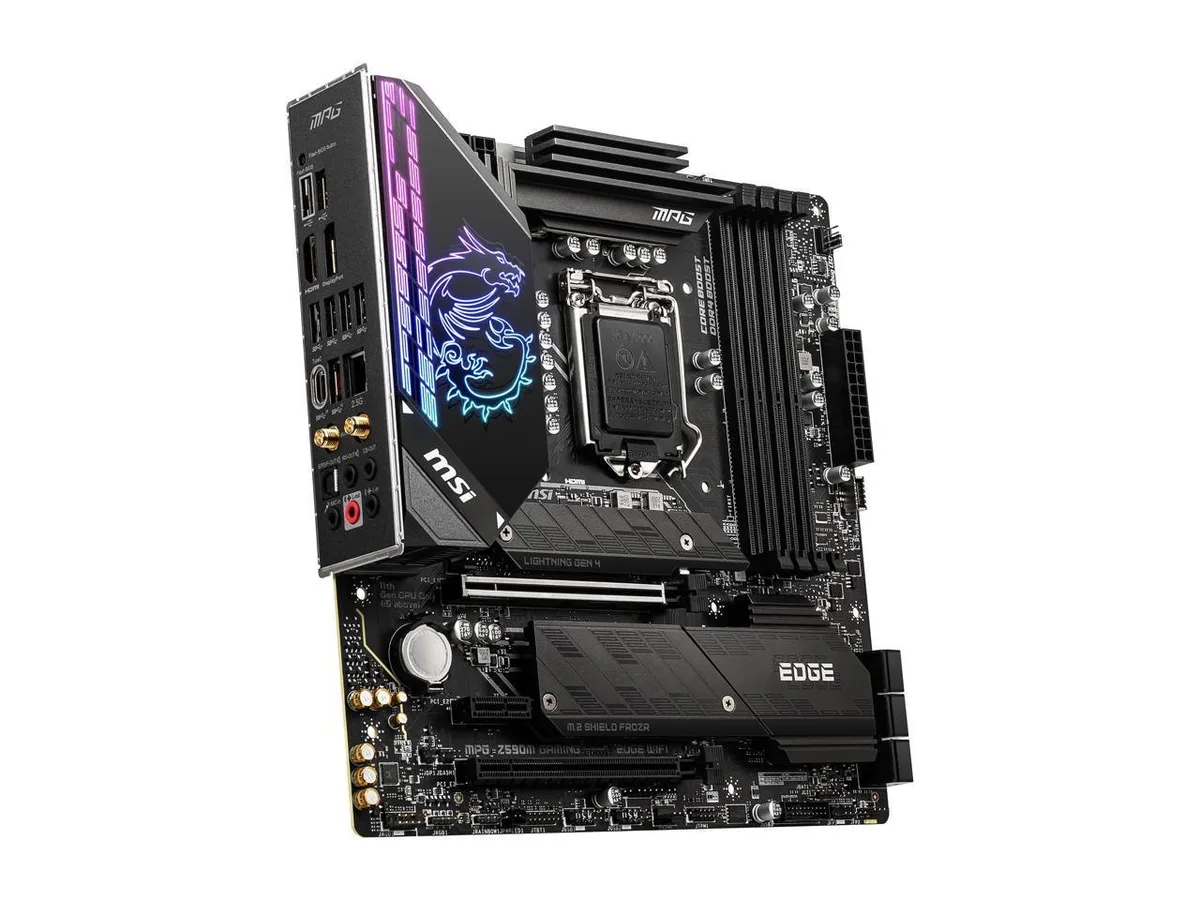

Black micro-ATX board with silver heatsinks and four DDR4 slots

MSI

MSI MPG Z590M Gaming Edge WiFi Intel motherboard

SKU CH-GVKA-7T4J4

Micro-ATX Z590 board for 10th and 11th Gen Intel Core CPUs with dual M.2 slots, Intel I225-V LAN and 7.1-channel audio

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 11th / 10th Gen Intel Core processors Supports Inte
  • ChipsetIntel Z590
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 1R 3200 / 2933 / 2666 / 2133 for 11th Gen Intel CPU (by
  • Supports 11th and 10th Gen Intel Core processors on LGA 1200 socket
  • DDR4 memory overclocking up to 5333 MHz with 1DPC 1R configuration
  • PCIe 4.0 x16 slot and M.2 slot enabled by 11th Gen CPUs
  • Intel I225-V LAN controller for wired networking
  • Realtek ALC4080 audio codec with 7.1 channel output

Socket & Platform

This Micro ATX motherboard uses the Intel Z590 chipset and LGA 1200 socket to support 11th and 10th Gen Intel Core processors plus Pentium Gold and Celeron CPUs. It delivers dual-channel DDR4 memory across four 288-pin slots with a maximum capacity of 128 GB.

Fit & Alternatives

Builders who need a compact Z590 board with integrated Intel I225-V LAN and Realtek ALC4080 7.1 audio will find the feature set complete. Users requiring more than two M.2 slots or additional full-length PCIe 4.0 lanes should consider full-size ATX alternatives.

Memory Ceiling

The board officially supports DDR4 JEDEC speeds of 3200, 2933, 2666 and 2133 MT/s for 11th Gen CPUs and 2933, 2666 and 2133 MT/s for 10th Gen CPUs. Overclocked operation can reach up to 5333 MT/s in a 1DPC 1R configuration.

Highlights

  • Supports 11th and 10th Gen Intel Core processors on LGA 1200 socket
  • DDR4 memory overclocking up to 5333 MHz with 1DPC 1R configuration
  • PCIe 4.0 x16 slot and M.2 slot enabled by 11th Gen CPUs
  • Intel I225-V LAN controller for wired networking
  • Realtek ALC4080 audio codec with 7.1 channel output

Specifications

BrandMSI
ModelMPG Z590M GAMING EDGE WIFI
CPU Socket TypeLGA 1200
CPU TypeSupports 11th / 10th Gen Intel Core processors
Supports Intel Pentium Gold / Celeron processors
ChipsetIntel Z590
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 1R 3200 / 2933 / 2666 / 2133 for 11th Gen Intel CPU (by JEDEC & POR)
DDR4 1R 2933 / 2666 / 2133 for 10th Gen Intel CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5333
1DPC 2R Max speed up to 4700+
2DPC 1R Max speed up to 4400+
2DPC 2R Max speed up to 4000+
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 4.0 x161 x PCI Express 4.0 x16*
* Actual support may vary by CPU.
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express x11 x PCIe 3.0 x1
Serial ATA (SATA)6 x SATA 6Gb/s
M.22 x M.2 slots (Key M):
M2_1 slot (From CPU):
Available only on 11th Gen Intel CPU
Supports up to PCIe 4.0 x4
Supports 2242/2260/2280 storage devices
M2_2 slot (From Z590 Chipset):
Support up to PCIe 3.0 x4
Support up to SATA 6Gb/s*
Supports 2242/2260/2280 storage devices
Intel Optane Memory Ready**
* SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
** Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
Intel Optane ReadyYes
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC4080
Audio Channels7.1 Channels
LAN ChipsetIntel I225-V
Max LAN Speed2.5Gbps
Wireless LANIntel Wi-Fi 6E AX210
802.11a/b/g/n/ac/ax
BluetoothBluetooth 5.2
Back I/O Ports1 x DisplayPort
1 x HDMI
1 x LAN (RJ45)
1 x USB 3.2 Gen 2 Type-A
1 x USB 3.2 Gen 2x2 Type-C
2 x USB 2.0/1.1
4 x USB 3.2 Gen 1 Type-A
1 x Optical S/PDIF Out
5 x Audio Jacks
Wi-Fi/Bluetooth
Flash BIOS Button
Onboard USB1 x USB 3.2 Gen 2 10Gbps Type-C port
1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors1 x 4-pin CPU fan connector
1 x 4-pin water-pump fan connector
2-pin system fan connectors
1 x Front panel audio connectors
2 x System panel connectors
1 x Chassis Intrusion connector
1 x TPM module connector
1 x Clear CMOS jumper
1 x Tuning Controller connector
1 x TBT connector (supports RTD3)
Windows 11Supported
Form FactorMicro ATX
LED LightingRGB
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
FeaturesSupports 11th and 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket
Supports DDR4 Memory, up to 5333(OC) MHz
Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
Enhanced Power Design: 12+1+1 Duet Rail Power System, 8+4 pin CPU power connectors, Core Boost, DDR4 Boost
Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and 2 x M.2 Shield Frozr are built for high performance system and non-stop gaming experience
MYSTIC LIGHT: 16.8 million colors / 29 effects contr

Questions about this item

Will this board run a 10th Gen Core i5 without a BIOS update?

Yes, the socket supports both 10th and 11th Gen Intel Core, Pentium Gold and Celeron processors out of the box.

What is the highest memory speed I can reach with two dual-rank sticks?

The board is validated up to 4000 MT/s with two dual-rank modules installed in a dual-channel configuration.

Can I use the top M.2 slot with a 10th Gen CPU?

No, the primary M.2 slot is wired to the CPU and only becomes active when an 11th Gen processor is installed.
