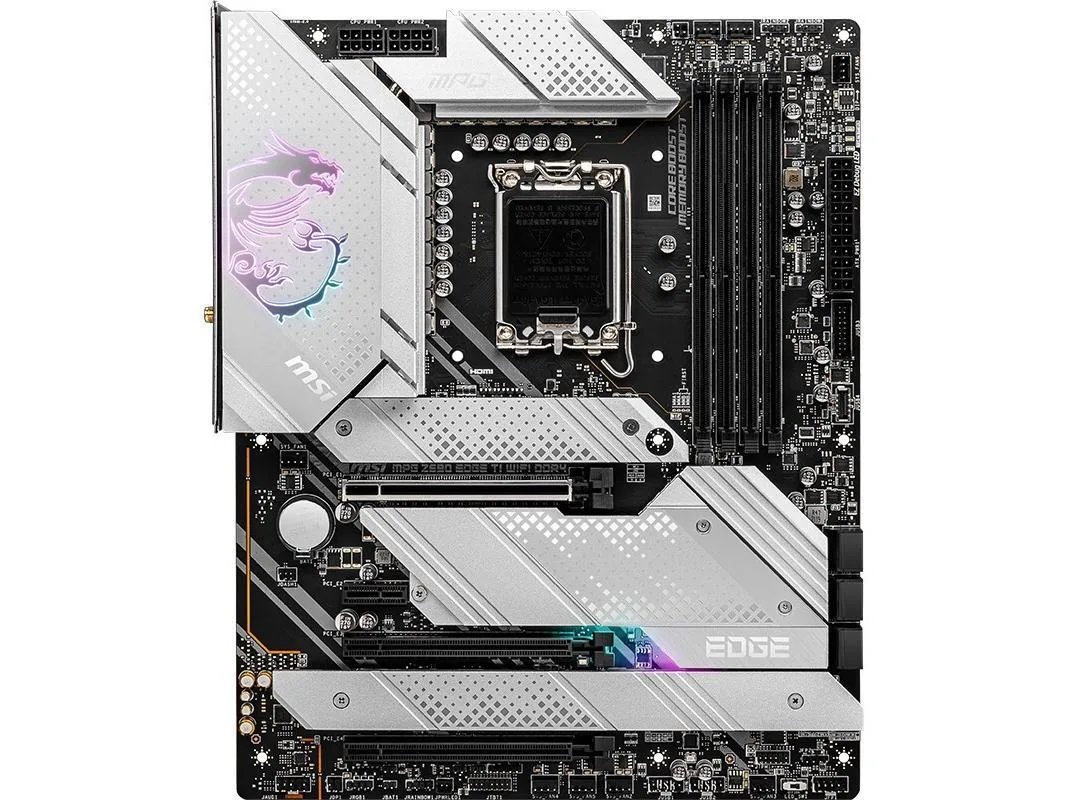

ATX motherboard, black PCB with silver heatsinks and I/O shield

MSI

MSI MPG Z690 EDGE TI WIFI Intel motherboard

SKU CH-XFMT-5FQ8W

ATX Intel Z690 board for 12th Gen Core CPUs with DDR4 up to 5600 MHz, four M.2 slots, PCIe 5.0, 2.5 GbE LAN, Wi-Fi 6E and Bluetooth 5.2

  • CPU TypeIntel Core 12th Gen (LGA 1700)
  • Supports 12th Gen Intel Core processors via LGA 1700 socket
  • Four DDR4 DIMM slots allow up to 128 GB at 5600 MHz OC
  • Extended heatsink plus M.2 Shield Frozr keeps temperatures low under heavy load
  • 5 GbE LAN and Wi-Fi 6E deliver fast, stable wired and wireless networking
  • Four M.2 slots running PCIe 4.0 x4 maximise NVMe SSD performance

Z690 ATX motherboard for 12th Gen Intel

The MSI MPG Z690 EDGE TI WIFI is an ATX motherboard built on the Intel Z690 chipset for LGA 1700 processors. It supports 12th Gen Intel Core, Pentium and Celeron CPUs with dual-channel DDR4 memory up to 5600 MHz overclocked. The board provides 4 M.2 slots, 6 SATA III ports and PCIe 5.0 graphics slots.

Users needing DDR4 and high-speed I/O

This board suits builders who want a Z690 platform with DDR4 memory support, 2.5 GbE LAN, Wi-Fi 6E and Bluetooth 5.2. It also offers USB 3.2 Gen 2x2 Type-C and premium audio with the Realtek ALC4080 codec. Buyers who require more than four DIMM slots or more than four M.2 sockets should consider other options.

Four DDR4 slots with 128 GB maximum

The motherboard provides four DDR4 DIMM slots with a maximum capacity of 128 GB and supports speeds up to 5600 MHz when overclocked. This memory configuration determines whether the board matches your planned RAM kit and total capacity requirements.

Highlights

  • Supports 12th Gen Intel Core processors via LGA 1700 socket
  • Four DDR4 DIMM slots allow up to 128 GB at 5600 MHz OC
  • Extended heatsink plus M.2 Shield Frozr keeps temperatures low under heavy load
  • 5 GbE LAN and Wi-Fi 6E deliver fast, stable wired and wireless networking
  • Four M.2 slots running PCIe 4.0 x4 maximise NVMe SSD performance

Specifications

CPU TypeIntel Core 12th Gen (LGA 1700)

Questions about this item

What CPU socket and generation must I already have for this board to work?

You need a 12th generation Intel Core, Pentium or Celeron processor that fits the LGA 1700 socket.

Will my existing DDR4 memory run at its rated speed alongside the 5600 MHz overclock ceiling?

The board supports dual-channel DDR4 up to 5600 MHz when overclocked; installed modules will operate at their highest mutually supported frequency.

How can I confirm the 2.5 GbE LAN and Wi-Fi 6E are active after assembly?

Check Device Manager for the Intel I225V 2.5 GbE controller and the Wi-Fi 6E adapter, then verify link speed and connection status in the network settings.
