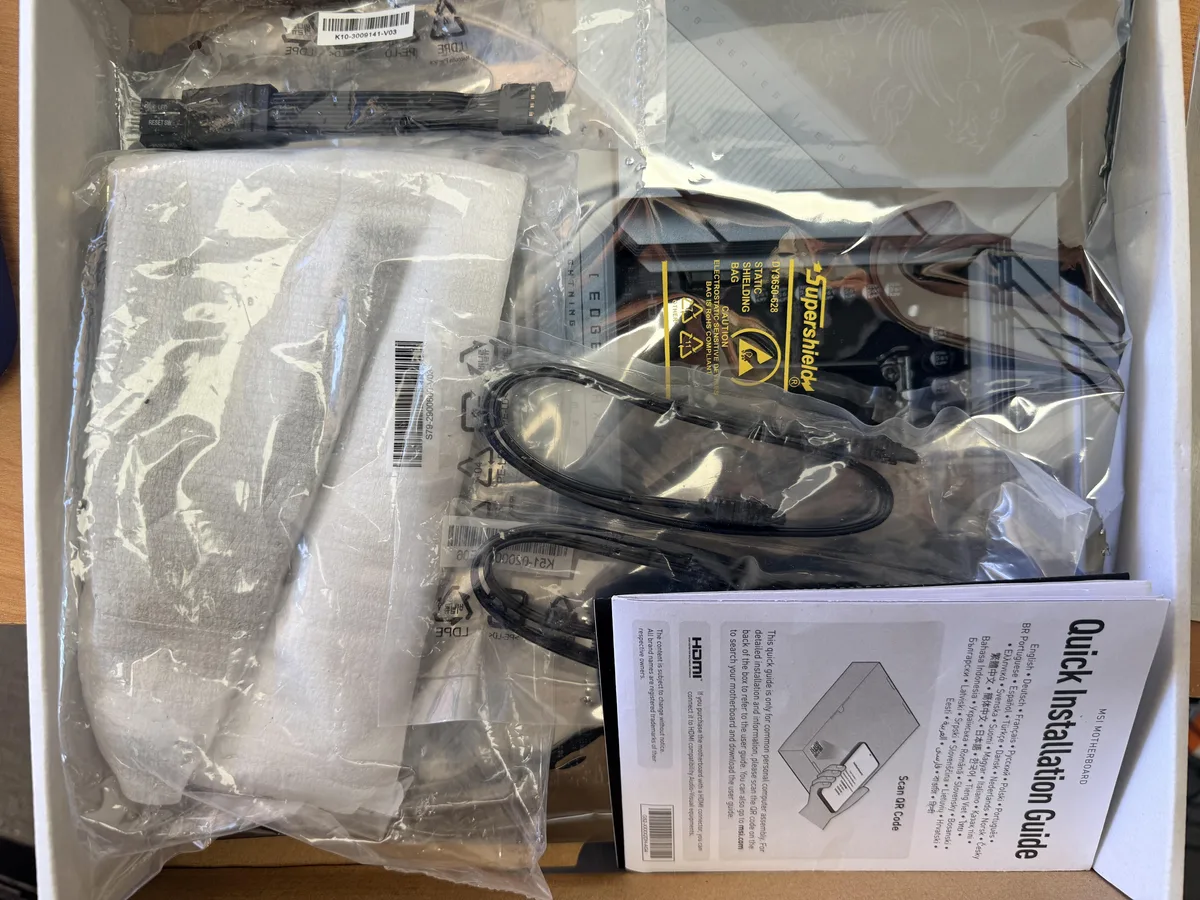

ATX motherboard dark finish silver heatsinks four DDR5 slots

MSI

MSI MPG Z790 EDGE TI MAX WIFI Intel motherboard

SKU CH-95S9-19MYE

ATX board for 12th, 13th and 14th Gen Intel Core CPUs with DDR5 up to 7800 MHz, PCIe 5.0 graphics slot, five M.2 sockets, 2.5G LAN and Wi-Fi 7

  • CPU Socket TypeLGA 1700
  • CPU TypeSupports 12th/13th Gen Intel Core Processors, Pentium Gold a
  • ChipsetIntel Z790
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardMemory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000
  • Maximum Memory Supported192GB
  • Supports 12th, 13th and 14th Gen Intel Core CPUs on LGA 1700 socket
  • DDR5 memory up to 7800 MHz overclocked via XMP 3.0 across four slots
  • PCIe 5.0 x16 slot plus five M.2 connectors for high-speed storage
  • Realtek ALC4080 codec delivers 7.1-channel audio at 32-bit 384 kHz
  • Intel 2.5 Gbps LAN and Wi-Fi 7 for fast wired and wireless networking

Z790 ATX motherboard for LGA 1700

The MSI MPG Z790 EDGE TI MAX WIFI is an ATX board built around the Intel Z790 chipset for LGA 1700 processors. It accepts 12th, 13th and 14th generation Core CPUs as well as Pentium Gold and Celeron chips. Four 288-pin DDR5 slots provide dual-channel memory up to 192 GB.

DDR5 capacity and overclocking headroom

The board supports JEDEC speeds from 4800 MHz to 5600 MHz and XMP 3.0 profiles reaching 7800+ MHz with a single-rank DIMM per channel. Populating all four slots reduces the practical ceiling to 5600+ MHz for dual-rank kits. Five M.2 sockets and eight SATA 6Gb/s ports give ample room for NVMe and SATA storage arrays.

Thermals, noise and power delivery

A 16+1+1 mirrored power arrangement with dual 8-pin CPU connectors feeds the socket under heavy loads. Enlarged heatsinks, a heat-pipe, 7 W/mK MOSFET pads, choke pads and M.2 Shield Frozr covers dissipate heat without active cooling. The 2.5 Gbps LAN and Wi-Fi 7 controller add negligible thermal load during typical workloads.

Highlights

  • Supports 12th, 13th and 14th Gen Intel Core CPUs on LGA 1700 socket
  • DDR5 memory up to 7800 MHz overclocked via XMP 3.0 across four slots
  • PCIe 5.0 x16 slot plus five M.2 connectors for high-speed storage
  • Realtek ALC4080 codec delivers 7.1-channel audio at 32-bit 384 kHz
  • Intel 2.5 Gbps LAN and Wi-Fi 7 for fast wired and wireless networking

Specifications

BrandMSI
ModelMPG Z790 EDGE TI MAX WIFI
CPU Socket TypeLGA 1700
CPU TypeSupports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
ChipsetIntel Z790
Number of Memory Slots4x288pin (DDR5)
Memory StandardMemory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
- 1DPC 1R Max speed up to 7800+ MHz
- 1DPC 2R Max speed up to 6600+ MHz
- 2DPC 1R Max speed up to 6400+ MHz
- 2DPC 2R Max speed up to 5600+ MHz
Maximum Memory Supported192GB
Channel SupportedDual Channel
Memory FeatureSupports Intel XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
PCI Express 5.0 x16PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI Express 4.0 x16PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI Express x1PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Serial ATA (SATA)8 x SATA 6Gb/s
M.25x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
SATA RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Audio ChipsetRealtek ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
Audio Channels7.1 Channels
LAN ChipsetIntel 2.5Gbps LAN
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 7 Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.4**, MLO, 4KQAM
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
BluetoothYes
Back I/O Ports1 x Display Port
4 x USB 3.2 Gen 1 5 Gbps (Type-A)
4 x USB 3.2 Gen 2 10Gbps (Type-A)
1 x 2.5G LAN
5 x Audio Connectors
1 x HDMI
1 x Clear CMOS
1 x Flash BIOS
1 x USB 3.2 Gen 2 10Gbps (Type-C)
1 x USB 3.2 Gen 2x2 20Gbps (Type-C)
2 x Wi-Fi / Bluetooth Antenna Bracket
1 x Optical S/PDIF Out
Onboard USB4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
Other Connectors1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
1x ARGB+FAN Header (JAF_1)
1x USB4 card connector (JTBT_U4_1, supports RTD3)
Windows 11Supported
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)

Questions about this item

Will my existing LGA 1700 CPU cooler fit the 16+1+1 mirrored power arrangement around the socket?

The board uses the standard LGA 1700 mounting holes, so any cooler rated for that socket will clear the VRM heatsinks.

How can I confirm the Realtek ALC4080 codec is running at 32-bit depth after I install the drivers?

In Windows Sound settings open the device properties, go to the Advanced tab, and check that the default format shows 32 bit.

Does the box include mounting screws for all five M.2 slots or do I need to buy extras for the additional drives?

The package supplies M.2 screws for each of the five slots, so no separate fastener kit is required.
