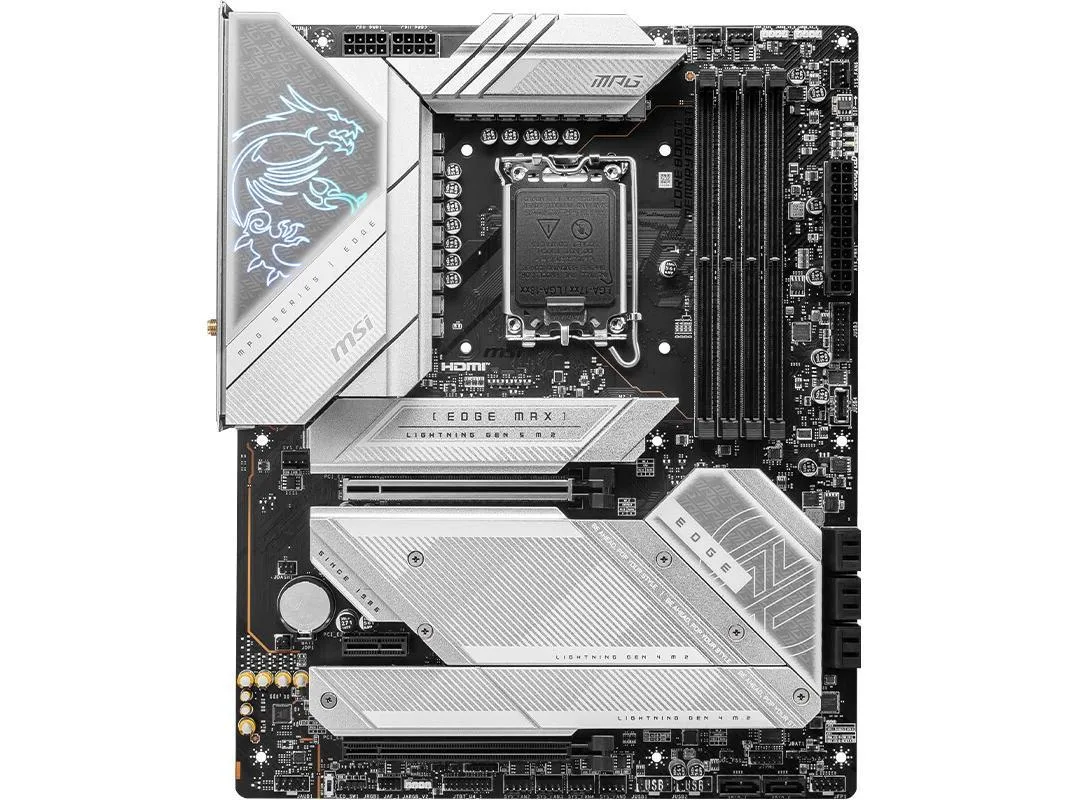

ATX motherboard dark finish silver heatsinks visible I/O shield

MSI

MSI MPG Z790 EDGE TI MAX WIFI LGA 1700 DDR5 192GB Intel motherboard

SKU CH-V9TD-SN5AC

ATX board for Intel Core 12th, 13th and 14th Gen CPUs with dual-channel DDR5 up to 7200 MHz and 192 GB capacity

  • CPU Socket TypeLGA 1700
  • CPU TypeSupport Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel P
  • ChipsetIntel Z790
  • Memory StandardSupport dual-channel DDR5 7200 + (OC)/7000 (OC)/6800 (OC)/66
  • Maximum Memory Supported192GB
  • PCI Slots2X PCI-E x16 slots (quantity) 1X PCI-E x1 slot (quantity) PC
  • Supports Intel Core 14th 13th 12th Gen processors on LGA 1700 socket
  • Dual-channel DDR5 memory up to 192GB with speeds to 7200 MHz
  • PCIe 5.0 x16 slot plus PCIe 4.0 x4 and PCIe 3.0 x1 for expansion
  • Realtek ALC4080 audio with 7.1 channel 32-bit 384 kHz playback
  • Intel 2.5Gbps LAN plus USB 20Gbps Type-C and multiple 10Gbps and 5Gbps ports

Platform Foundation

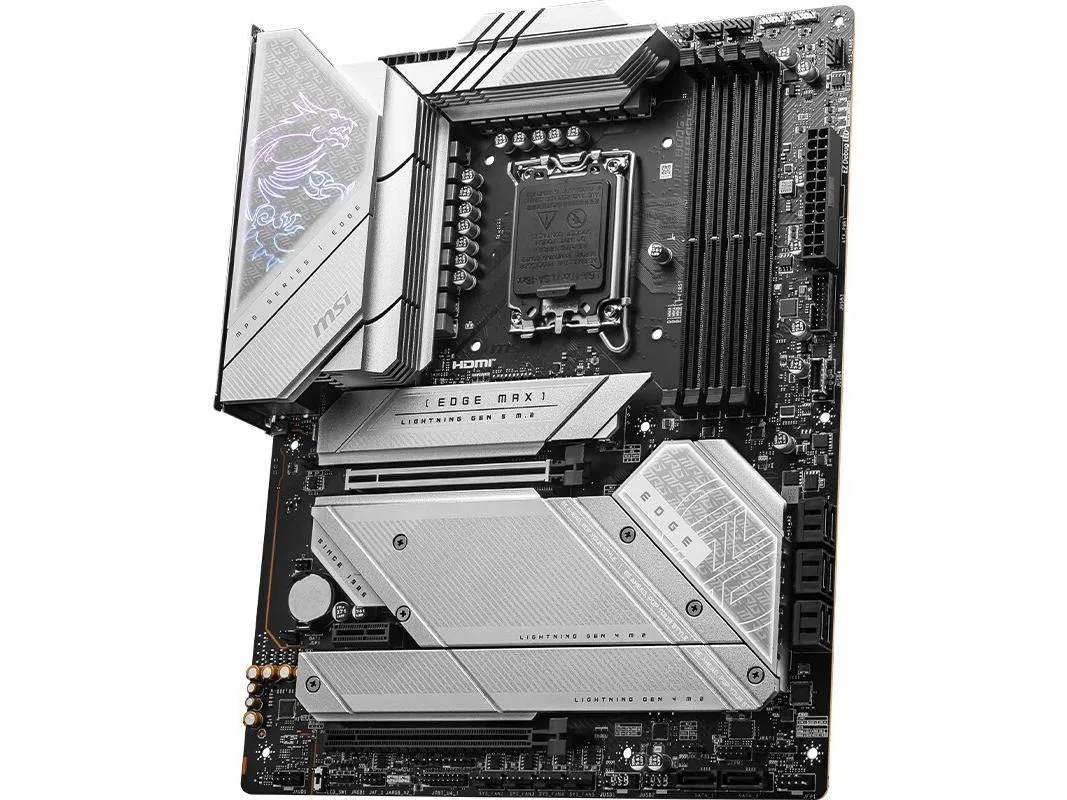

The MSI MPG Z790 EDGE TI MAX WIFI is an ATX motherboard built on the Intel Z790 chipset for LGA 1700 processors. It supports 12th, 13th and 14th Gen Intel Core, Pentium Gold and Celeron CPUs. Dual-channel DDR5 memory scales up to 192GB with speeds reaching 7200 MHz when overclocked.

Build Fit

This board suits builders who need high memory capacity and a broad rear USB selection including 20Gbps Type-C. The three PCIe slots provide one x16 Gen 5.0, one x4 Gen 4.0 and one x1 Gen 3.0 lane arrangement. Builds requiring more than three expansion slots or a different form factor should consider other options.

Memory Ceiling

The maximum supported memory is 192GB of DDR5 across four slots. This ceiling decides whether the platform can handle large datasets, heavy virtualisation or content-creation workloads. Verify your kit density and speed against the qualified vendor list before purchasing.

Highlights

  • Supports Intel Core 14th 13th 12th Gen processors on LGA 1700 socket
  • Dual-channel DDR5 memory up to 192GB with speeds to 7200 MHz
  • PCIe 5.0 x16 slot plus PCIe 4.0 x4 and PCIe 3.0 x1 for expansion
  • Realtek ALC4080 audio with 7.1 channel 32-bit 384 kHz playback
  • Intel 2.5Gbps LAN plus USB 20Gbps Type-C and multiple 10Gbps and 5Gbps ports

Specifications

BrandMSI
SeriesMSI MPG Z790 EDGE TI MAX WIFI
ModelMSI MPG Z790 EDGE TI MAX WIFI
CPU Socket TypeLGA 1700
CPU TypeSupport Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
LGA 1700
ChipsetIntel Z790
Memory StandardSupport dual-channel DDR5 7200 + (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (JEDEC)/5400 (JEDEC)/5200 (JEDEC)/5000 (JEDEC)/4800 (JEDEC) MHz memory
Maximum Memory Supported192GB
PCI Slots2X PCI-E x16 slots (quantity)
1X PCI-E x1 slot (quantity)
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
SATA RAID5XM.2 interface, 8xSATA III interface
Audio ChipsetRealtek ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
LAN ChipsetIntel 2.5Gbps LAN

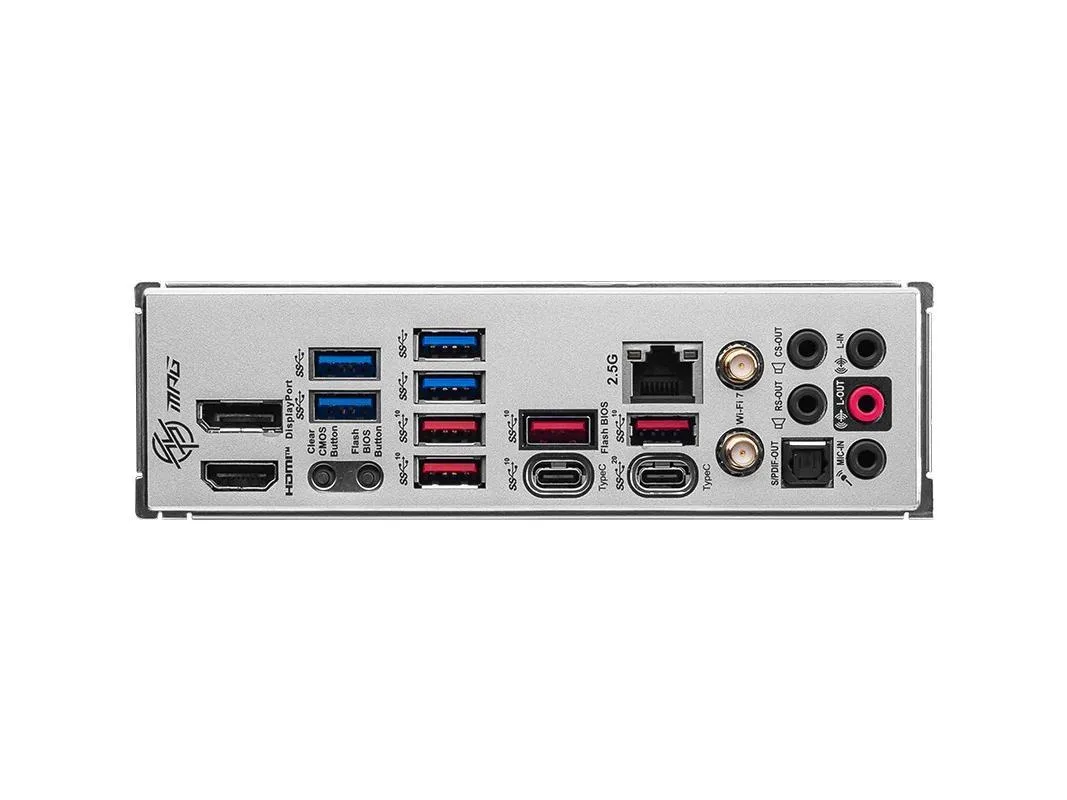

Onboard USB4X USB 2.0 (front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
4x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)

Questions about this item

What case size and form factor does this ATX board need?

The board follows the standard ATX layout, so it requires a case that accepts ATX motherboards with the usual nine mounting holes and rear I/O cutout.

How is the CPU installed into the LGA 1700 socket, and what step is often missed?

Lift the socket lever, align the processor triangle with the socket marker, lower the CPU gently, close the frame, then secure the lever — many builders forget to remove the protective cover from the socket before seating the CPU.

Which onboard component will need replacement over time?

The CMOS battery on the board will eventually lose charge and should be replaced when BIOS settings or the system clock no longer hold after power loss.
