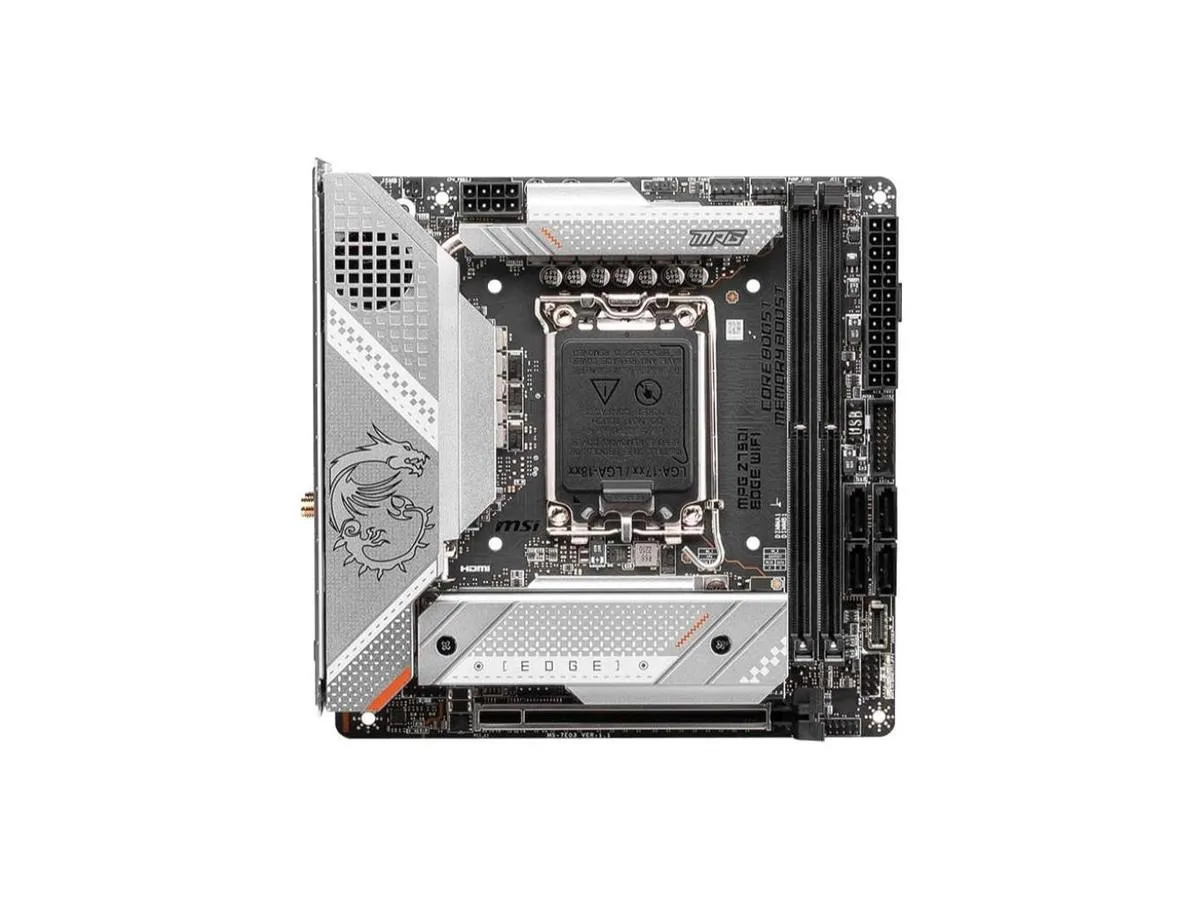

Compact Mini-ITX motherboard with dark metallic heatsinks and silver rear I/O panel

MSI

MSI MPG Z790I EDGE WIFI Intel motherboard 128GB Mini-ITX

SKU CH-ZJAB-C64WF

Mini-ITX motherboard for Intel Core 12, 13 and 14 Gen CPUs with dual-channel DDR5 up to 128 GB and PCIe 5.0 graphics slot

  • CPU Socket TypeLGA 1700
  • CPU TypeSupport Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel P
  • ChipsetIntel Z790
  • Memory StandardSupport dual-channel DDR5 8000 + (OC)/7800 (OC)/7600 (OC)/74
  • Maximum Memory Supported128GB
  • PCI Slots1X PCI-E x16 slots (quantity) PCI_E1 Gen PCIe 5.0 supports u
  • Supports Intel Core 12, 13, 14 Gen processors via LGA 1700 socket
  • Up to 128GB DDR5 memory with speeds up to 8000 OC
  • PCIe 5.0 x16 slot for latest graphics cards
  • 5Gbps Intel LAN plus USB 20Gbps Type-C ports
  • 1-channel Realtek ALC4080 audio up to 32-bit 384kHz

Mini-ITX Z790 board for 12th to 14th Gen Intel

The MSI MPG Z790I EDGE WIFI fits the LGA 1700 socket and runs Intel Core 12th, 13th and 14th generation processors plus Pentium Gold and Celeron chips. Its Mini-ITX layout suits compact builds that still want a full Z790 feature set.

128 GB dual-channel DDR5 ceiling

Four memory slots support dual-channel DDR5 up to 128 GB with JEDEC speeds from 4800 through 5600 and overclocked steps up to 8000. This capacity limit is the decisive figure when planning a high-density workstation or gaming rig.

Included I/O shield, SATA cable.

The bundle adds a rear I/O panel, one SATA cable, a replacement CMOS battery and the external antenna for the onboard wireless module. No extra brackets, fan headers or software licences are supplied.

Highlights

  • Supports Intel Core 12, 13, 14 Gen processors via LGA 1700 socket
  • Up to 128GB DDR5 memory with speeds up to 8000 OC
  • PCIe 5.0 x16 slot for latest graphics cards
  • 5Gbps Intel LAN plus USB 20Gbps Type-C ports
  • 1-channel Realtek ALC4080 audio up to 32-bit 384kHz

Specifications

BrandMSI
SeriesMSI MPG Z790I EDGE WIFI
ModelMSI MPG Z790I EDGE WIFI
CPU Socket TypeLGA 1700
CPU TypeSupport Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
LGA 1700
ChipsetIntel Z790
Memory StandardSupport dual-channel DDR5 8000 + (OC)/7800 (OC)/7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (JEDEC)/5400 (JEDEC)/5200 (JEDEC)/5000 (JEDEC)/4800 (JEDEC) Hz memory
Maximum Memory Supported128GB
PCI Slots1X PCI-E x16 slots (quantity)
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
SATA RAID3xM.2 interface, 4xSATA III interface
Audio ChipsetRealtek ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
LAN ChipsetIntel 2.5Gbps LAN
Onboard USB2X USB 2.0 (front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
2x USB 10Gbps Type A (Rear)
1x USB 20Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)

Questions about this item

What does the 128 GB DDR5 maximum mean for a Mini-ITX build?

The board supports up to 128 GB across two DDR5 slots, so a dual-channel kit of two 64 GB modules fills the limit without needing four sticks.

How does the PCIe 5.0 x16 slot affect graphics or storage choices?

The single PCIe 5.0 x16 slot runs at full x16 bandwidth from the CPU, giving current GPUs and future add-in cards the highest throughput the platform offers.

What clearance should I check for the LGA 1700 socket on this Mini-ITX board?

The LGA 1700 socket uses the standard Intel mounting pattern, so any cooler rated for LGA 1700 will fit provided it clears the VRM heatsinks and the single PCIe slot.
