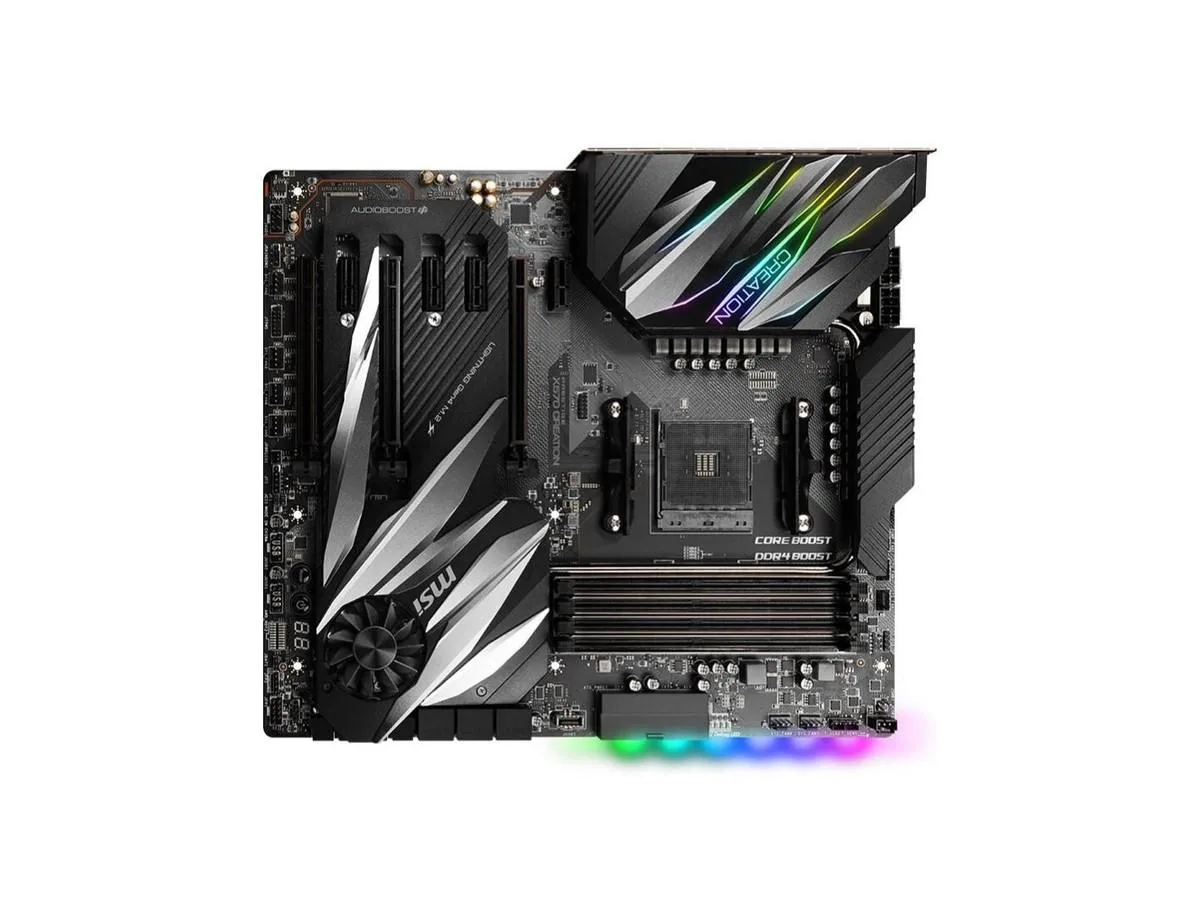

Dark rectangular E-ATX board with silver heatsinks and black PCB

MSI

MSI Prestige X570 Creation AMD motherboard

SKU CH-K03D-M1AZX

E-ATX AMD X570 board with Socket AM4, dual-channel DDR4 up to 128GB, dual PCIe 4.0 x16 slots, six SATA III ports, dual 1G and 10G LAN, Realtek ALC1220 7.1 audio.

  • CPU Socket TypeSocket AM4
  • CPU TypeSupport AM4 pin second and third generation AMD Ryzen ™/Rade
  • ChipsetAMD X570
  • Memory StandardSupport dual-channel DDR4 1866/2133/2400/2667/2800/2933/3000
  • Maximum Memory Supported128GB
  • PCI Slots2 PCIe 4.0/3.0 x16 slots (PCI_E2, PCI_E5) 2x PCIe 4.0/3.0 x1
  • Supports 128GB DDR4 memory for heavy multitasking
  • Dual 10GbE and 1GbE LAN for fast wired networking
  • PCIe 4.0 x16 slots enable high-speed GPU and add-in cards
  • Realtek ALC1220 codec delivers 7.1 channel high-definition audio
  • 12 USB 3.2 Gen1 ports provide extensive peripheral connectivity

Platform and Audience

The MSI Prestige X570 Creation motherboard uses the AMD X570 chipset and Socket AM4 to support second and third generation Ryzen desktop processors. It targets content creators and workstation builders who need high memory capacity and multiple high-speed expansion slots in an E-ATX form factor.

Sustained Load Behaviour

The board provides 2xDDR4 slots supporting up to 128GB at speeds from 1866 to 4600MHz, enabling large datasets to remain in memory during long rendering or compilation sessions. Dual PCIe 4.0 x16 slots with third generation Ryzen CPUs deliver full bandwidth to GPUs or capture cards without throttling, while the Intel I211AT and Aquantia AQC107 controllers maintain stable 1GbE and 10GbE throughput under continuous network traffic.

Installation Notes

The package includes the motherboard, three SATA cables and a chassis I/O back panel but no original box or additional accessories. Buyers must verify CPU generation compatibility because second generation Ryzen limits the primary slots to PCIe 3.0, while third generation unlocks PCIe 4.0. Memory population is limited to two slots, so reaching 128GB requires 64GB modules that may not be widely available.

Highlights

  • Supports 128GB DDR4 memory for heavy multitasking
  • Dual 10GbE and 1GbE LAN for fast wired networking
  • PCIe 4.0 x16 slots enable high-speed GPU and add-in cards
  • Realtek ALC1220 codec delivers 7.1 channel high-definition audio
  • 12 USB 3.2 Gen1 ports provide extensive peripheral connectivity

Specifications

BrandMSI
SeriesMSI PRESTIGE X570 CREATION
ModelMSI PRESTIGE X570 CREATION
CPU Socket TypeSocket AM4
CPU TypeSupport AM4 pin second and third generation AMD Ryzen ™/Radeon ™ Vega display chip Ryzen ™/Radeon ™ display chip second generation AMD Ryzen ™ desktop processor
ChipsetAMD X570
Memory StandardSupport dual-channel DDR4 1866/2133/2400/2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400/4533/4600MHz memory
Maximum Memory Supported128GB
PCI Slots2 PCIe 4.0/3.0 x16 slots (PCI_E2, PCI_E5)
2x PCIe 4.0/3.0 x16 slot (PCI_E2, PCI_E5)
Third generation AMD Ryzen ™ supports PCIe 4.0 x16/x0, x8/x8???
2nd generation AMD Ryzen ™ supports PCIe 3.0x16/x0, x8/x8???
Ryzen ™ processor with Radeon ™ Vega display chip/2nd generation AMD Ryzen ™ processor with Radeon ™ display chip supports PCIe 3.0 x8/x0 speed
1 PCIe 4.0/3.0 x16 slot (PCI_E7, supports x4 speeds)
4 PCIe 2.0 x1 slots
SATA RAID6XSATA III interface, 2xM.2 PCIe (Gen4x4)
Audio ChipsetRealtek ALC1220 Decoder Chip
7.1 channel high-quality sound effects
Supports S/PDIF output
LAN Chipset1X Intel I211AT Gigabit Network Controller
1X Aquantia AQC107 10-Gigabit Network Controller
Onboard USBAMD X570 chipset
1 USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C internal connector
12 USB 3.2 Gen1 (SuperSpeed USB) ports (8 Type-A ports on the backplane, 4 ports via internal USB 3.2 Gen1 connector)
6 USB 2.0 (High-speed USB) ports (2 Type-A ports on the backplane, 4 ports via internal USB 2.0 connector)
AMD processor
2 USB 3.2 Gen2 (3rd generation AMD Ryzen ™) or USB 3.2 Gen1 (2nd generation AMD Ryzen ™/Ryzen with Radeon ™ Vega display chip ™/2nd generation AMD Ryzen with Radeon ™ display chip ™) Type-A and Type-C ports on the backplane
2 USB 3.2 Gen1 (SuperSpeed USB) Type-A ports

Questions about this item

How loud or hot does the X570 chipset fan get when the board runs all day?

The X570 chipset includes an active cooler; noise and temperature depend on case airflow and the workload you run.

Which DDR4 memory speeds and CPU cooler clearance must I already have to use this board?

The board supports dual-channel DDR4 from 1866 up to 4600 MHz and needs an AM4-mount cooler that fits the E-ATX layout.

Will my second-generation Ryzen CPU run the two PCIe 4.0 x16 slots at full speed?

Second-generation Ryzen processors limit those slots to PCIe 3.0 x16 or x8/x8, while third-generation Ryzen enables PCIe 4.0 operation.
