Green micro-ATX board with silver heatsinks, black slots and rear I/O shield

MSI

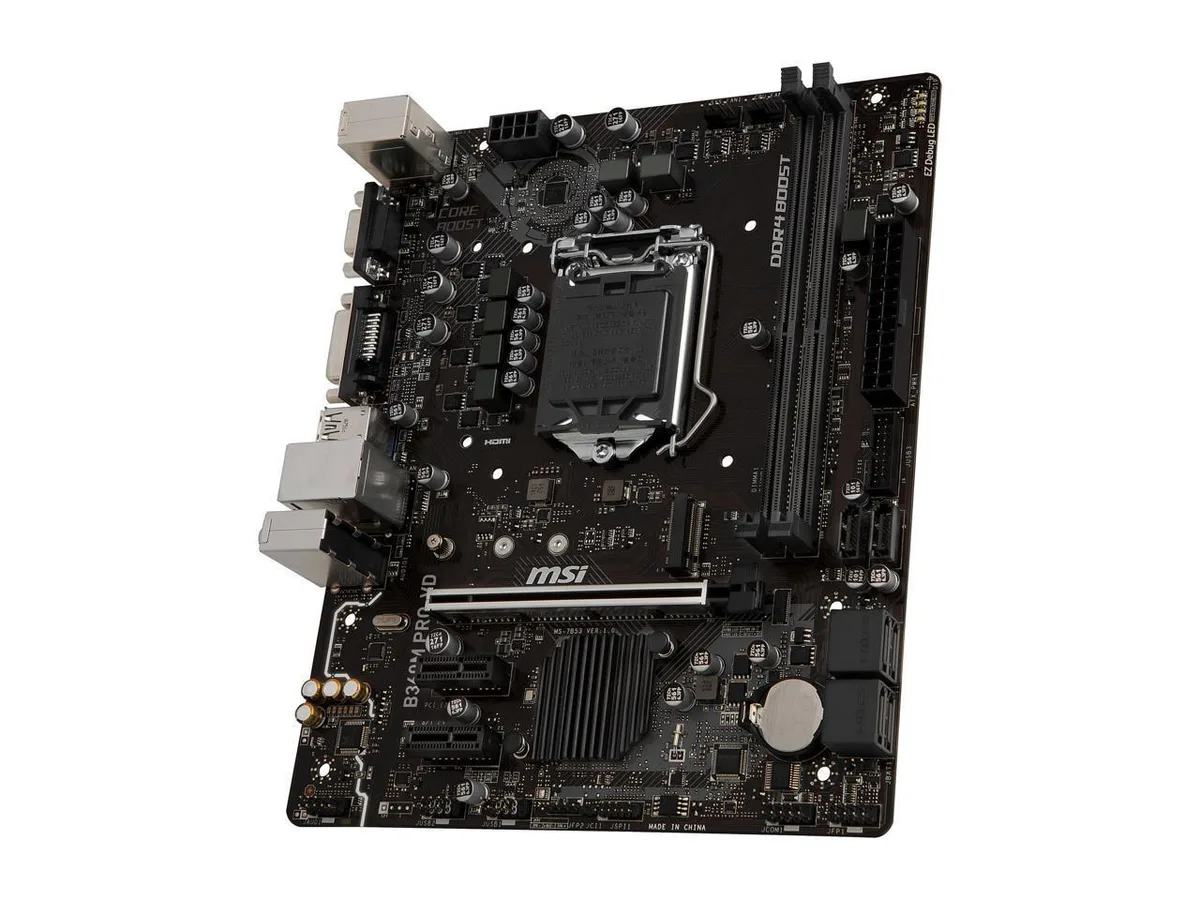

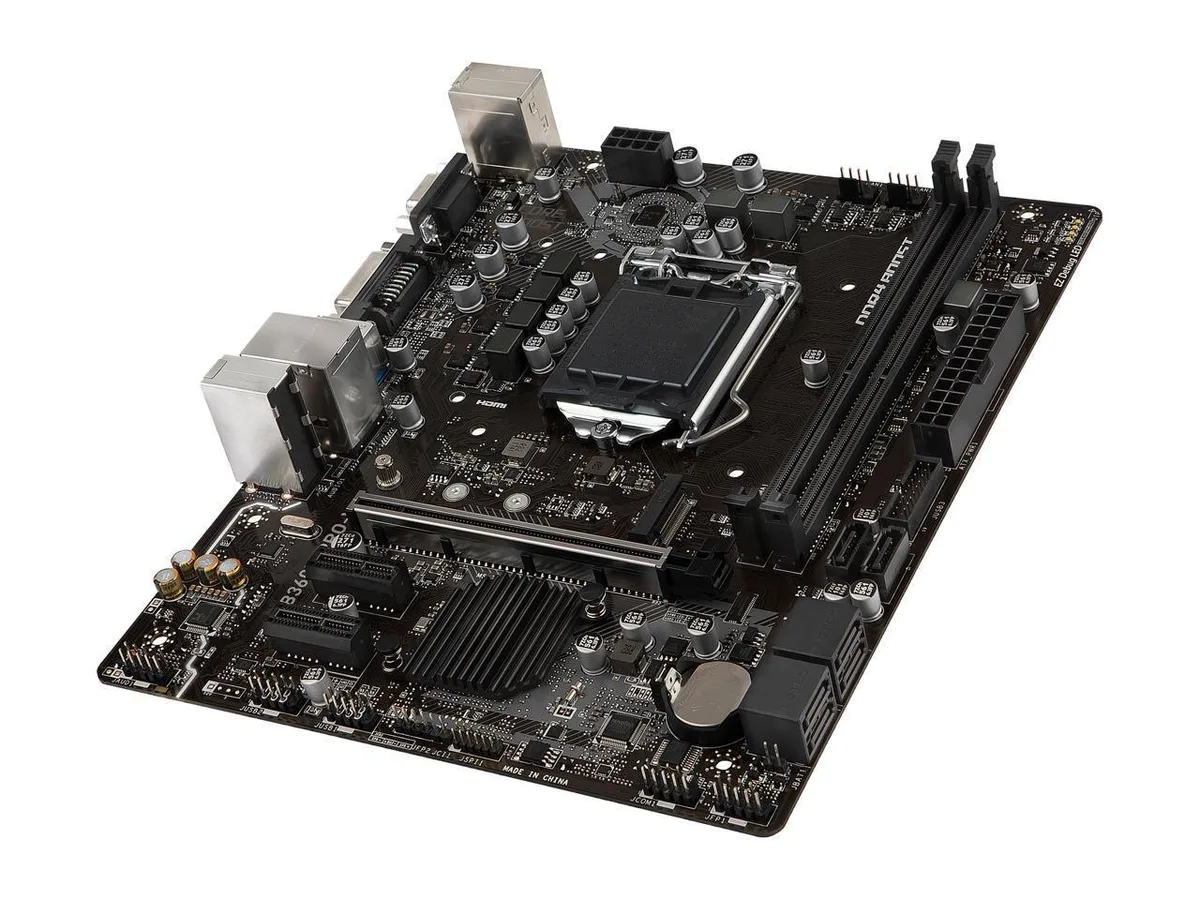

MSI PRO B360M PRO-VD Intel motherboard

SKU CH-NPM5-AHBYG

Micro-ATX B360 board for 8th/9th Gen LGA 1151 CPUs with two DDR4 slots up to 32 GB, one PCIe 3.0 x16, two PCIe x1, six SATA 6Gb/s, one M.2 Key M, Realtek ALC887 7.1 audio and RTL8111H Gigabit LAN

  • CPU Socket TypeLGA 1151 (300 Series)
  • CPU TypeSupports 9th/8th Gen Intel Core / Pentium Gold / Celeron pro
  • ChipsetIntel B360
  • Onboard Video ChipsetSupported only by CPU with integrated graphic: 1 x VGA port,
  • Number of Memory Slots2x288pin (DDR4)
  • Memory StandardSupports DDR4 2666/ 2400/ 2133 MHz
  • Supports 9th and 8th Gen Intel Core processors on LGA 1151 socket
  • Dual-channel DDR4 memory up to 2666 MHz with 32 GB maximum capacity
  • PCIe 3.0 x4 M.2 slot accepts 2242, 2260 and 2280 storage devices
  • Six SATA 6Gb/s ports for high-speed drive connectivity
  • Realtek ALC887 7.1-channel audio and 1 Gbps LAN for everyday use

Socket LGA 1151 (300 Series) support

This Micro ATX motherboard accepts 8th and 9th generation Intel Core, Pentium Gold and Celeron processors. It is not compatible with earlier LGA 1151 CPUs. The Intel B360 chipset provides a stable platform for everyday computing and office workloads.

Dual-channel DDR4 memory layout

Two 288-pin slots support DDR4 at 2666, 2400 and 2133 MHz with a maximum capacity of 32 GB. The board delivers consistent throughput under sustained workloads thanks to the B360 chipset and PCIe 3.0 lanes. A single PCIe 3.0 x16 slot and two PCIe 3.0 x1 slots handle graphics and add-in cards.

Realtek ALC887 audio and RTL8111H LAN

The onboard 7.1 channel audio codec and gigabit Ethernet controller run cool during normal operation. Six SATA 6Gb/s ports and one M.2 Key M slot supporting 2242, 2260 and 2280 drives provide storage flexibility without adding heat. Video output relies on the CPU integrated graphics via VGA and DVI-D ports.

Highlights

  • Supports 9th and 8th Gen Intel Core processors on LGA 1151 socket
  • Dual-channel DDR4 memory up to 2666 MHz with 32 GB maximum capacity
  • PCIe 3.0 x4 M.2 slot accepts 2242, 2260 and 2280 storage devices
  • Six SATA 6Gb/s ports for high-speed drive connectivity
  • Realtek ALC887 7.1-channel audio and 1 Gbps LAN for everyday use

Specifications

BrandMSI
SeriesPRO
ModelB360M PRO-VD
CPU Socket TypeLGA 1151 (300 Series)
CPU TypeSupports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
* Not backward compatible with older generation of LGA 1151 CPUs
ChipsetIntel B360
Onboard Video ChipsetSupported only by CPU with integrated graphic:
1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
* No Display support when using the Processor model with suffix "F"
Number of Memory Slots2x288pin (DDR4)
Memory StandardSupports DDR4 2666/ 2400/ 2133 MHz
Maximum Memory Supported32GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express x12 x PCIe 3.0 x1 slots
Serial ATA (SATA)6 x SATA 6Gb/s
* The SATA2 port will be unavailable when an M.2 SATA SSD module has been installed in the M.2 slot.
M.21 x M.2 slot (Key M)
Supports up to PCIe 3.0 x4 and SATA 6Gb/s
Supports 2242/2260/2280 storage devices
Intel Optane ReadyYes
* Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
Audio ChipsetRealtek ALC887
Audio Channels7.1 Channels
LAN ChipsetRealtek RTL8111H
Max LAN Speed1Gbps
Onboard USB1 x USB 3.1 Gen1 connector1 (supports additional 2 USB 3.1 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors1 x Clear CMOS jumper
2 x Front panel connectors
1 x Serial port connector
1 x Chassis Intrusion connector
1 x Front panel audio connector
1 x 4-pin CPU fan connector
1 x 4-pin system fan connector
Form FactorMicro ATX
Dimensions (W x L)8.9" x 7.3"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
FeaturesSupports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket.
Supports DDR4 Memory, up to 2666 MHz.
Audio Boost: Reward your ears with studio grade sound quality.
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
EZ Debug LED: Easiest way to troubleshoot.
PCI-E Steel Armor: Protecting VGA cards against bending and EMI for better performance,stability and strength.
X-Boost: Software that auto-detects and allows you to boost the performance of any storage, Optane or USB device.
Core Boost: With premium layout and fully digital pow

Questions about this item

How loud or hot does the B360M PRO-VD run when left on all day?

The board has no active cooling of its own; temperature and noise depend on the CPU cooler, case airflow and the 9th or 8th Gen processor you install.

What must I already own for the B360M PRO-VD to work?

You need a 9th or 8th Gen Intel Core, Pentium Gold or Celeron CPU for LGA 1151, DDR4 memory modules up to 32 GB, a power supply with 24-pin and 8-pin EPS connectors, and a graphics card if the chosen CPU lacks integrated graphics.

Will my existing SATA drives and PCIe cards work with this B360M PRO-VD?

Six SATA 6Gb/s ports accept current drives — one port disables when an M.2 SATA SSD is fitted — and the PCIe 3.0 x16 plus two x1 slots take existing expansion cards.
