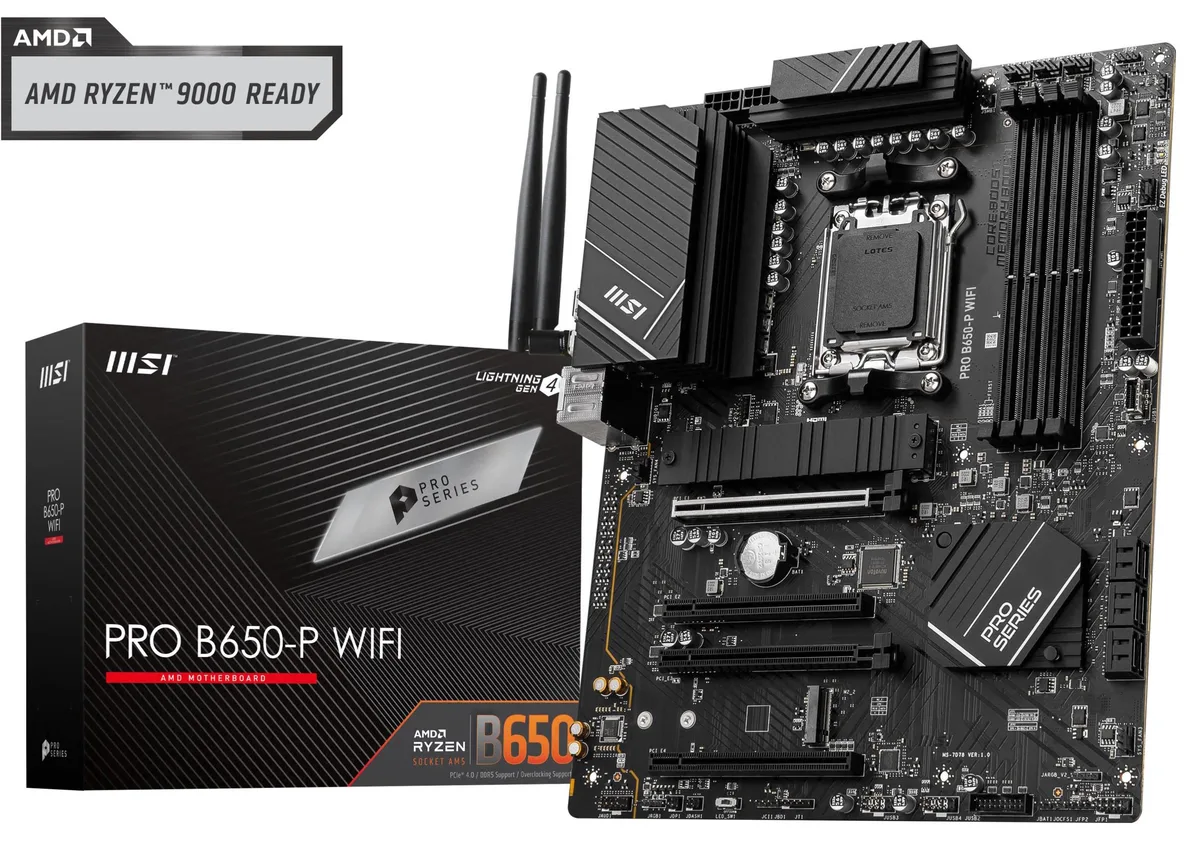

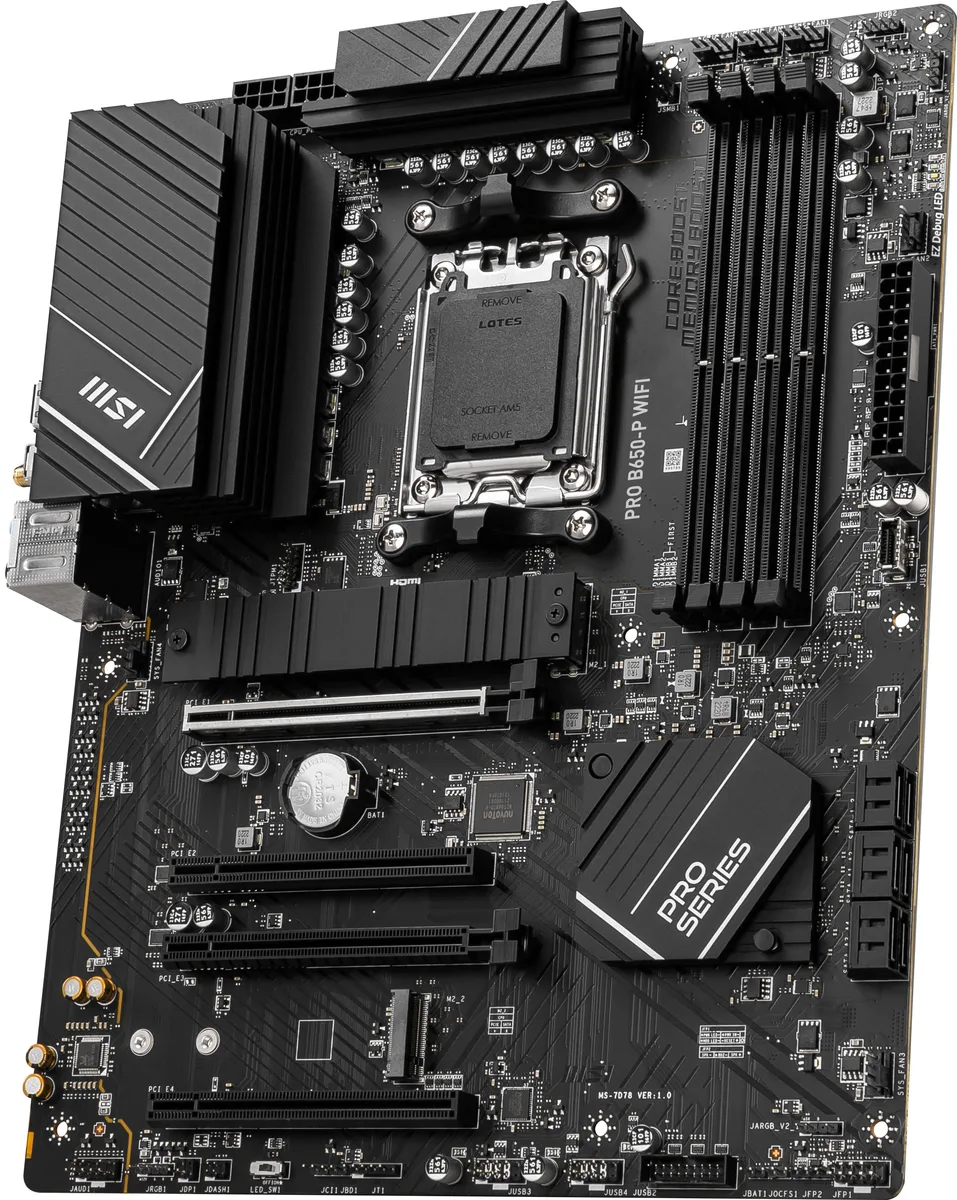

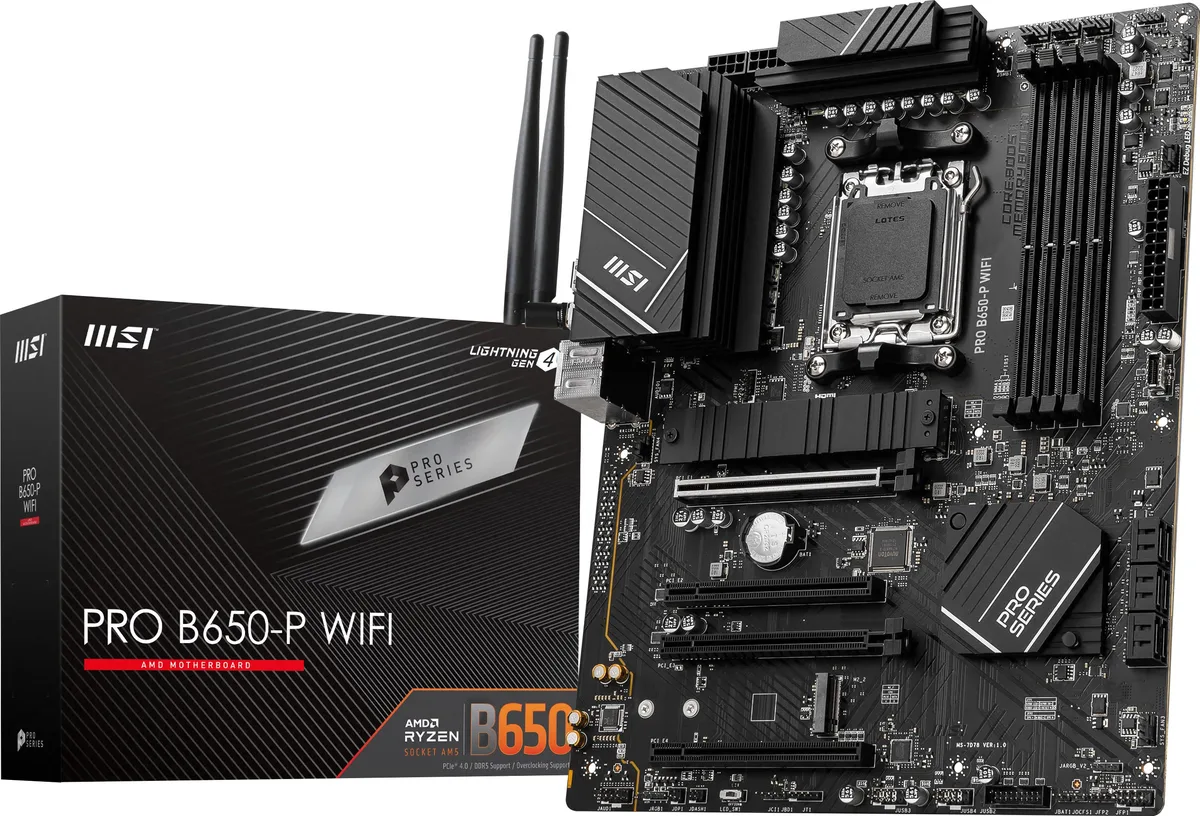

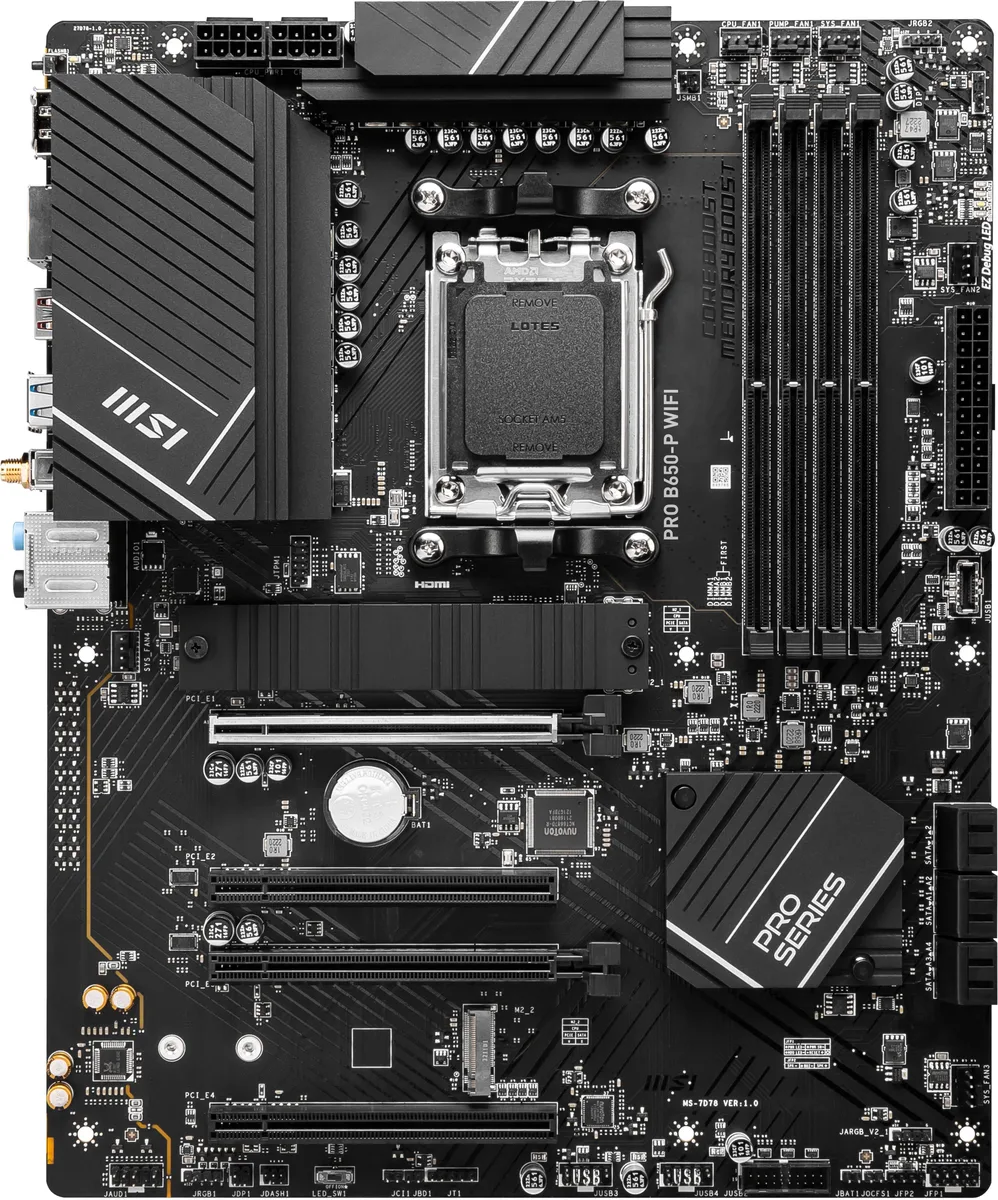

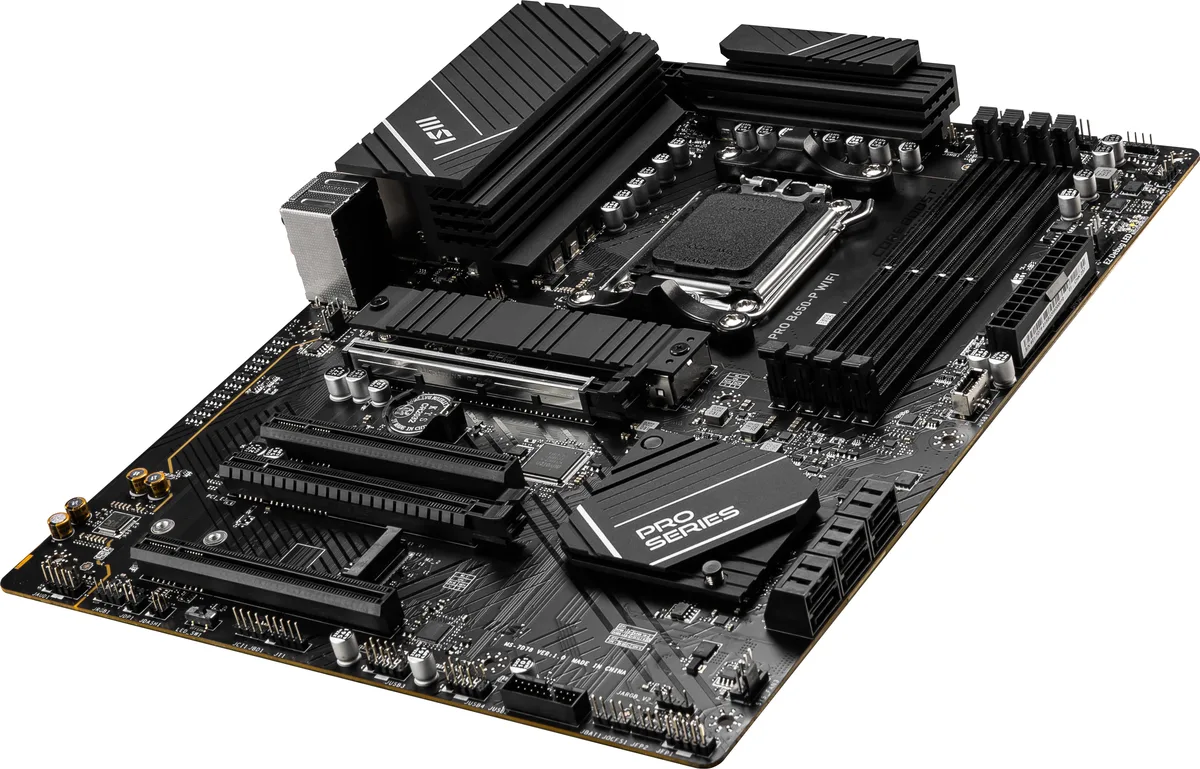

Rectangular ATX board with black PCB, silver heatsinks, four DDR5 slots, multiple PCIe and M.2 sockets, rear I/O shield visible

MSI

MSI PRO B650-P WIFI AMD motherboard

SKU CH-T1Z7-XE7BT MPN PRO B650-P WIFI

An ATX board for AM5 Ryzen 7000 and 9000 CPUs with four DDR5 slots up to 256 GB, two PCIe 4.0 M.2 sockets, six SATA ports, 2.5 Gbps LAN and Wi‑Fi 6E

  • CPU Socket TypeAM5
  • CPU TypeSupports AMD Ryzen 7000 Series Desktop Processor
  • ChipsetAMD B650
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardMemory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/
  • Maximum Memory Supported256GB
  • Supports AMD Ryzen 7000 and 9000 series processors
  • DDR5 memory up to 6400 MHz with AMD EXPO profiles
  • Two PCIe 4.0 M.2 slots with M.2 Shield FROZR cooling
  • 5 Gbps LAN plus Wi-Fi 6E for fast networking
  • 1 channel Realtek ALC897 audio for immersive sound

AM5 Socket AMD B650 Motherboard

The MSI PRO B650-P WIFI accepts AMD Ryzen 7000 and 9000 Series processors in an AM5 socket. It targets builders who need a mainstream ATX board with modern connectivity for daily work and gaming. The B650 chipset provides a stable platform without enthusiast pricing.

256GB DDR5 Capacity Dual Channel

Four 288-pin slots support up to 256GB of DDR5 memory running at JEDEC 4800 MHz or overclocked speeds up to 6400 MHz via AMD EXPO. Dual-channel architecture feeds the CPU efficiently. Six SATA 6Gb/s ports and two CPU-linked M.2 slots handle 2280 and 22110 drives at PCIe 4.0 x4.

Wi-Fi 6E 2.5Gbps LAN Extended Heatsink

Onboard Wi-Fi 6E covers the 6 GHz band while a Realtek 8125BG controller delivers wired 2.5Gbps Ethernet. An extended PWM heatsink and M.2 Shield FROZR keep thermals in check during sustained loads. Four PCIe slots (one x16 Gen4, one x4 Gen4, two x1 Gen3) leave room for GPU and add-in cards.

Highlights

  • Supports AMD Ryzen 7000 and 9000 series processors
  • DDR5 memory up to 6400 MHz with AMD EXPO profiles
  • Two PCIe 4.0 M.2 slots with M.2 Shield FROZR cooling
  • 5 Gbps LAN plus Wi-Fi 6E for fast networking
  • 1 channel Realtek ALC897 audio for immersive sound

Specifications

BrandMSI
ModelPRO B650-P WIFI
CPU Socket TypeAM5
CPU TypeSupports AMD Ryzen 7000 Series Desktop Processor
ChipsetAMD B650
Number of Memory Slots4x288pin (DDR5)
Memory StandardMemory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
PCI Express 4.0 x164x PCIe x16 slots
PCI_E1 slot (From CPU, only Raphael support)
- Supports up to PCIe 4.0 x16
PCI_E2 (From B650 chipset)
- Supports up to PCIe 3.0 x1
PCI_E3 (From B650 chipset)
- Supports up to PCIe 4.0 x4
PCI_E4 (From B650 chipset)
- Supports up to PCIe 3.0 x1
Serial ATA (SATA)6x SATA 6Gb/s ports
- SATA_1~2 (From B650 chipset)
- SATA_A1~A4 (From ASM1064)
M.22 x Key M (PCIe) + 1 x Key E (WiFi/BT)
2x M.2 slots (Key M)
M2_1 slot (From CPU)
- Supports up to PCIe 4.0 x4
- Supports 2280/ 22110 storage devices
M2_2 slot (From CPU)
- Supports up to PCIe 4.0 x4
- Supports 2260/ 2280 storage devices
SATA RAIDSupports RAID 0 and RAID 1 for SATA storage devices*
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
* SATAA1~A4 do not support RAID function.
Audio ChipsetRealtek ALC897
Audio Channels7.1 Channels
LAN Chipset1x Realtek 8125BG 2.5Gbps LAN controller
Max LAN Speed2.5Gbps
Wireless LANAMD Wi-Fi RZ616
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz*(160MHz) up to 2.4Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
BluetoothSupports Bluetooth 5.2*, FIPS, FISMA
* Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.

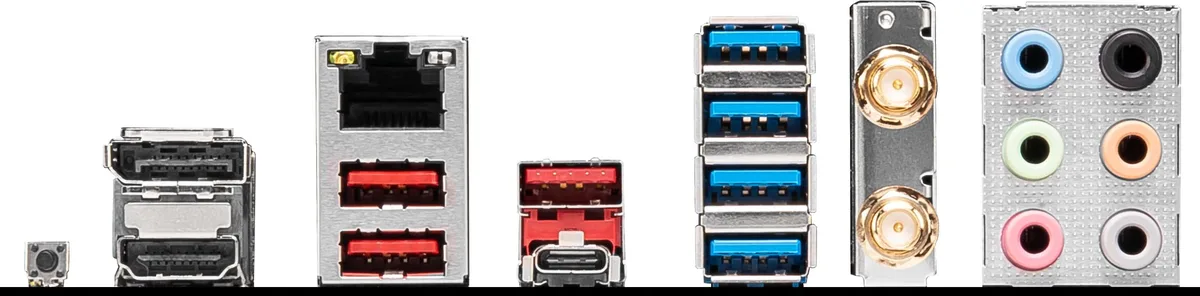

Back I/O Ports1x Flash BIOS button
1x DisplayPort port
1x HDMI port
4x USB 3.2 Gen 1 5Gbps Type-A ports (From Hub-1074)
3x USB 3.2 Gen 2 10Gbps Type-A port (From CPU)
1x USB 3.2 Gen 2x2 20Gbps Type-C port (From B650 chipset)
1x LAN (RJ45) jack
2x Wi-Fi Antenna connectors
6x Audio jacks
Onboard USB1x USB 3.2 Gen 2 10Gbps Type-C port (From B650 chipset)
1x USB 3.2 Gen 1 5Gbps connector (From B650 chipset)
- Supports additional 2 USB 3.2 Gen 1 5Gbps ports
2x USB 2.0 Type-A connectors (From B650 chipset)
- Supports additional 4 USB 2.0 ports
Other ConnectorsFan Connectors
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
4x 4-pin system fan connectors
System Connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
1x Tuning Controller connector
Jumpers
1x Clear CMOS jumper
LED Features
1x EZ LED Control switch
2x 4-pin RGB LED connectors
2x 3-pin A-RAINBOW V2 (ARGB Gen2) LED connectors
4x EZ Debug LED
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
Windows 11Supported
FeaturesMSI Center
- Ambient Link
- Frozr AI Cooling
- User Scenario
- True Color
- Live Update
- Hardware Monitoring
- Super Charger
- Devices Speed Up
- Smart Image Finder
- MSI Companion
- System Diagnosis
- System Info
- Microsoft App
- My Device
- MSI Display kit
- Smart Fan Control
- Mystic Light (Sync & control)
Thermal Features
- Extended Heatsink Design
- M.2 Shield Frozr
- K7 MOSFET thermal pad/ Extra choke pad
- Fan headers (CPU + PUMP + SYSTEM)
Performance
- Core Boost
- VRM Power Design
- Dual CPU Power
- Memory Boost
- Lightning Gen 4 PCI-E/ M.2 Slot
- Front USB Type-C
- 2oz Co
Shipping weight2.27 kg
Package size346 × 269 × 65 mm

Questions about this item

Will my existing DDR5-4800 modules run at their rated speed on the PRO B650-P WIFI?

Yes, the board lists DDR5 4800 JEDEC as a supported speed so JEDEC DDR5-4800 modules will operate at their rated frequency without overclocking.

How can I verify the Realtek 8125BG 2.5Gbps LAN is functioning after assembly?

Open Device Manager, confirm the Realtek 8125BG adapter appears without errors, then run a speed test against a 2.5Gbps-capable switch or router to see throughput approaching 2.5 Gbps.

Which cables and modules are included with the motherboard and what must I supply myself?

The board ships with the ATX motherboard, I/O shield, SATA cables, M.2 screws and Wi-Fi 6E antenna; you must provide an AM5 processor, DDR5 memory, storage drives, power supply and case.
