MSI

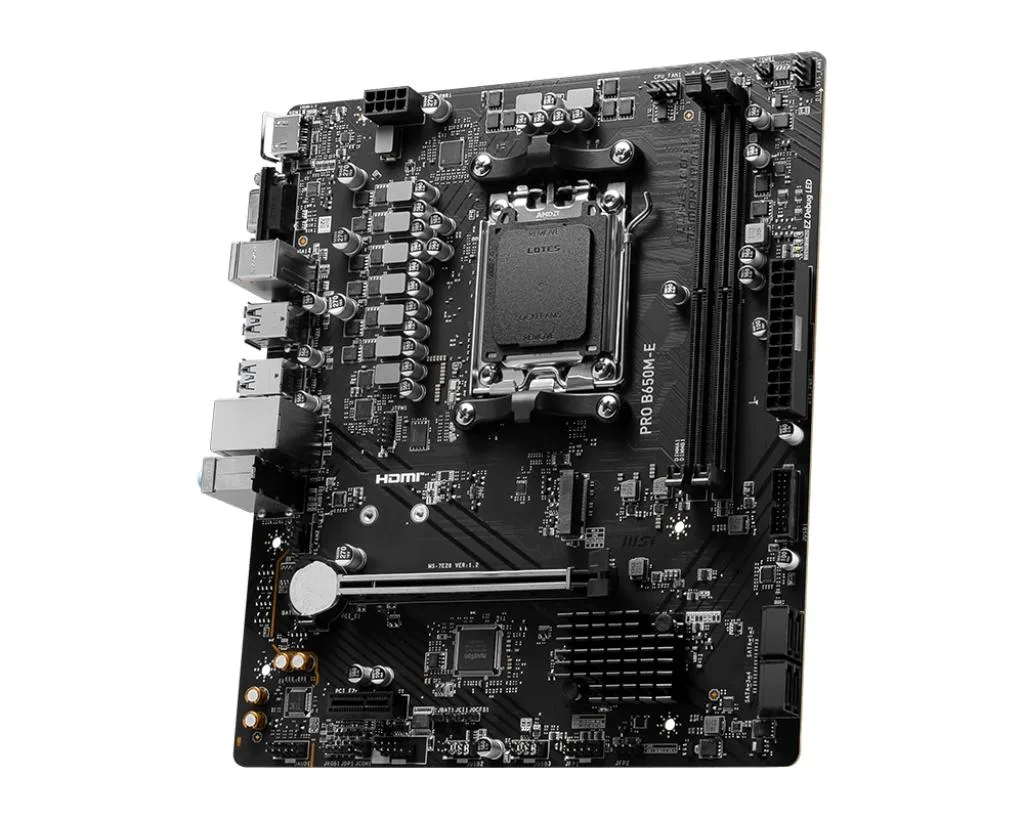

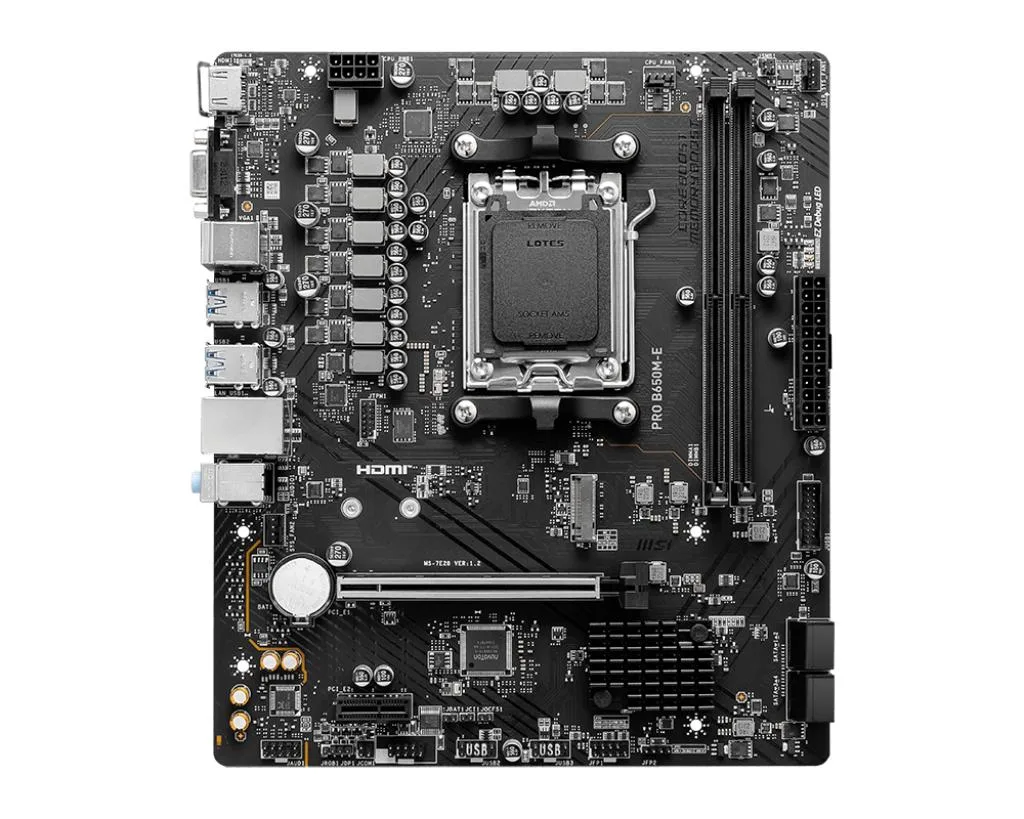

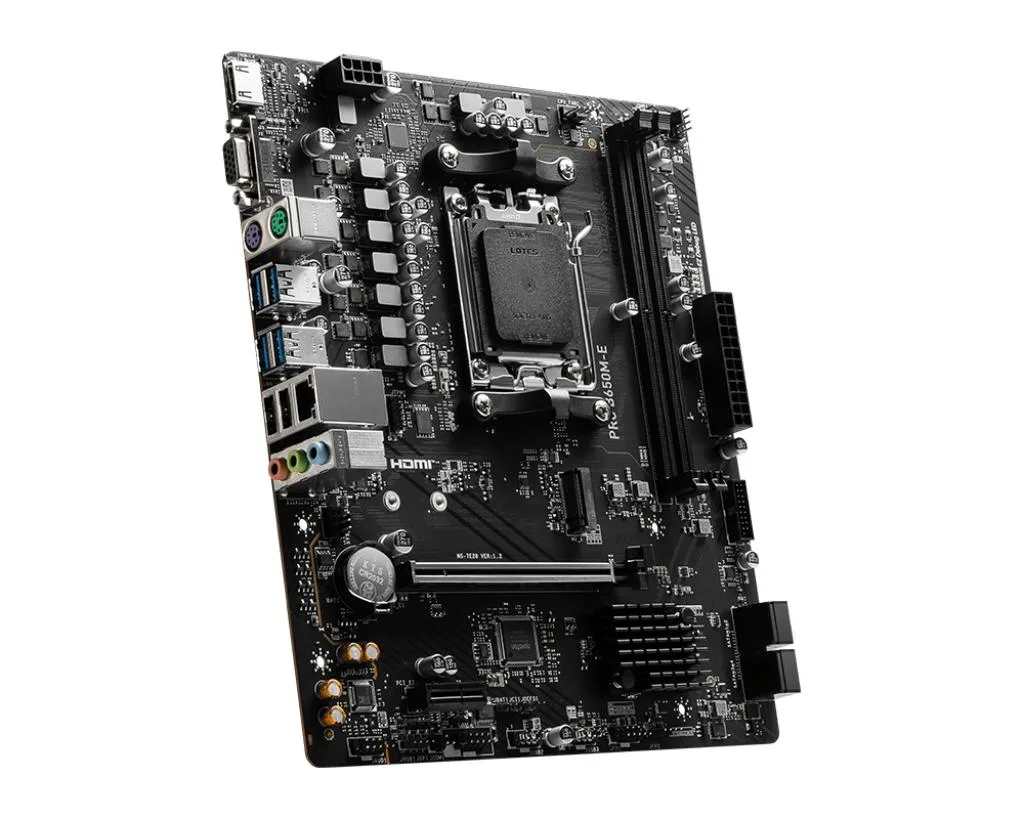

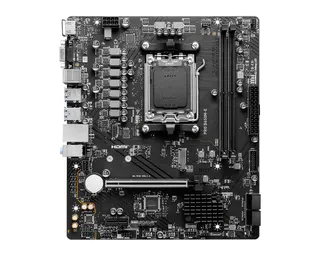

MSI PRO B650M-E AMD Motherboard AM5 DDR5 128GB Micro ATX
Micro-ATX board for Socket AM5 Ryzen processors with DDR5 memory up to 128GB and 7.1-channel audio
- CPU Socket TypeSocket AM5
- CPU TypeSupports AMD Ryzen™ 8000/ 7000 Series Desktop Processors Soc
- ChipsetAMD B650
- Memory StandardSupport DDR5 6800 + (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000
- Maximum Memory Supported128GB
- PCI Slots1X PCI-E x16 slots (quantity) Supports x16 (For Ryzen™ 7000
- Supports AMD Ryzen 7000 and 8000 series processors with Socket AM5
- DDR5 memory up to 6800 MHz OC and 128 GB maximum capacity
- Micro ATX form factor measuring 23.6 by 20.0 cm for compact builds
- Realtek ALC897 codec delivers 7.1 channel high definition audio
- Realtek RTL8111H provides Gigabit LAN connectivity
Socket AM5 DDR5 Motherboard
The MSI PRO B650M-E uses the AMD B650 chipset and a Socket AM5 CPU slot. It supports AMD Ryzen 7000 and 8000 series desktop processors. The board accepts DDR5 memory up to 128GB across two slots with overclocked speeds reaching 6800 MHz. A Micro ATX form factor measuring 23.6 by 20.0 cm fits compact chassis builds.
Compact DDR5 Platform
Builders moving to the AM5 platform with DDR5 memory will find the supported CPU list and memory capacity match mainstream needs. The single PCIe x16 slot changes lane width depending on the installed processor, so users needing full x16 bandwidth should verify their CPU choice. Systems requiring more than one x16 slot or extensive front-panel USB-C connectivity are not served by this layout.
PCIe Lane Configuration Decides Fit
The top PCIe x16 slot runs at x16 with Ryzen 7000 series chips, drops to x8 with Ryzen 7 8700G and Ryzen 5 8600G, and further to x4 with Ryzen 5 8500G. This single specification determines whether a graphics card or add-in card receives the bandwidth the builder expects.
Highlights
- Supports AMD Ryzen 7000 and 8000 series processors with Socket AM5
- DDR5 memory up to 6800 MHz OC and 128 GB maximum capacity
- Micro ATX form factor measuring 23.6 by 20.0 cm for compact builds
- Realtek ALC897 codec delivers 7.1 channel high definition audio
- Realtek RTL8111H provides Gigabit LAN connectivity
Specifications
| Brand | MSI |
|---|---|
| Series | MSI PRO B650M-E |
| Model | MSI PRO B650M-E |
| CPU Socket Type | Socket AM5 |
| CPU Type | Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Chipset | AMD B650 |
| Memory Standard | Support DDR5 6800 + (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800 (JEDEC) MHz |
| Maximum Memory Supported | 128GB |
| PCI Slots | 1X PCI-E x16 slots (quantity) Supports x16 (For Ryzen™ 7000 Series processors) Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors) Supports x4 (For Ryzen™ 5 8500G processor) 1X PCI-E x1 slot (quantity) PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| SATA RAID | 1XM.2 interface, 4xSATA III interface |
| Audio Chipset | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| LAN Chipset | Realtek RTL8111H Gigabit LAN |
| Onboard USB | 2X USB 2.0 (rear) 4X USB 2.0 (front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) |
Questions about this item
Will this board run DDR5 memory at 6000 MHz with a Ryzen 7000 CPU?
Yes, the motherboard lists DDR5 6000 (OC) as a supported speed for Ryzen 7000 series processors.
How many SATA drives can I connect simultaneously?
Four SATA III ports are available on the board for connecting storage drives.
Does the rear I/O include any USB 5 Gbps Type-A ports?
Four USB 5 Gbps Type-A ports are provided on the rear panel.
